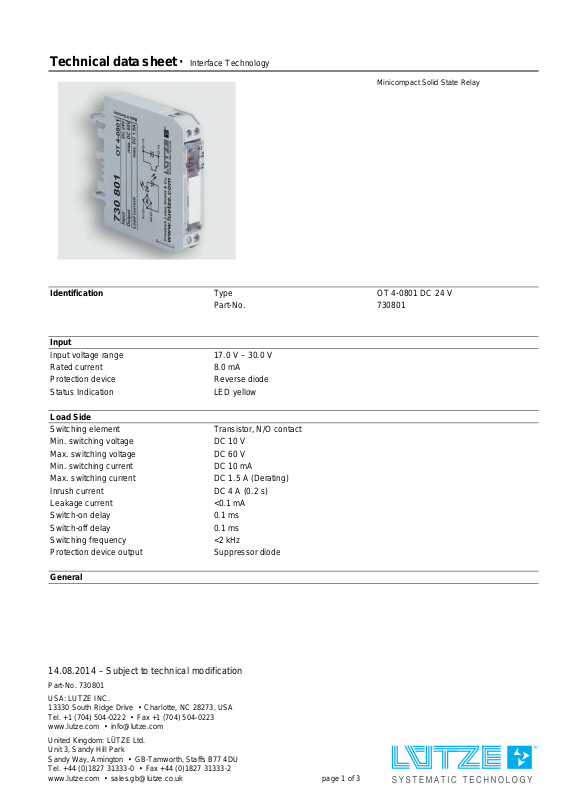

Technical data sheet · Interface Technology

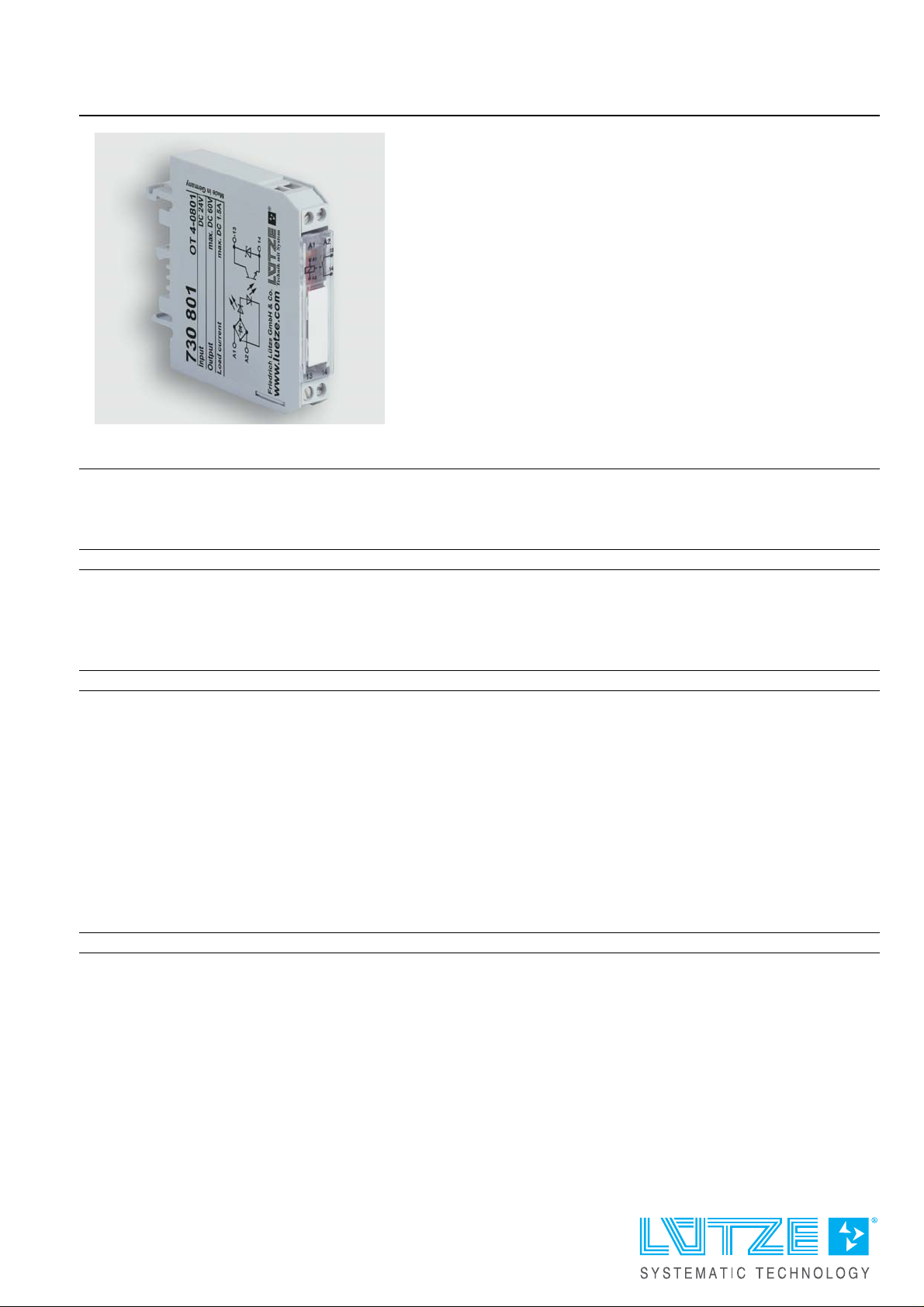

Minicompact Solid State Relay
Subject to technical mo dification 730801
Identification Type OT 4-0801 DC 24 V
Part-No. 730801
Input
Input voltage range 17.0 V – 30.0 V
Rated current 8.0 mA
Protection device Reverse diode
Status Indication LED yellow
Load Side
Switching element Transistor, N/O contact
Min. switching voltage DC 10 V
Max. switching voltage DC 60 V
Min. switching current DC 10 mA
Max. switching current DC 1.5 A (Derating)
Inrush current DC 4 A (0.2 s)
Leakage current <0.1 mA
Switch-on delay 0.1 ms
Switch-off delay 0.1 ms
Switching frequency <2 kHz
Protection device output Suppressor diode
General
14.08.2014 – Subject to technical modification
Part-No. 730801
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 3
Page 2
Technical data sheet · Interface Technology
Housing material PPE
Protection class IP 20
Field installation rail TS 35 (EN 50022)
Insulation voltage input/output 4.0 kV
Clearance/creep. dist.
(control/load side)
Safe isolation yes
Min. working temperature -25 °C
Max. working temperature 60 °C
Min. storage temperature -40 °C
Max. storage temperature 80 °C
Width 11.5
Height 60.0
Depth 67.0
Weight (kg/piece) 0.032
Approvals cULus
Termination Screw terminal: 0.25–2.5 mm

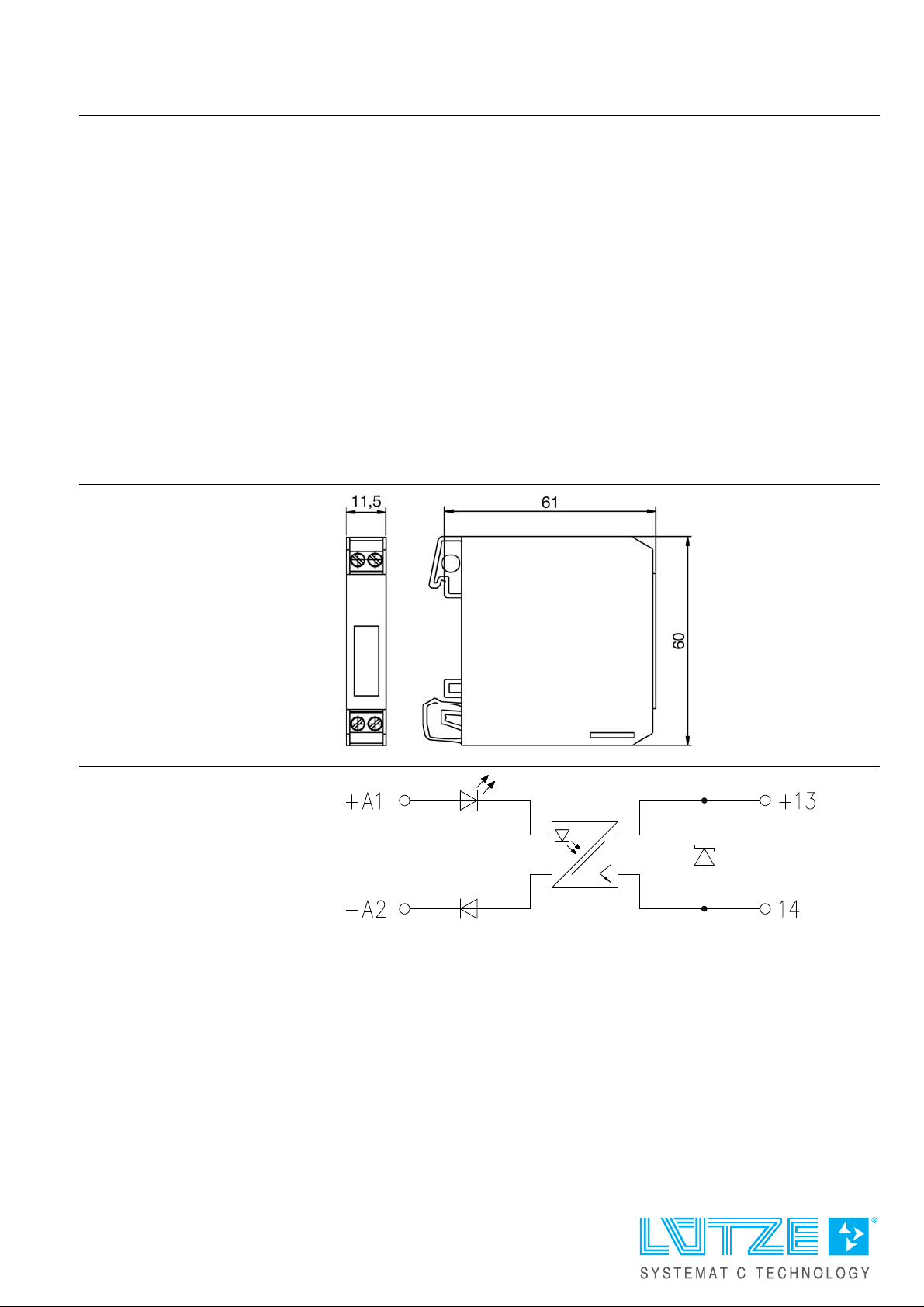

Dimensions
eff
>5.5 mm
2
PIN assignment
14.08.2014 – Subject to technical modification
Part-No. 730801
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 2 of 3
Page 3
Technical data sheet · Interface Technology
Accessories Colour Article number Type PU
Jumper comb 24pole, 26A blue 760801 BK 6-0801 5
Tag holder 7×20 mm white 760968 BZT-0720 100
Labels for laser printer 6,35x15,24 mm
(Sheet with 528 labels)
681033 LEB-0615 1

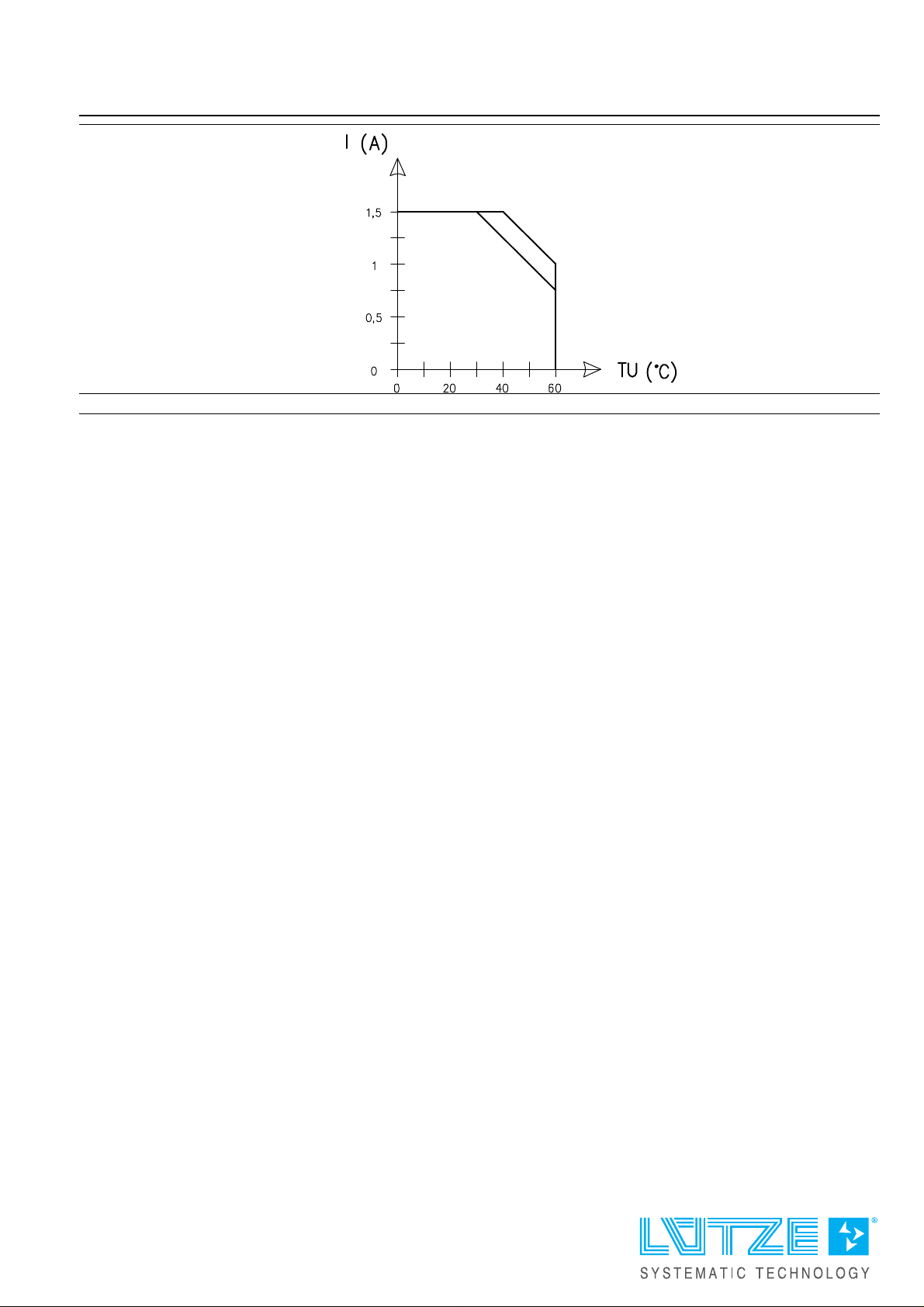

Derating
Accessories
