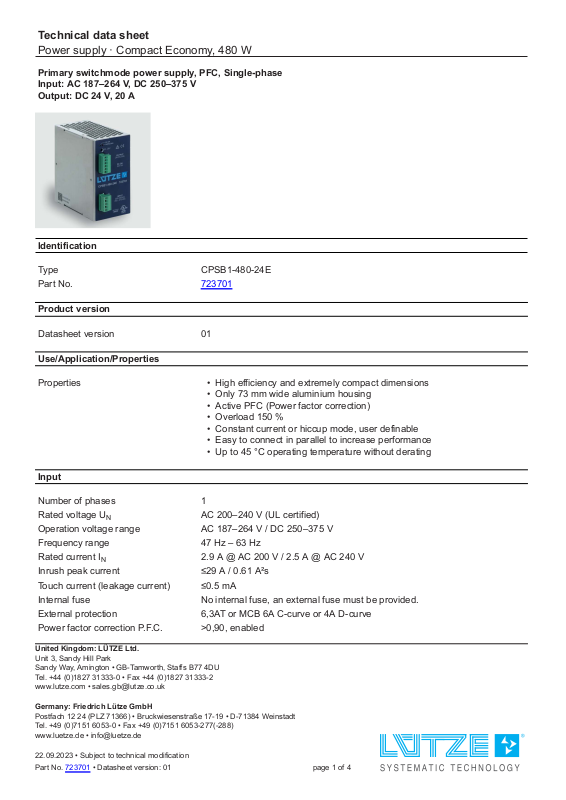

LUTZE 723701 Specification

Technical data sheet

Power supply · Compact Economy, 480 W

Primary switchmode power supply, PFC, Single-phase
Input: AC 187–264 V, DC 250–375 V
Output: DC 24 V, 20 A

Identification

Type CPSB1-480-24E

Part No.

Product version

723701

Datasheet version 01

Use/Application/Properties

Properties • High efficiency and extremely compact dimensions

• Only 73 mm wide aluminium housing

• Active PFC (Power factor correction)

• Overload 150 %

• Constant current or hiccup mode, user definable

• Easy to connect in parallel to increase performance

• Up to 45 °C operating temperature without derating

Input

Number of phases 1

Rated voltage U

N

AC 200–240 V (UL certified)

Operation voltage range AC 187–264 V / DC 250–375 V

Frequency range 47 Hz – 63 Hz

Rated current I

N

2.9 A @ AC 200 V / 2.5 A @ AC 240 V

Inrush peak current ≤29 A / 0.61 A²s

Touch current (leakage current) ≤0.5 mA

Internal fuse No internal fuse, an external fuse must be provided.

External protection 6,3AT or MCB 6A C-curve or 4A D-curve

Power factor correction P.F.C. >0,90, enabled

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-7138 4 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

22.09.2023 • Subject to technical modifica ti o n

Part No.

723701 • Datasheet version: 01 page 1 of 4

Technical data sheet

Power supply · Compact Economy, 480 W

Output

Output voltage/current DC 24 V/20 A

Rated voltage U

Rated current I

N

N

Overload limit in constant current
mode

Max. output current 28 A, 5 s @ Hiccup Mode

Power Dissipation <48 W

Setting range U

out min.

/U

out max.

Load regulation ≤1 %

Ripple and noise ≤50 mV pp

Hold up time ≥50 ms @ AC 240 V

Parallel / redundant mode Yes/via external decoupling diode e.g. Part-No. 722999

Efficiency >91 % @ AC 240 V

Overtemperature protection Yes

Over voltage protection ≥DC 33 V (UA=24 V)

Short circuit Hiccup Mode

DC 24 V

20 A

50 A

DC 23–28 V

Status indication

Status indication DC ON LED green ≥21.6 V

Status indication DC LOW LED red ≤21.6 V

Monitoring

DC ON Control (Rdy) N/O contact

Switching voltage AC/DC 300 V / DC 150 V

Switching current AC/DC 1 A

Switching capacity 300 VA / 30 W

Isolation voltage AC 500 V

General

Insulation voltage input / output DC 4.2 kV, 1 min.

Insulation voltage input / ground DC 2.2 kV, 1 min.

Insulation voltage output / ground DC 750 V, 1 min.

Derating >45 °C: -10 W/°C @ AC 240 V

Cooling Air convection, 100 mm distance top/bottom, 20 mm side

Housing material Aluminum

Mounting DIN rail mountable TS35

(EN 60715)

Installation position Vertical

MTBF MIL-HDBK-217F, >500000 h at 25 °C ambient full load

Degree of protection IP20 (IEC 529 / EN 60529)

Protection class I

Weight/unit 1 kg

Connection type Screw terminal

0,20 mm² – 2,5 mm² / AWG 24–14

22.09.2023 – Subject to technical modification

Part No. 723701 • Datasheet version: 01 page 2 of 4

Technical data sheet

Power supply · Compact Economy, 480 W

Strip length 6.0 - 7.5 mm / 0.24 - 0.30 in

Screwdriver 3,0 × 0,5 mm

Tightening torque 0.5 – 0.6 Nm / 4.42 – 5.30 lbf in

Dimensions (w × h × d) 73.0 mm × 140.0 mm × 149.0 mm

PU (units) 1

General ambient conditions

Operation temperature range -40 °C . .. +70 °C

UL approved up to 45 °C

Storage temperature range -40 °C . .. +80 °C

Over voltage category III (EN 50178)

Degree of pollution 2 (IEC 60664-1)

Relative air humidity 5 – 95 %, non-condensing

Interface

Life-cycle expectancy 65’496 h (7.4 years) at 25 °C ambient full load

Certifications/Standards

Certifications CE

UKCA
cULus (E249179)

Standards UL 508

IEC/EN 61010-1
IEC/EN 61010-2-201
IEC/EN 60950
EN 55011 (CISPR11) Class A
EN 55022 (CISPR22) Class A
EN 61000-3-2 Class A
EN 61000-4-2 Level 3
EN 61000-4-3 Level 3
EN 61000-4-4 Level 4
EN 61000-4-5 Level 3
EN 61000-4-11 Level 2
IEC 60068-2-6 (Vibration sinuosoidal), 5-17.8 Hz: ±1.6 mm, 17.8-500 Hz: 2 g
2 hours / axis (X,Y,Z)
IEC 60068-2-27 (Shock), 30 g 6 ms, 2 0 g 11 ms, 3 bum p s / direction,
18 bumps total

22.09.2023 – Subject to technical modification

Part No. 723701 • Datasheet version: 01 page 3 of 4

Technical data sheet

Power supply · Compact Economy, 480 W

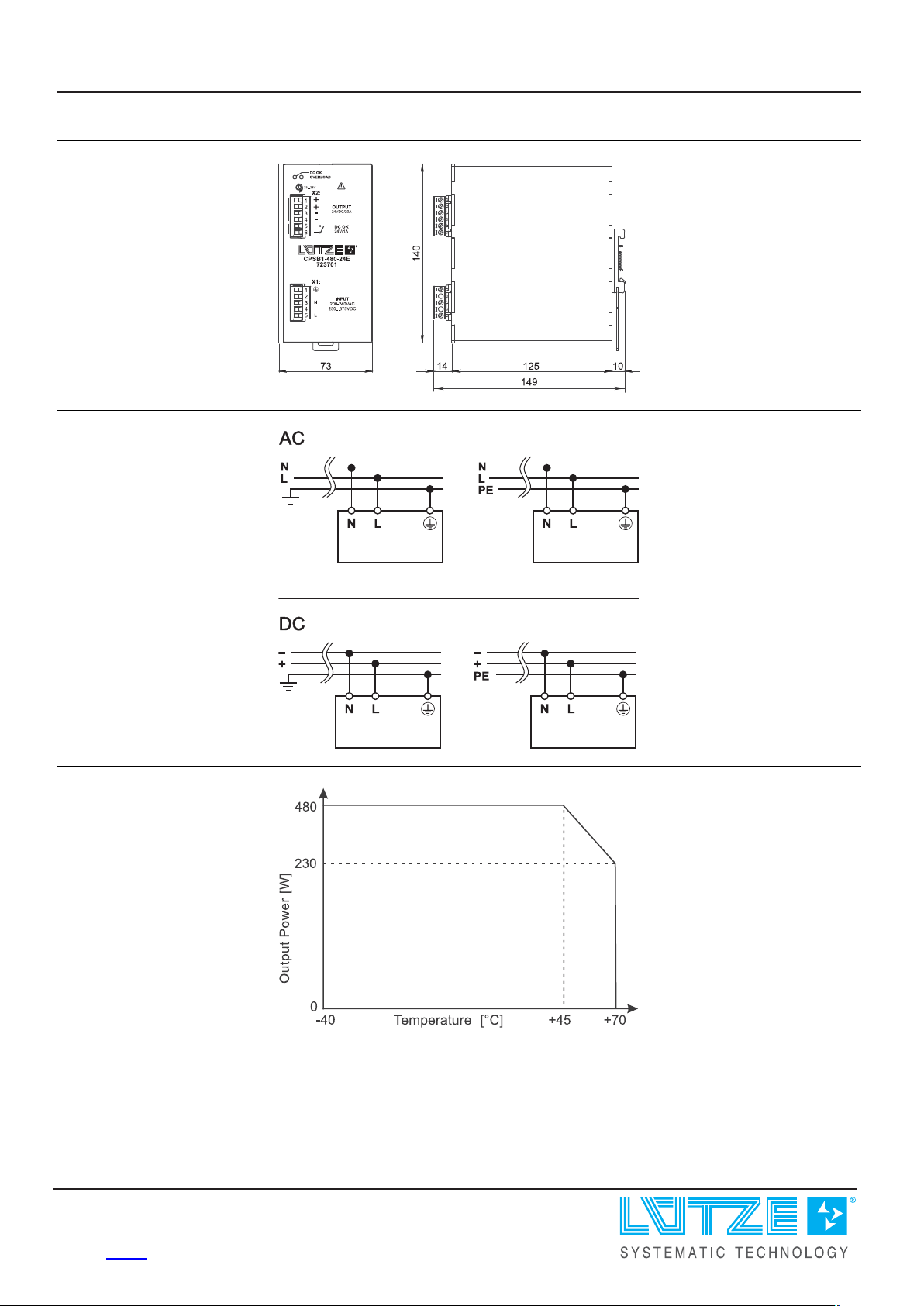

Dimensions

PIN assignment

Derating

22.09.2023 – Subject to technical modification

Part No.

723701 • Datasheet version: 01 page 4 of 4
