LUTZE 723600 Specification

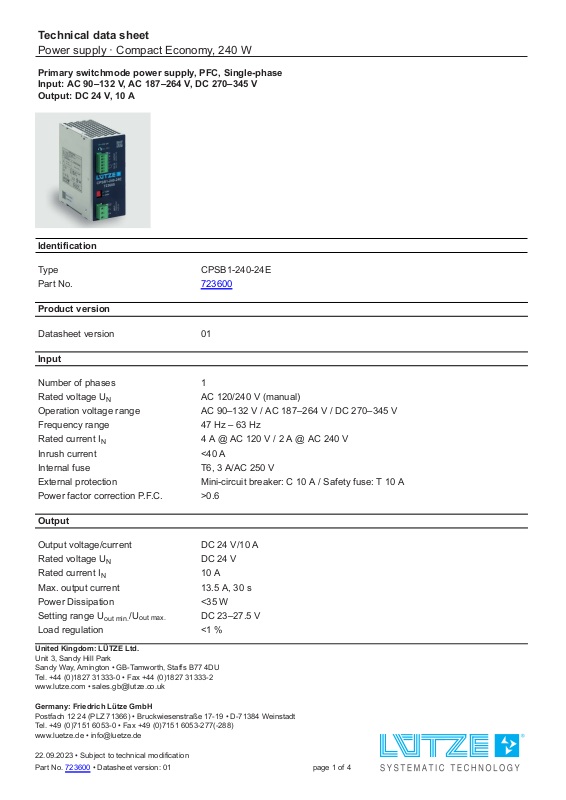

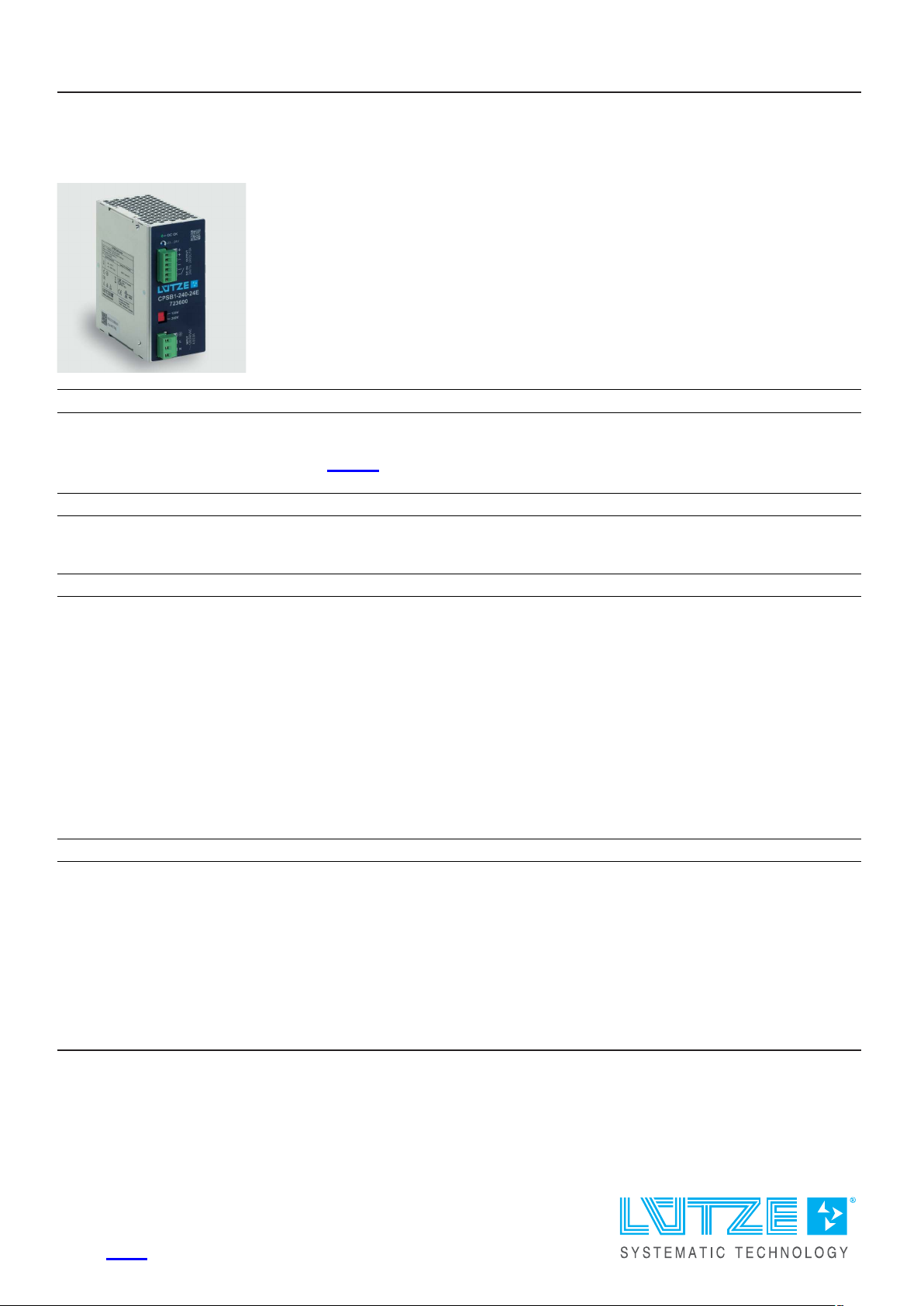

Technical data sheet

Power supply · Compact Economy, 240 W

Primary switchmode power supply, PFC, Single-phase
Input: AC 90–132 V, AC 187–264 V, DC 270–345 V
Output: DC 24 V, 10 A

Identification

Type CPSB1-240-24E

Part No.

Product version

723600

Datasheet version 01

Input

Number of phases 1

Rated voltage U

N

AC 120/240 V (manual)

Operation voltage range AC 90–132 V / AC 187–264 V / DC 270–345 V

Frequency range 47 Hz – 63 Hz

Rated current I

N

4 A @ AC 120 V / 2 A @ AC 240 V

Inrush current <40 A

Internal fuse T6, 3 A/AC 250 V

External protection Mini-circuit breaker: C 10 A / Safety fuse: T 10 A

Power factor correction P.F.C. >0.6

Output

Output voltage/current DC 24 V/10 A

Rated voltage U

Rated current I

N

N

DC 24 V

10 A

Max. output current 13.5 A, 30 s

Power Dissipation <35 W

Setting range U

out min.

/U

out max.

DC 23–27.5 V

Load regulation <1 %

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

22.09.2023 • Subject to technical modification

Part No.

723600 • Datasheet version: 01 page 1 of 4

Technical data sheet

Power supply · Compact Economy, 240 W

Ripple and noise <100 mV pp

Hold up time >60 ms @ AC 120 V / >70 ms @ AC 240 V

Parallel / redundant mode Yes/via external decouplin g diode e.g. 722999

Efficiency >87 %

Overtemperature protection Yes

Over voltage protection >DC 33 V (UA=24 V)

Short circuit Hiccup Mode

Status indication

Status indication DC ON LED g r e e n ≥21.6 V

Status indication DC LOW LED r e d ≤21.6 V

Monitoring

DC ON Control (Rdy) N/O contact

Switching voltage AC 300 V / DC 150 V

Switching current AC/DC 1 A

Switching capacity 300 VA / 30 W

Isolation voltage AC 500 V

General

Insulation voltage input / output DC 4.2 kV

Insulation voltage input / ground DC 2.2 kV

Insulation voltage output / ground DC 750 V

Derating >60 °C: -5 W/°C

Cooling Air convection, 50 mm distance top/bottom, 20 m m side

Housing material Aluminum

Mounting DIN rail mountable TS35

(EN 60715)

Installation position Vertical

Degree of protection IP20 (IEC 529 / EN 60529)

Weight/unit 0.75 kg

Connection type Screw terminal

0.20 mm² – 2.5 mm ²
plug-in

Dimensions (w × h × d) 63.0 mm × 14 0 .0 mm × 139.0 mm

PU (units) 1

General ambient conditions

Operation temperature range -40 °C . . . +70 °C (UL approved up to +50 °C)

Storage temperature range -40 °C . . . +80 °C

Over voltage category III

Degree of pollution 2

22.09.2023 – Subject to technical modification

Part No. 723600 • Datasheet version: 01 page 2 of 4

Technical data sheet

Power supply · Compact Economy, 240 W

Certifications/Standards

Certifications CE

UKCA
cULus (E249179)

Standards UL 508

IEC/EN 61010-1
IEC/EN 61010-2-201
IEC/EN 60950
EN 55011 (CISPR11) Class A
EN 55022 (CISPR22) Class A
EN 61000-4-3 Level 3
EN 61000-4-2 Level 3
EN 61000-4-4 Level 3
EN 61000-4-5 Level 3
EN 61000-4-11 Level 2
IEC 60068-2-6 (Vibration sinuosoidal), 5-17.8 Hz: ±1.6 mm, 17.8-500 Hz: 2 g
2 hours / a xi s (X,Y,Z)
IEC 60068-2-27 (Shock), 30 g 6 ms, 20 g 11 ms, 3 bumps / direction,
18 bumps total

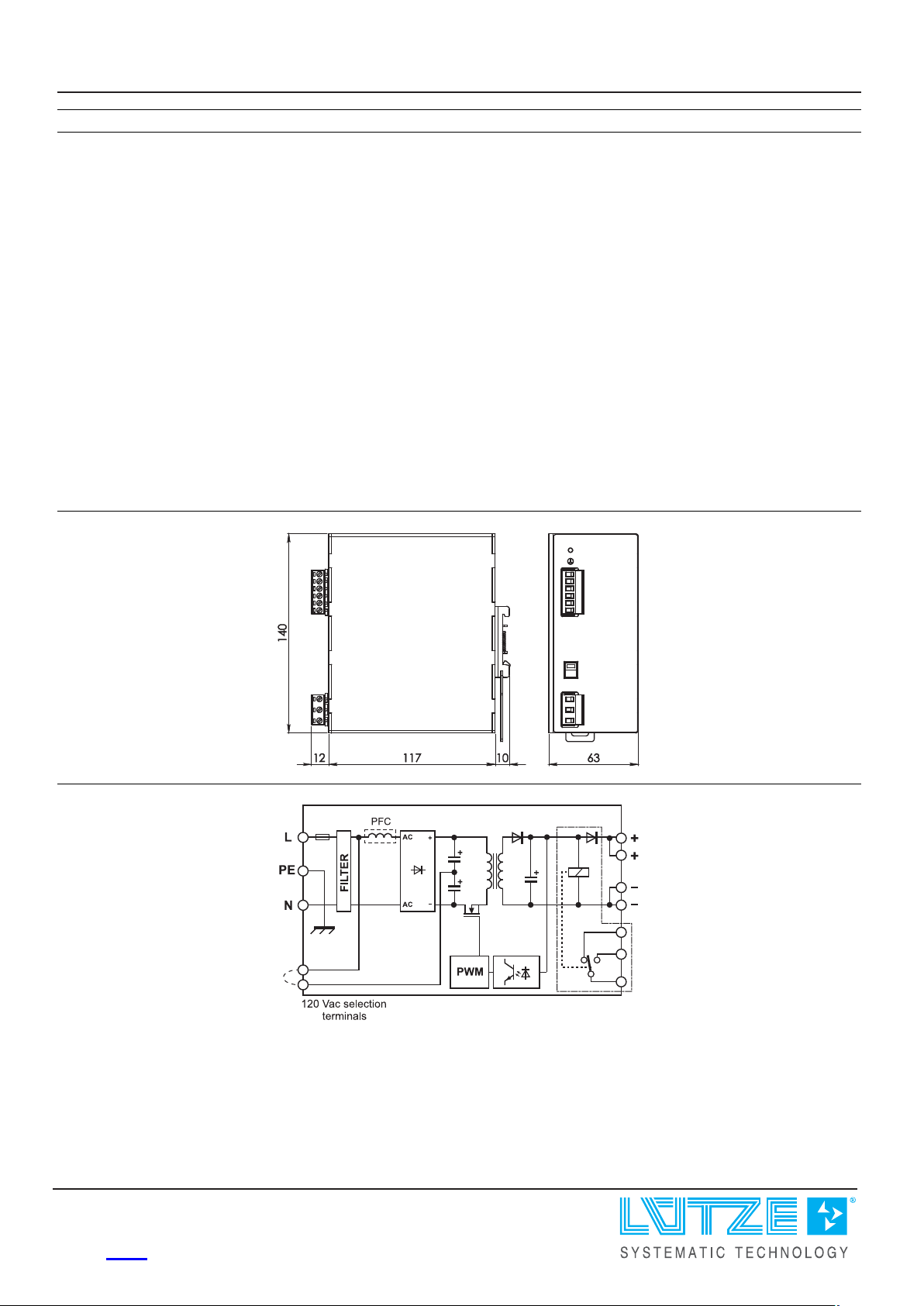

Dimensions

PIN assignment

22.09.2023 – Subject to technical modification

Part No.

723600 • Datasheet version: 01 page 3 of 4

Technical data sheet

Power supply · Compact Economy, 240 W

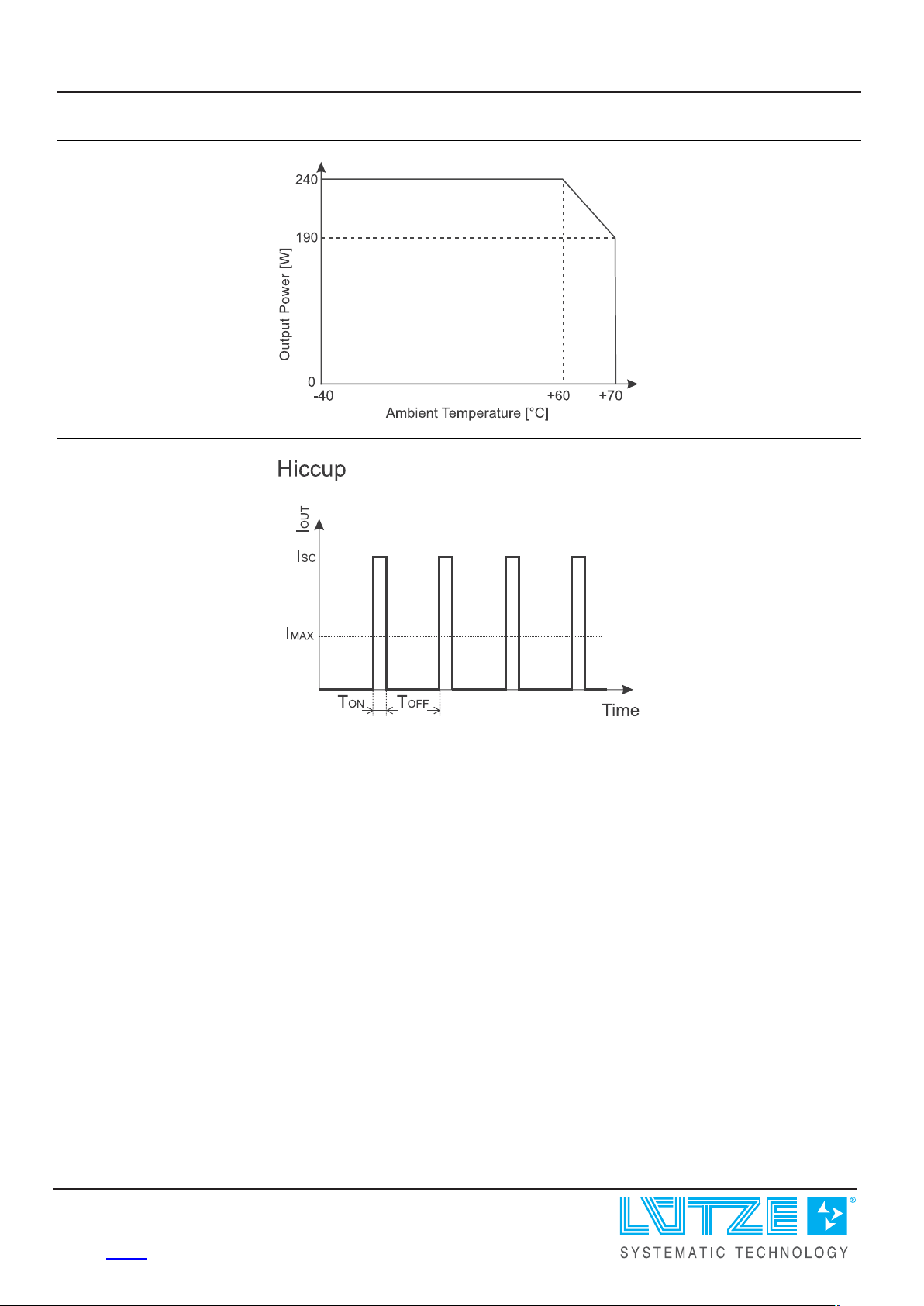

Derating

Short circuit characteristics
