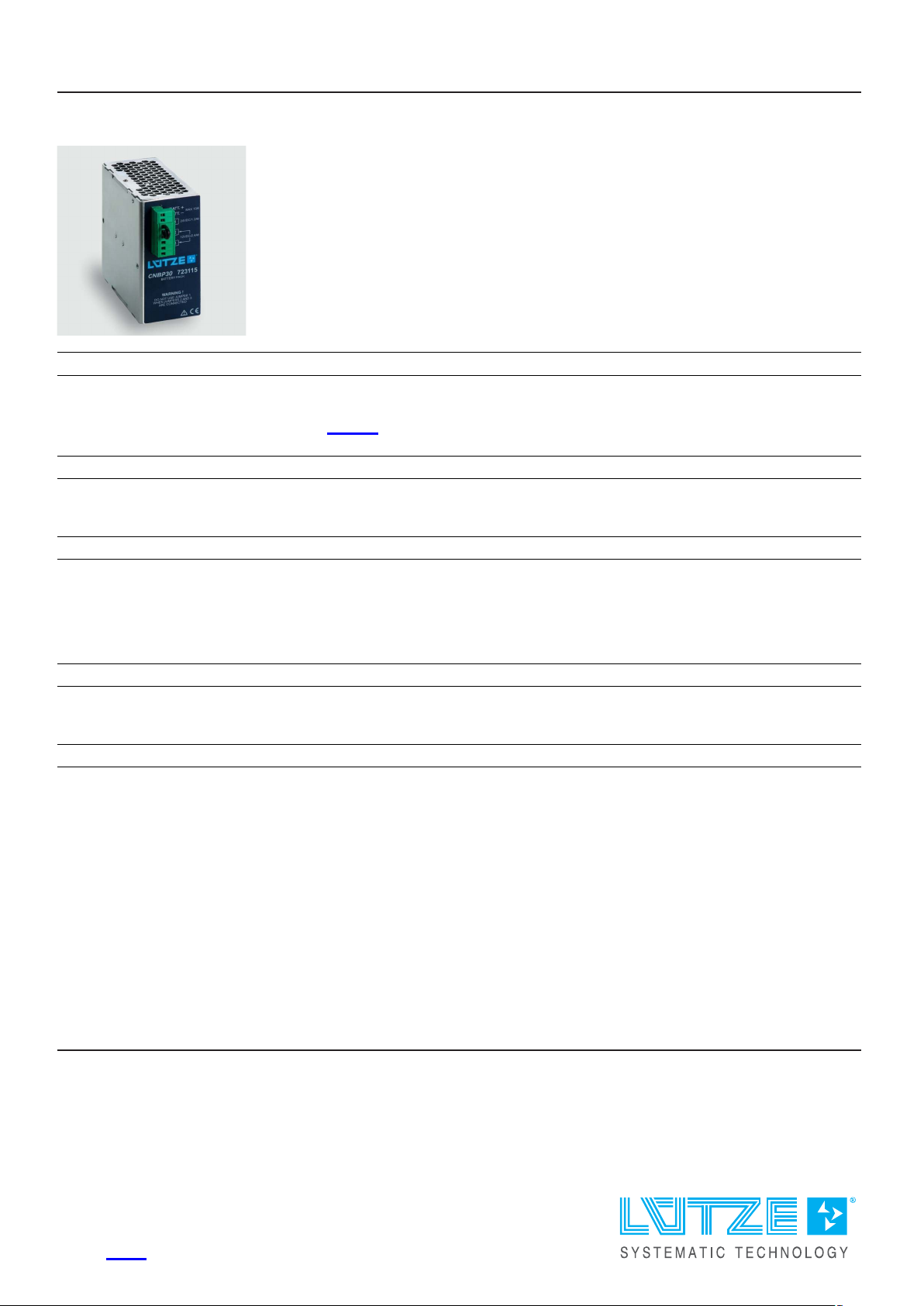

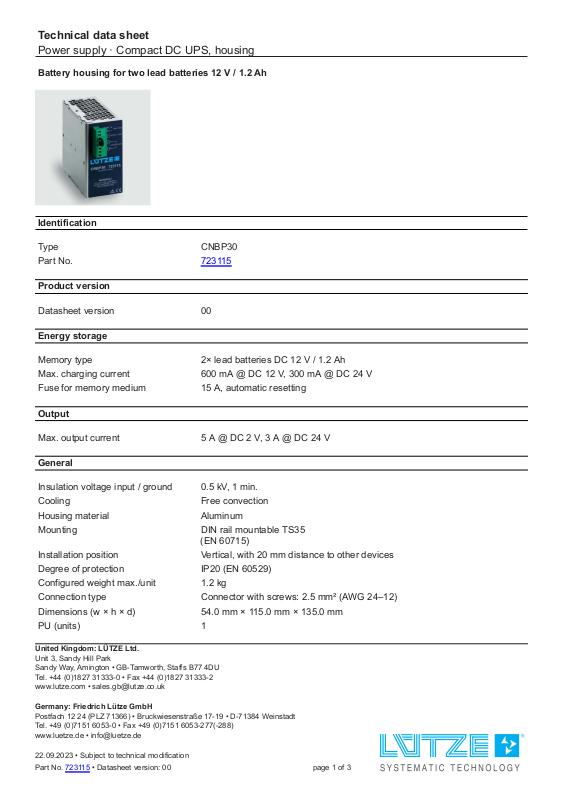

Technical data sheet
Power supply · Compact DC UPS, housing
Battery housing for two lead batteries 12 V / 1.2 Ah
Identification
Type CNBP30
Part No.
Product version
Datasheet version 00
723115
Energy storage
Memory type 2× lead batteries DC 12 V / 1.2 Ah
Max. charging current 600 mA @ DC 12 V, 300 mA @ DC 24 V
Fuse for memory medium 15 A, automatic resetting
Output
Max. ou tp u t current 5 A @ DC 2 V, 3 A @ DC 24 V
General
Insulation voltage input / ground 0.5 kV, 1 min.
Cooling Free co n ve cti o n
Housing material Aluminum
Mounting DIN ra i l mountabl e TS35
(EN 60 7 1 5 )
Installation position Vertical, with 20 mm distance to other devices
Degree of prote cti o n IP20 (EN 60529)
Configured weight max./unit 1.2 kg
Connection type Connector with scr e w s: 2.5 mm² (AWG 24–12)
Dimensions (w × h × d) 54.0 m m × 115.0 mm × 135.0 mm
PU (un i ts) 1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 313 3 3 - 2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053 - 2 7 7 ( - 2 8 8 )
www.luetze.de • [email protected]
22.09.2023 • Subject to technical modification
Part No.
723115 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Power supply · Compact DC UPS, housing
General ambient conditions
Operation temperature range -20 °C . . . +40 °C (or equivalent battery limit values)
Storage temperature range -20 °C . . . +40 °C
Over vol ta g e category II
Degree of poll u ti o n 2 (IEC 664-1)
Relative air hu m i d i ty 5 – 95 % RH, non-condensing
Notes and Comments
Comments Suitable for DC 12 V and DC 24 V applications, integrated self-healing fuse
Batteries not inclu d e d

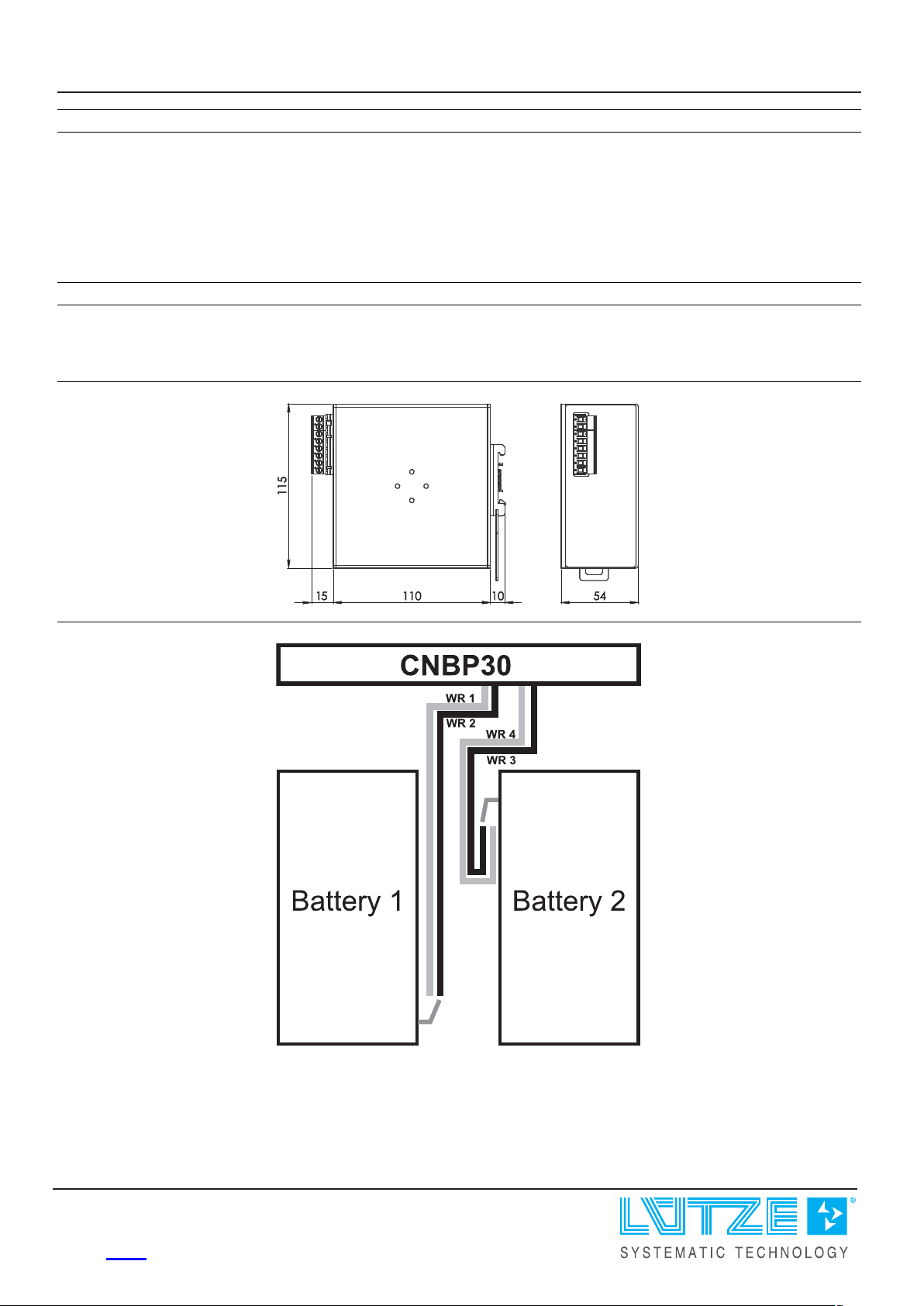

Dimensions
PIN assignment
22.09.2023 – Sub j e ct to technical modification
Part No.
723115 • Datasheet ver si o n : 00 page 2 of 3
Page 3
Technical data sheet
.. .
BATT.
Power supply · Compact DC UPS, housing

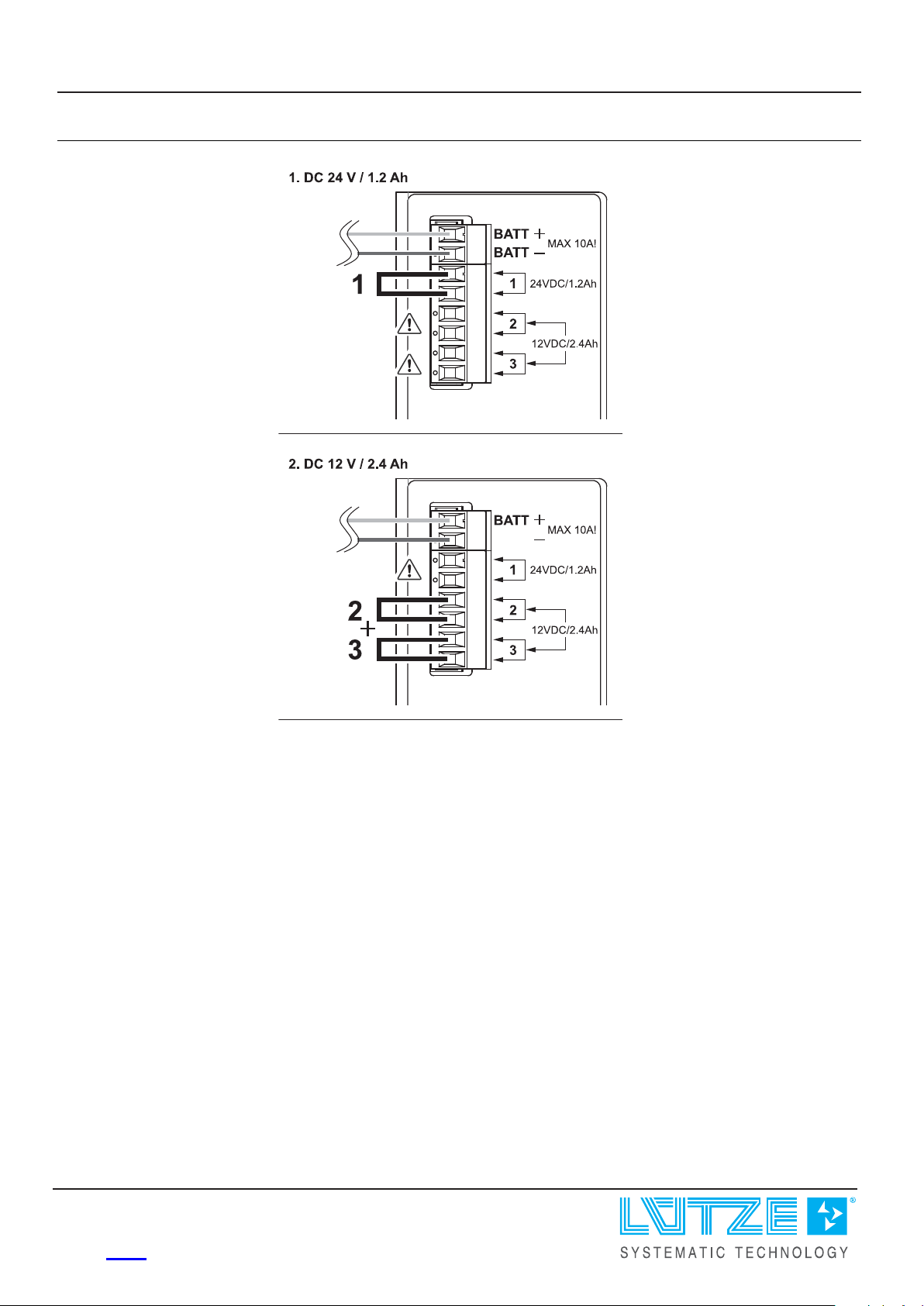

Use
22.09.2023 – Sub j e ct to technical modification
Part No.
723115 • Datasheet ver si o n : 00 page 3 of 3
