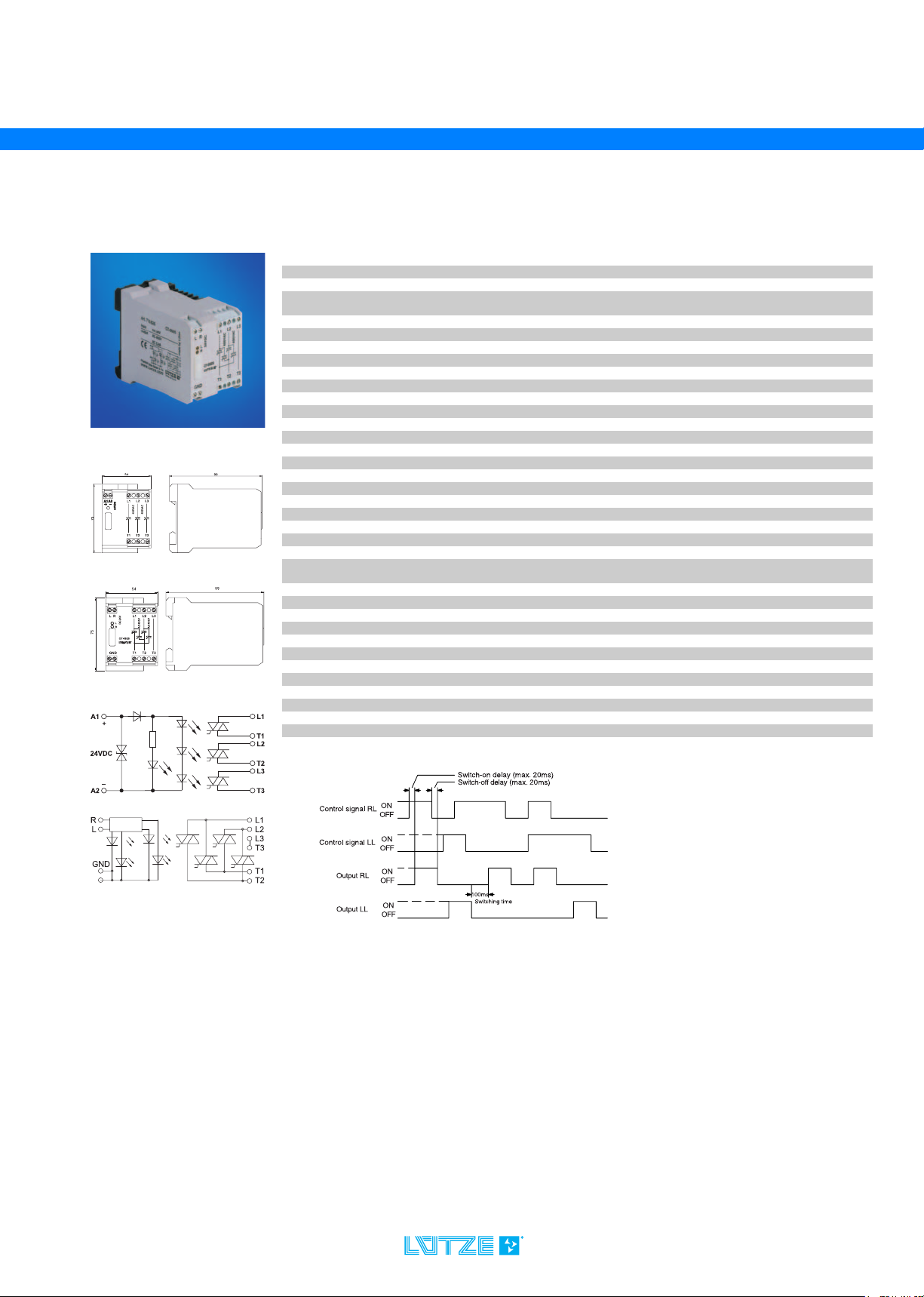

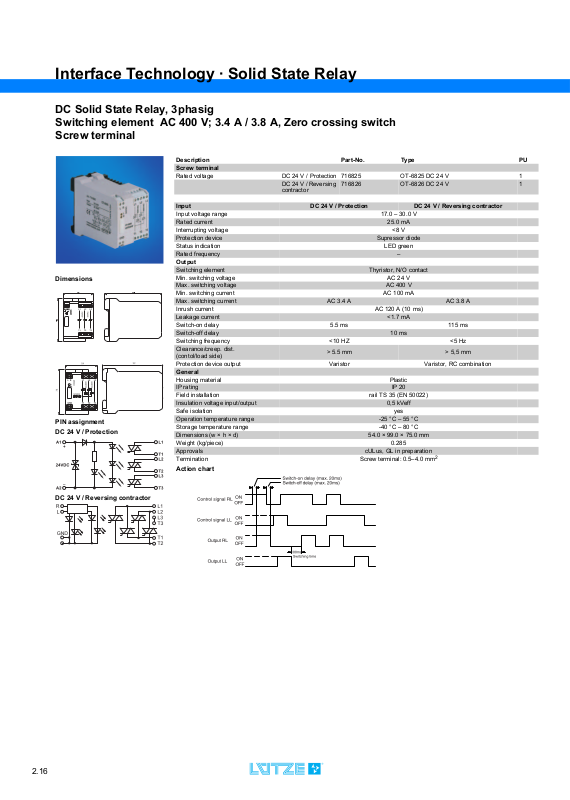

Interface Technology · Solid State Relay
DC Solid State Relay, 3phasig
Switching element AC 400 V; 3.4 A / 3.8 A, Zero crossing switch
Screw terminal
Description Part-No. Type PU
Screw terminal
Dimensions
PIN assignment
DC 24 V / Protection
Rated voltage DC 24 V / Protection 716825 OT-6825 DC 24 V 1
Input DC 24 V / Protection DC 24 V / Reversing contractor
Input voltage range 17.0 – 30.0 V
Rated current 25.0 mA
Interrupting voltage <8 V
Protection device Supressor diode
Status indication LED green
Rated frequency –
Output
Switching element Thyristor, N/O contact
Min. switching voltage AC 24 V
Max. switching voltage AC 400 V
Min. switching current AC 100 mA
Max. switching current AC 3.4 A AC 3.8 A
Inrush current AC 120 A (10 ms)
Leakage current <1.7 mA
Switch-on delay 5.5 ms 115 ms
Switch-off delay 10 ms
Switching frequency <10 HZ <5 Hz
Clearance/creep. dist.
(contol/load side)
Protection device output Varistor Varistor, RC combination
General
Housing material Plastic
IP rating IP 20
Field installation rail TS 35 (EN 50022)
Insulation voltage input/output 0,5 kVeff
Safe isolation yes
Operation temperature range -25 °C – 55 °C
Storage temperature range -40 °C – 80 °C
Dimensions (w × h × d) 54.0 × 99.0 × 75.0 mm
Weight (kg/piece) 0.285
Approvals cULus, GL in preparation
Termination
Action chart
DC 24 V / Reversing
contractor
> 5.5 mm > 5,5 mm
716826 OT-6826 DC 24 V 1
Screw terminal: 0.5–4.0 mm
2
DC 24 V / Reversing contractor
2.16
