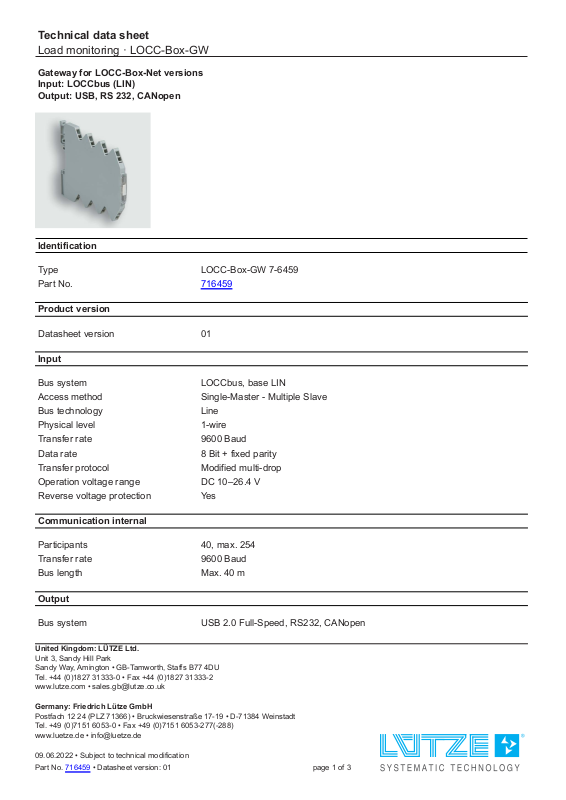

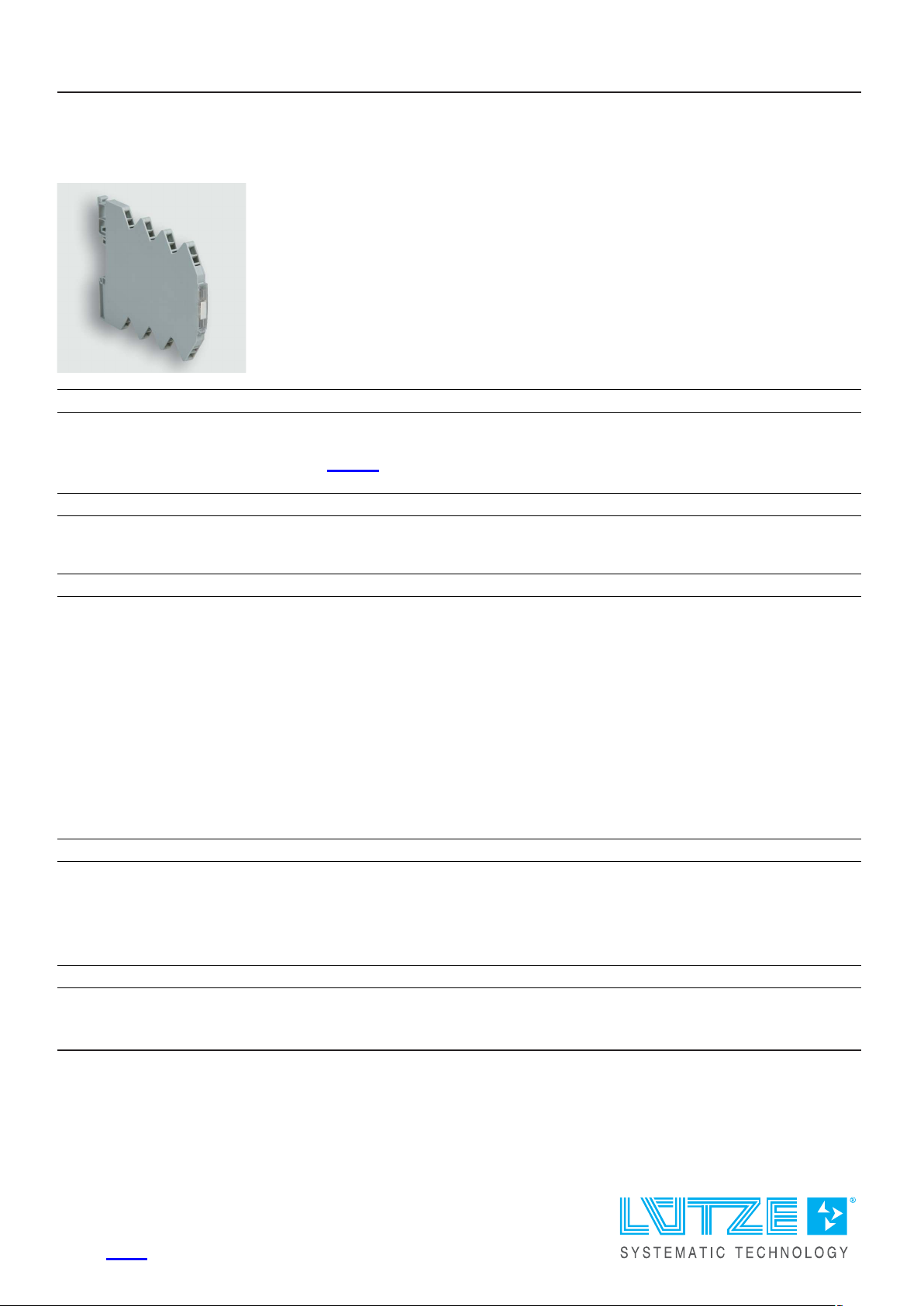

Page 1
Technical data sheet
Load monitoring · LOCC-Box-GW
Gateway for LOCC-Box-Net versions
Input: LOCCbus (LIN)
Output: USB, RS 232, CANopen
Identification
Type LOCC-Box-GW 7-6459
Part No.
Product version
716459
Datasheet version 01
Input
Bus system LOCCbus, base LIN
Access method Single-Master - Multiple Slave
Bus technology Line
Physical level 1-wire
Transfer rate 9600 Baud
Data rate 8 Bit + fixed parity
Transfer protocol Modified multi-drop
Operation voltage range DC 10–26.4 V
Reverse voltage protection Yes
Communication internal
Participants 40, max. 254
Transfer rate 9600 Baud
Bus length Max. 40 m
Output
Bus system USB 2.0 Full-Speed, RS232, CANopen
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333 - 0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-7138 4 Weinstadt
Tel. +49 (0)7151 6053- 0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
09.06.2022 • Subject to technical modifica ti o n
Part No.
716459 • Datasheet version: 01 page 1 of 3
Page 2
Technical data sheet
Load monitoring · LOCC-Box-GW
Transfer rate USB: 12 Mbit/s
RS232: 600–11500 bit/s
CANopen: 10–1000 kbit/s
General
Rated voltage U
N
DC 12/24 V
Rated current max. 50 mA
Status indication LED 1 green/red: USB, RS232, Firmware
LED 2 green/red: CANopen
Dimensions (w × h × d) 6.2 mm × 90.0 mm × 115.0 mm
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Mounting DIN rail mountable TS35
(EN 60715)
Installation position Any
Degree of protection IP20
Connection type Spring terminal
0.14 mm² – 2.5 mm²
(with ferrule 1.5 mm²)
Weight/unit 0.06 kg
PU (units) 1
General ambient conditions
Operation temperature range -25 °C . .. +50 °C
Storage temperature range -40 °C . .. +85 °C
Relative air humidity max. 90 % not condensing
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Conformity CE
UKCA
Standards EN 61000-6-2
EN 61000-6-4
Equipment/Spare parts
Accessories
Labelling sign 4×11 mm, white: Part-No. 681313 | BZT-0411 | PU:
100 units
Insulation plate, black RAL 9005: Part-No. 760809 | TP 7-0809 MIC/SNR |
PU: 10 units
Laser label A4 not punched, black RAL 9005: Part-No. 681031 | LEB
A4 PW | PU: 10 units
09.06.2022 – Subject to technical modification
Part No. 716459 • Datasheet version: 01 page 2 of 3
Page 3
Technical data sheet
Load monitoring · LOCC-Box-GW

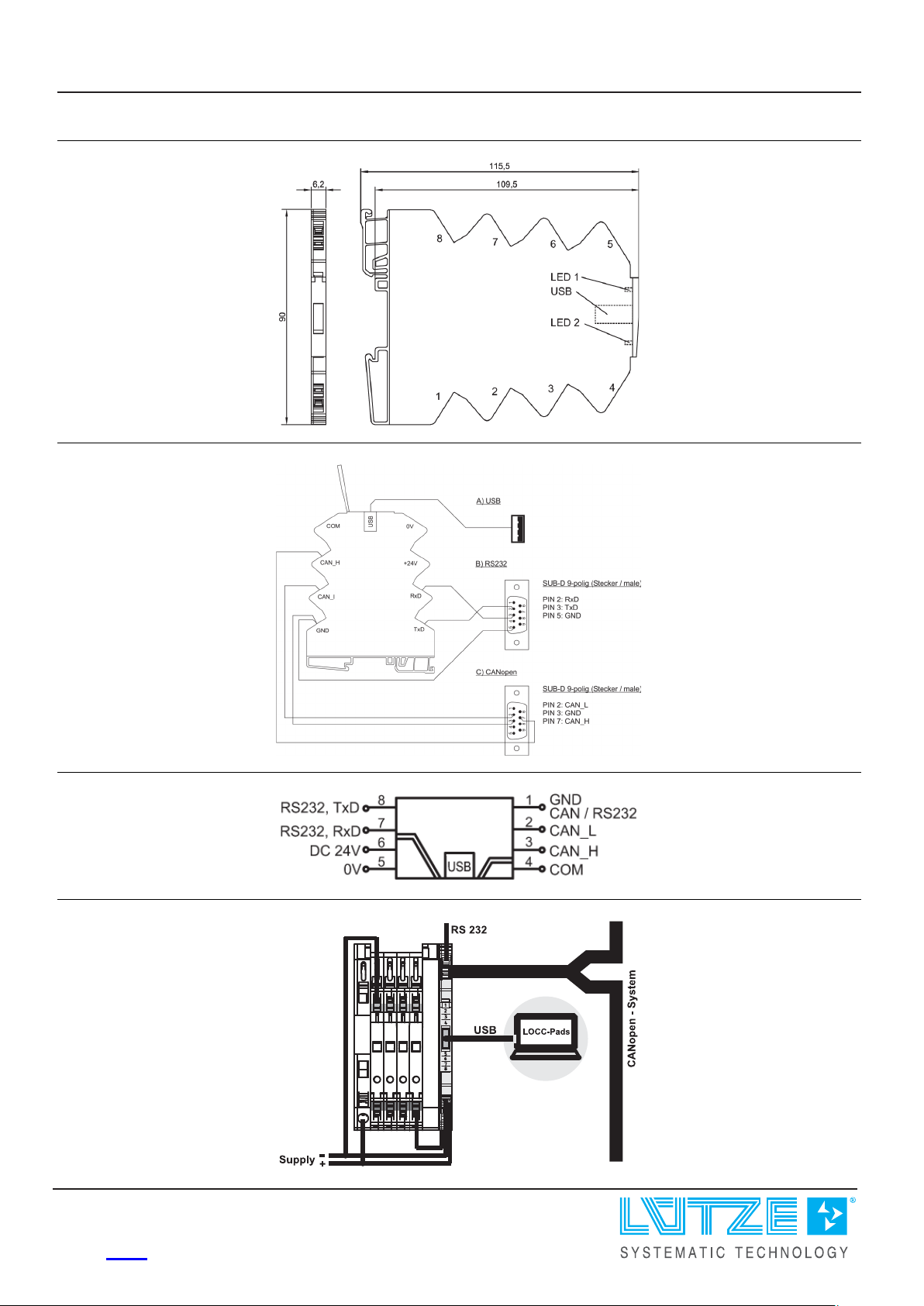

Dimensions
PIN assignment
PIN assignment
Use
09.06.2022 – Subject to technical modification
Part No.
716459 • Datasheet version: 01 page 3 of 3
