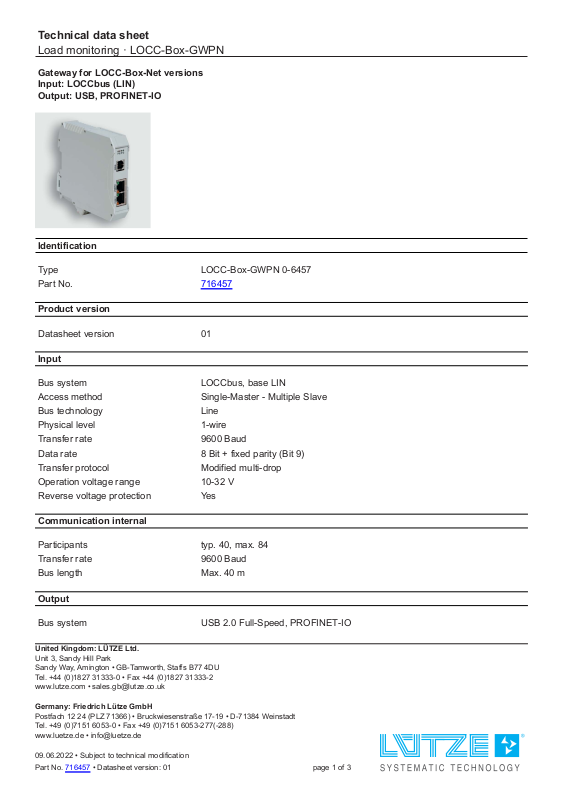

Technical data sheet
Load monitoring · LOCC-Box-GWPN
Gateway for LOCC-Box-Net versions
Input: LOCCbus (LIN)
Output: USB, PROFINET-IO
Identification
Type LOCC-Box-GWPN 0-6457
Part No.
Product version
716457
Datasheet version 01
Input
Bus system LOCCbus, base LIN
Access method Single-Master - Multiple Slave
Bus technology Line
Physical level 1-wire
Transfer rate 9600 Baud
Data rate 8 Bit + fixed parity (Bit 9)
Transfer protocol Modified multi-drop
Operation voltage range 10-32 V
Reverse voltage protection Yes
Communication internal
Participants typ. 40, max. 84
Transfer rate 9600 Baud
Bus length Max. 40 m
Output
Bus system USB 2.0 Full-Speed, PROFINET-IO
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333 - 0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-7138 4 Weinstadt
Tel. +49 (0)7151 6053- 0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
09.06.2022 • Subject to technical modifica ti o n
Part No.
716457 • Datasheet version: 01 page 1 of 3
Page 2
Technical data sheet
Load monitoring · LOCC-Box-GWPN
Transfer rate USB: 12 Mbit/s
PROFINET-IO: 100 bit/s (IEE 802.3)
Interface USB: USB connector, Type B
PROFINET-IO: Port_1, Port_2, 2 × RJ45 female conne cto r with galvanic
isolation and LEDs
General
Rated voltage U
N
DC 12/24 V
Rated current 120 mA @ 24 V
Status indication LED F, yellow - flashing: identification request (PROFINET)
LED E, red - shining: no connection (PROFINET)
LED P, green - on: ope r a ti n g voltage is supplied (POWER)
LED C, green - flashing: data traffic with LOCC-Box-Net modules (LOCCbus)
Link: yellow - 100Base/T-connection
Activity green - valid connection, Blanking: data traffic
Dimensions (w × h × d) 22.5 mm × 99.0 mm × 114.5 mm
Housing material PA 6.6 (UL 94 V-0)
Mounting DIN rail mountable TS35
(EN 60715)
Installation position Any
Degree of protection IP20
Connection type Spring terminal
0.14 mm² – 2.5 mm²
(with ferrule 1.5 mm²)
Weight/unit 0.13 kg
PU (units) 1
General ambient conditions
Operation temperature range -25 °C . .. +50 °C
Storage temperature range -40 °C . .. +85 °C
Relative air humidity max. 90 % not condensing
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Conformity CE
UKCA
Standards EN 61000-6-2
EN 61000-6-4
Notes and Comments
Comments Screw terminal on request
09.06.2022 – Subject to technical modification
Part No. 716457 • Datasheet version: 01 page 2 of 3
Page 3
Technical data sheet
Load monitoring · LOCC-Box-GWPN

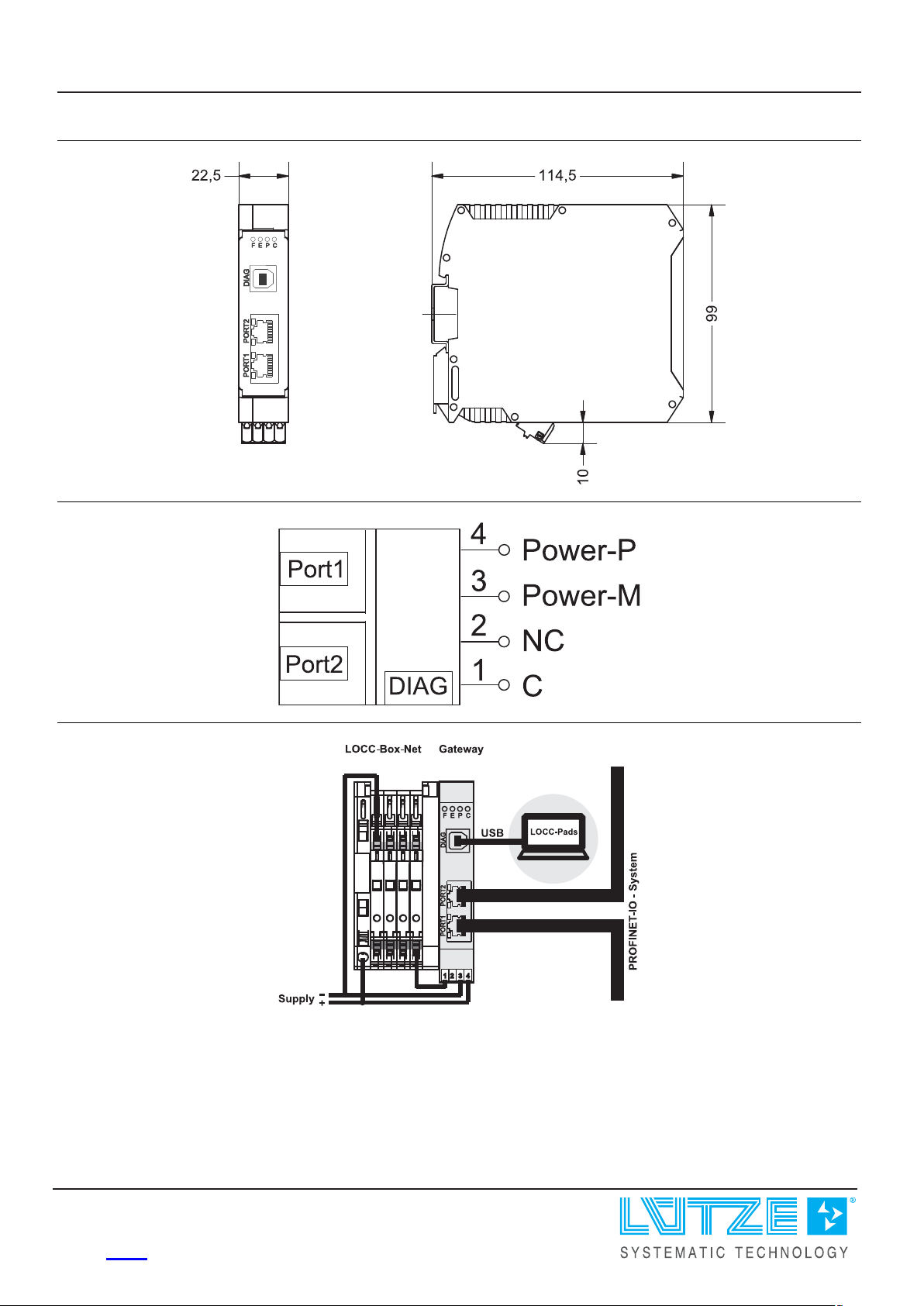

Dimensions
