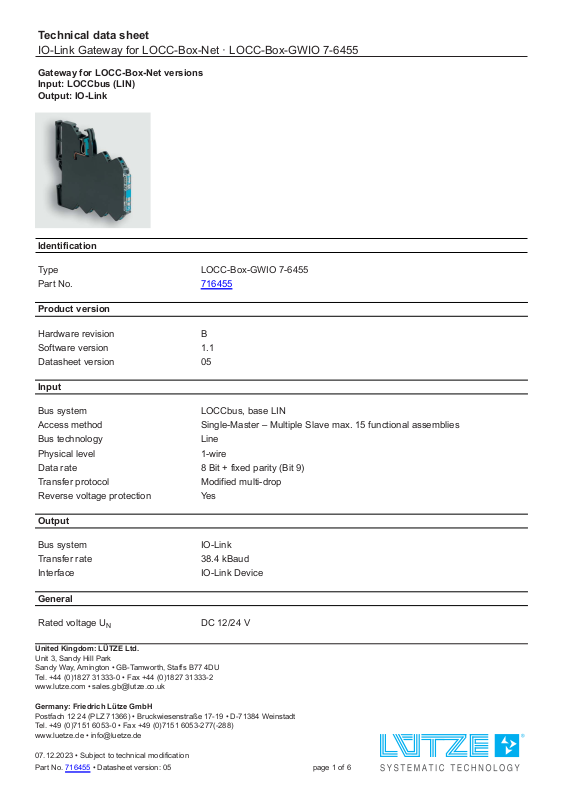

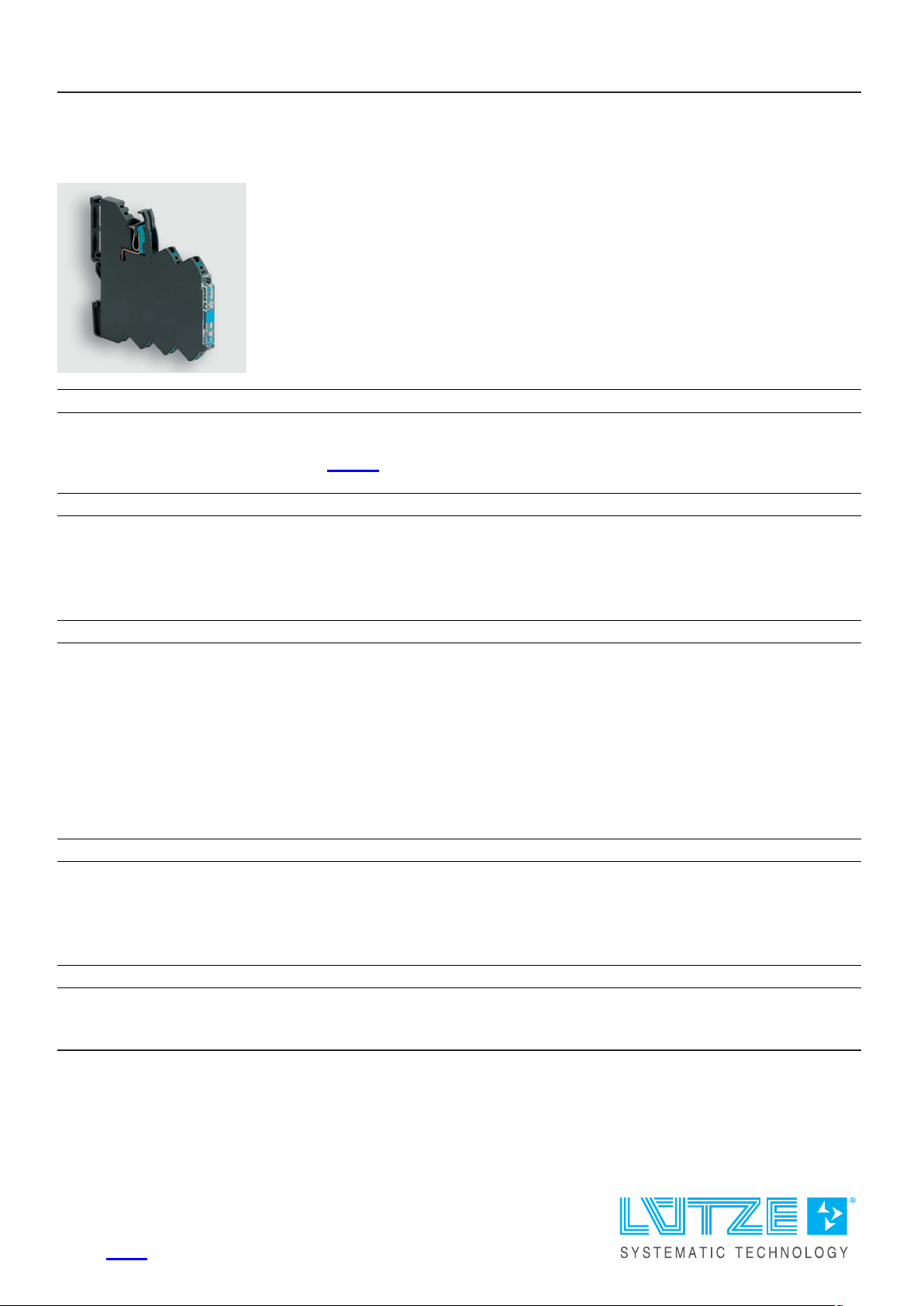

Page 1
Technical data sheet
IO-Link Gateway for LOCC-Box-Net · LOCC-Box-GWIO 7-6455
Gateway for LOCC-Box-Net versions
Input: LOCCbus (LIN)
Output: IO-Link
Identification
Type LOCC-Box-GWIO 7-6455
Part No.
Product version
716455
Hardware revision B
Software version 1.1
Datasheet version 05
Input
Bus system LOCCbus, base LIN
Access method Single-Master – Multiple Slave max. 15 functional assemblies
Bus technology Line
Physical level 1-wire
Data rate 8 Bit + fixed parity (Bit 9)
Transfer protocol Modified multi-drop
Reverse voltage protection Yes
Output
Bus system IO-Link
Transfer rate 38.4 kBaud
Interface IO-Link Device
General
Rated voltage U
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333 - 0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-7138 4 Weinstadt
Tel. +49 (0)7151 6053- 0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
07.12.2023 • Subject to technical modifica ti o n
Part No.
716455 • Datasheet version: 05 page 1 of 6
N
DC 12/24 V
Page 2
Technical data sheet
IO-Link Gateway for LOCC-Box-Net · LOCC-Box-GWIO 7-6455
Operation voltage range DC 10–30 V
Rated current 80 mA @ 24 V
Dimensions (w × h × d) 8.1 mm × 107.4 mm × 116.0 mm
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Mounting DIN rail mountable TS35
(EN 60715)
Installation position Any
Degree of protection IP20 (only as complete system with power terminal and end block)
Connection type Push-In spring connection
0.25 mm² – 2.5 mm²
AWG 24 – AWG 14
Weight/unit 0.105 kg
PU (units) 1
General ambient conditions
Operation temperature range -25 °C . .. +50 °C
Storage temperature range -40 °C . .. +85 °C
Relative air humidity max. 90 % not condensing
Vibration resistance 1 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Conformity CE
UKCA
FCC
Certifications cULus (E17 0 5 8 5 )
Standards EN 61000-6-2
EN 61000-6-4
EN 61010-1
EN IEC 61010-2-201
UL 61010-1
UL 61010-2-201
CFR 47 Part 15 Subpart B

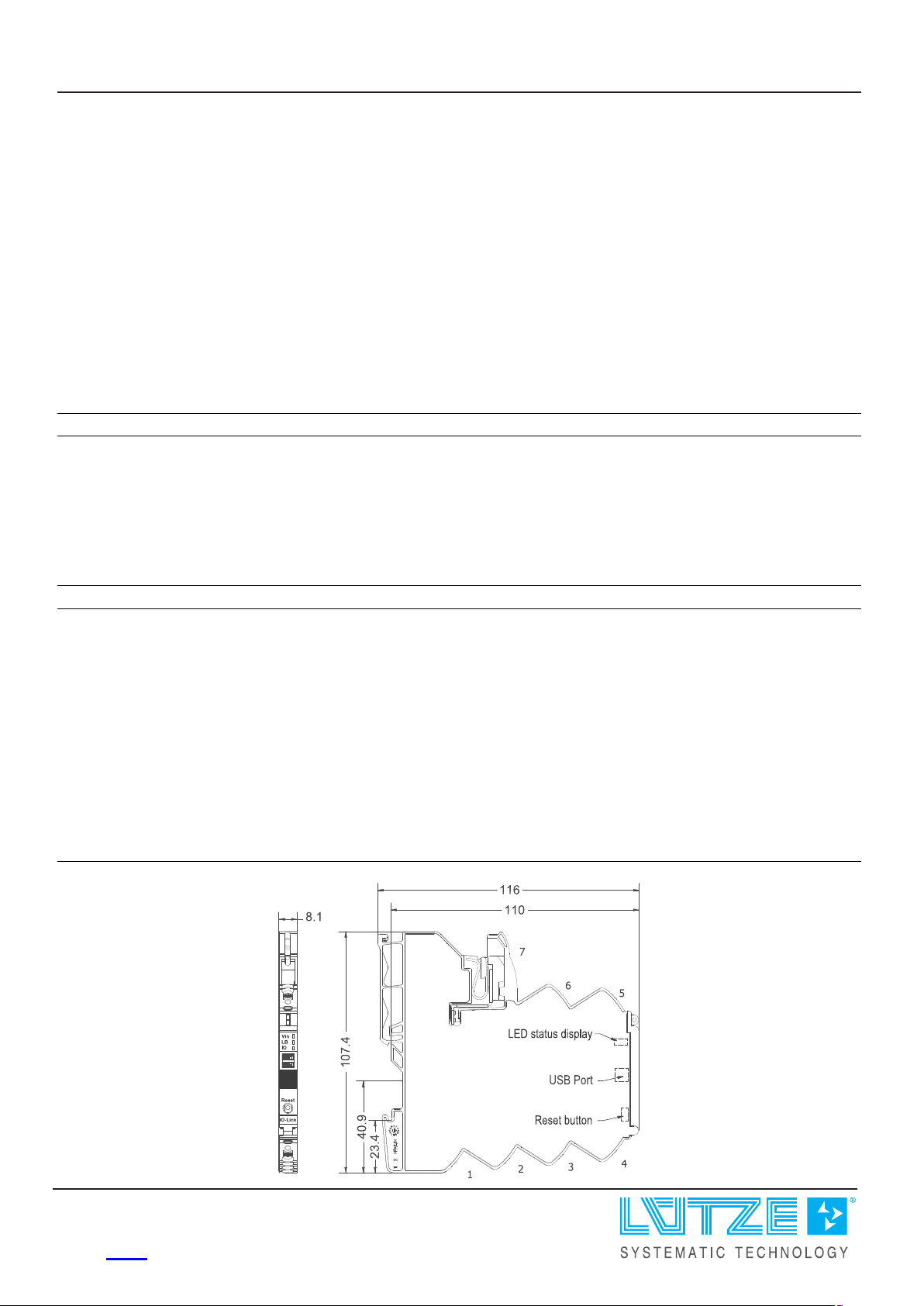

Dimensions
07.12.2023 – Subject to technical modification
Part No.
716455 • Datasheet version: 05 page 2 of 6
Page 3
Technical data sheet
IO-Link Gateway for LOCC-Box-Net · LOCC-Box-GWIO 7-6455

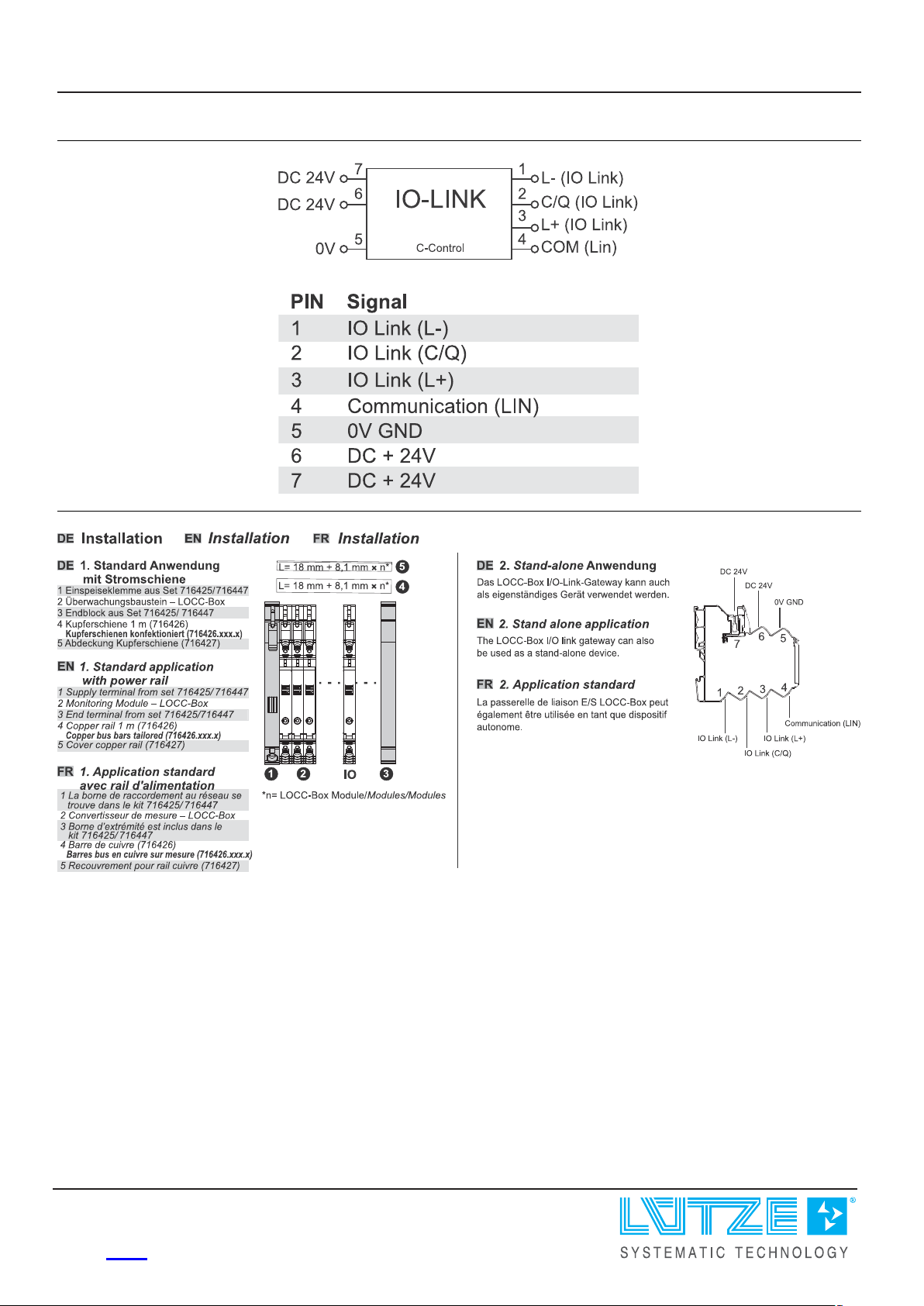

PIN assignment
Use
07.12.2023 – Subject to technical modification
Part No.
716455 • Datasheet version: 05 page 3 of 6
Page 4
Technical data sheet
IO-Link Gateway for LOCC-Box-Net · LOCC-Box-GWIO 7-6455

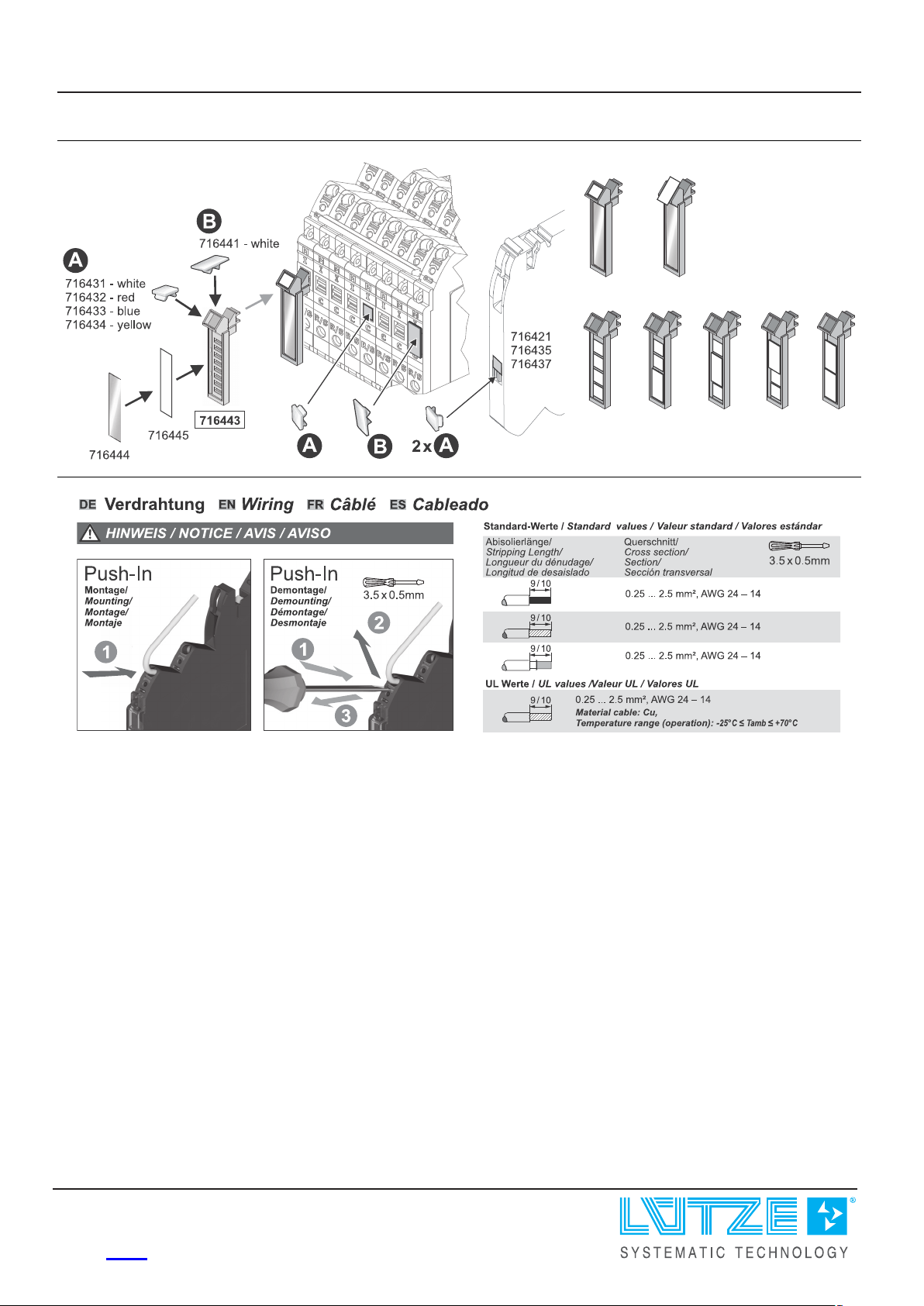

Use
Mounting diagram
07.12.2023 – Subject to technical modification
Part No. 716455 • Datasheet version: 05 page 4 of 6
Page 5
Technical data sheet
IO-Link Gateway for LOCC-Box-Net · LOCC-Box-GWIO 7-6455

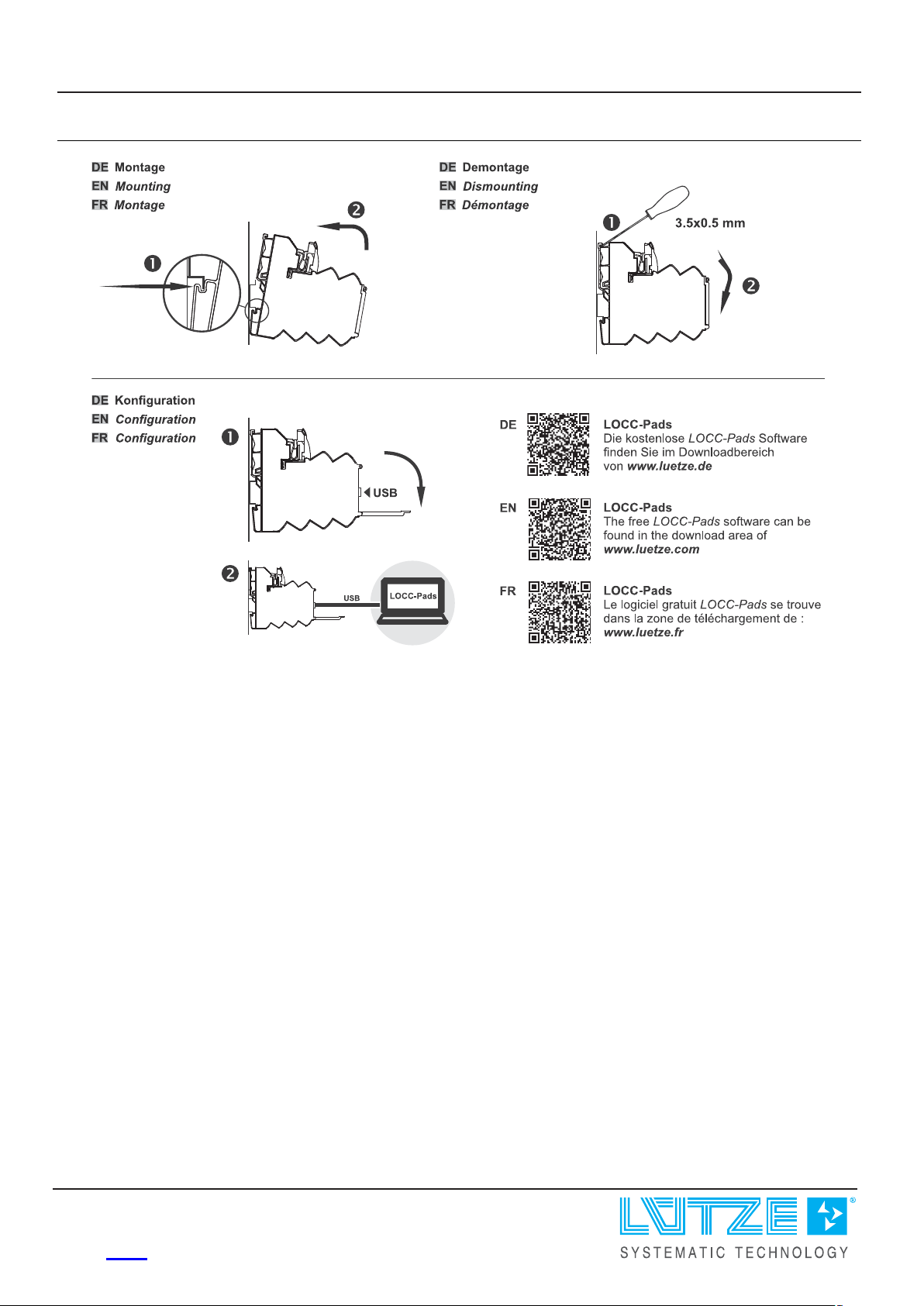

Mounting diagram
07.12.2023 – Subject to technical modification
Part No.
716455 • Datasheet version: 05 page 5 of 6
Page 6
Technical data sheet
IO-Link Gateway for LOCC-Box-Net · LOCC-Box-GWIO 7-6455

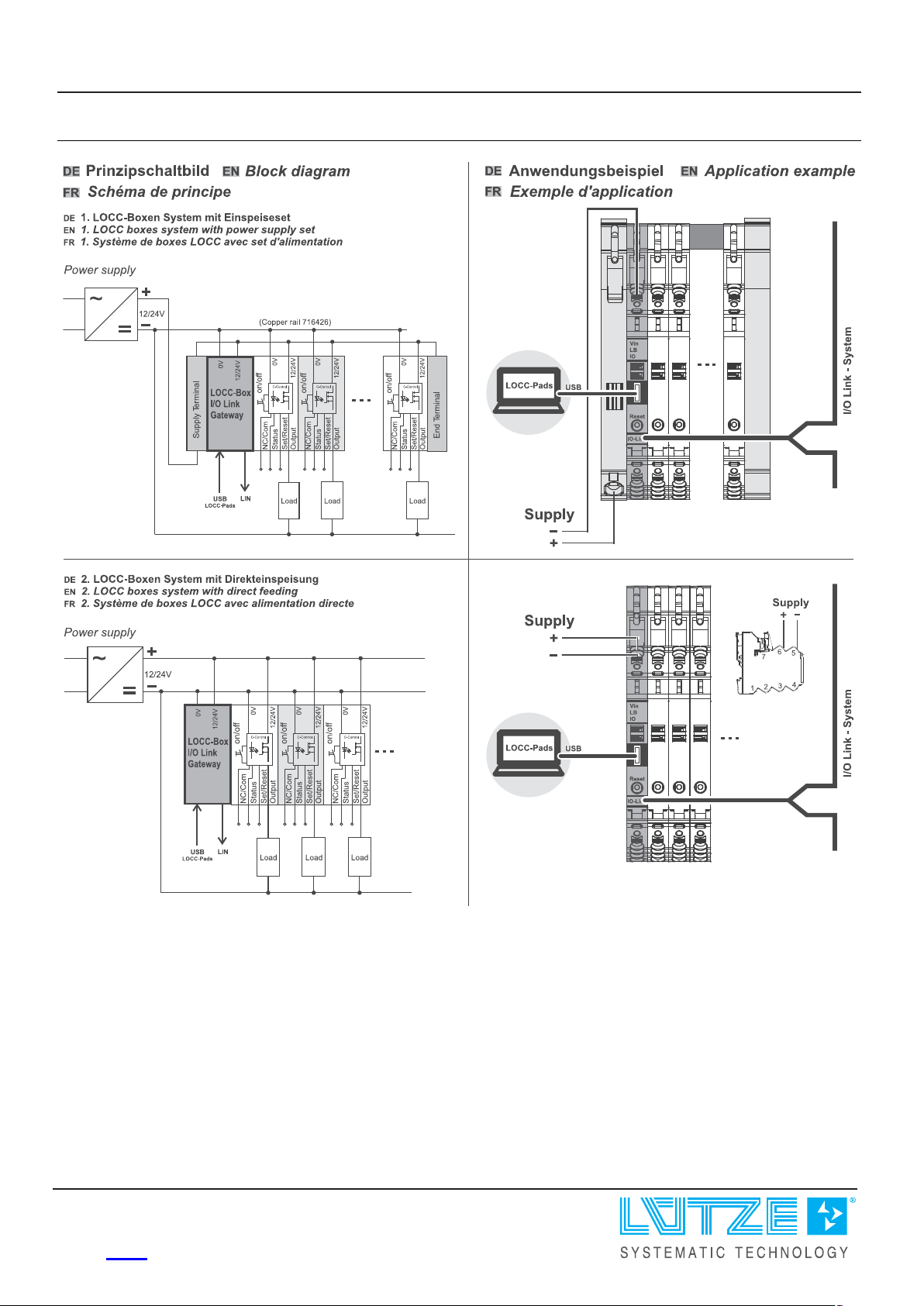

Circuit diagram
07.12.2023 – Subject to technical modification
Part No.
716455 • Datasheet version: 05 page 6 of 6
