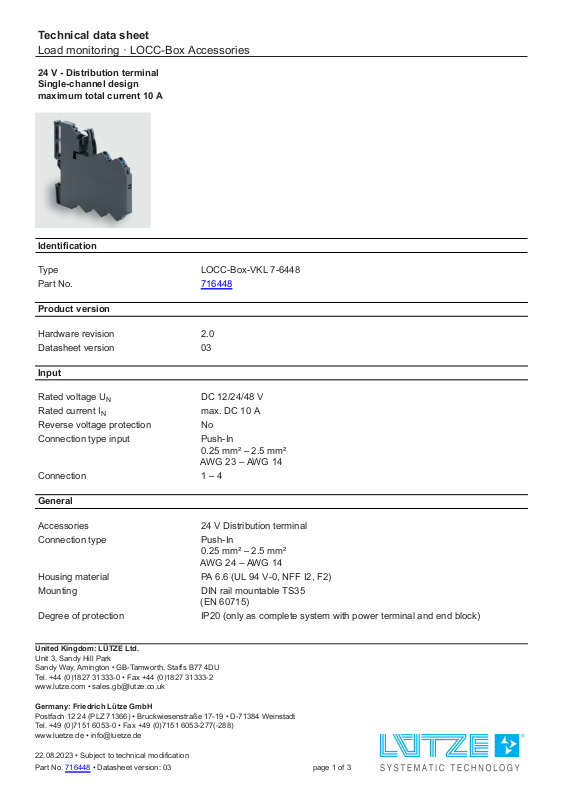

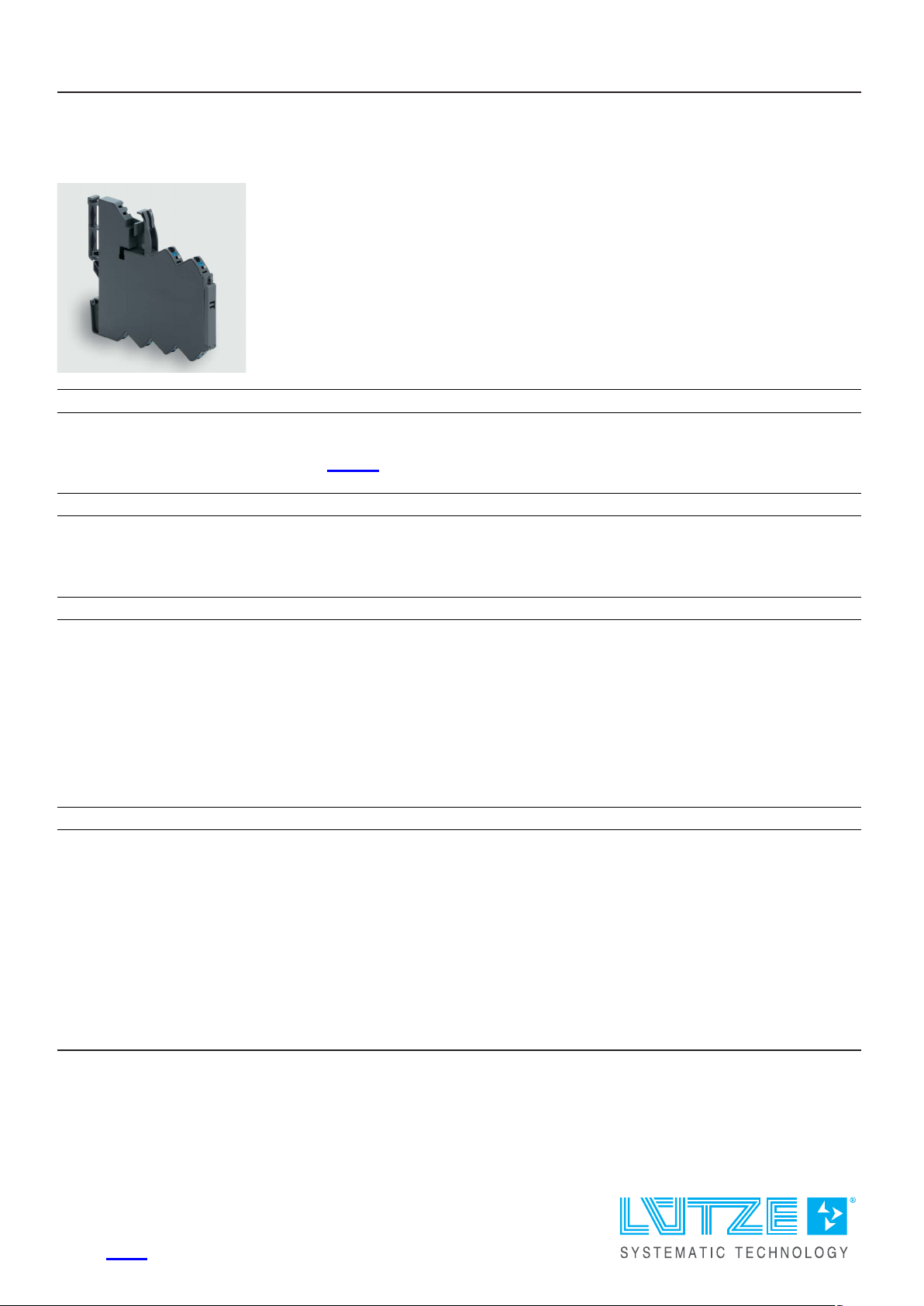

Page 1
Technical data sheet
Load monitori n g · LOCC-Box Accessories
24 V - Distribution terminal
Single-channel design
maximum total current 10 A
Identification
Type LOCC-Box-VKL 7-6448
Part No.
Product version
716448
Hardware revision 2.0
Datasheet version 03
Input
Rated voltage U
Rated current I
N
N
DC 12/24/48 V
max. DC 10 A
Reverse voltage protection No
Connection type input Push-In
0.25 mm² – 2.5 mm²
AWG 23 – AWG 14
Connection 1 – 4
General
Accessories 24 V Distribution terminal
Connection type Push-In
0.25 mm² – 2.5 mm²
AWG 24 – AWG 14
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Mounting DIN rail mountable TS35
(EN 60715)
Degree of protection IP20 (only as complete system with power terminal and end block)
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
22.08.2023 • Subject to technical modification
Part No.
716448 • Datasheet version: 03 page 1 of 3
Page 2
Technical data sheet
Load monitori n g · LOCC-Box Accessories
Installation position Any
Dimensions (w × h × d) 8.1 mm × 107.4 mm × 116.0 mm
Weight/unit 0.102 kg
PU (units) 2
General ambient conditions
Operation temperature range -25 °C . .. +50 °C
Storage temperature range -40 °C . .. +85 °C
Relative air humidity 10 % – 95 %, without condensation
Vibration resistance 4 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Certifications cULus (E135145)
Standards EN 60947-1
EN 60947-5-1
UL 60947-5-1
DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class B – not certified
Enclosure Class A – not certified

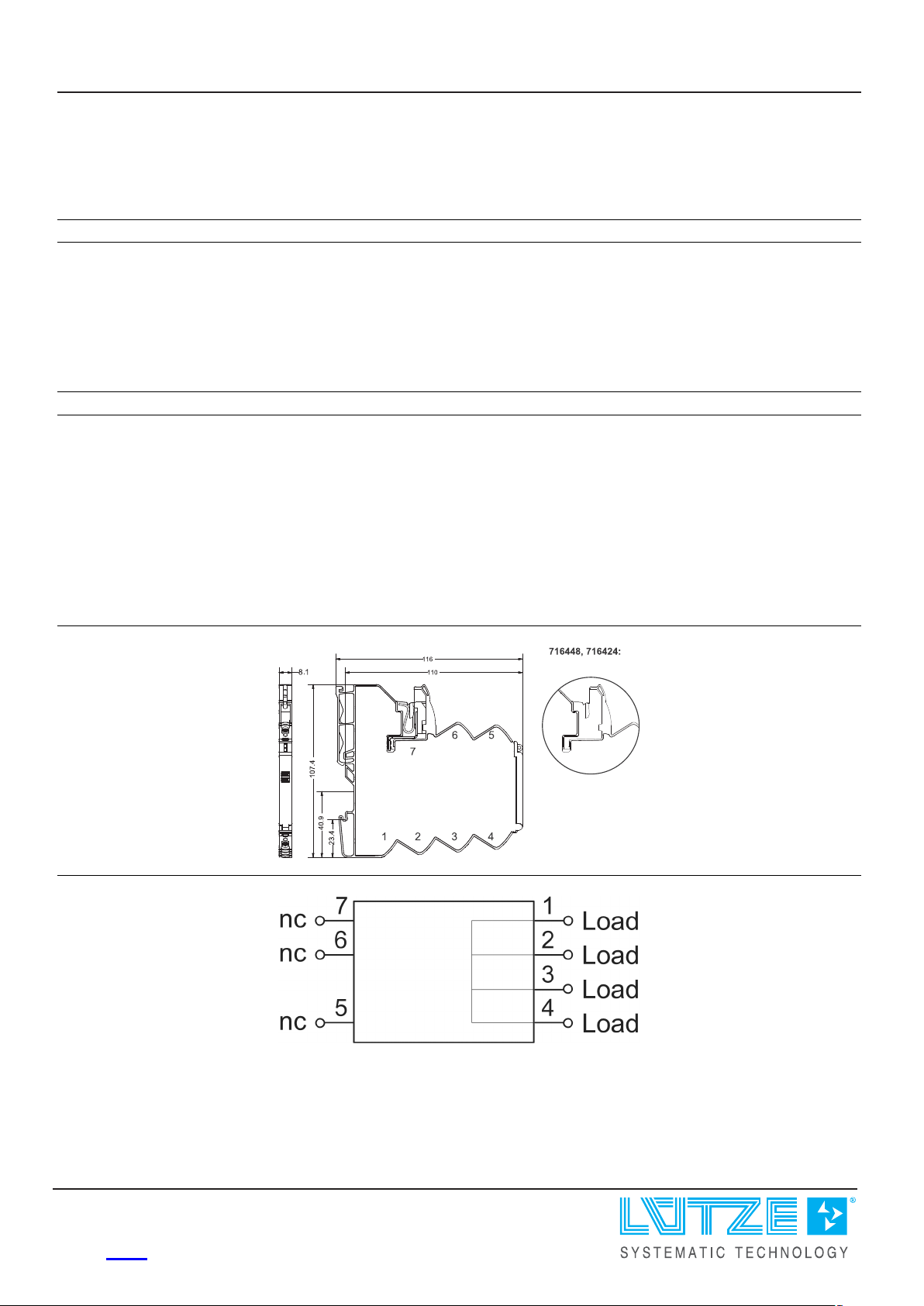

Dimensions
PIN assignment
22.08.2023 – Subject to technical modification
Part No.
716448 • Datasheet version: 03 page 2 of 3
Page 3
Technical data sheet
Push-In
1
Push-In
1
2
3
3.5 x 0.5mm
HINWEIS / NOTICE / AVIS
Montage/
Mounting/
Montage
Demontage/
Demounting/
Démontage
Load monitori n g · LOCC-Box Accessories
Use
Use

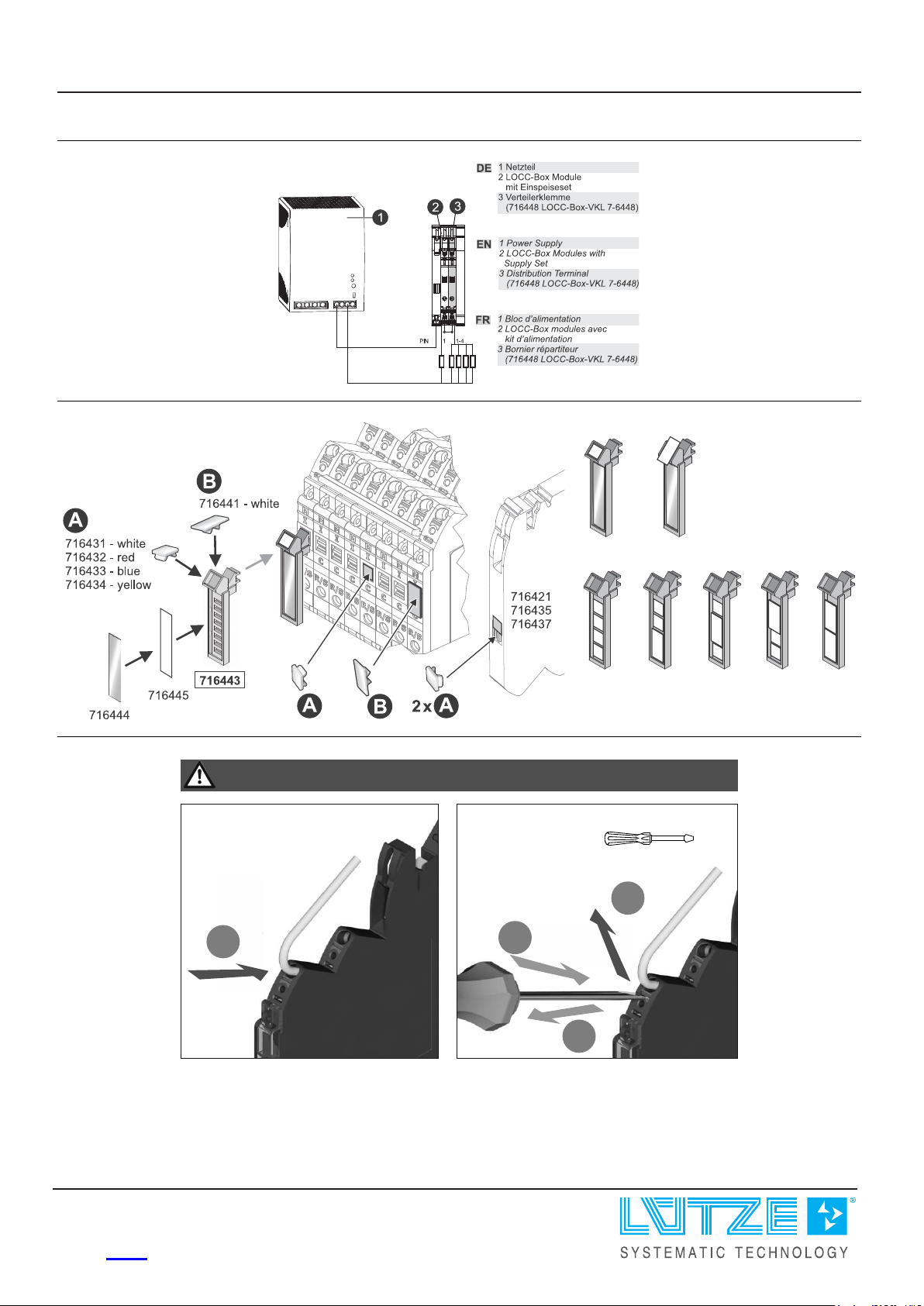

Mounting diagram
22.08.2023 – Subject to technical modification
Part No.
716448 • Datasheet version: 03 page 3 of 3
