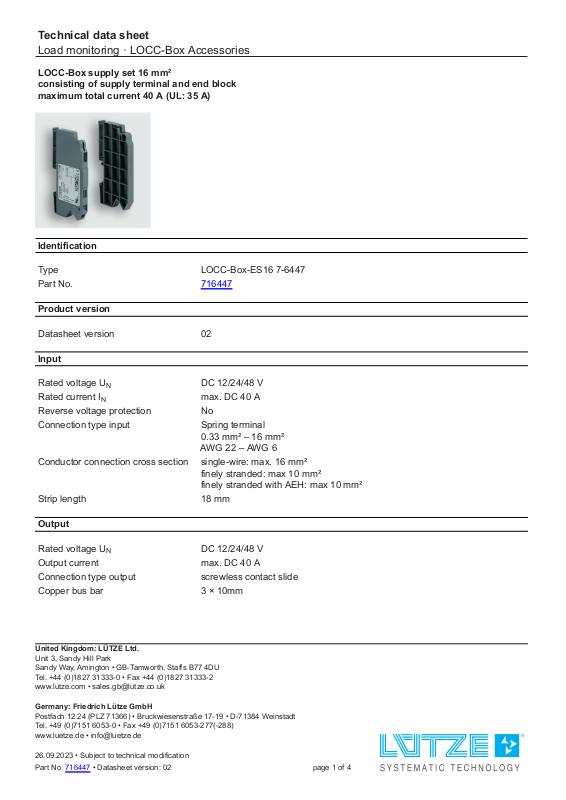

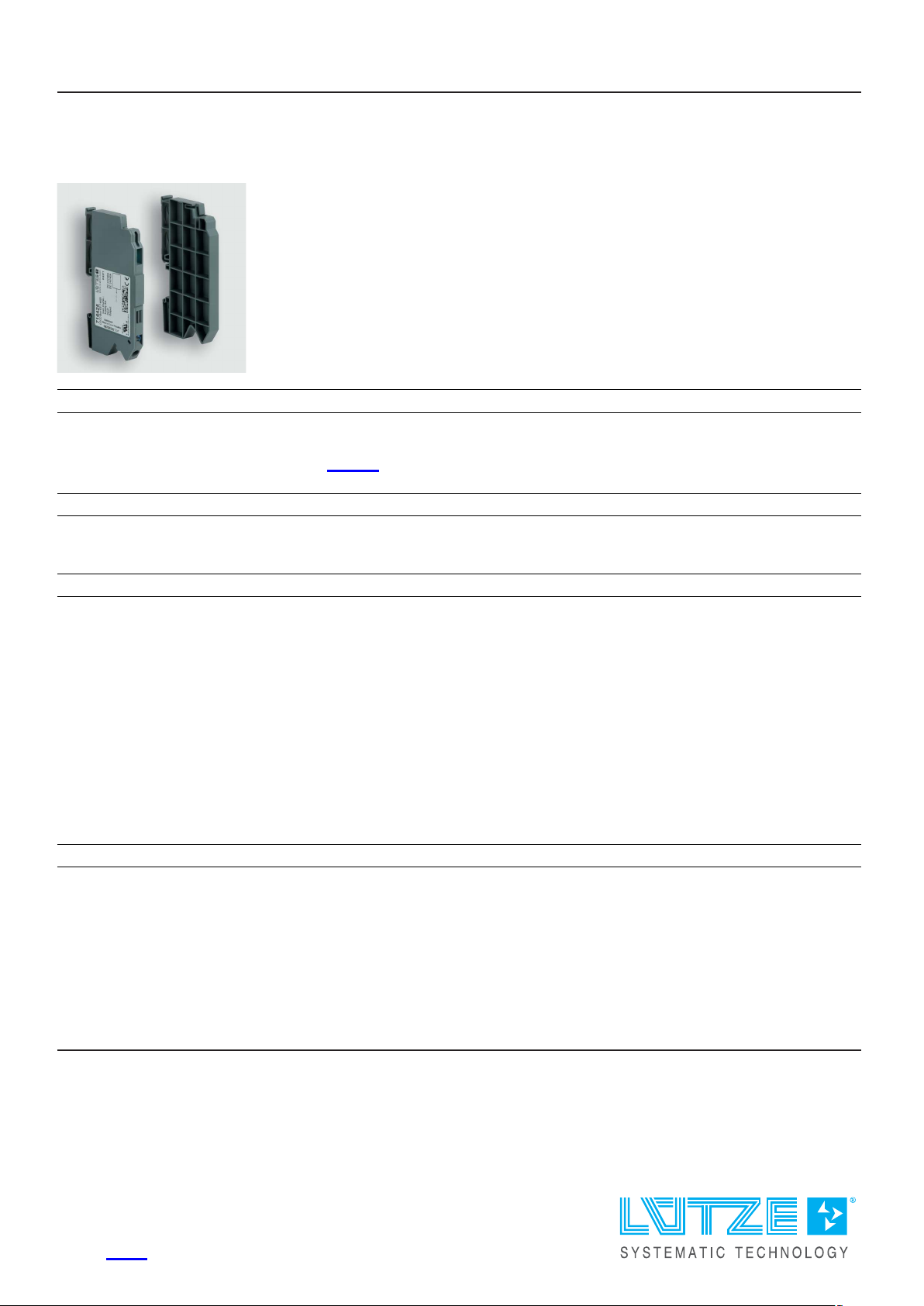

Page 1
Technical data sheet
Load monitoring · LOCC-Bo x Accessories
LOCC-Box supply set 16 mm²
consisting of supply terminal and end block
maximum total current 40 A (UL: 35 A)
Identification
Type LOCC-Box-ES16 7-6447
Part No.
Product version
716447
Datasheet version 02
Input
Rated voltage U
Rated current I
N
N
DC 12/24/48 V
max. DC 40 A
Reverse voltage protection No
Connection type input Spring terminal
0.33 mm² – 16 mm²
AWG 22 – AWG 6
Conductor connection cross section single-wire: max. 16 mm²
finely stranded: max 10 mm²
finely stranded with AEH: max 10 mm²
Strip length 18 mm
Output
Rated voltage U
N
DC 12/24/48 V
Output current max. DC 40 A
Connection type output screwless contact slide
Copper bus bar 3 × 10mm
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-7138 4 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
26.09.2023 • Subject to technical modifica ti o n
Part No.
716447 • Datasheet version: 02 page 1 of 4
Page 2
Technical data sheet
Load monitoring · LOCC-Bo x Accessories
General
Accessories Supply set 16 mm²
Connection type Spring terminal
single wire/fine wire
1.50 mm² – 16 mm²
AWG 16 – AWG 5
fine stranded wire with ferrule
finely stranded, ferrule with plastic collar
1.5 mm² – 10 mm²
AWG 16 – AWG 7
UL Values
AWG 14 – AWG 6
Strip length 18 mm
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Mounting DIN rail mountable TS35
(EN 60715)
Degree of protection IP20 (only as complete system with power terminal and end block)
Installation position Any
Dimensions (w × h × d) 11.7 mm × 119.5 mm × 62.0 mm
10.0 × 119.5 × 62.0 mm
Weight/unit 0.045 kg
PU (units) 1
General ambient conditions
Operation temperature range -25 °C . .. +50 °C
Storage temperature range -40 °C . .. +85 °C
Relative air humidity 10 % – 95 %, without condensation
Vibration resistance 4 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Certifications cULus (E135145)
Standards UL 60947-5-1
DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class B – not certified
Enclosure Class A – not certified
26.09.2023 – Subject to technical modification
Part No. 716447 • Datasheet version: 02 page 2 of 4
Page 3
Technical data sheet
Load monitoring · LOCC-Bo x Accessories

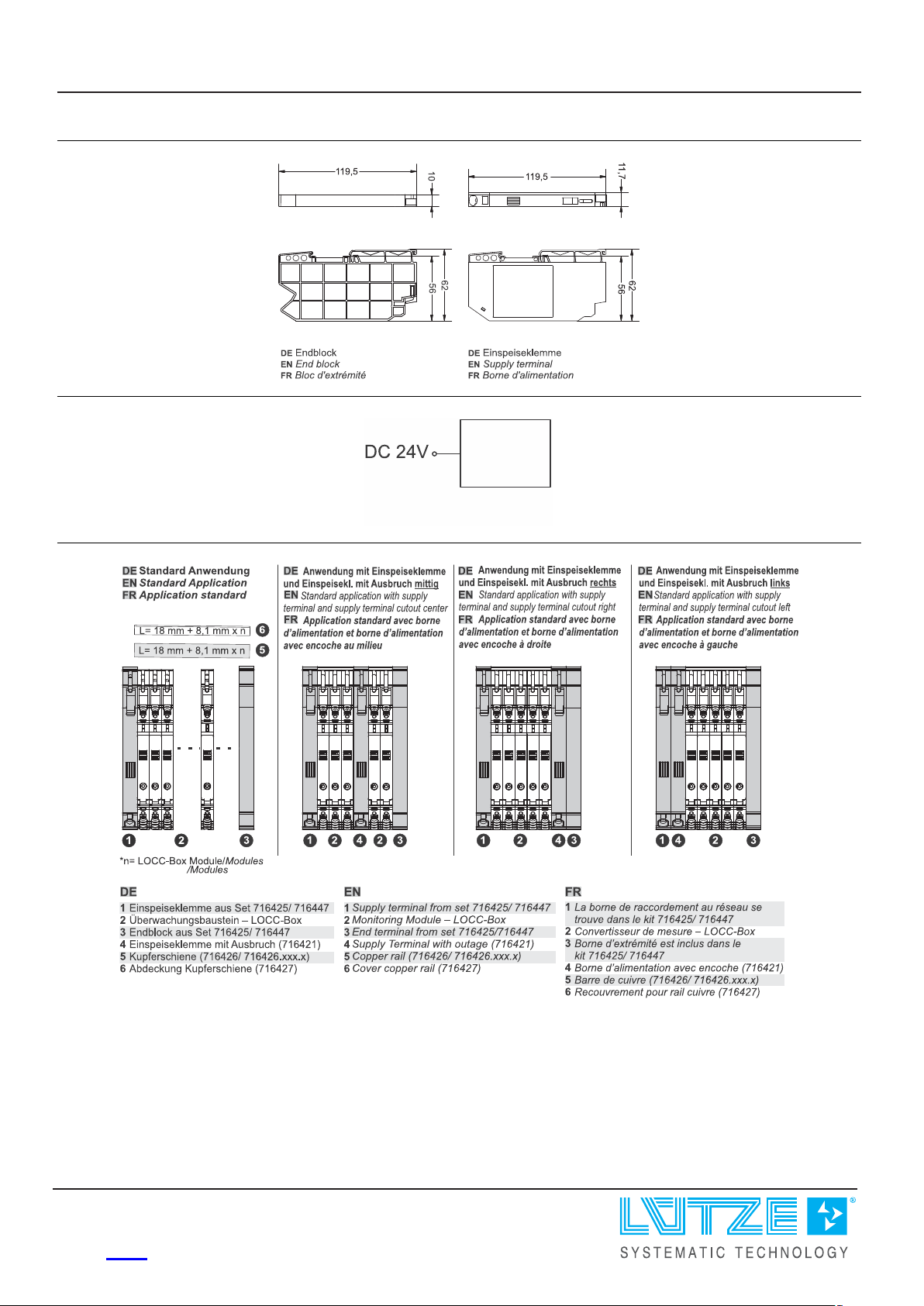

Dimensions
PIN assignment
Use
26.09.2023 – Subject to technical modification
Part No.
716447 • Datasheet version: 02 page 3 of 4
Page 4
Technical data sheet
Load monitoring · LOCC-Bo x Accessories

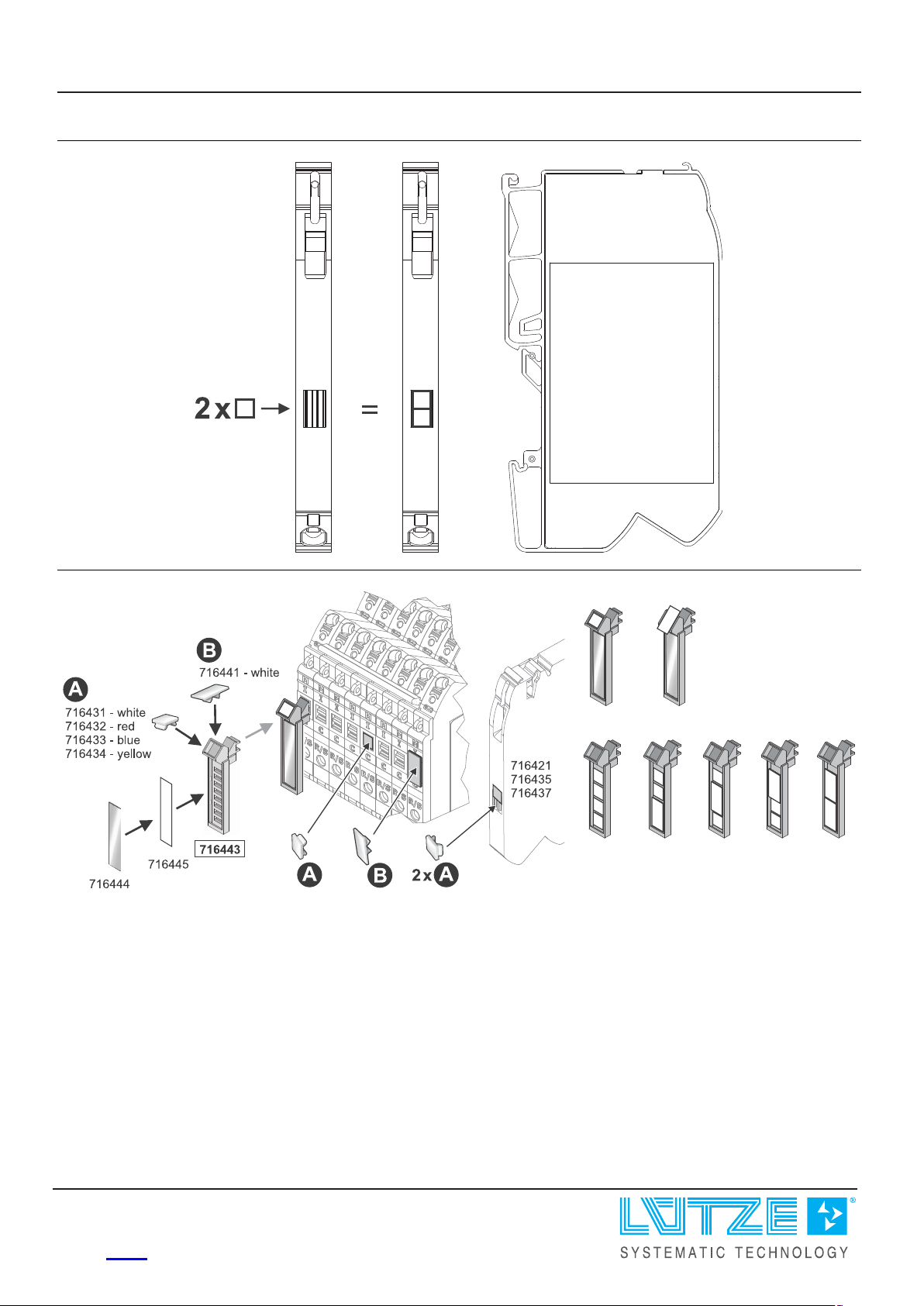

Use
Use
26.09.2023 – Subject to technical modification
Part No.
716447 • Datasheet version: 02 page 4 of 4
