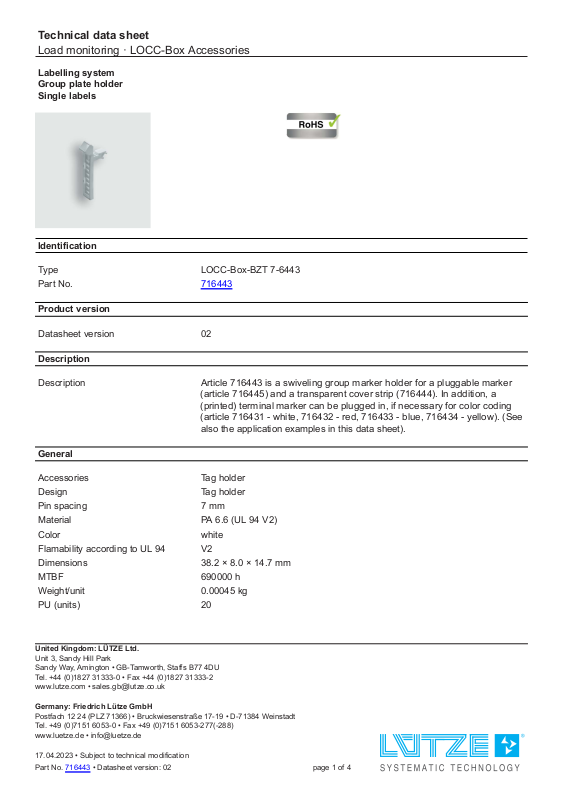

Page 1
Technical data sheet
Load monitori n g · LOCC-Box Accessories
Labelling system
Group plate holder
Single labels
Identification
Type LOCC-Box-BZT 7-6443
Part No.
Product version
716443
Datasheet version 02
Description
Description
Article 716443 is a swiveling group marker holder for a pluggable marker
(article 716445) and a transparent cover strip (716444). In addition, a
(printed) terminal marker can be plugged in, if necessary for color coding
(article 716431 - white, 716432 - red, 716433 - blue, 716434 - yellow). (See
also the application examples in this data sheet).
General
Accessories Tag holder
Design Tag holder
Pin spacing 7 mm
Material PA 6.6 (UL 94 V2)
Color white
Flamability according to UL 94 V2
Dimensions 38.2 × 8.0 × 14.7 mm
MTBF 690000 h
Weight/unit 0.00045 kg
PU (units) 20
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
17.04.2023 • Subject to technical modification
Part No.
716443 • Datasheet version: 02 page 1 of 4
Page 2
Technical data sheet
Load monitori n g · LOCC-Box Accessories
General ambient conditions
Operation temperature range -25 °C . .. +50 °C
Storage temperature range -40 °C . .. +85 °C
Vibration resistance 0.7 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Conformity RoHS
Standards EN 60947-1
Dimensions
17.04.2023 – Subject to technical modification
Part No. 716443 • Datasheet version: 02 page 2 of 4
Page 3
Technical data sheet
Load monitori n g · LOCC-Box Accessories

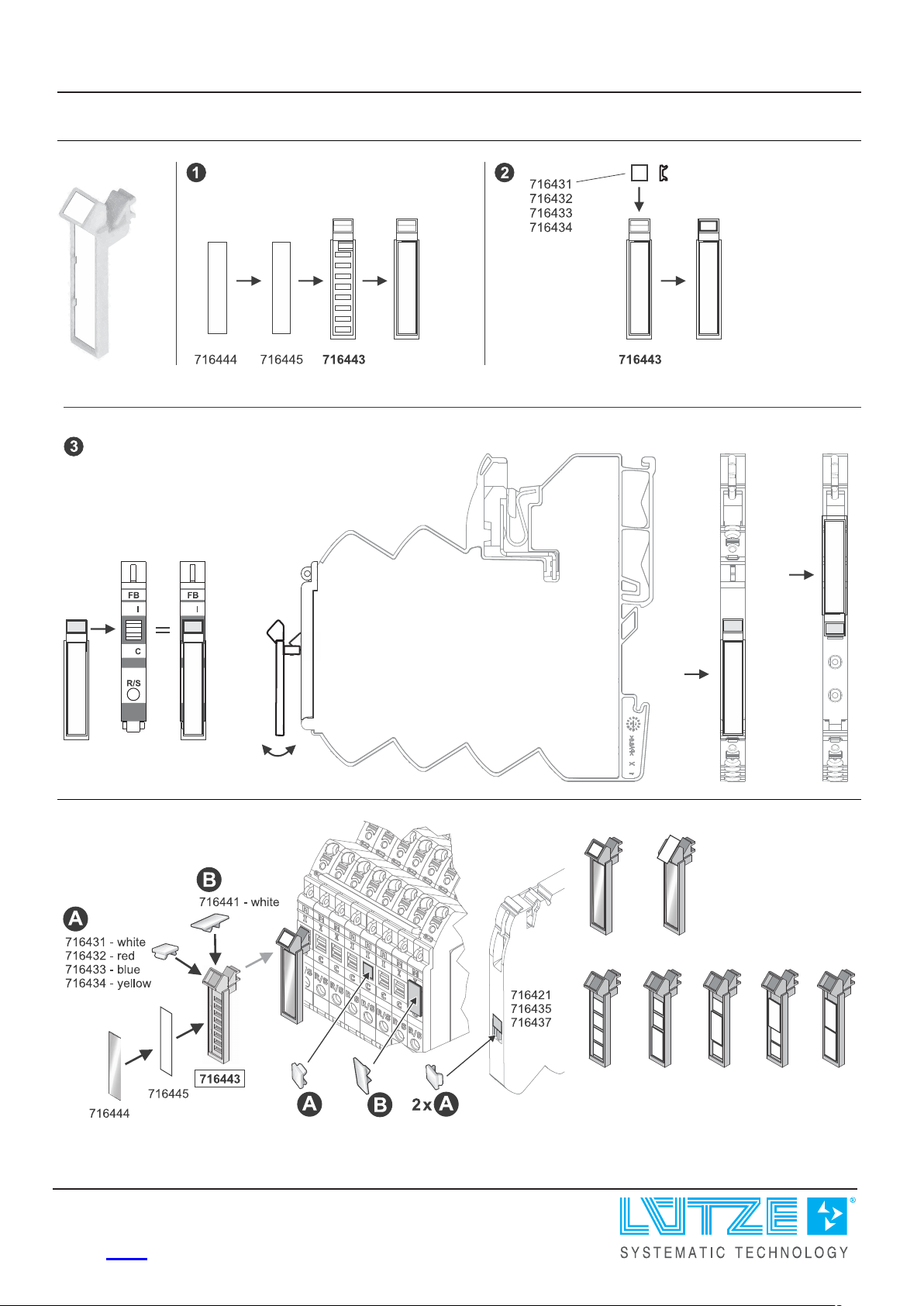

Use
Use
17.04.2023 – Subject to technical modification
Part No.
716443 • Datasheet version: 02 page 3 of 4
Page 4
Technical data sheet
Load monitori n g · LOCC-Box Accessories

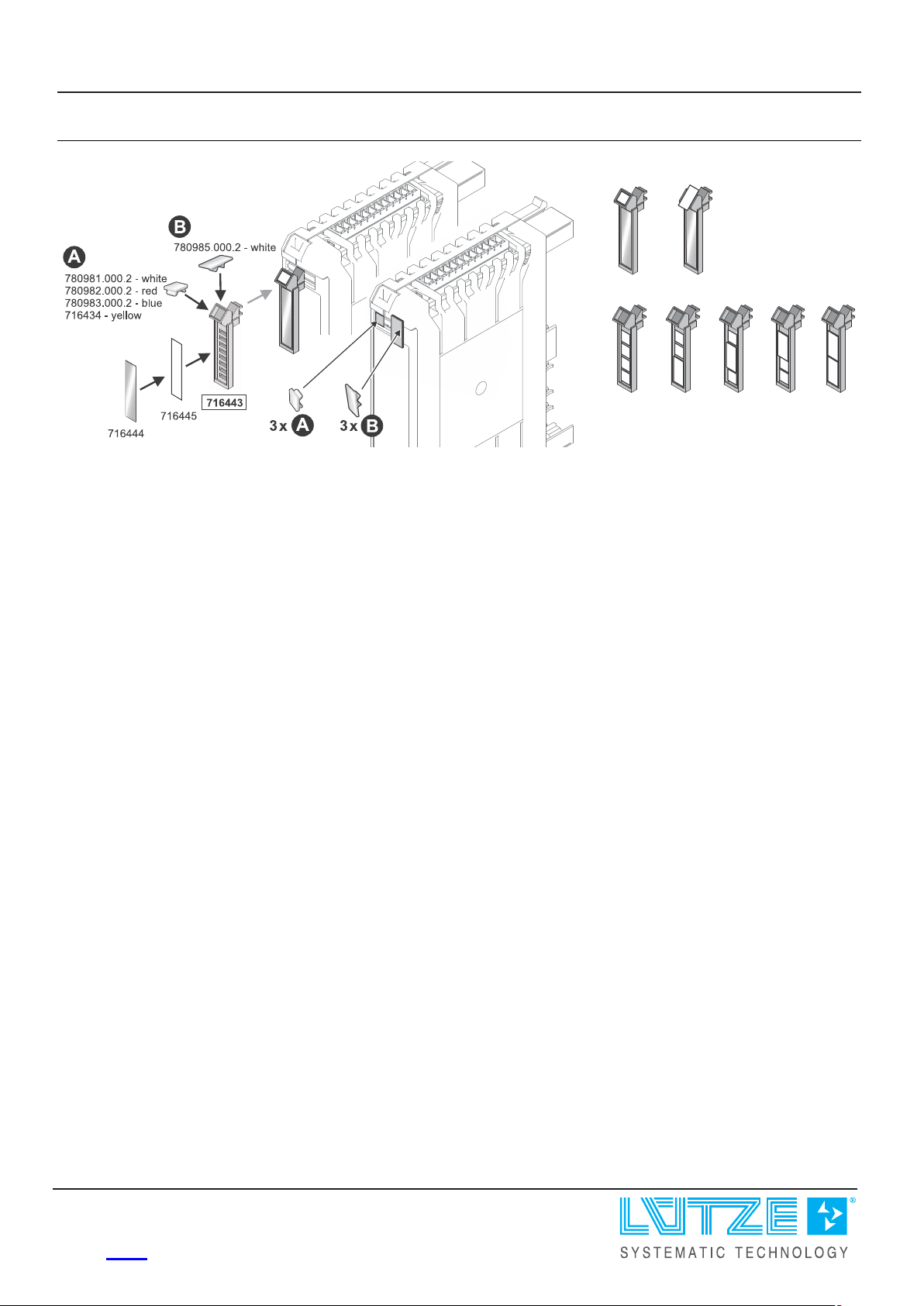

Use
17.04.2023 – Subject to technical modification
Part No.
716443 • Datasheet version: 02 page 4 of 4
