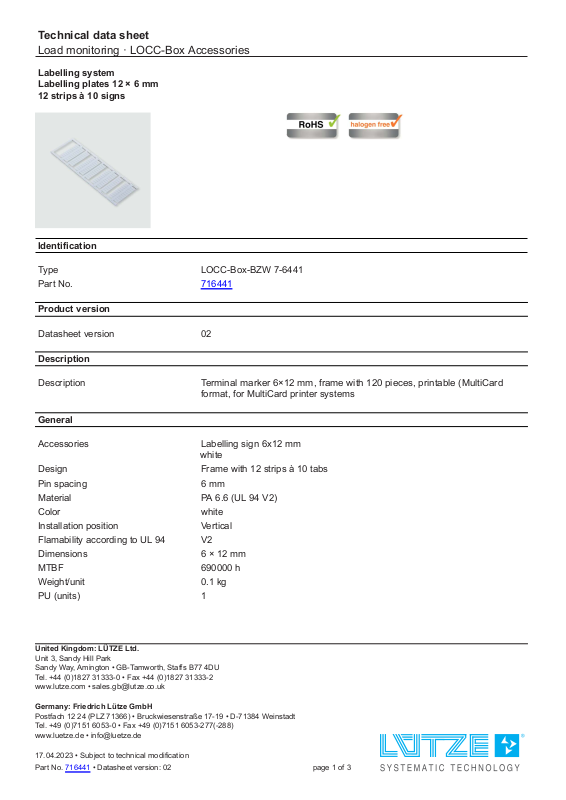

Page 1
Technical data sheet
Load monitori n g · LOCC-Box Accessories
Labelling system
Labelling plates 12 × 6 mm
12 strips à 10 signs
Identification
Type LOCC-Box-BZW 7-6441
Part No.
Product version
716441
Datasheet version 02
Description
Description
Terminal marker 6×12 mm, frame with 120 pieces, printable (MultiCard
format, for MultiCard printer systems
General
Accessories Labelling sign 6x12 mm
white
Design Frame with 12 strips à 10 tabs
Pin spacing 6 mm
Material PA 6.6 (UL 94 V2)
Color white
Installation position Vertical
Flamability according to UL 94 V2
Dimensions 6 × 12 mm
MTBF 690000 h
Weight/unit 0.1 kg
PU (units) 1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
17.04.2023 • Subject to technical modification
Part No.
716441 • Datasheet version: 02 page 1 of 3
Page 2
Technical data sheet
Load monitori n g · LOCC-Box Accessories
General ambient conditions
Operation temperature range -40 °C . .. +100 °C
Storage temperature range -40 °C . .. +100 °C
Vibration resistance 0.7 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Conformity RoHS
Certifications UL 94
Standards EN 60947-1
Notes and Comments
Note halogen-free
Dimensions
Use
17.04.2023 – Subject to technical modification
Part No.
716441 • Datasheet version: 02 page 2 of 3
Page 3
Technical data sheet
Load monitori n g · LOCC-Box Accessories

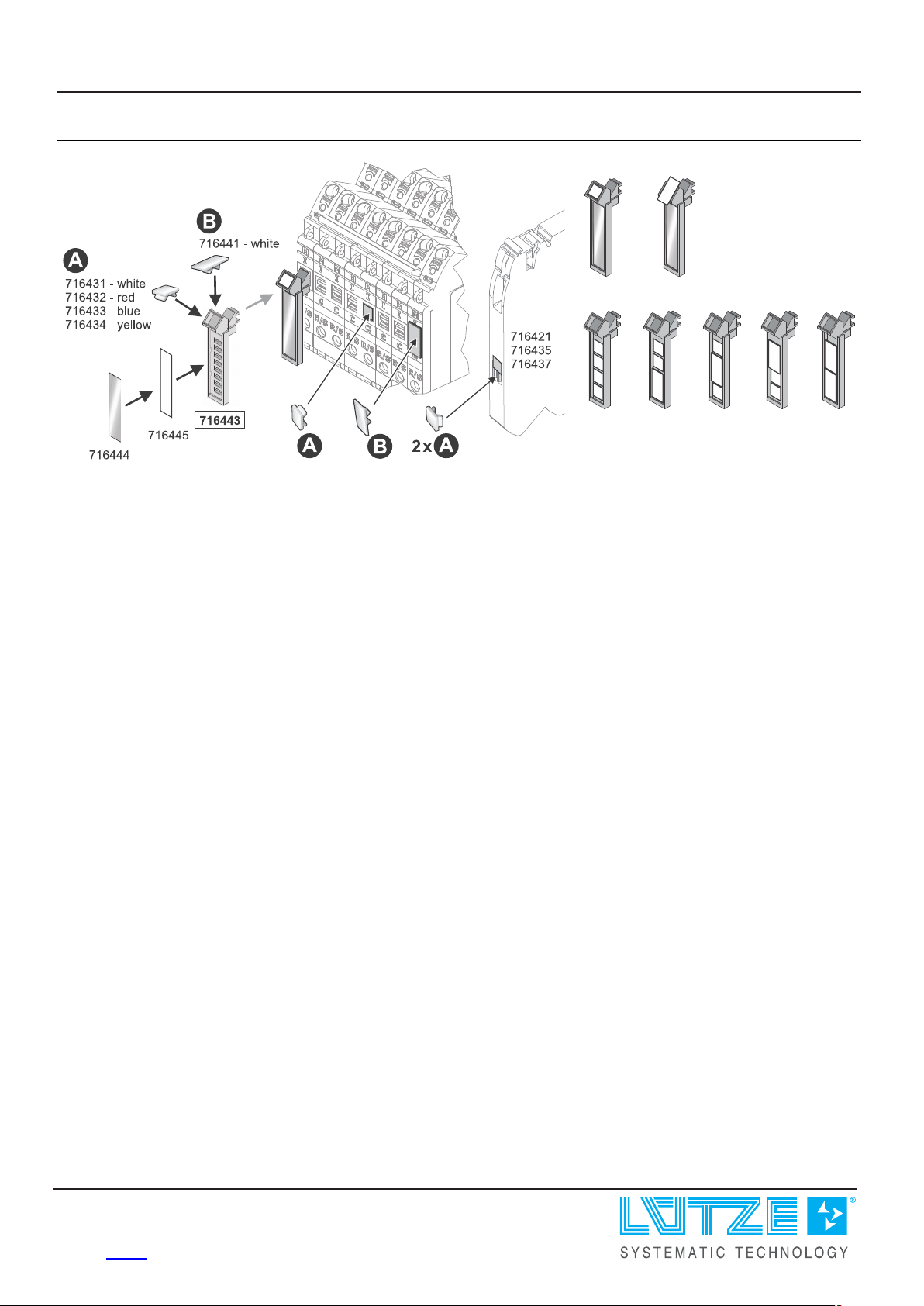

Use
17.04.2023 – Subject to technical modification
Part No.
716441 • Datasheet version: 02 page 3 of 3
