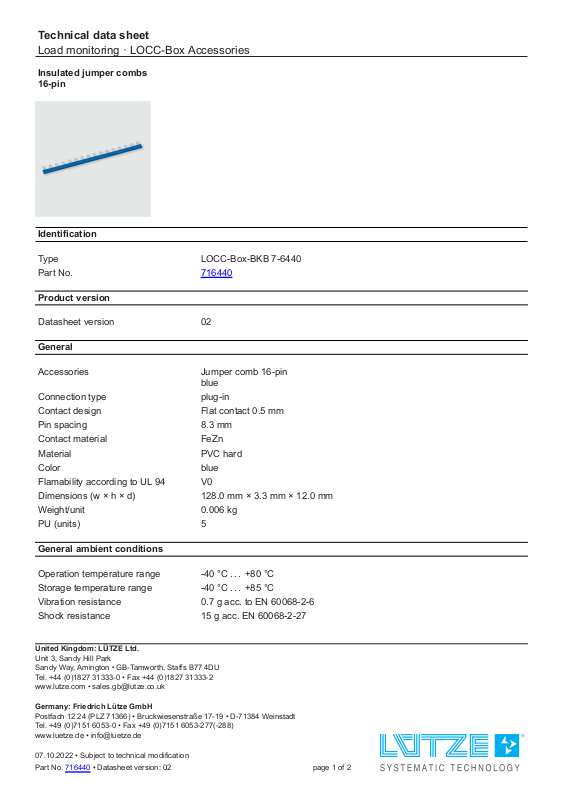

Page 1
Technical data sheet
Load monitoring · LOCC-Box Accessories
Insulated jumper combs
16-pin
Identification
Type LOCC-Box-BKB 7-6440
Part No.
Product version
716440
Datasheet version 02
General
Accessories Jumper comb 16-pin
blue
Connection type plug-in
Contact design Flat contact 0.5 mm
Pin spacing 8.3 mm
Contact material FeZn
Material PVC hard
Color blue
Flamability according to UL 94 V0
Dimensions (w × h × d) 128.0 mm × 3.3 mm × 12.0 mm
Weight/unit 0.006 kg
PU (units) 5
General ambient conditions
Operation temperature range -40 °C . . . +80 °C
Storage temperature range -40 °C . . . +85 °C
Vibration resistance 0.7 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Par k
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-1 9 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
07.10.2022 • Subject to technical modification
Part No.
716440 • Datasheet version: 02 page 1 of 2
Page 2
Technical data sheet
128
Load monitoring · LOCC-Box Accessories
Technical data
Rated current DC 6 A
Pole number 16
Certifications/Standards
Standards DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class A – not certified
Enclosure Class A – not certified
Dimensions
07.10.2022 – Subject to technical modification
Part No.
716440 • Datasheet version: 02 page 2 of 2
