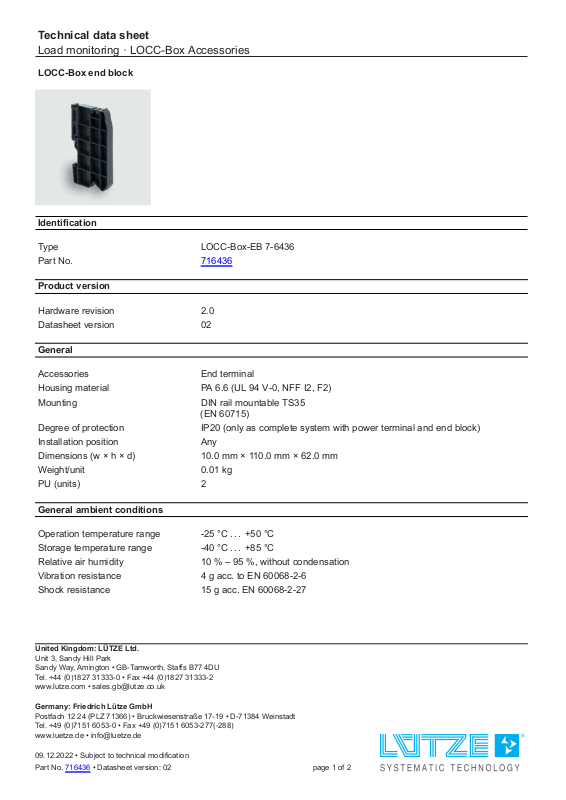

Page 1
Technical data sheet
Load monitoring · LOCC-Box Accessories
LOCC-Box end block
Identification
Type LOCC-Box-EB 7-6436
Part No.
Product version
Hardware revision 2.0
Datasheet version 02
716436
General
Accessories End terminal
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Mounting DIN rail mountable TS35
(EN 60715)
Degree of protection IP20 (only as complete system with power terminal and end block)
Installation position Any
Dimensions (w × h × d) 10.0 mm × 110.0 mm × 62.0 mm
Weight/unit 0.01 kg
PU (units) 2
General ambient conditions
Operation temperature range -25 °C . . . +50 °C
Storage temperature range -40 °C . . . +85 °C
Relative air humidity 10 % – 95 %, without condensation
Vibration resistance 4 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333- 0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckw i e se n str a ße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
09.12.2022 • Subject to technical modification
Part No.
716436 • Datasheet version: 02 page 1 of 2
Page 2
Technical data sheet
Load monitoring · LOCC-Box Accessories
Certifications/Standards
Certifications cULus (E135145)
Standards UL 60947-5-1
DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class B – not certified
Enclosure Class A – not certified
Dimensions
09.12.2022 – Subject to technical modification
Part No.
716436 • Datasheet version: 02 page 2 of 2
