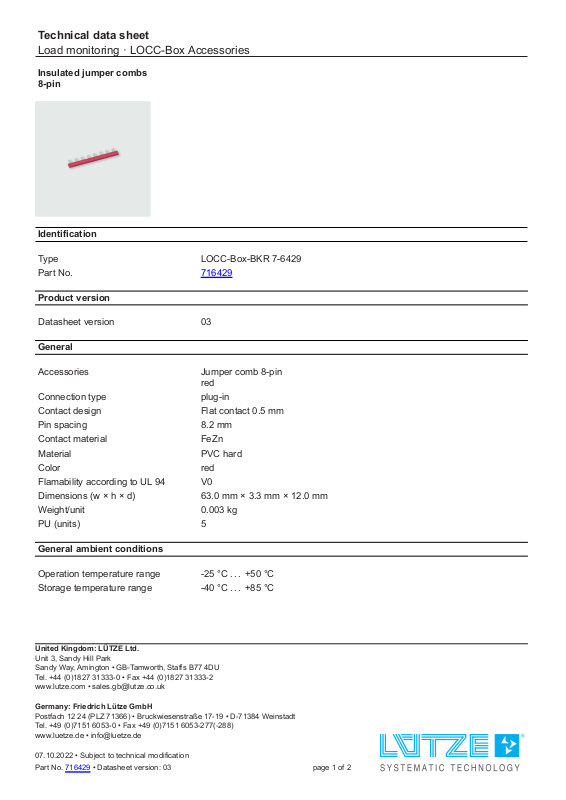

Page 1
Technical data sheet
Load monitoring · LOCC-Box Accessories
Insulated jumper combs
8-pin
Identification
Type LOCC-Box-BKR 7-6429
Part No.
Product version
716429
Datasheet version 03
General
Accessories Jumper comb 8-pin
red
Connection type plug-in
Contact design Flat contact 0.5 mm
Pin spacing 8.2 mm
Contact material FeZn
Material PVC hard
Color red
Flamability according to UL 94 V0
Dimensions (w × h × d) 63.0 mm × 3.3 mm × 12.0 mm
Weight/unit 0.003 kg
PU (units) 5
General ambient conditions
Operation temperature range -25 °C . . . +50 °C
Storage temperature range -40 °C . . . +85 °C
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Par k
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-1 9 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
07.10.2022 • Subject to technical modification
Part No.
716429 • Datasheet version: 03 page 1 of 2
Page 2
Technical data sheet
Load monitoring · LOCC-Box Accessories
Technical data
Rated current DC 6 A
Pole number 8
Certifications/Standards
Conformity CE
UKCA
Standards DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class A – not certified
Enclosure Class A – not certified
Dimensions
07.10.2022 – Subject to technical modification
Part No.
716429 • Datasheet version: 03 page 2 of 2
