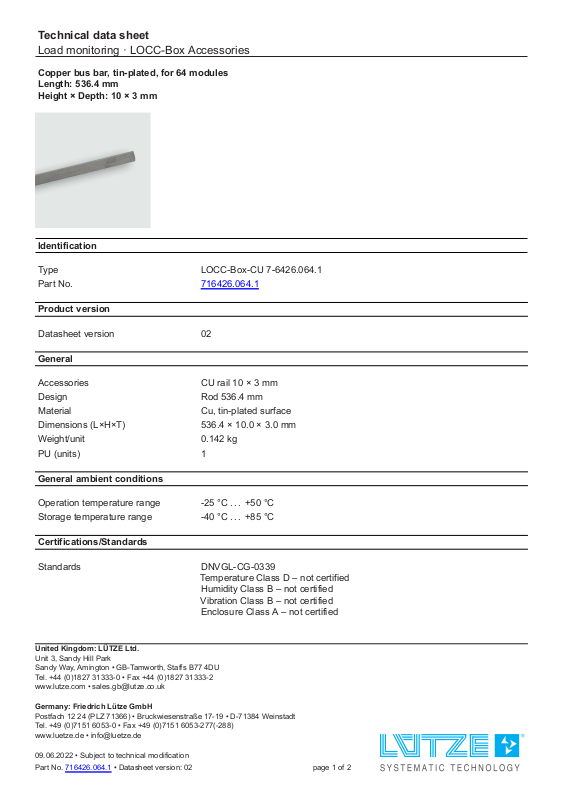

Technical data sheet
Load monitorin g · LOCC-Box Accessories
Copper bus bar, tin-plated, for 64 modules
Length: 536.4 mm
Height × Depth: 10 × 3 mm
Identification
Type LOCC-Box-CU 7-6426.064.1
Part No.
Product version
716426.064.1
Datasheet version 02
General
Accessories CU rail 10 × 3 mm
Design Rod 536.4 mm
Material Cu, tin-plated surface
Dimensions (L×H×T) 536.4 × 10.0 × 3.0 mm
Weight/unit 0.142 kg
PU (units) 1
General ambient conditions
Operation temperature range -25 °C . . . +50 °C
Storage temperature range -40 °C . . . +85 °C
Certifications/Standards
Standards DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class B – not certified
Enclosure Class A – not certified
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sa l e s.g b @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17 - 1 9 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
09.06.2022 • Subject to technical modification
Part No.
716426.064.1 • Datasheet versi o n : 02 page 1 of 2
Page 2
Technical data sheet
Load monitorin g · LOCC-Box Accessories

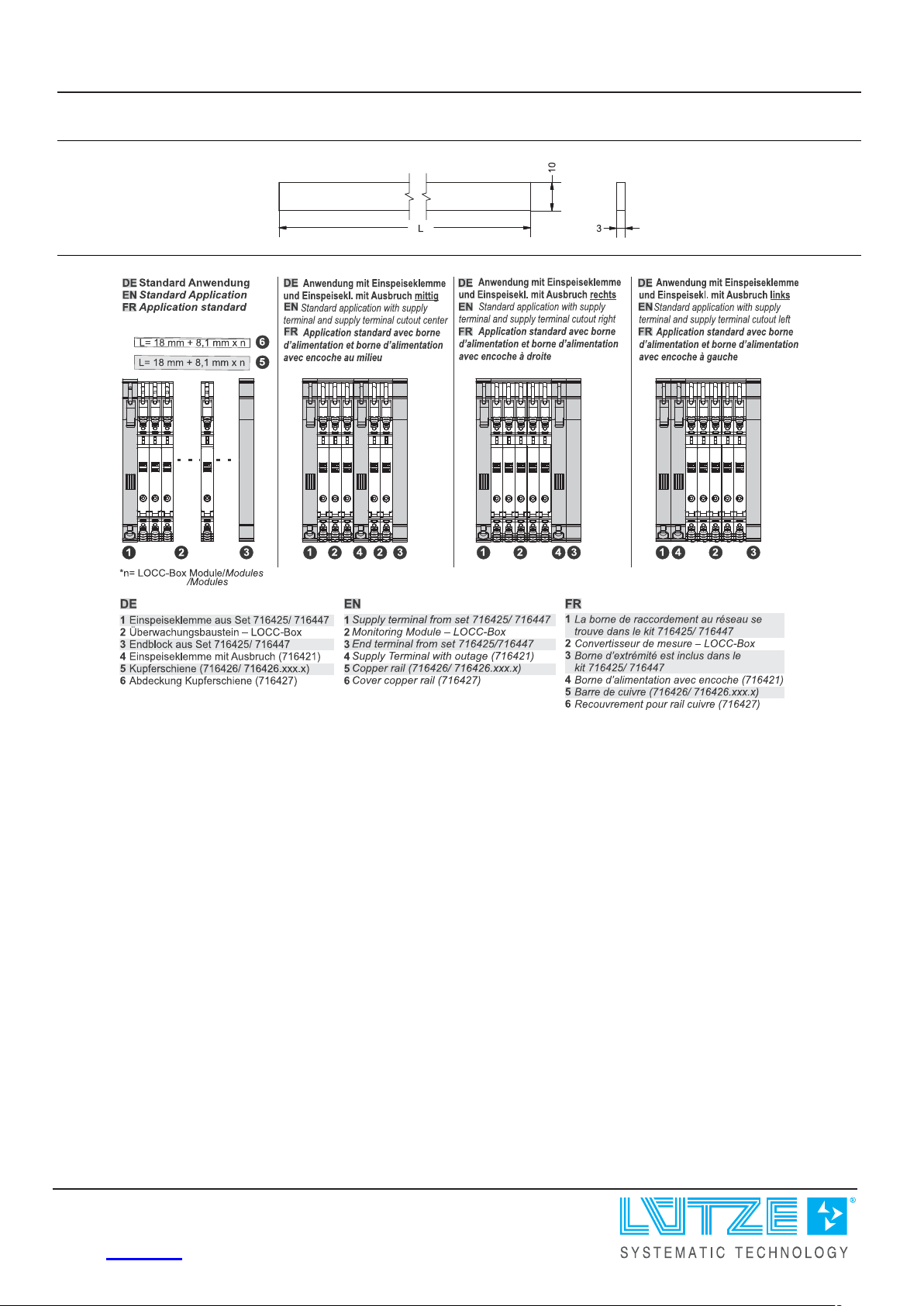

Dimensions
Use
09.06.2022 – Subject to technical modification
Part No.
716426.064.1 • Datasheet versi o n : 02 page 2 of 2
