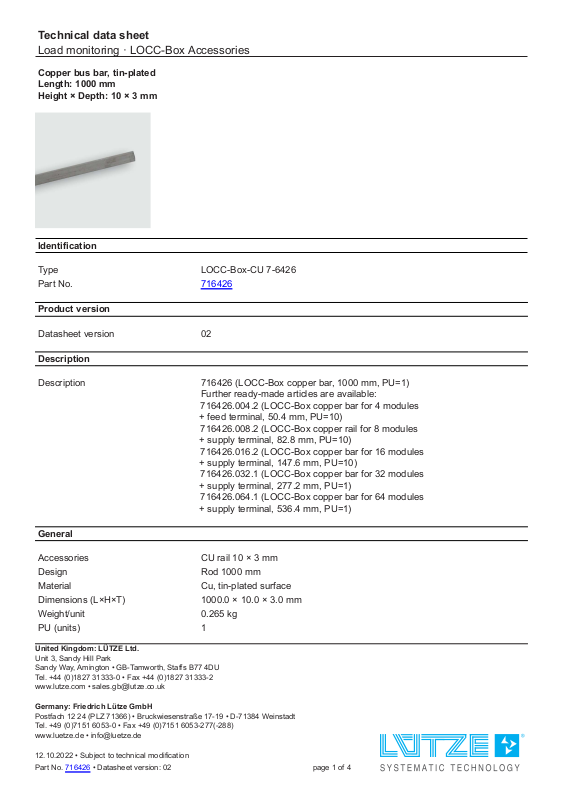

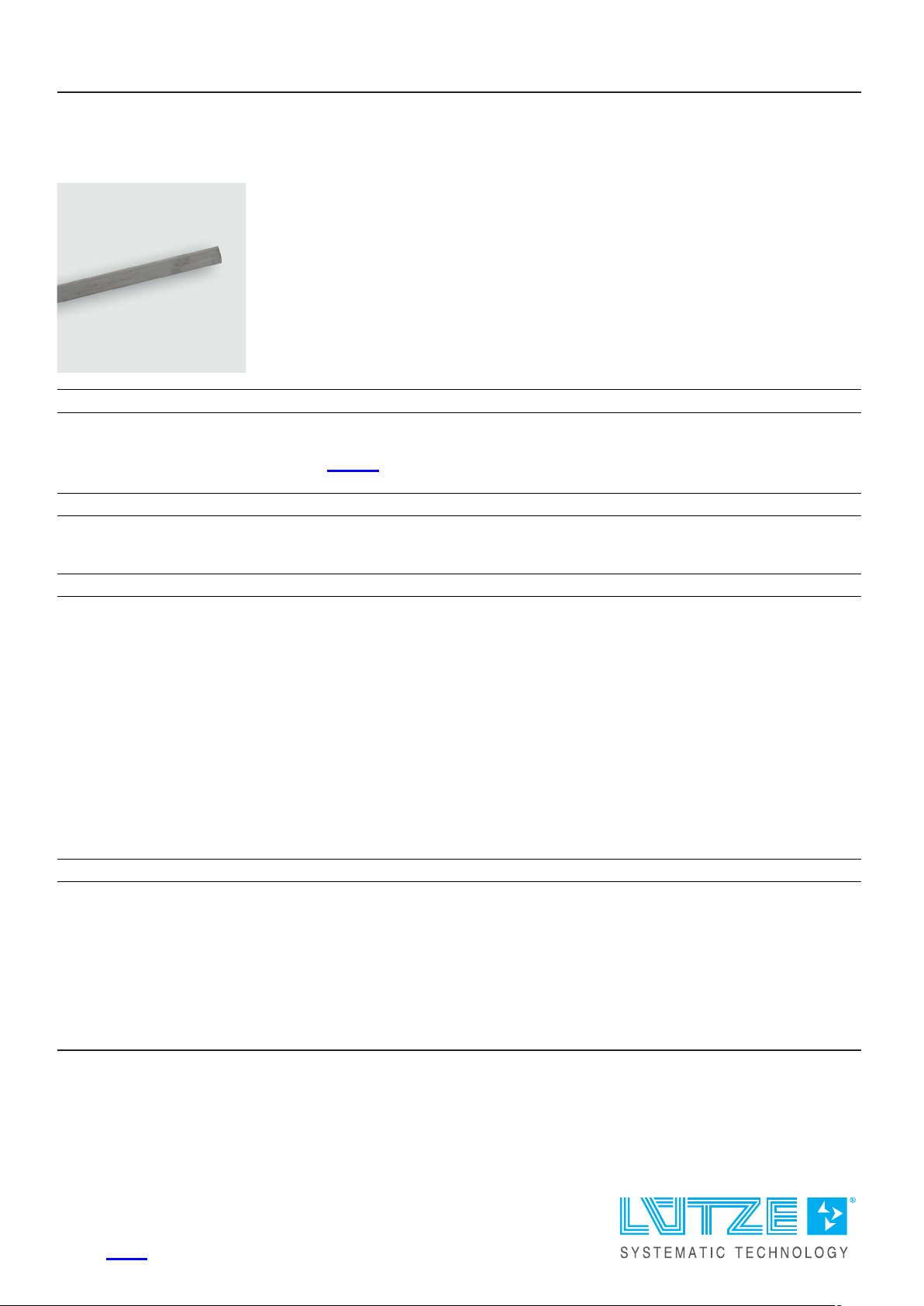

Technical data sheet
Load monitorin g · LOCC-Box Accessories
Copper bus bar, tin-plated
Length: 1000 mm
Height × Depth: 10 × 3 mm
Identification
Type LOCC-Box-CU 7-6426
Part No.
Product version
716426
Datasheet version 02
Description
Description 716426 (LOCC-Box copper bar, 1000 mm, PU=1)
Further ready-made articles are available:
716426.004.2 (LOCC-Box copper bar for 4 modules
+ feed terminal, 50.4 mm, PU=10)
716426.008.2 (LOCC-Box copper rail for 8 modules
+ supply terminal, 82.8 mm, PU=10)
716426.016.2 (LOCC-Box copper bar for 16 modules
+ supply terminal, 147.6 mm, PU=10)
716426.032.1 (LOCC-Box copper bar for 32 modules
+ supply terminal, 277.2 mm, PU=1)
716426.064.1 (LOCC-Box copper bar for 64 modules
+ supply terminal, 536.4 mm, PU=1)
General
Accessories CU rail 10 × 3 mm
Design Rod 1000 mm
Material Cu, tin-plated surface
Dimensions (L×H×T) 1000.0 × 10.0 × 3.0 mm
Weight/unit 0.265 kg
PU (units) 1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
12.10.2022 • Subject to technical modification
Part No.
716426 • Datasheet version: 02 page 1 of 4
Page 2
Technical data sheet
Load monitorin g · LOCC-Box Accessories
General ambient conditions
Operation temperature range -25 °C . .. +50 °C
Storage temperature range -40 °C . .. +80 °C
Certifications/Standards
Standards DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class B – not certified
Enclosure Class A – not certified

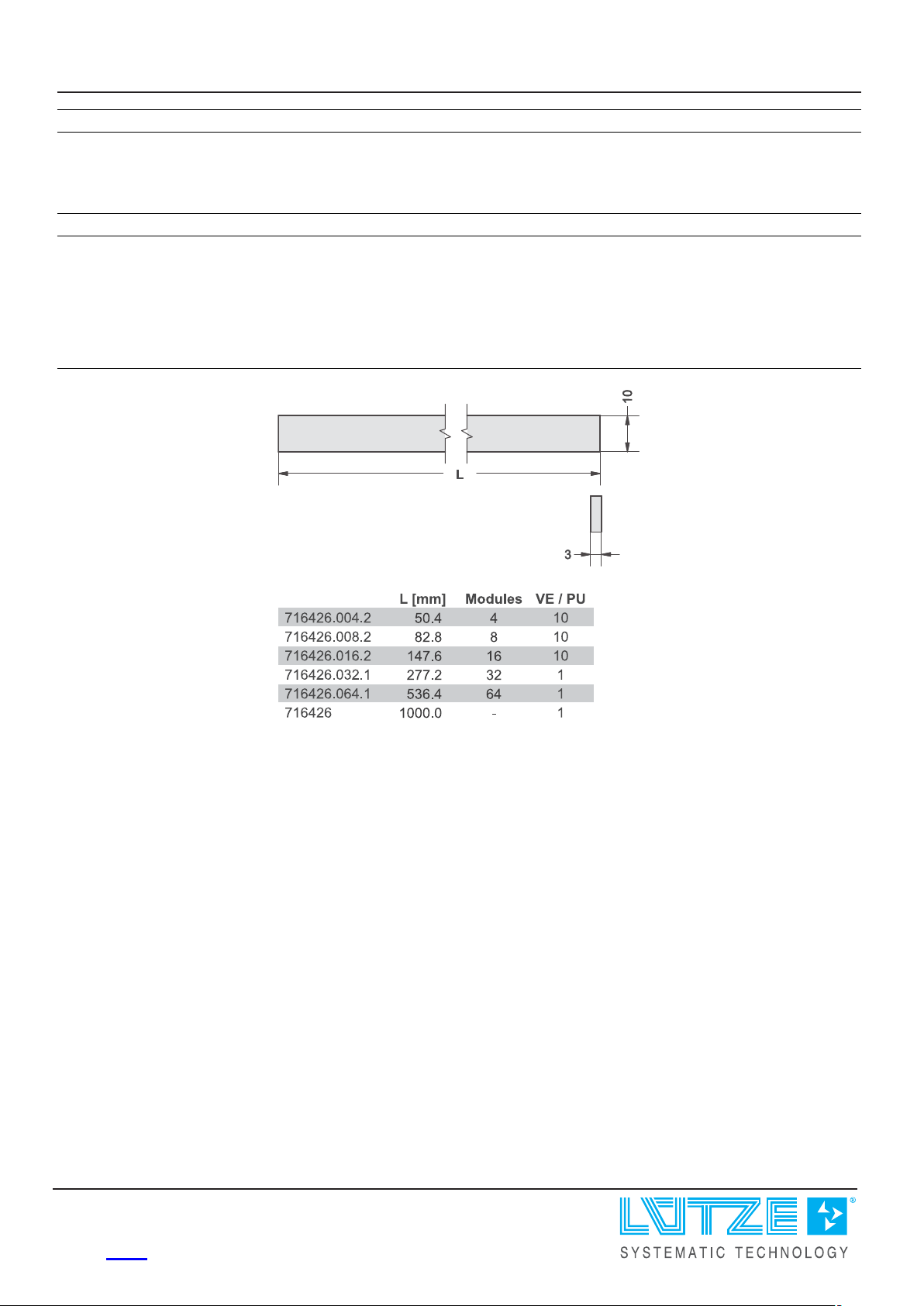

Dimensions
12.10.2022 – Subject to technical modification
Part No. 716426 • Datasheet version: 02 page 2 of 4
Page 3
Technical data sheet
Load monitorin g · LOCC-Box Accessories

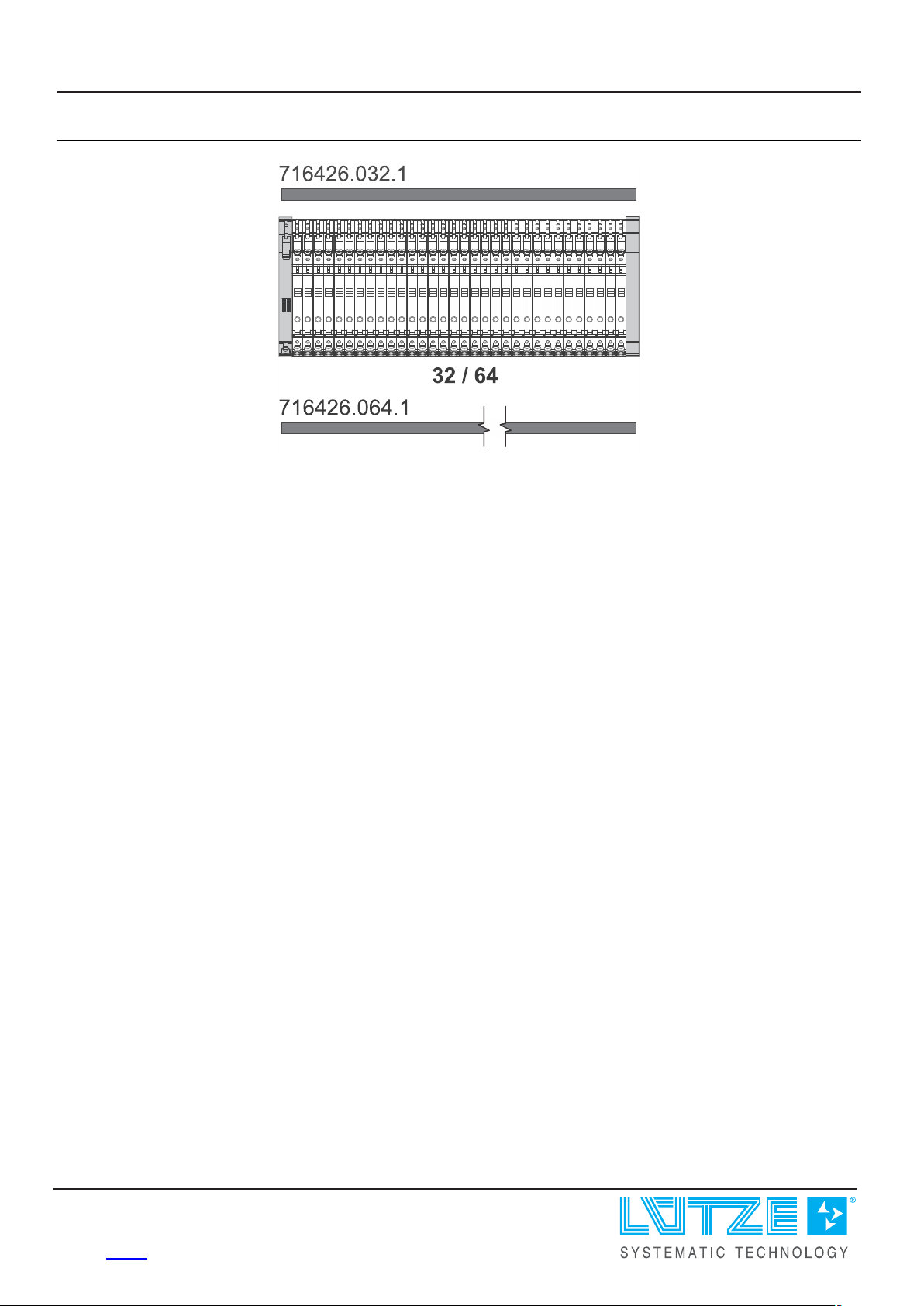

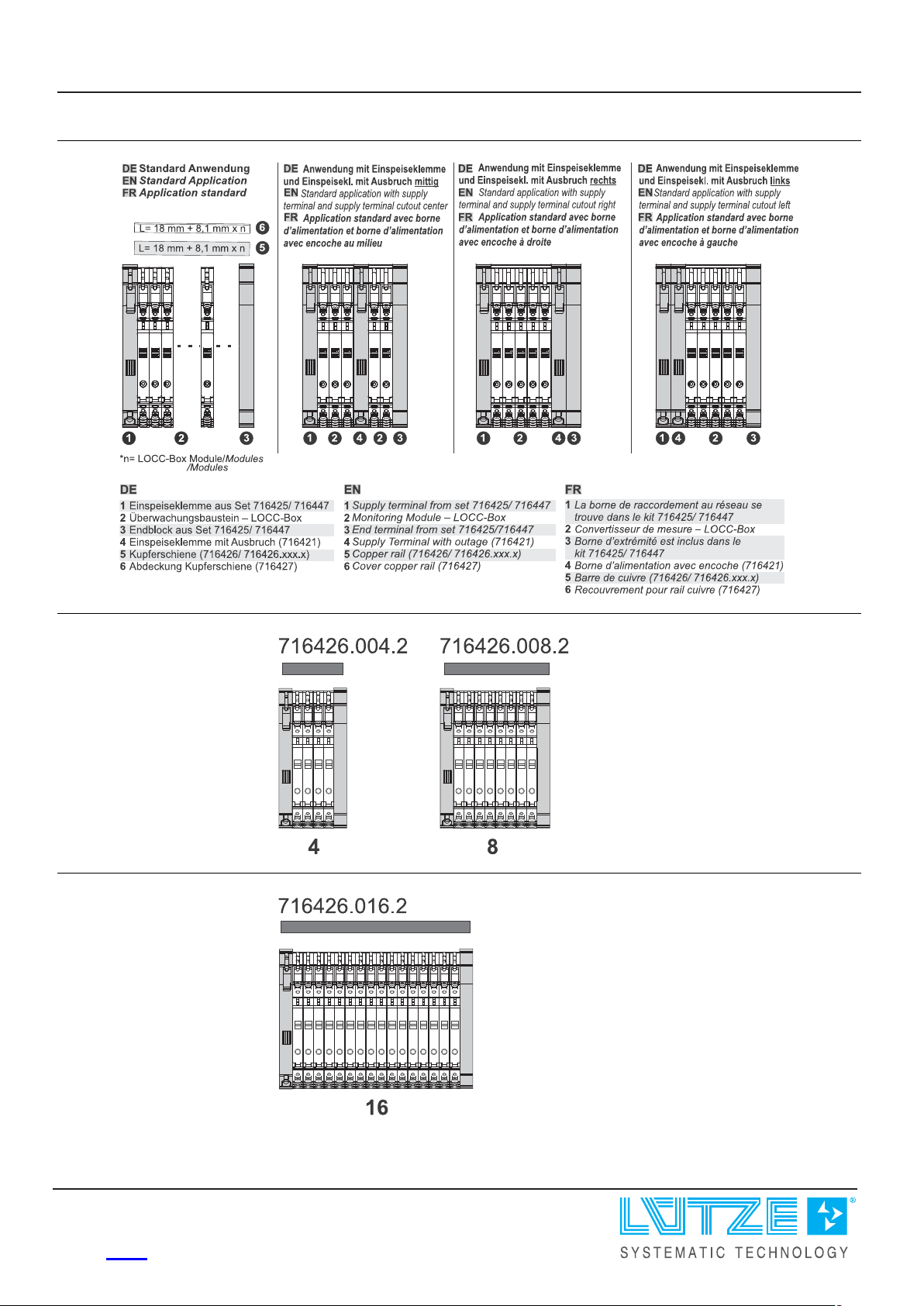

Use
