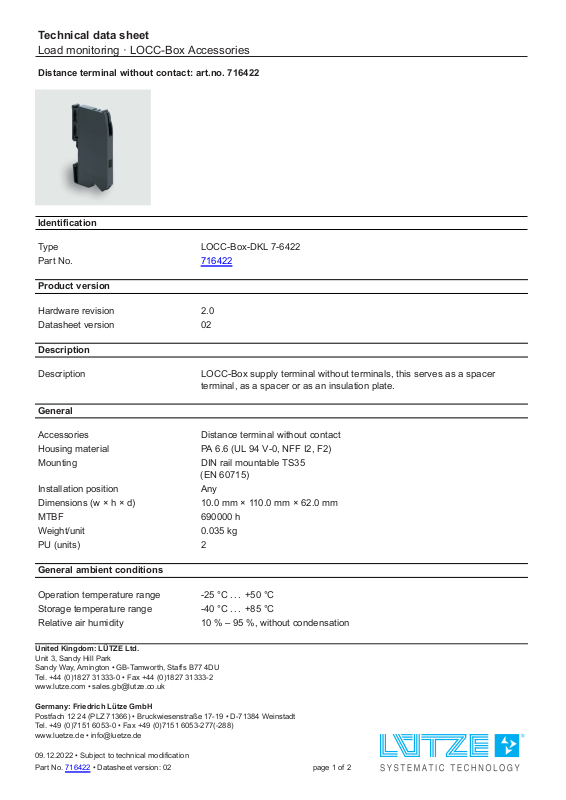

Page 1
Technical data sheet
Load monitoring · LOCC-Box Accessories
Distance terminal without contact: art.no. 716422
Identification
Type LOCC-Box-DKL 7-6422
Part No.
Product version
Hardware revision 2.0
Datasheet version 02
716422
Description
Description
LOCC-Box supply terminal without terminals, this serves as a spacer
terminal, as a spacer or as an insulation plate.
General
Accessories Distance terminal without contact
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Mounting DIN rai l mountab l e TS35
(EN 607 1 5 )
Installation position Any
Dimensions (w × h × d) 10.0 mm × 110.0 mm × 62.0 mm
MTBF 690000 h
Weight/unit 0.035 kg
PU (uni ts) 2
General ambient conditions
Operation temperature range -25 °C . . . +50 °C
Storage temperature range -40 °C . . . +85 °C
Relative air hu m i d i ty 10 % – 95 %, without condensation
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17- 1 9 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-2 8 8 )
www.luetze.de • [email protected]
09.12.2022 • Subject to technical modification
Part No.
716422 • Datasheet version: 02 page 1 of 2
Page 2
Technical data sheet
Load monitoring · LOCC-Box Accessories
Vibration resistance 4 g acc. to EN 60068-2-6
Shock resi sta n ce 15 g acc. EN 60068-2-27
Certifications/Standards
Certifications cULus (E1 3 5 1 4 5 )
Standards UL 609 4 7 - 5 - 1
DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class B – not certified
Enclosure Class A – not certified
Dimensions
Use
09.12.2022 – Sub j e ct to technical modification
Part No.
716422 • Datasheet version: 02 page 2 of 2
