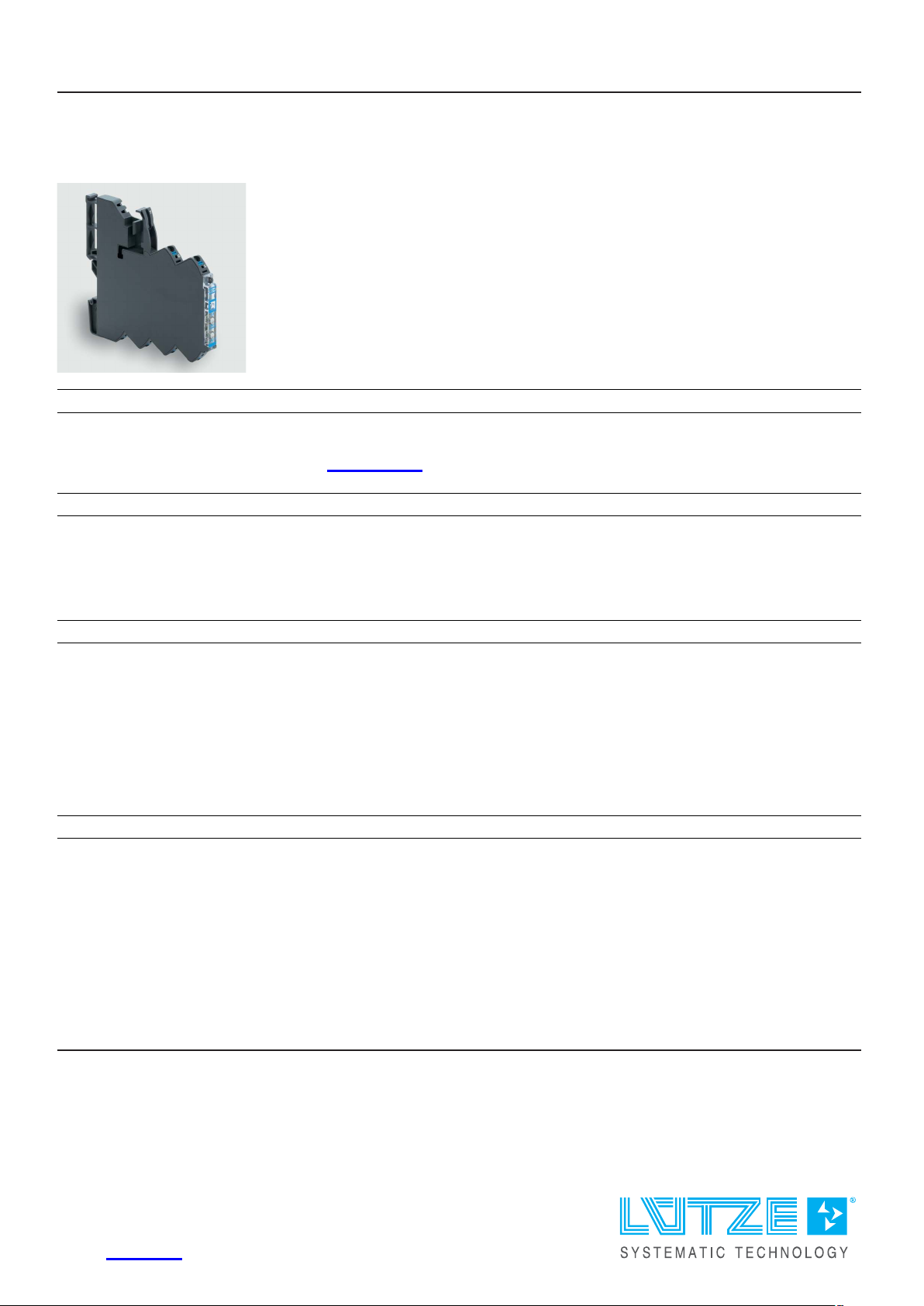

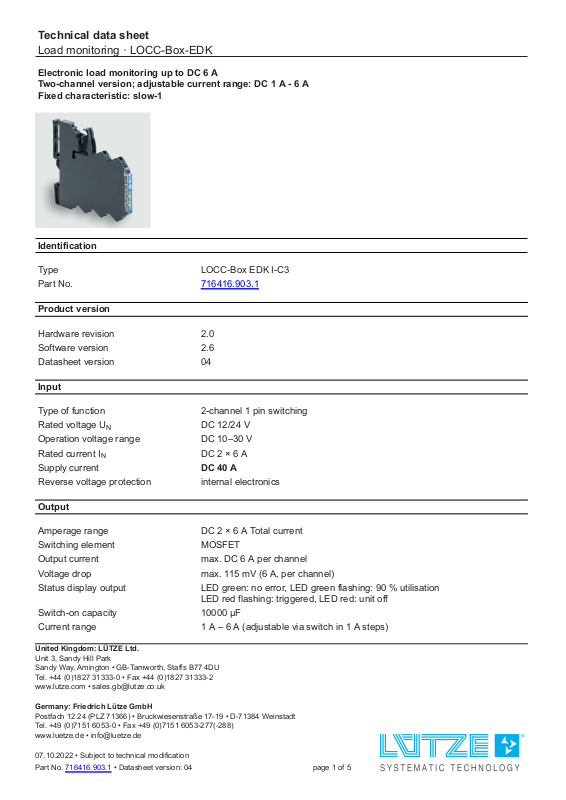

Technical data sheet
Load monitoring · LOCC-Box-EDK
Electronic load monitoring up to DC 6 A
Two-channel version; adjustable current range: DC 1 A - 6 A
Fixed characteristic: slow-1
Identification
Type LOCC-Box EDK I-C3
Part No.
Product version
716416.903.1
Hardware revision 2.0
Software version 2.6
Datasheet version 04
Input
Type of function 2-channel 1 pin switching
Rated voltage U
N
DC 12/24 V
Operation voltage range DC 10–30 V
Rated current I
N
DC 2 × 6 A
Supply current DC 40 A
Reverse voltage protection internal electronics
Output
Amperage range DC 2 × 6 A Total current
Switching element MOSFET
Output current max. DC 6 A per channel
Voltage drop max. 115 mV (6 A, per channel)
Status display output LED green: no error, LED green flashing: 90 % utilisation
LED red fla sh i n g : trigger e d , LED red: unit off
Switch-on capacity 10000 µF
Current range 1 A – 6 A (adjustable via switch in 1 A steps)
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
07.10.2022 • Subject to technical modifi ca ti o n
Part No.
716416.903.1 • Datasheet version: 04 page 1 of 5
Page 2
Technical data sheet
Load monitoring · LOCC-Box-EDK
Characteristic slow 1 (3), fixed setting
Signal output
Signal level High level: no er r o r
Low level: unit ha s trigger e d or is switched off
Switching element Transistor, collector with pull-up resistance
General
Dimensions (w × h × d) 8.1 mm × 107.4 mm × 116.0 mm
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Color of th e housin g RAL 7012
basalt grey
Mounting DIN rail m o u n ta b l e TS35
(EN 60715)
Installation position Any
MTBF 690000 h @ 40 °C, 100 operations button, 30 revolutions coding switch
Degree of protection IP20 (only a s complete system with power terminal and end block)
Connection type Push-In
0.25 mm² – 2.5 mm²
AWG 24 – AWG 14
Weight/unit 0.07 kg
PU ( u n i ts) 1
General ambient conditions
Operation temperature range -25 °C . . . +50 °C
Storage temperature range -40 °C . . . +85 °C
Relative air humidity 10 % – 95 %, without condensation
Vibration resistance 4 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Conformity CE
UKCA
Certifications cULus (E135145)
Standards EN 6 1 0 0 0 - 6 - 2
EN 6 1 0 0 0 - 6 - 3
UL 60947-5-1
DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class B – not certified
EMC Class A – not certified
Enclosure Class A – not certified
07.10.2022 – Subject to techn i ca l modifi ca ti o n
Part No. 716416.903.1 • Datasheet versio n : 04 page 2 of 5
Page 3
Technical data sheet
Load monitoring · LOCC-Box-EDK

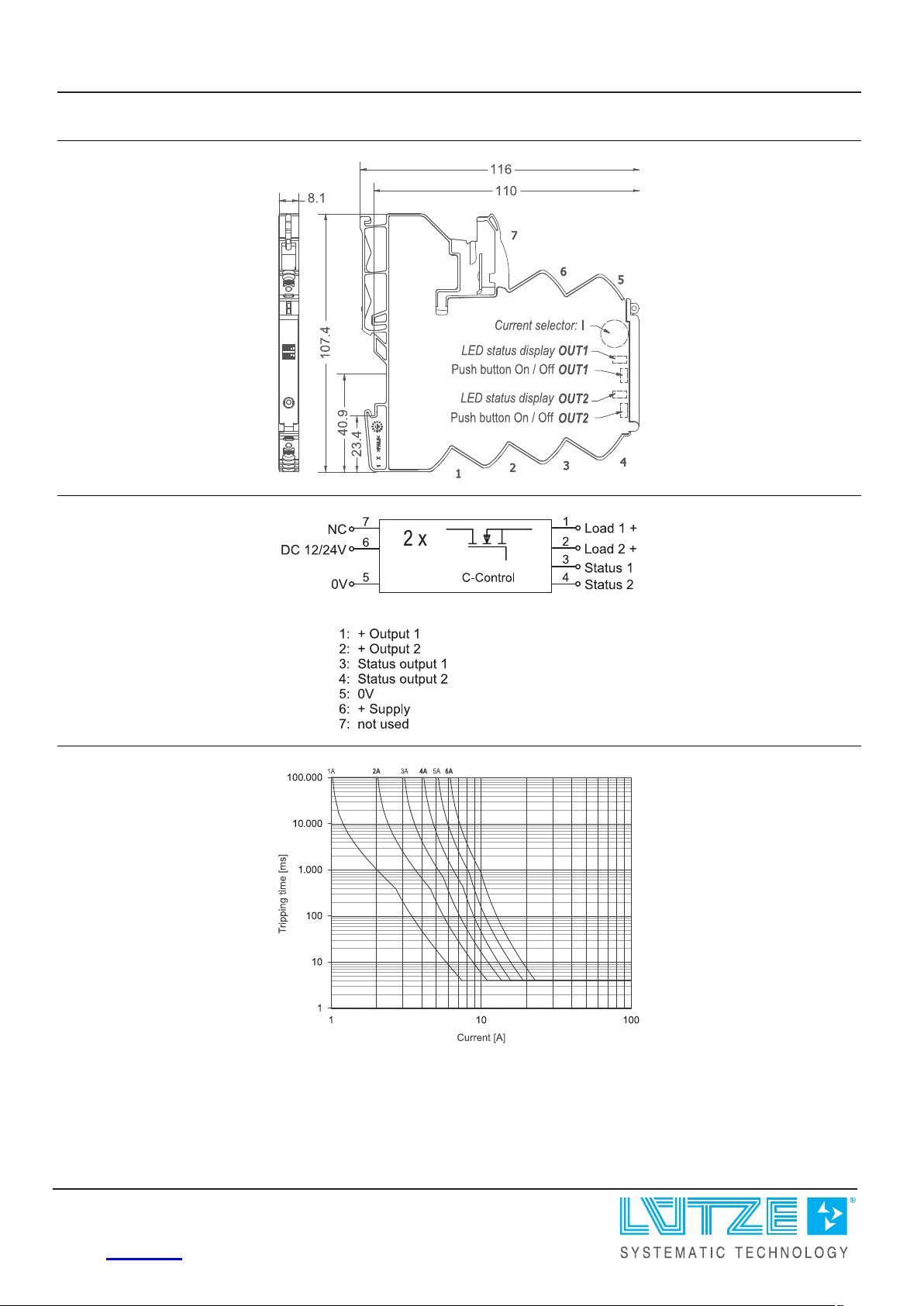

Dimensions
PIN assignment
3: Characteristic slow-1
07.10.2022 – Subject to techn i ca l modifi ca ti o n
Part No. 716416.903.1 • Datasheet versio n : 04 page 3 of 5
Page 4
Technical data sheet
Load monitoring · LOCC-Box-EDK

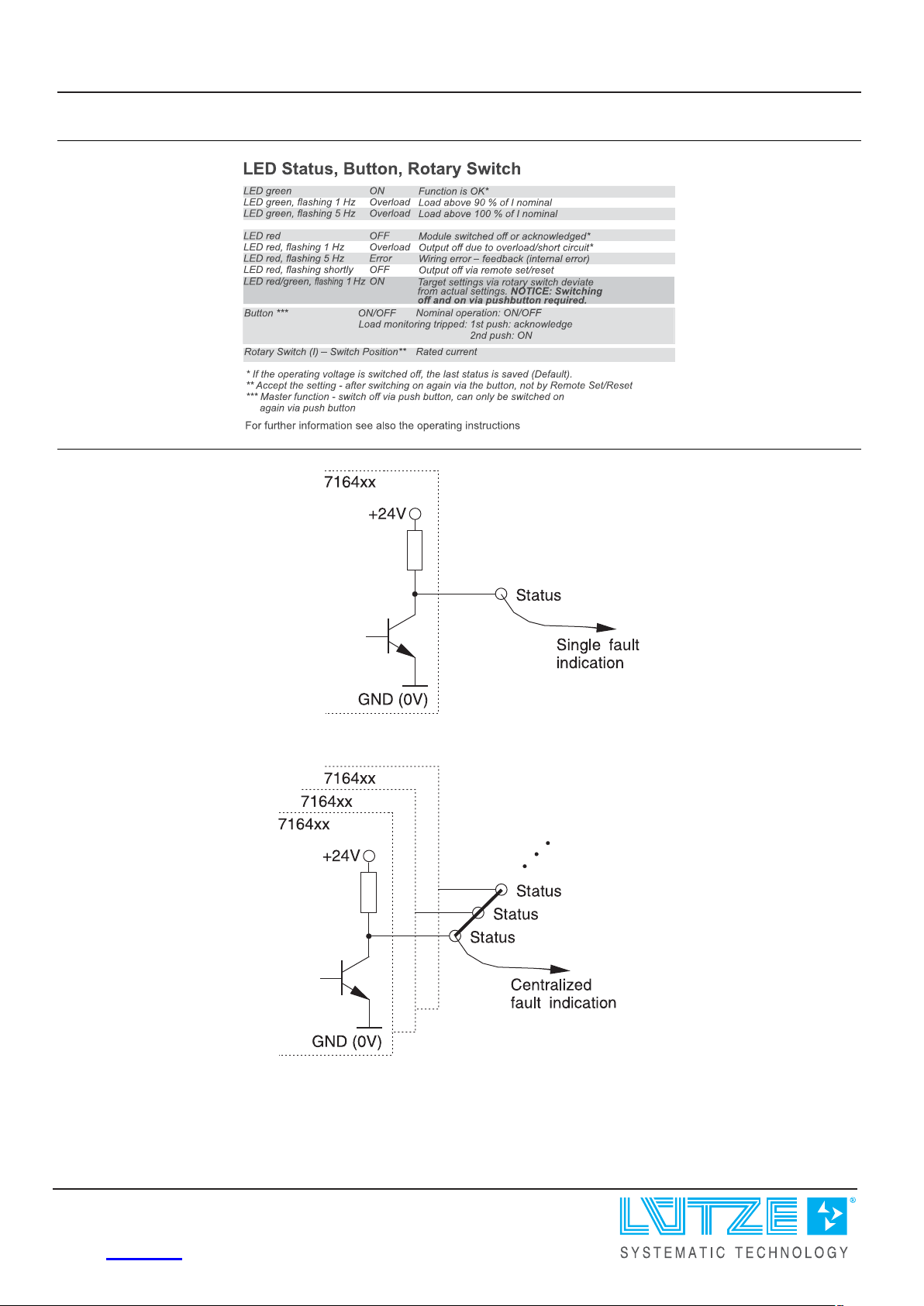

LED status
Signal output
07.10.2022 – Subject to techn i ca l modifi ca ti o n
Part No.
716416.903.1 • Datasheet version: 04 page 4 of 5
Page 5
Technical data sheet
Push-In
1
Push-In
1
2
3

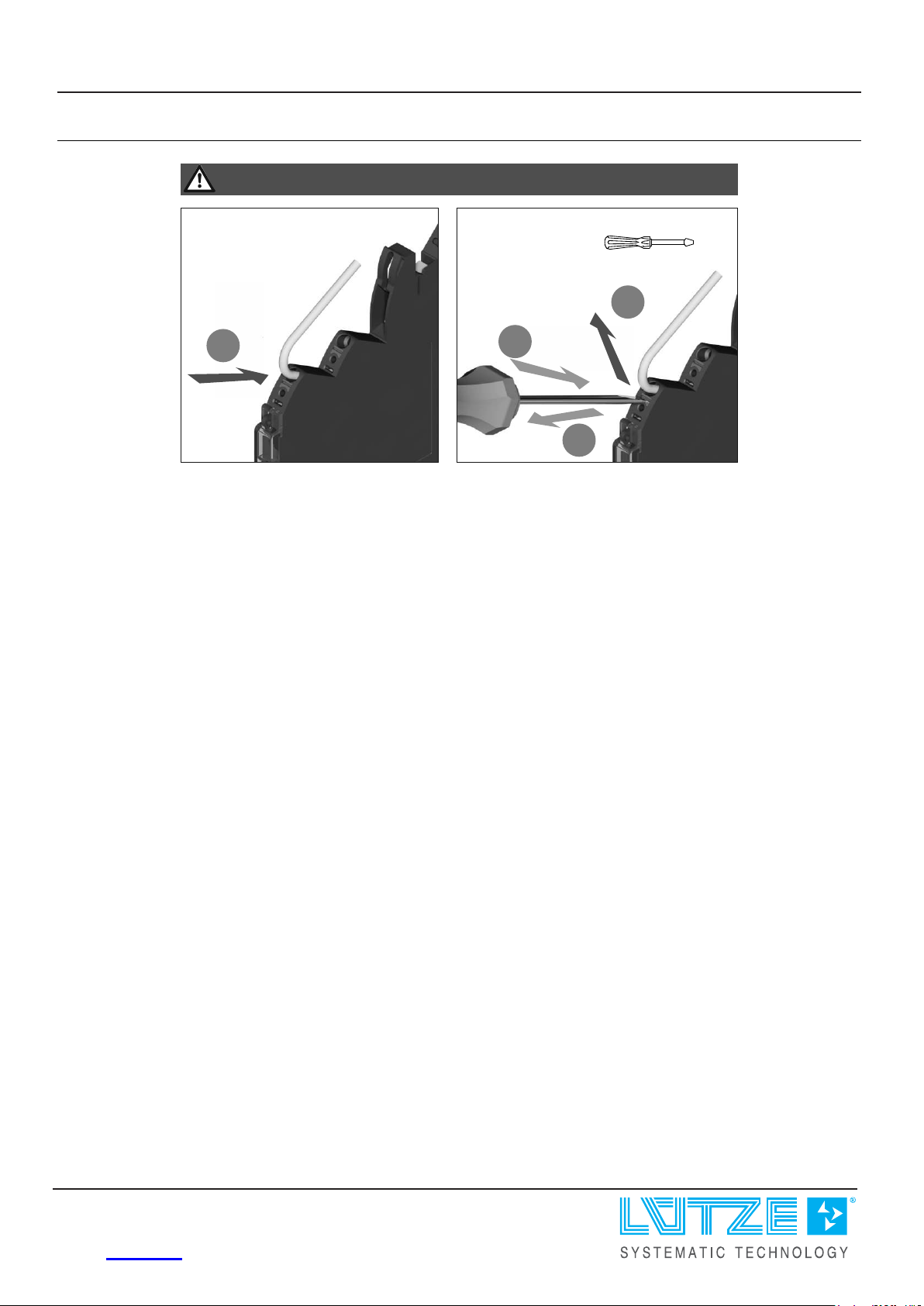

3.5 x 0.5mm
HINWEIS / NOTICE / AVIS
Montage/
Mounting/
Montage
Demontage/
Demounting/
Démontage
Load monitoring · LOCC-Box-EDK
Mounting diagram
07.10.2022 – Subject to techn i ca l modifi ca ti o n
Part No.
716416.903.1 • Datasheet version: 04 page 5 of 5
