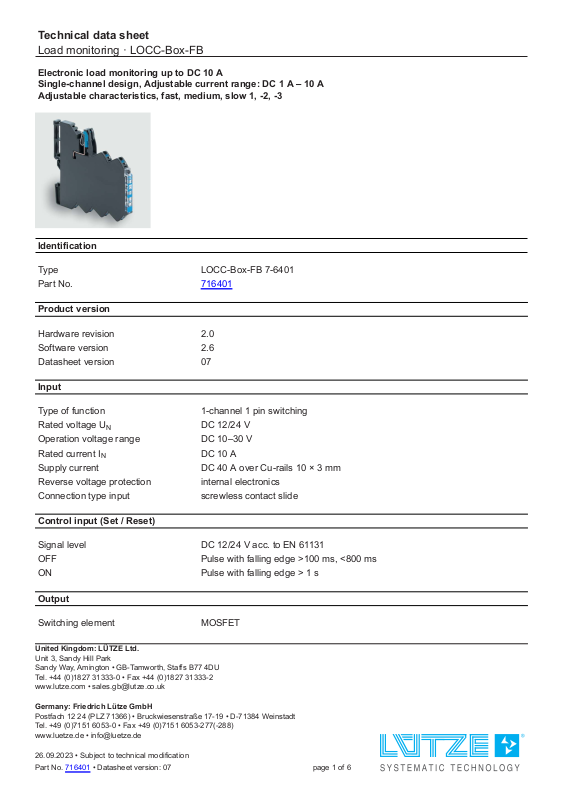

Technical data sheet
Load monitoring · LOCC-Box-FB

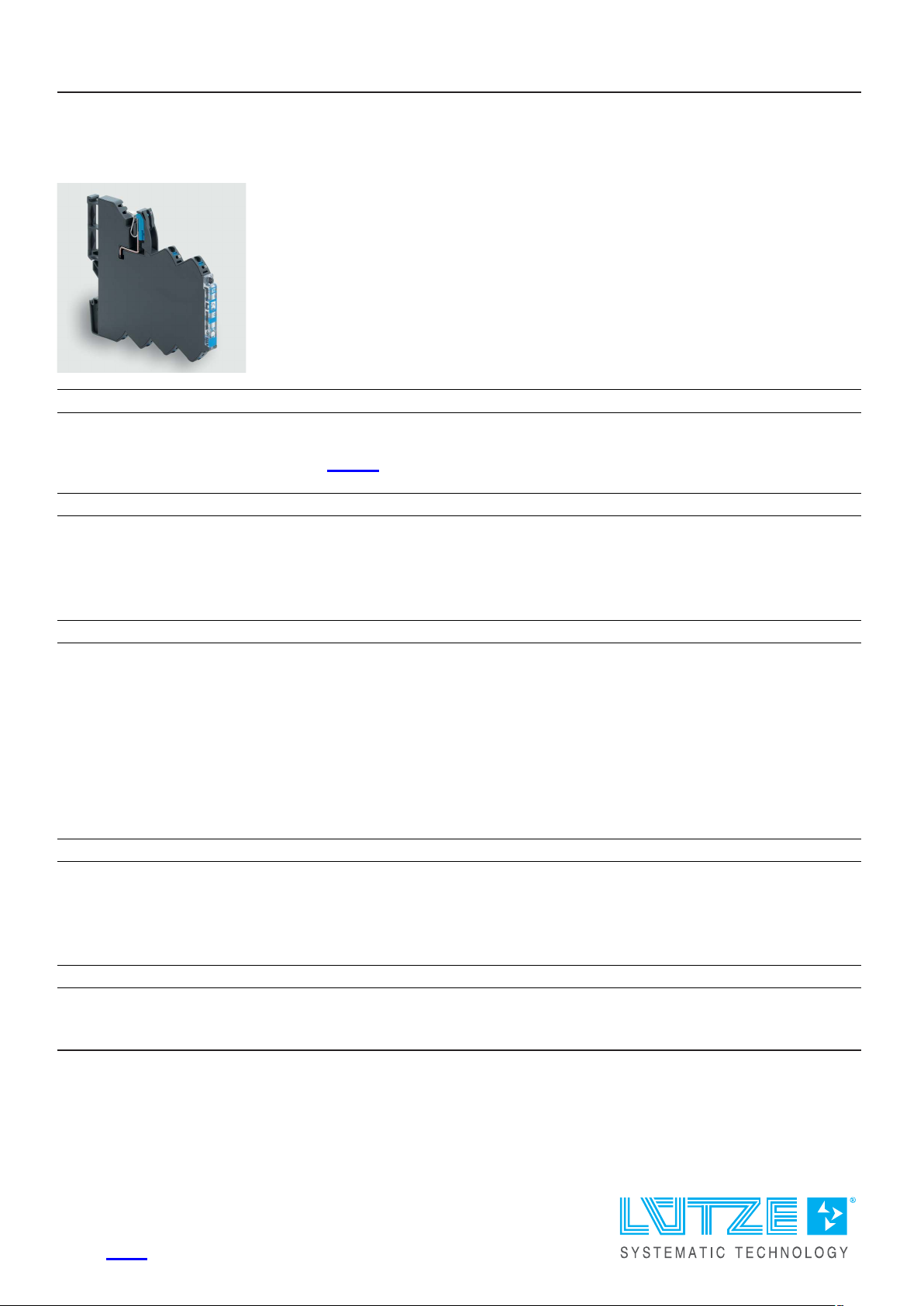

Electronic load monitoring up to DC 10 A
Single-channel design, Adjustable current range: DC 1 A – 10 A
Adjustable characteristics, fast, medium, slow 1, -2, -3
Identification
Type LOCC-Box-FB 7-6401
Part No.
Product version
716401
Hardware revision 2.0
Software version 2.6
Datasheet version 07
Input
Type of function 1-channel 1 pin switching
Rated voltage U
N
DC 12/24 V
Operation voltage range DC 10–30 V
Rated current I
N
DC 10 A
Supply current DC 40 A over Cu-rails 10 × 3 mm
Reverse voltage protection internal electronics
Connection type input screwless contact slide
Control input (Set / Reset)
Signal level DC 12/24 V acc. to EN 61131
OFF Pulse with falling edge >100 ms, <800 ms
ON Pulse with falling edge > 1 s
Output
Switching element MOSFET
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington
• GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 313 3 3 - 0
• Fax +44 (0)1827 31333-2
www.lutze.com
• [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366)
• Bruckwiesenstraße 17-19
• D-7138 4 Weinstadt
Tel. +49 (0)7151 605 3 - 0
• Fax +49 (0)7151 6053-277(-288)
www.luetze.de
• [email protected]
26.09.2023 • Subject to technical modifica ti o n
Part No.
716401 • Datasheet version: 07 page 1 of 6

Technical data sheet
Load monitoring · LOCC-Box-FB
Output current max. DC 10 A
Voltage drop max. 215 mV (10 A)
Status display output LED green: operating voltage present, no error
LED red: error in load circuit
Switch-on capacity 10000 µF
Current range 1 A – 10 A (adjustable via switch in 1 A steps)
Characteristic

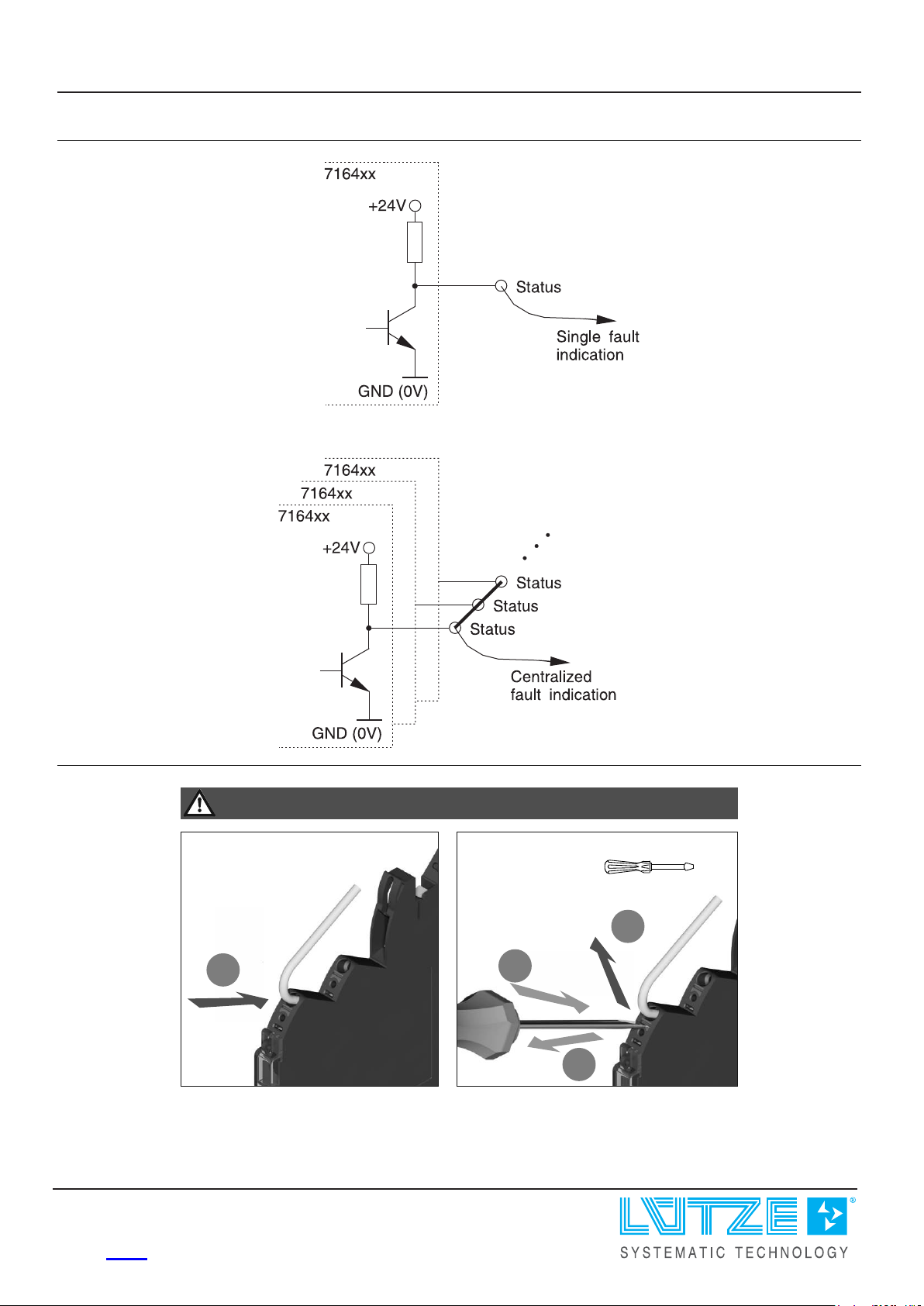

Signal output
Signal level DC 12/24 V: operating voltage on standby, no error,
Switching element Transistor, collector with pull-up resistan ce
General
Dimensions (w × h × d) 8.1 mm × 107.4 mm × 116.0 mm
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Color of the housing basalt grey
Mounting DIN rail mountable TS35
Installation position Any
MTBF 690000 h
Degree of protection IP20 (only as complete system with power terminal and end block)
Connection type Push-In
Weight/unit 0.07 kg
PU (units) 1

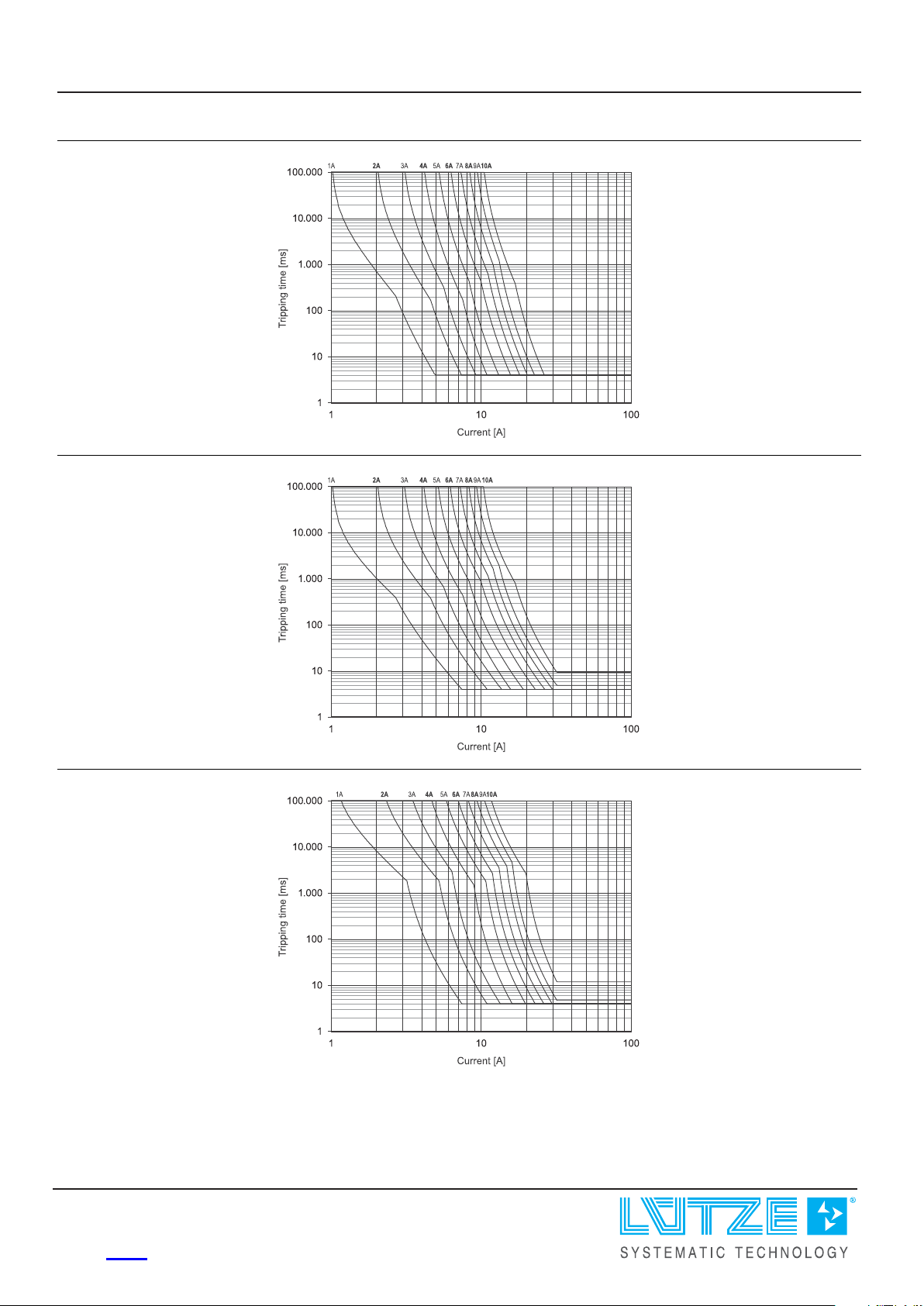

fast (1), medium (2), slow 1 (3), slow 2 (4), slow 3 (5) see ’characteristic
curves’
DC 0 V: error, output switched off or manual "OFF"
(EN 60715)
0.25 mm² – 2.5 mm²
AWG 24 – AWG 14
General ambient conditions
Operation temperature range -25 °C . .. +50 °C
Storage temperature range -40 °C . .. +85 °C
Relative air humidity 10 % – 95 %, without condensation
Vibration resistance 4 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
Certifications/Standards
Conformity CE
UKCA
Certifications cULus (E135145)
URus (E490188)
26.09.2023 – Subject to technical modification
Part No. 716401 • Datasheet version: 07 page 2 of 6

7
DC24V
C-Control
6
5
0V
3
1
Load+
Status
4
NC
DC24V
2
Set/
Reset
1:+Output
2:Controlinput(Set/Reset)
3:Statusoutput
4:NC
5:0V
6:+Supply(alternative)
7:+Supply
Technical data sheet
Load monitoring · LOCC-Box-FB
Standards EN 61000-6-2
EN 61000-6-3
UL 60947-5-1
UL 2367
DNVGL-CG-0339
Temperature Class D – not certified
Humidity Class B – not certified
Vibration Class B – not certified
EMC Class A – not certified
Enclosure Class A – not certified

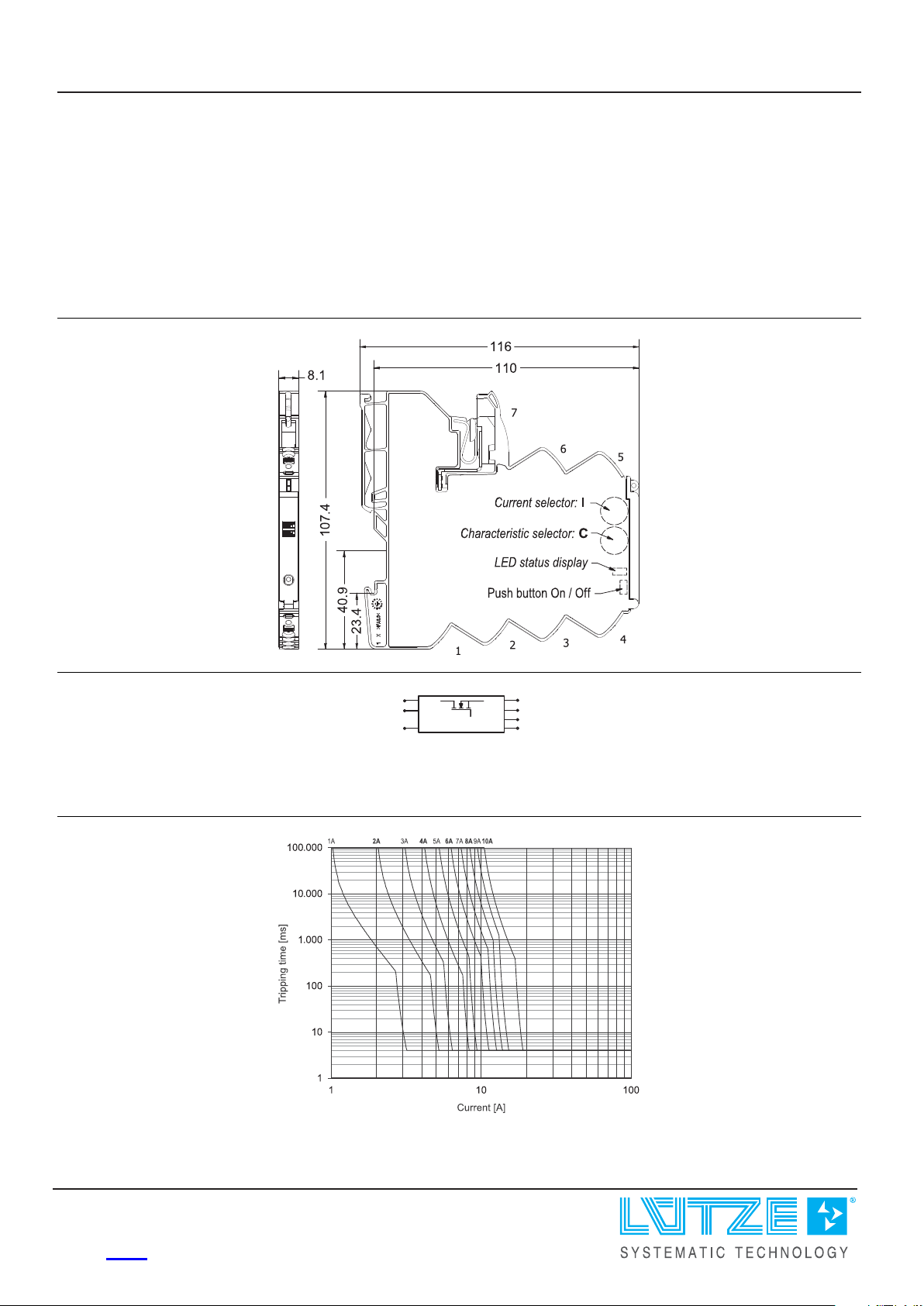

Dimensions
PIN assignment
1: Characteristic fast
26.09.2023 – Subject to technical modification
Part No. 716401 • Datasheet version: 07 page 3 of 6

Technical data sheet
Load monitoring · LOCC-Box-FB
2: Characteristic medium
3: Characteristic slow-1
4: Characteristic slow-2
26.09.2023 – Subject to technical modification
Part No. 716401 • Datasheet version: 07 page 4 of 6

Technical data sheet
Load monitoring · LOCC-Box-FB
5: Characteristic slow-3

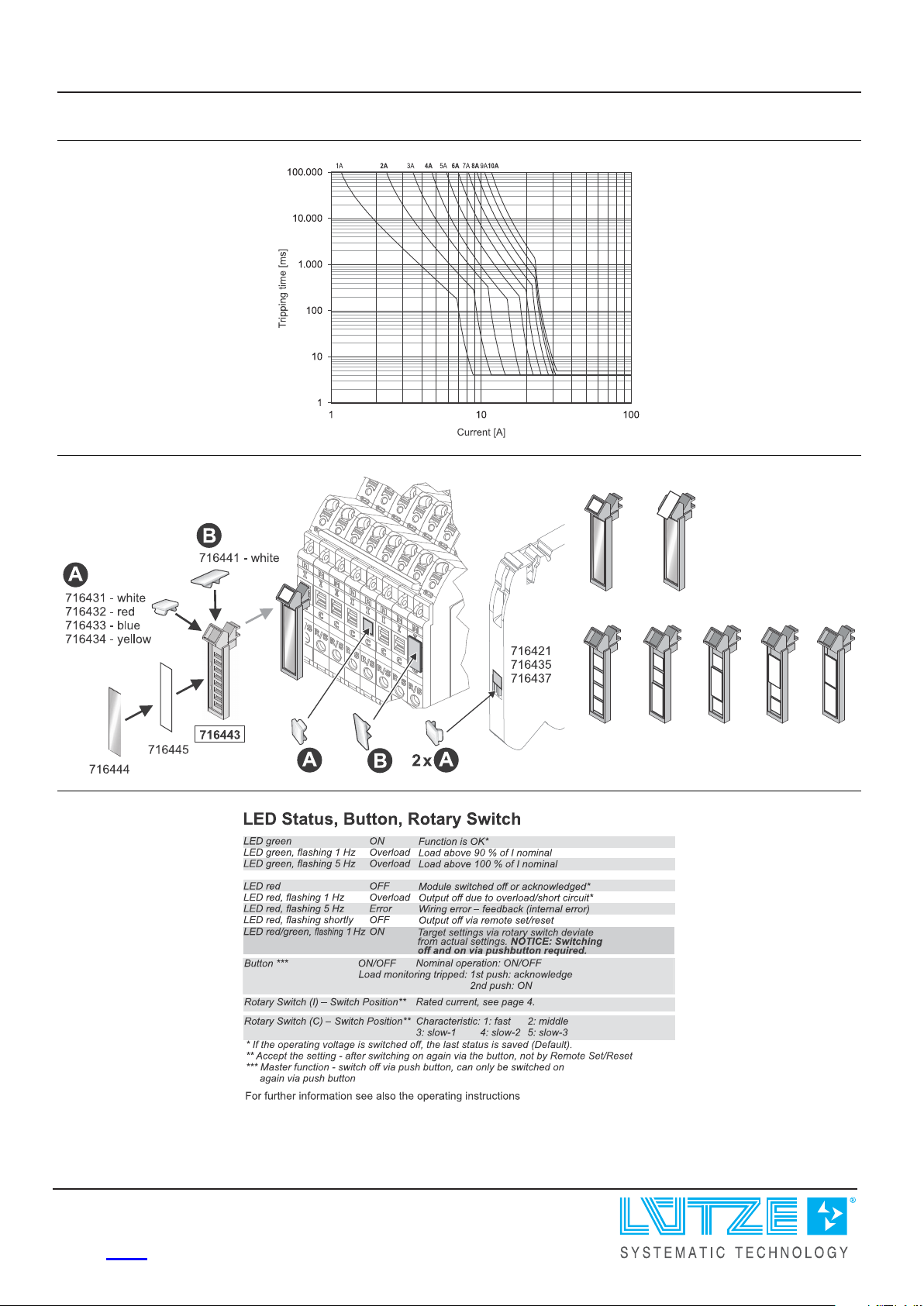

Use
