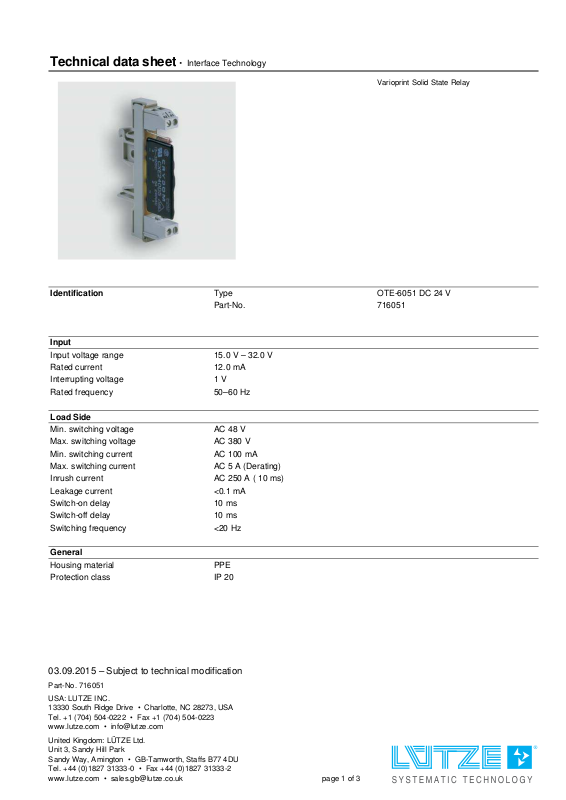

Technical data sheet · Interface Technology

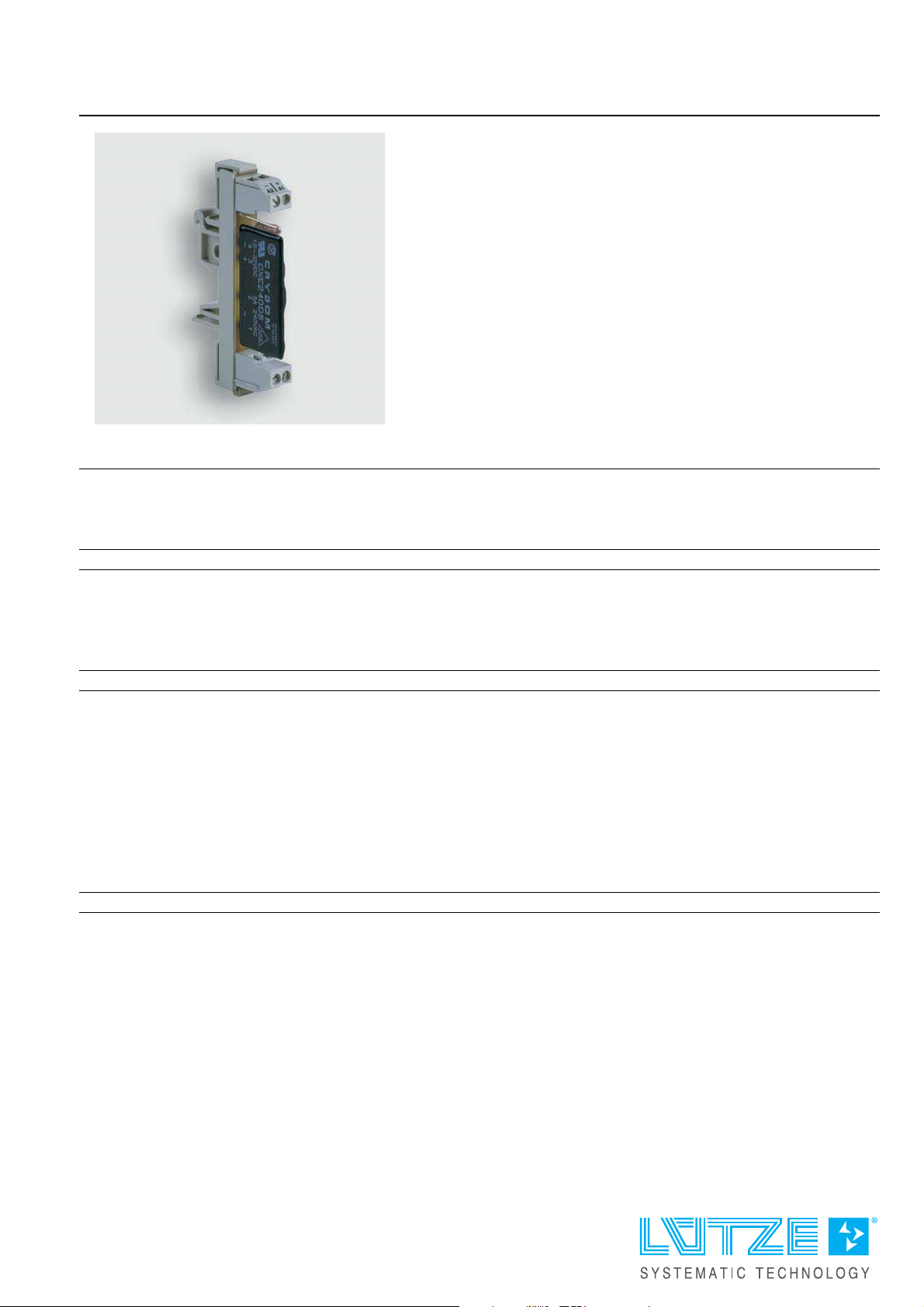

Varioprint Solid State Relay
Subject to technical mo dification 716051
Identification Type OTE-6051 DC 24 V
Part-No. 716051
Input
Input voltage range 15.0 V – 32.0 V
Rated current 12.0 mA
Interrupting voltage 1 V
Rated frequency 50–60 Hz
Load Side
Min. switching voltage AC 48 V
Max. switching voltage AC 380 V
Min. switching current AC 100 mA
Max. switching current AC 5 A (Derating)
Inrush current AC 250 A ( 10 ms)
Leakage current <0.1 mA
Switch-on delay 10 ms
Switch-off delay 10 ms
Switching frequency <20 Hz
General
Housing material PPE
Protection class IP 20
03.09.2015 – Subject to technical modification
Part-No. 716051
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 3
Page 2
Technical data sheet · Interface Technology
Field installation rail TS 35 (EN 50022)
Insulation voltage input/output 4.0 kV
Clearance/creep. dist.
(control/load side)
Safe isolation Yes
Operation temperature range -25 °C – 60 °C
Storage temperature range -40 °C – 80 °C
Dimensions (w × h × d) 11.2 × 78.5 × 50.1 mm
Weight (kg/piece) 0.060
Termination Screw terminal: 0.25–2.5 mm

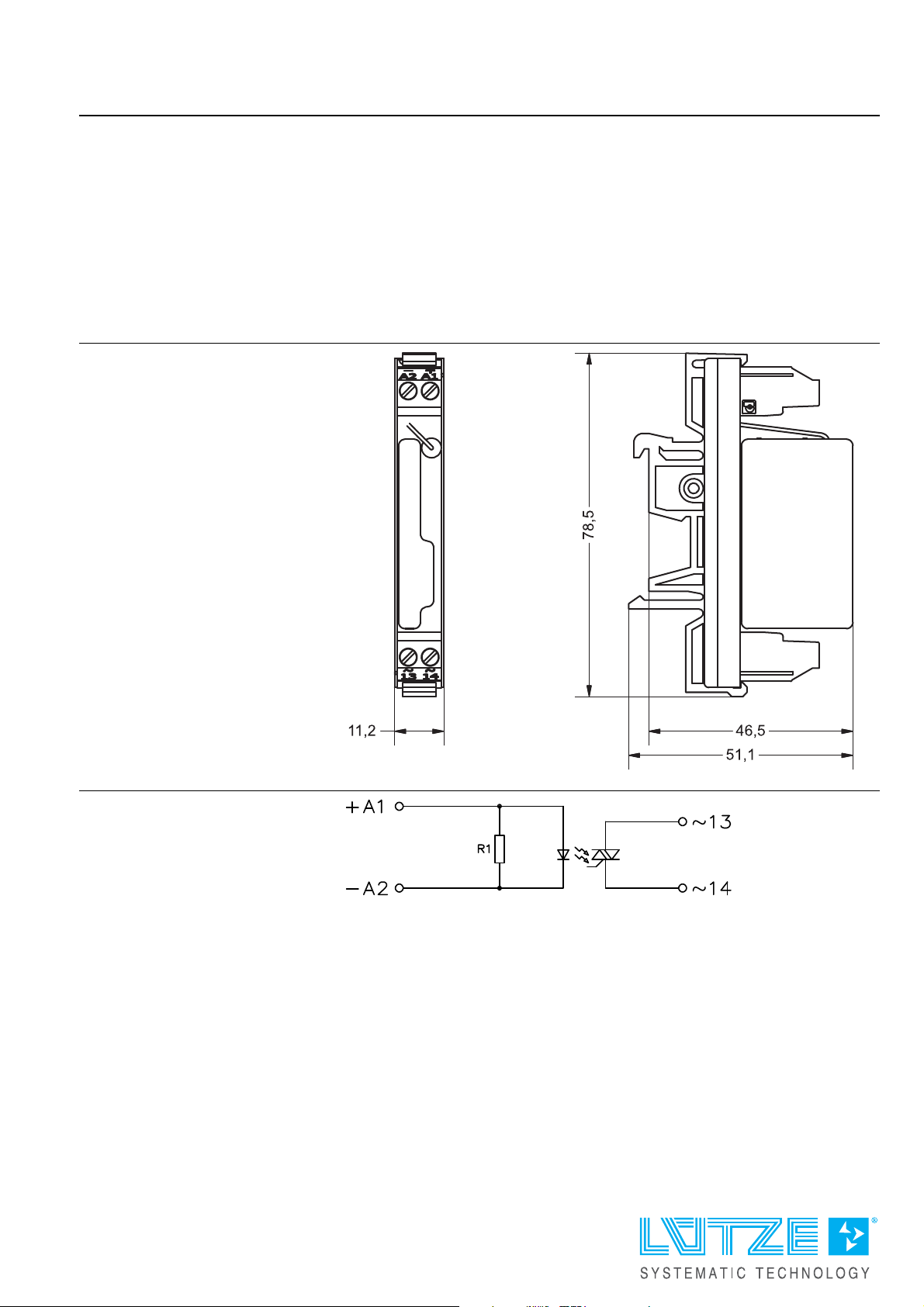

Dimensions
eff
>9.8 mm
2
PIN assignment
03.09.2015 – Subject to technical modification
Part-No. 716051
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 2 of 3
Page 3
Technical data sheet · Interface Technology
Accessories Color Article number Type PU
Jumper comb 24pole, 26A blue 760801 BK 6-0801 5

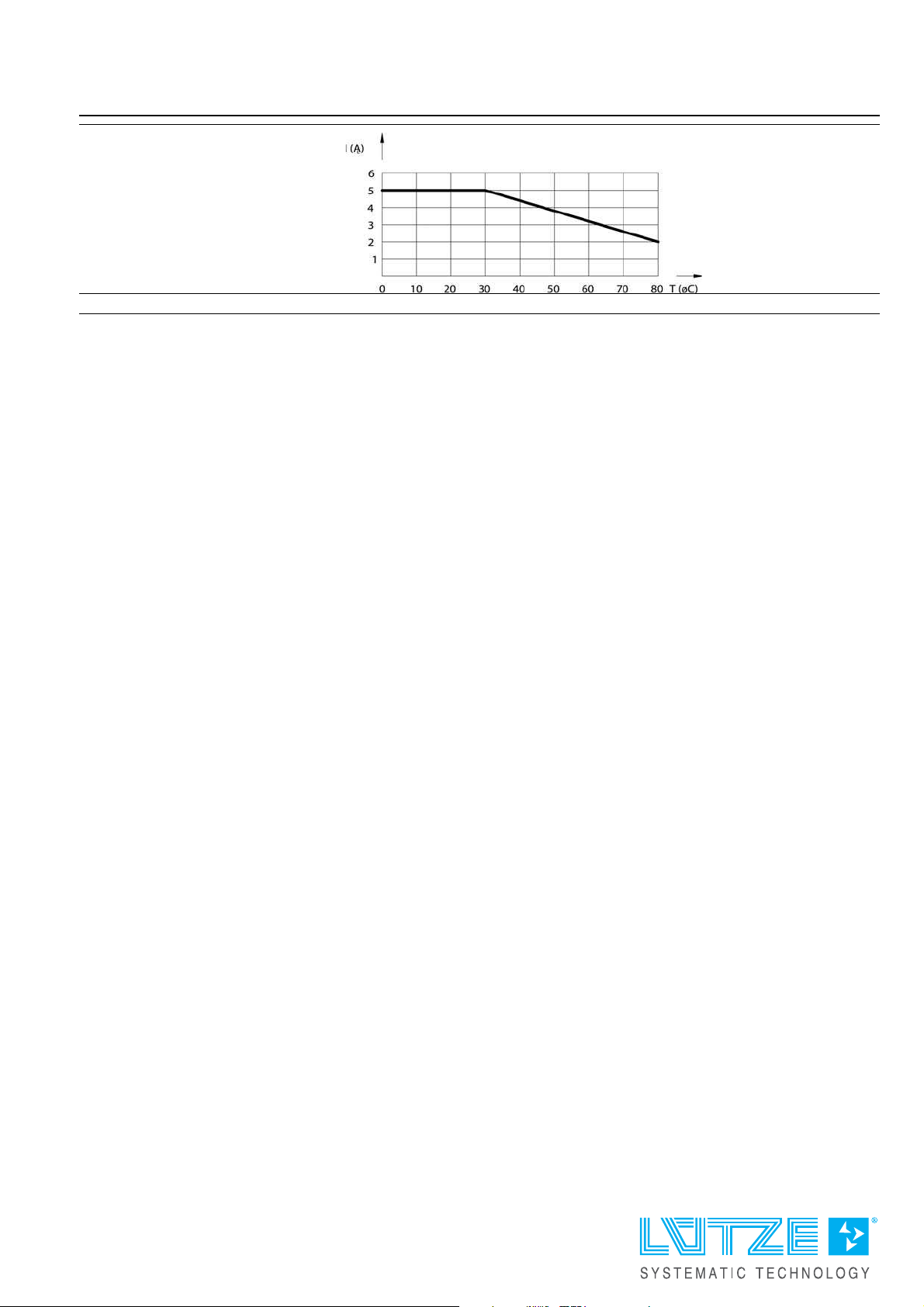

Derating
