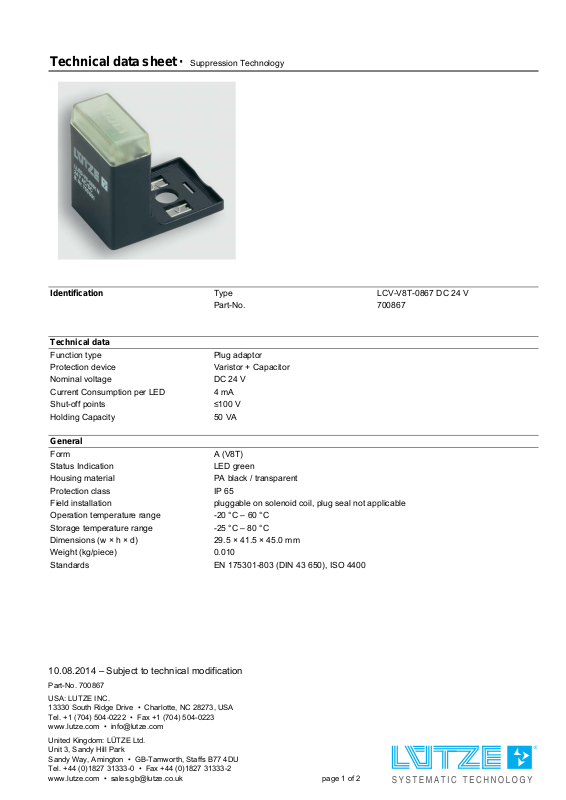

Technical data sheet · Suppression Technology
Subject to technical mo dification 700867

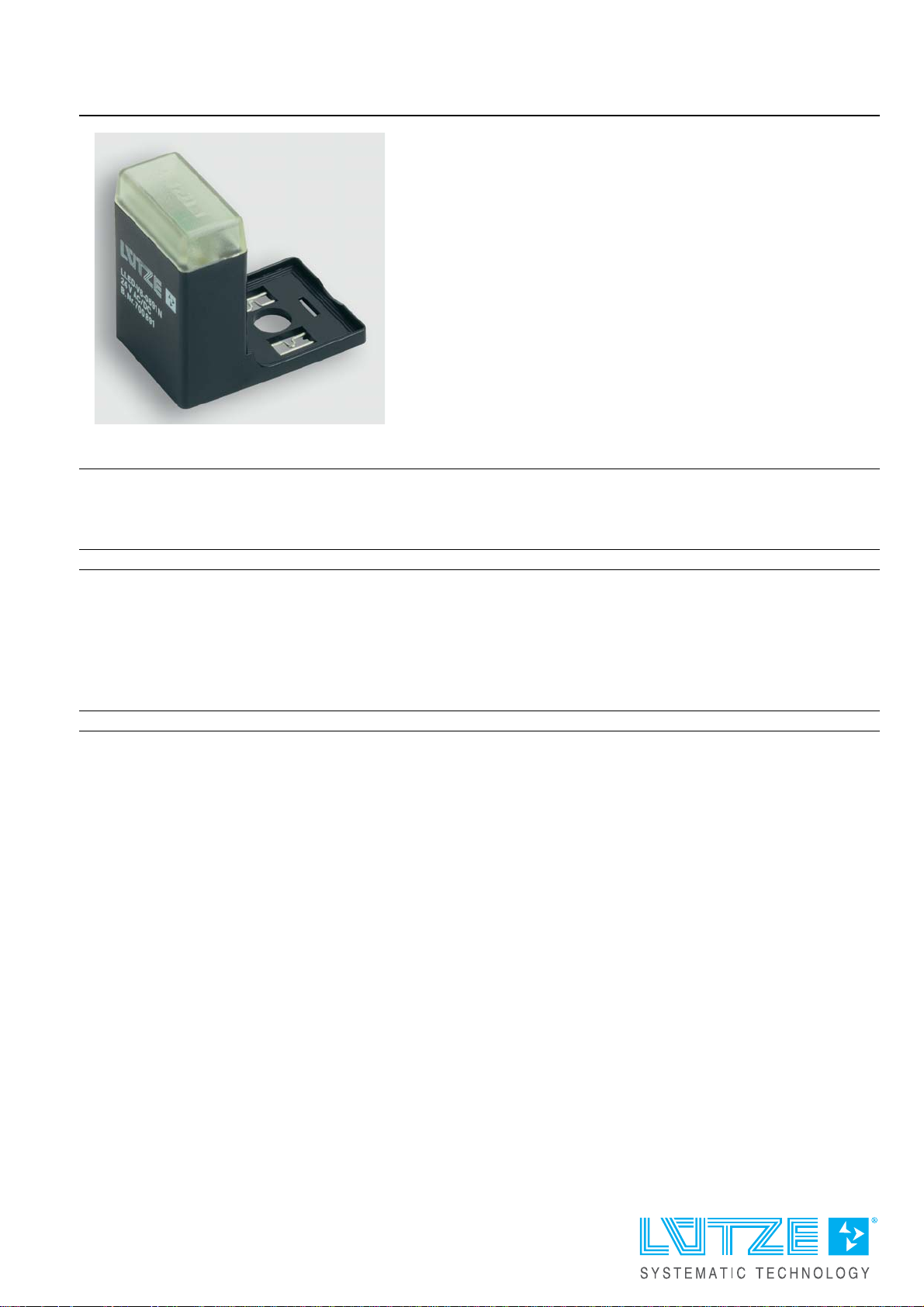

Identification Type LCV-V8T-0867 DC 24 V
Part-No. 700867
Technical data
Function type Plug adaptor
Protection device Varistor + Capacitor
Nominal voltage DC 24 V
Current Consumption per LED 4 mA
Shut-off points ≤100 V
Holding Capacity 50 VA
General
Form A (V8T)
Status Indication LED green
Housing material PA black / transparent
Protection class IP 65
Field installation pluggable on solenoid coil, plug seal not applicable
Operation temperature range -20 °C – 60 °C
Storage temperature range -25 °C – 80 °C
Dimensions (w × h × d) 29.5 × 41.5 × 45.0 mm
Weight (kg/piece) 0.010
Standards EN 175301-803 (DIN 43 650), ISO 4400
10.08.2014 – Subject to technical modification
Part-No. 700867
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 2
Page 2
Technical data sheet · Suppression Technology

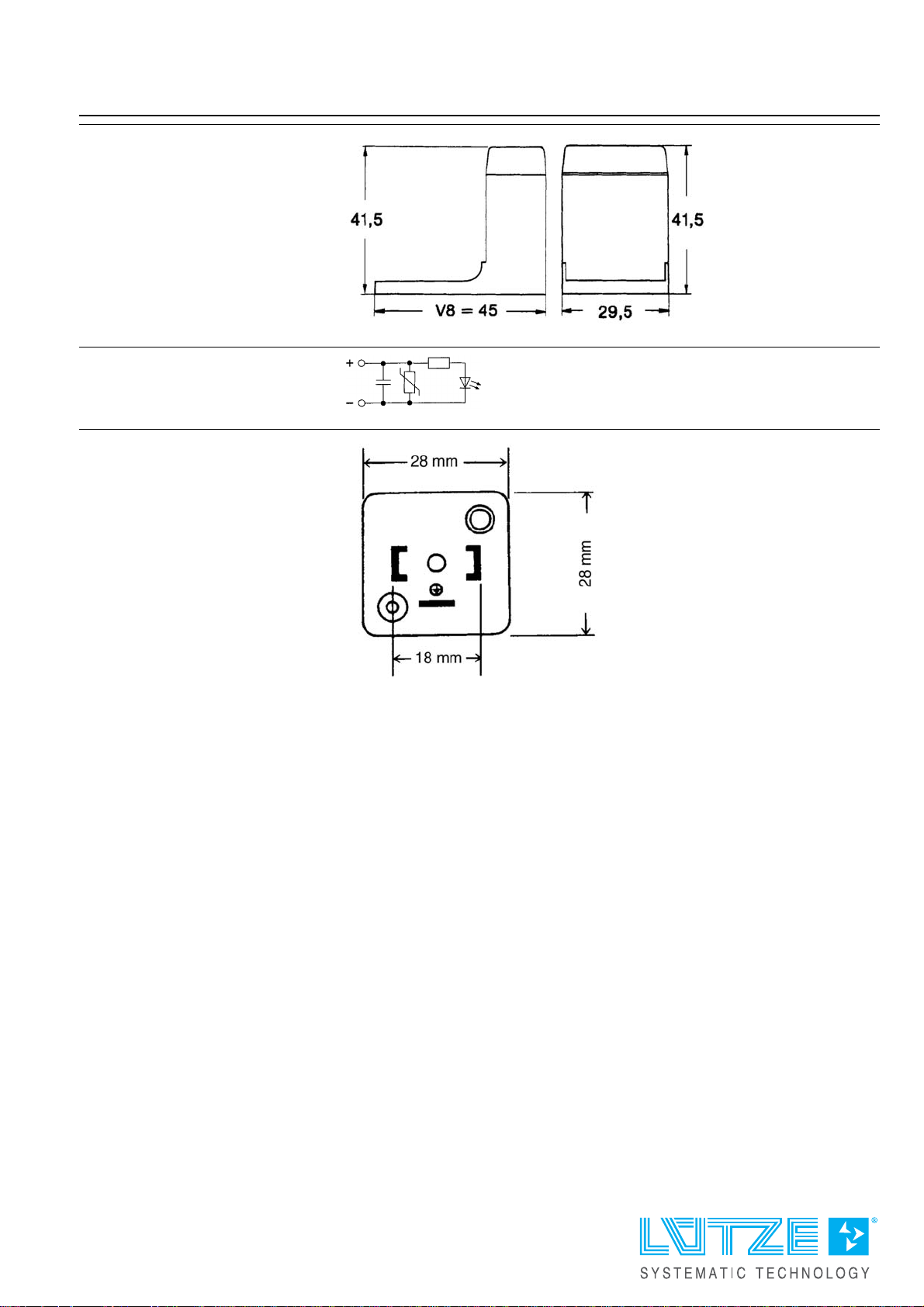

Dimensions
