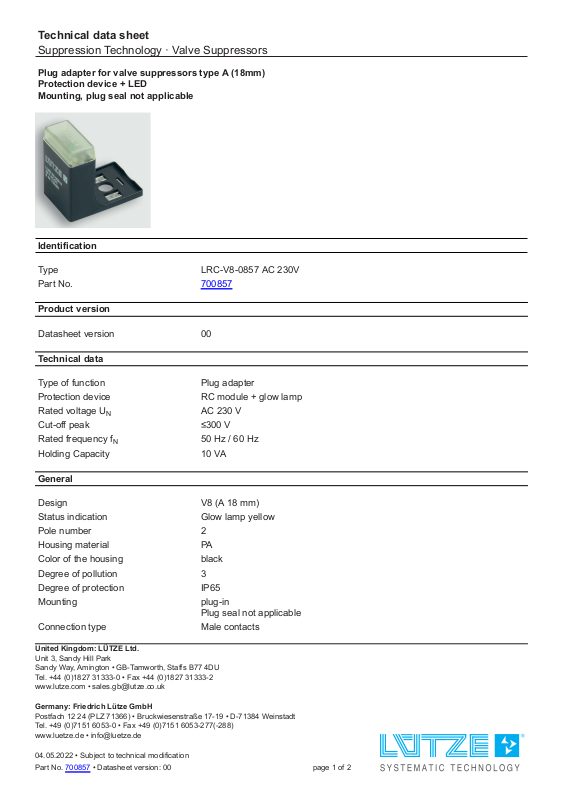

Technical data sheet
Suppression Technology · Valve Suppressors
Plug adapter for valve suppressors type A (18mm)
Protection device + LED
Mounting, plug seal not applicable
Identification
Type LRC-V8-0857 AC 230V
Part No.
Product version
700857
Datasheet version 00
Technical data
Type of function Plug adapter
Protection device RC module + glow lamp
Rated voltage U
N
AC 230 V
Cut-off peak ≤300 V
Rated frequency f
N
50 Hz / 60 Hz
Holding Capacity 10 VA
General
Design V8 (A 18 mm)
Status indication Glow lamp yellow
Pole number 2
Housing material PA
Color of the housing black
Degree of pollution 3
Degree of protection IP65
Mounting plug-in
Plug seal not applicable
Connection type Male contacts
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sale s.g b @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • in fo @ l u e tze .d e
04.05.2022 • Subject to technical modification
Part No.
700857 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Suppression Technology · Valve Suppressors
Operation temperature range -20 °C . .. +60 °C
Storage temperature range -25 °C . .. +80 °C
Dimensions (w × h × d) 29.5 mm × 41.5 mm × 45.0 mm
Weight/unit 0.01 kg
PU (units) 10
Certifications/Standards
Standards EN 175301-803
ISO 4400

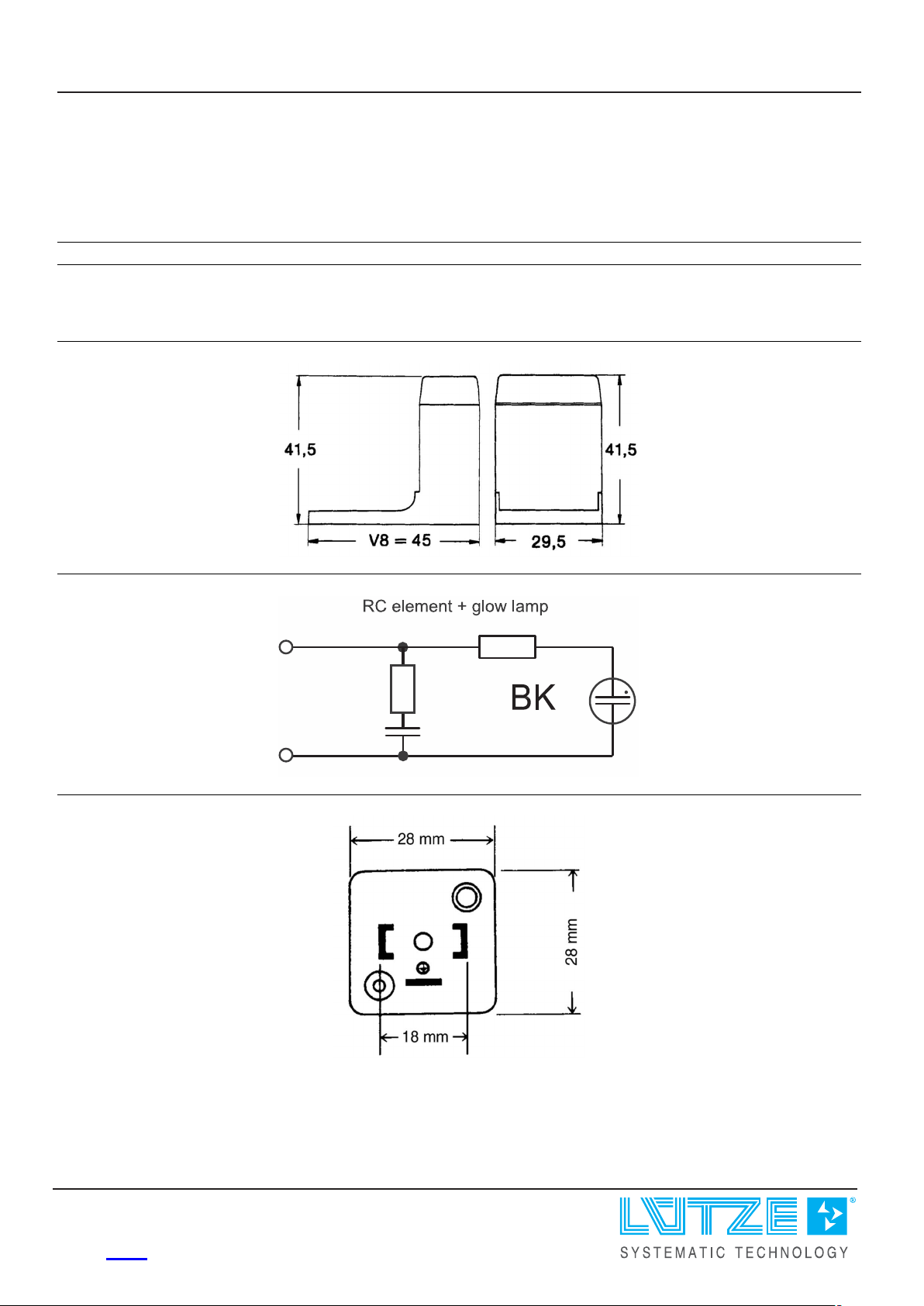

Dimensions
PIN assignment
Contact arrangement
04.05.2022 – Subject to technical modification
Part No.
700857 • Datasheet version: 00 page 2 of 2
