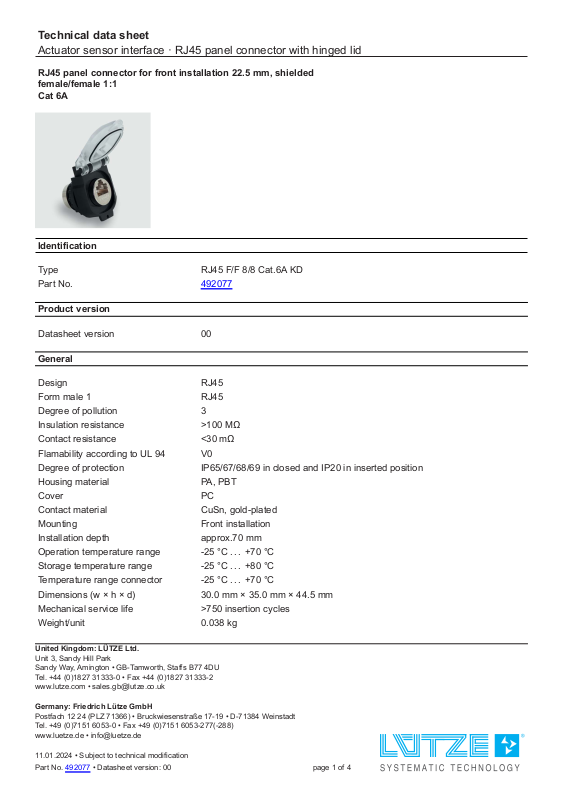

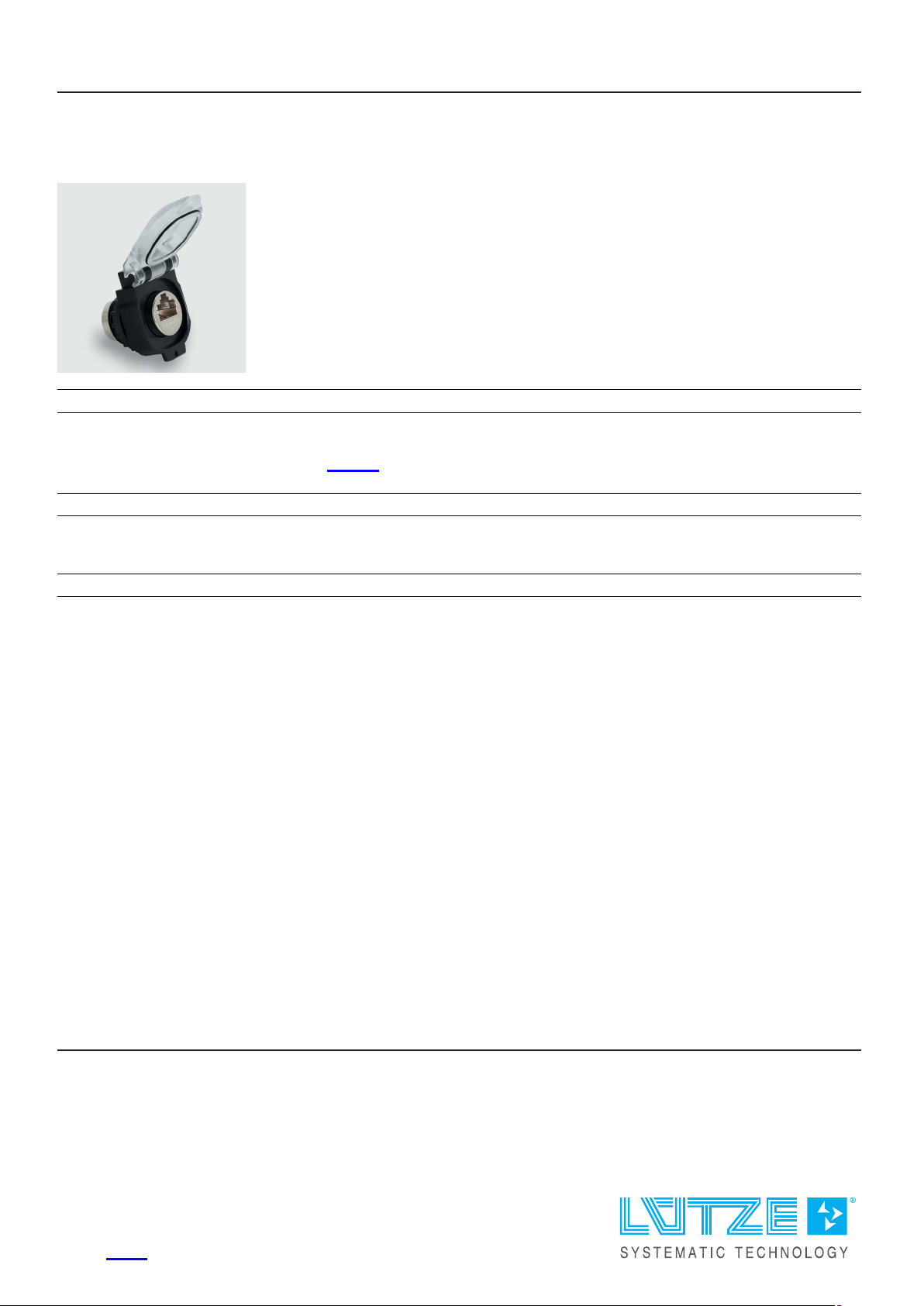

Technical data sheet
Actuator sensor interface · RJ45 panel connector with hinged lid
RJ45 panel connector for front installation 22.5 mm, shielded
female/female 1:1
Cat 6A
Identification
Type RJ45 F/F 8/8 Cat.6A KD
Part No.
Product version
492077
Datasheet version 00
General
Design RJ45
Form male 1 RJ45
Degree of pollution 3
Insulation resistance >100 MΩ
Contact resistance <30 mΩ
Flamability according to UL 94 V0
Degree of protection IP65/67/68/69 in closed and IP20 in inserted position
Housing material PA, PBT
Cover PC
Contact material CuSn, gold-plated
Mounting Front installation
Installation depth approx.70 mm
Operation temperature range -25 °C . . . +70 °C
Storage temperature range -25 °C . . . +80 °C
Temperature range connector -25 °C . . . +70 °C
Dimensions (w × h × d) 30.0 mm × 35.0 mm × 44.5 mm
Mechanical service life >750 insertion cycles
Weight/unit 0.038 kg
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Par k
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sa l e s.g b @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
11.01.2024 • Subject to technical modification
Part No.
492077 • Datasheet version: 00 page 1 of 4
Page 2
Technical data sheet
Actuator sensor interface · RJ45 panel connector with hinged lid
PU (units) 1
Technical data
Rated voltage U
N
AC 24 V
Rated voltage max. 50 V
Rated current 1.5 A
Pole number 8
Bandwidth 500 MHz
Transfer rate 10 Gbit/s
Category Cat.6
A
Contact type 1 : 1
Shielding connected through
Equipment/Spare parts
Accessories Not included in the delivery:
Labelling sign 5×5 mm, white: Part.-No. 716431 | LOCC-Box-BZW 7-6431 |
PU: 1 unit (200 tabs)

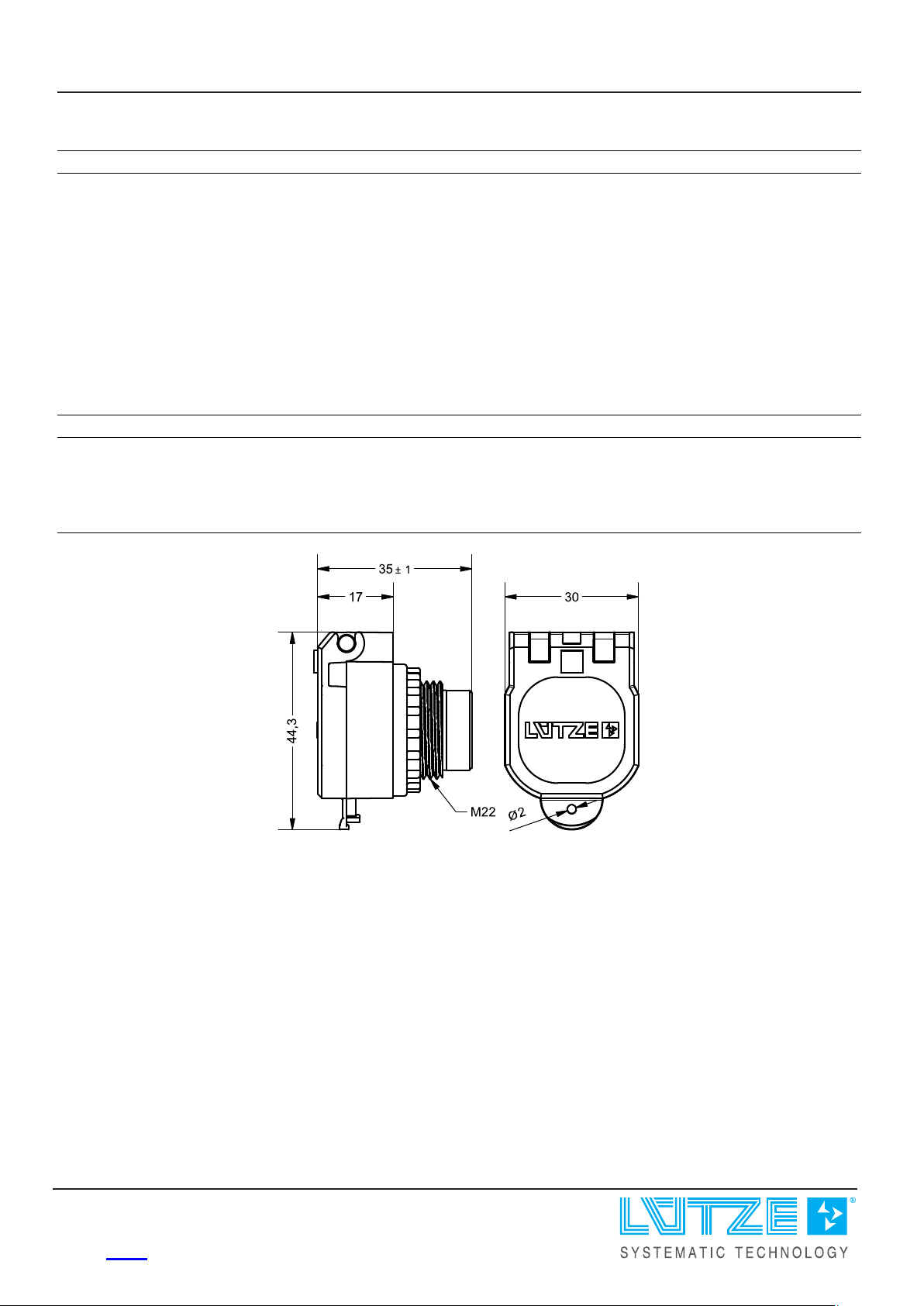

Dimensions
11.01.2024 – Subject to technical modification
Part No. 492077 • Datasheet version: 00 page 2 of 4
Page 3
Technical data sheet
Actuator sensor interface · RJ45 panel connector with hinged lid

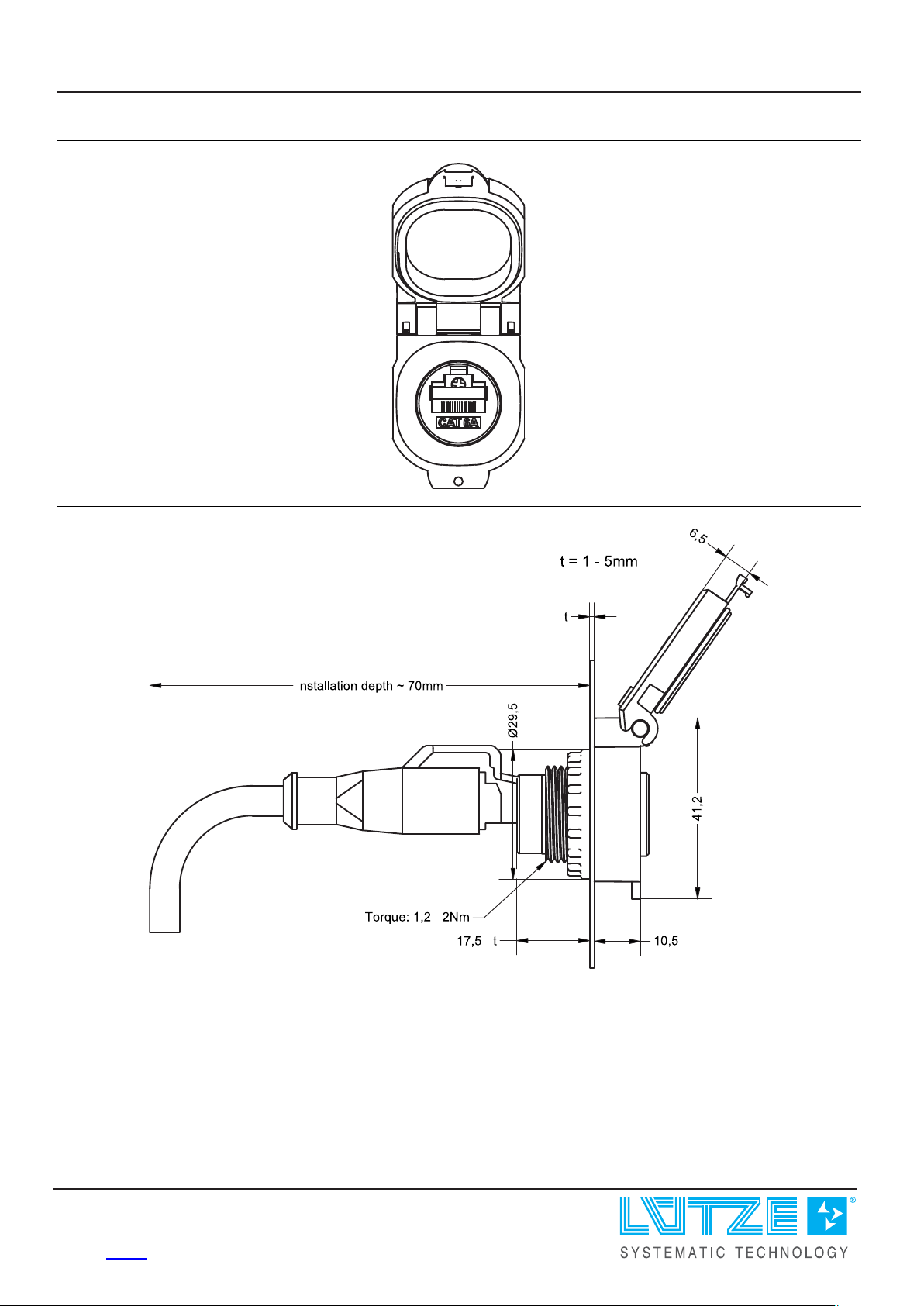

Front view
Mounting diagram
11.01.2024 – Subject to technical modification
Part No.
492077 • Datasheet version: 00 page 3 of 4
Page 4
Technical data sheet
Actuator sensor interface · RJ45 panel connector with hinged lid

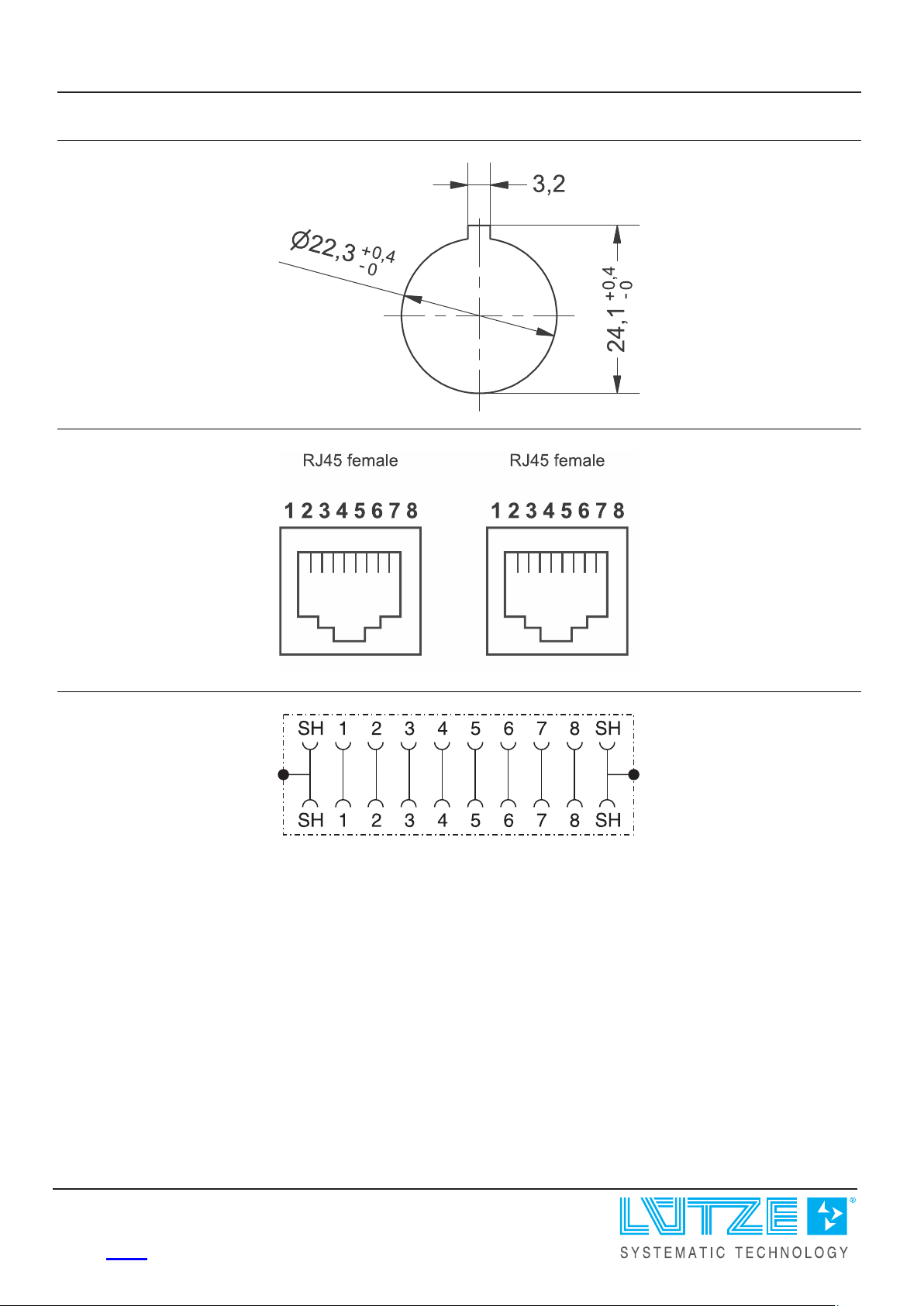

Mounting holes
