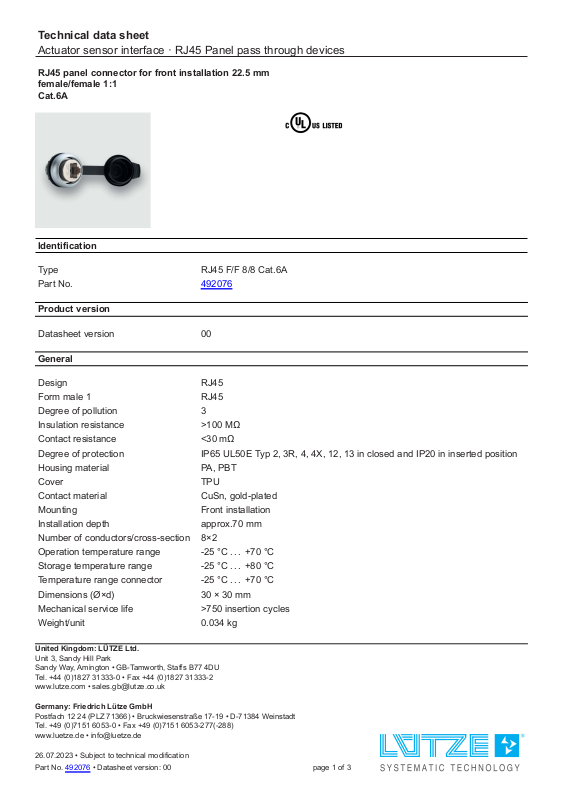

LUTZE 492076 Specification

Technical data sheet

Actuator sensor interface · RJ45 Panel pass through devices

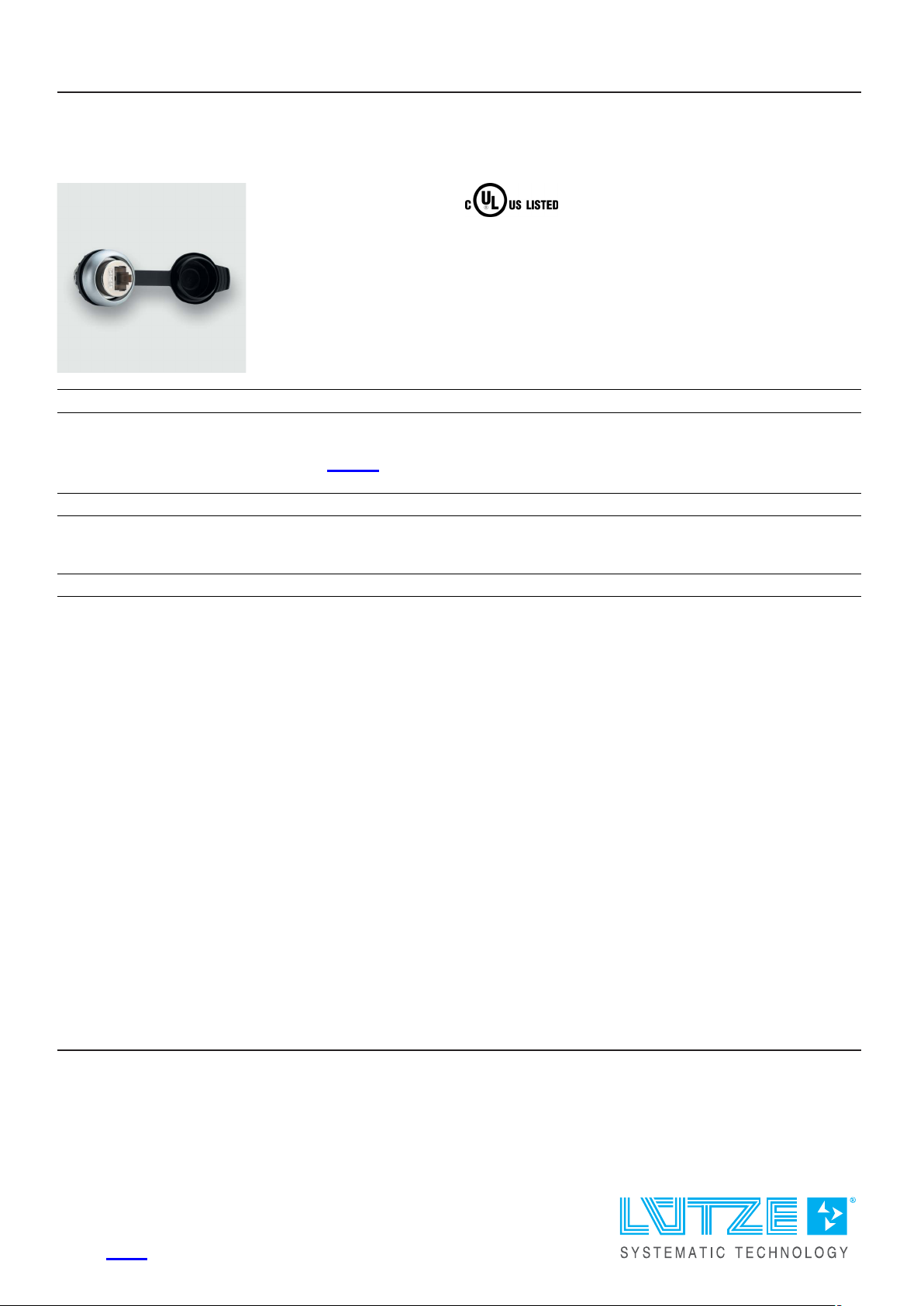

RJ45 panel connector for front installation 22.5 mm
female/female 1:1
Cat.6A

Identification

Type RJ45 F/F 8/8 Cat.6A
Part No.

Product version

492076

Datasheet version 00

General

Design RJ45
Form male 1 RJ45
Degree of pollution 3
Insulation resistance >100 MΩ
Contact resistance <30 mΩ
Degree of protection IP65 UL50E Typ 2, 3R, 4, 4X, 12, 13 in closed and IP20 in inserted position
Housing material PA, PBT
Cover TPU
Contact material CuSn, gold-plated
Mounting Front installation
Installation depth approx.70 mm
Number of conductors/cross-section 8×2
Operation temperature range -25 °C . . . +70 °C
Storage temperature range -25 °C . . . +80 °C
Temperature range connector -25 °C . . . +70 °C
Dimensions (Ø×d) 30 × 30 mm
Mechanical service life >750 insertion cycles
Weight/unit 0.034 kg

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Par k
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • sa l e s.g b @ l u tze .co .u k

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

26.07.2023 • Subject to technical modification

Part No.

492076 • Datasheet version: 00 page 1 of 3

Technical data sheet

Actuator sensor interface · RJ45 Panel pass through devices

PU (units) 1

Technical data

Rated voltage U

N

AC 24 V
Operating voltage max. 50 V
Rated current 1.5 A
Pole number 8
Bandwidth 500 MHz
Transfer rate 10 Gbit/s
Category Cat.6

A

Contact type 1 : 1
Shielding connected through

Certifications/Standards

Certifications cULus Listed (E326112)

Equipment/Spare parts

Accessories Included in the delivery:

attached safety cap

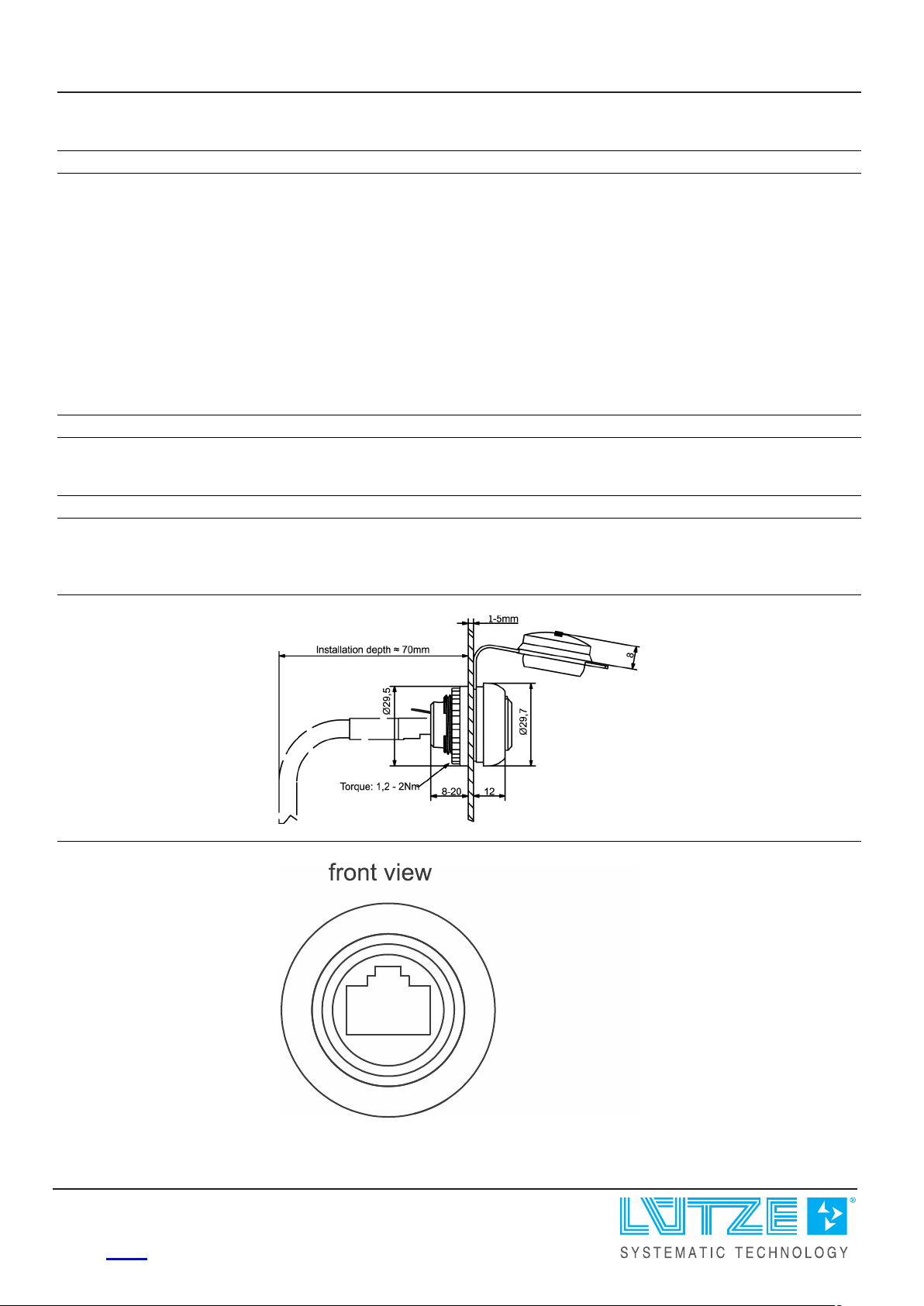

Dimensions

Front view

26.07.2023 – Subject to technical modification

Part No.

492076 • Datasheet version: 00 page 2 of 3

Technical data sheet

Actuator sensor interface · RJ45 Panel pass through devices

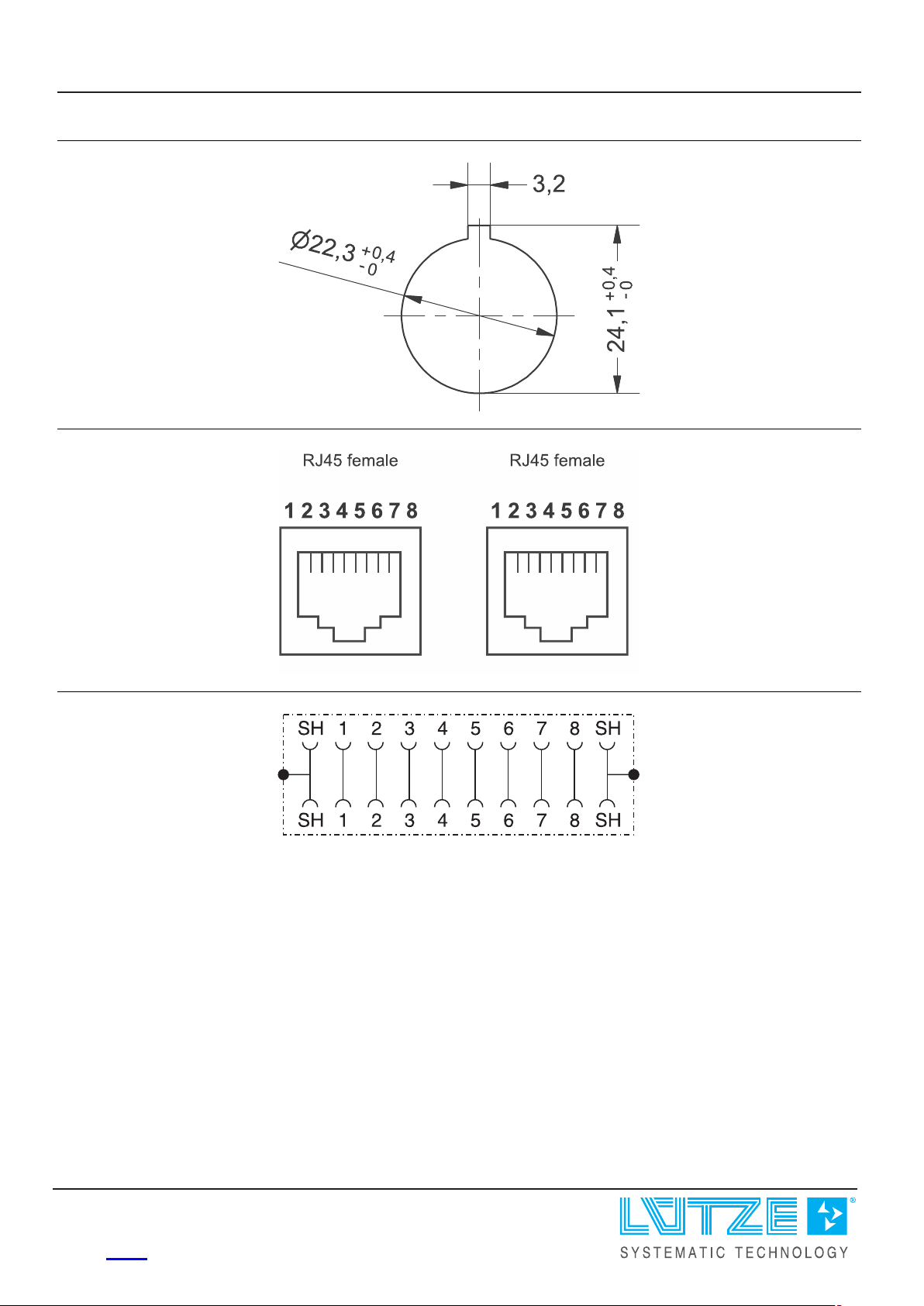

Mounting holes

Pin layout

Circuit diagram

26.07.2023 – Subject to technical modification

Part No.

492076 • Datasheet version: 00 page 3 of 3
