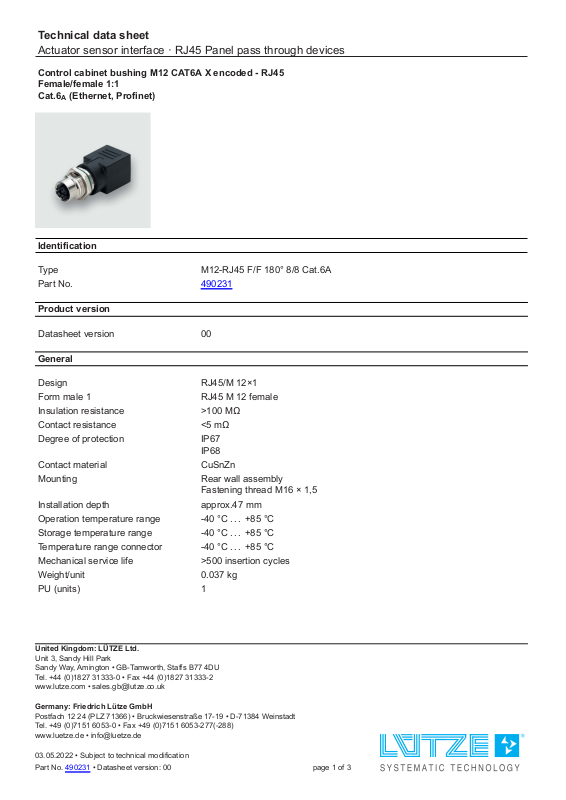

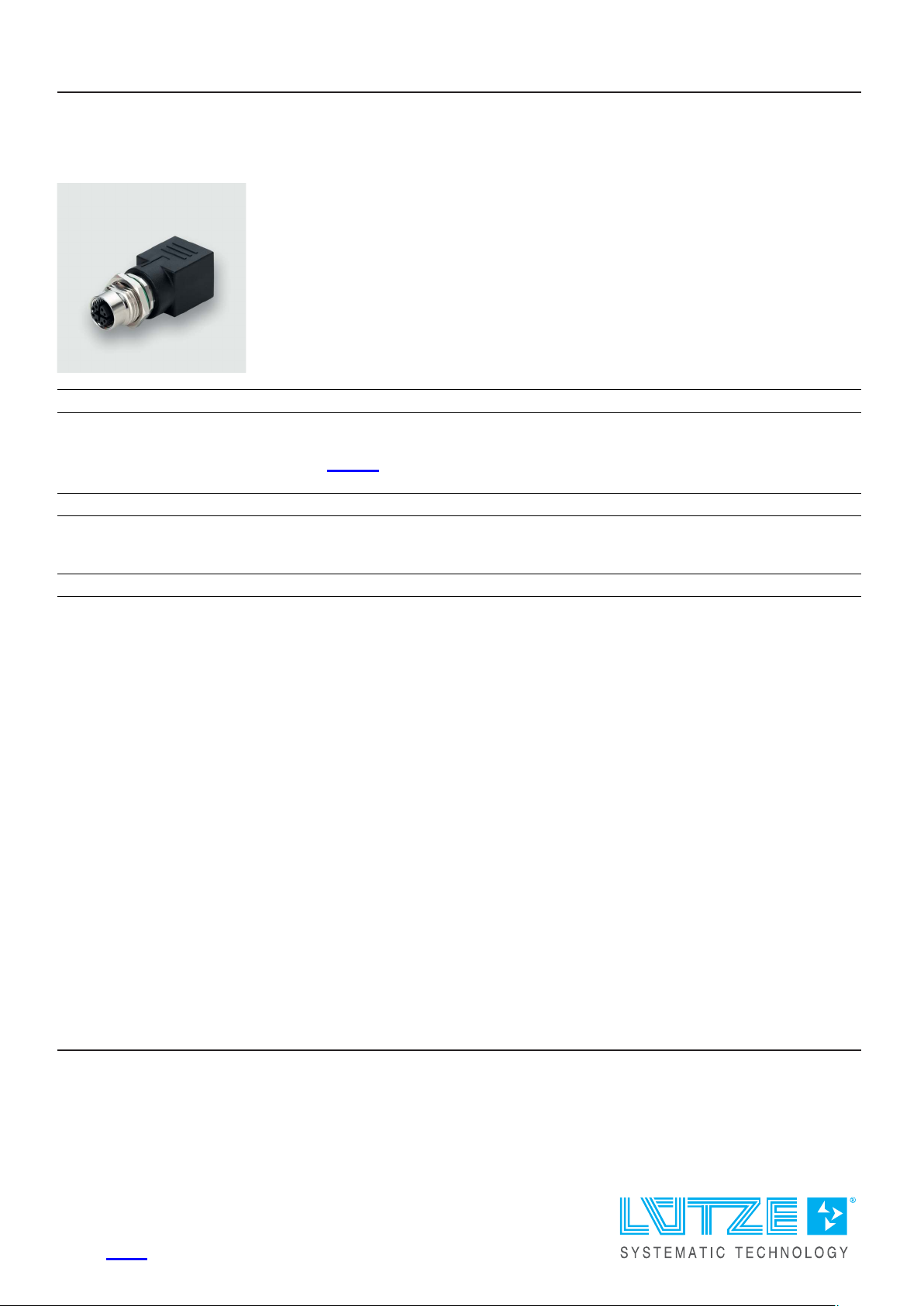

Technical data sheet
Actuator sensor interface · RJ45 Panel pa ss through devices
Control cabinet bushing M12 CAT6A X encoded - RJ45
Female/female 1:1
Cat.6A(Ethernet, Profinet)
Identification
Type M12-RJ45 F/F 180° 8/8 Cat.6A
Part No.
Product version
490231
Datasheet version 00
General
Design RJ45/M 12×1
Form male 1 RJ45 M 12 female
Insulation resistance >100 MΩ
Contact resistance <5 mΩ
Degree of protection IP67
IP68
Contact material CuSnZn
Mounting Rear wall assembly
Fastening thread M16 × 1,5
Installation depth approx.47 mm
Operation temperature range -40 °C . . . +85 °C
Storage temperature range -40 °C . . . +85 °C
Temperature range connector -40 °C . . . +85 °C
Mechanical service life >500 insertion cycles
Weight/unit 0.037 kg
PU (units) 1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
03.05.2022 • Subject to technical modification
Part No.
490231 • Datasheet versi o n : 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · RJ45 Panel pa ss through devices
Technical data
Operating voltage max. 60 V
Rated current 0.5 A per contact
Pole number 8
Bandwidth 500 MHz
Transfer rate 10 Gbit/s
Category Cat.6
Coding X
Shielding 360°

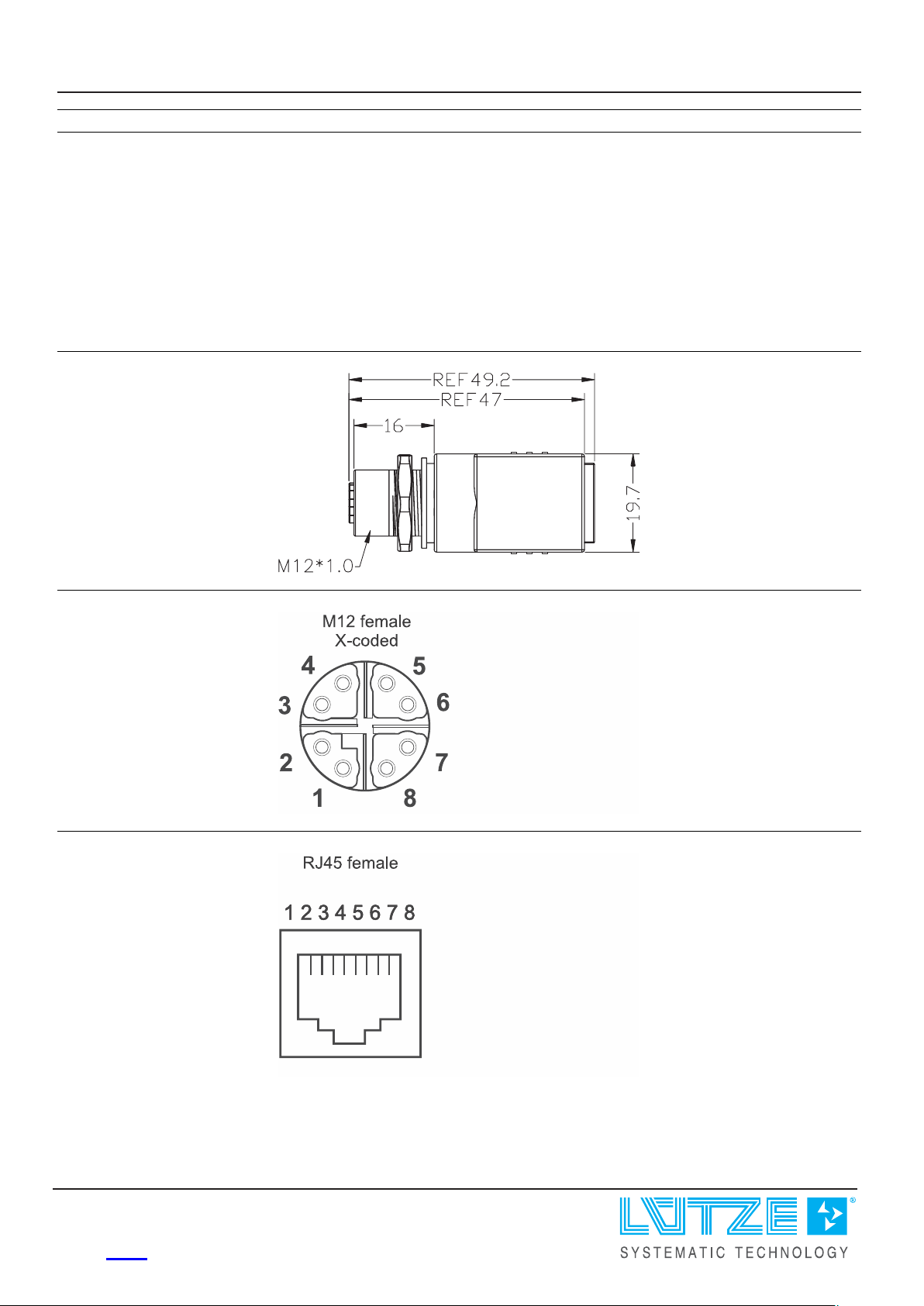

Dimensions
A
Pin layout
Pin layout
03.05.2022 – Subject to technical modification
Part No.
490231 • Datasheet versi o n : 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · RJ45 Panel pa ss through devices

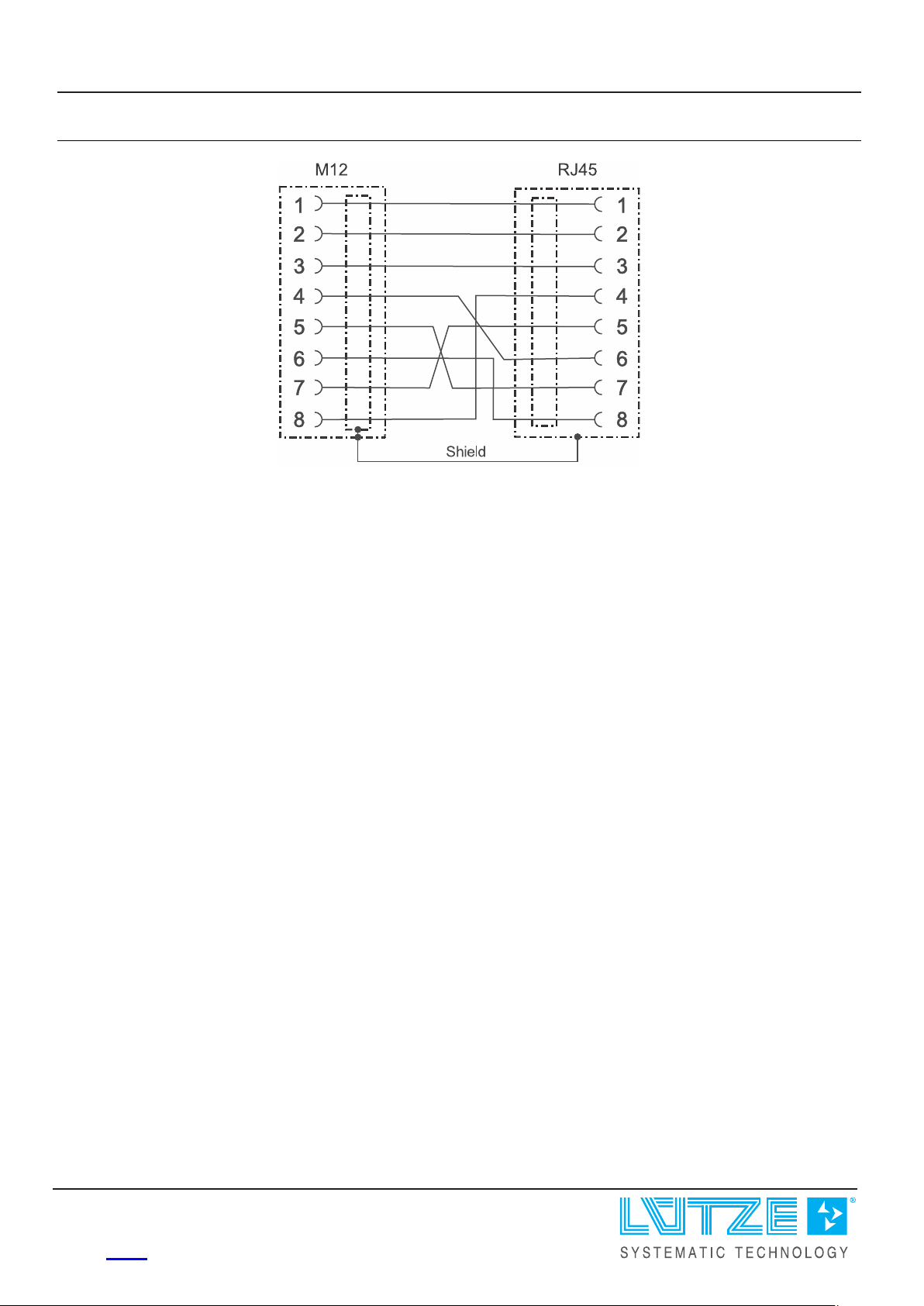

Circuit diagram
03.05.2022 – Subject to technical modification
Part No.
490231 • Datasheet versi o n : 00 page 3 of 3
