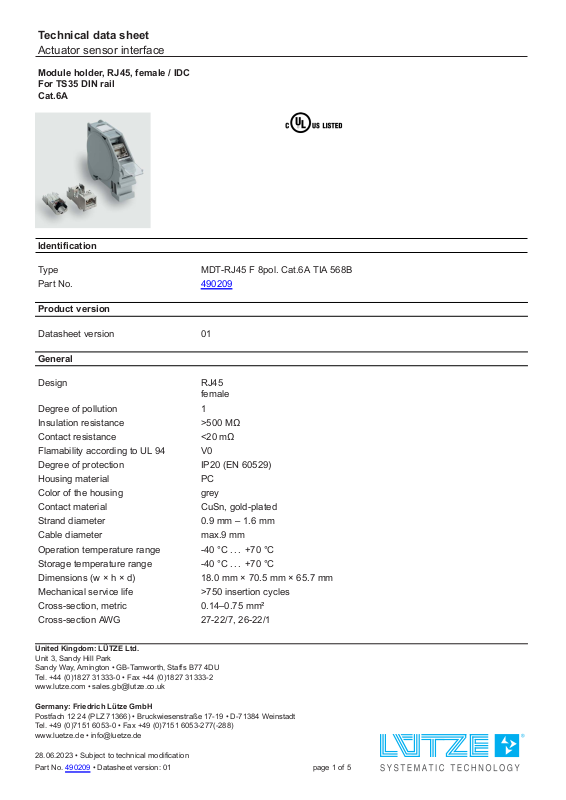

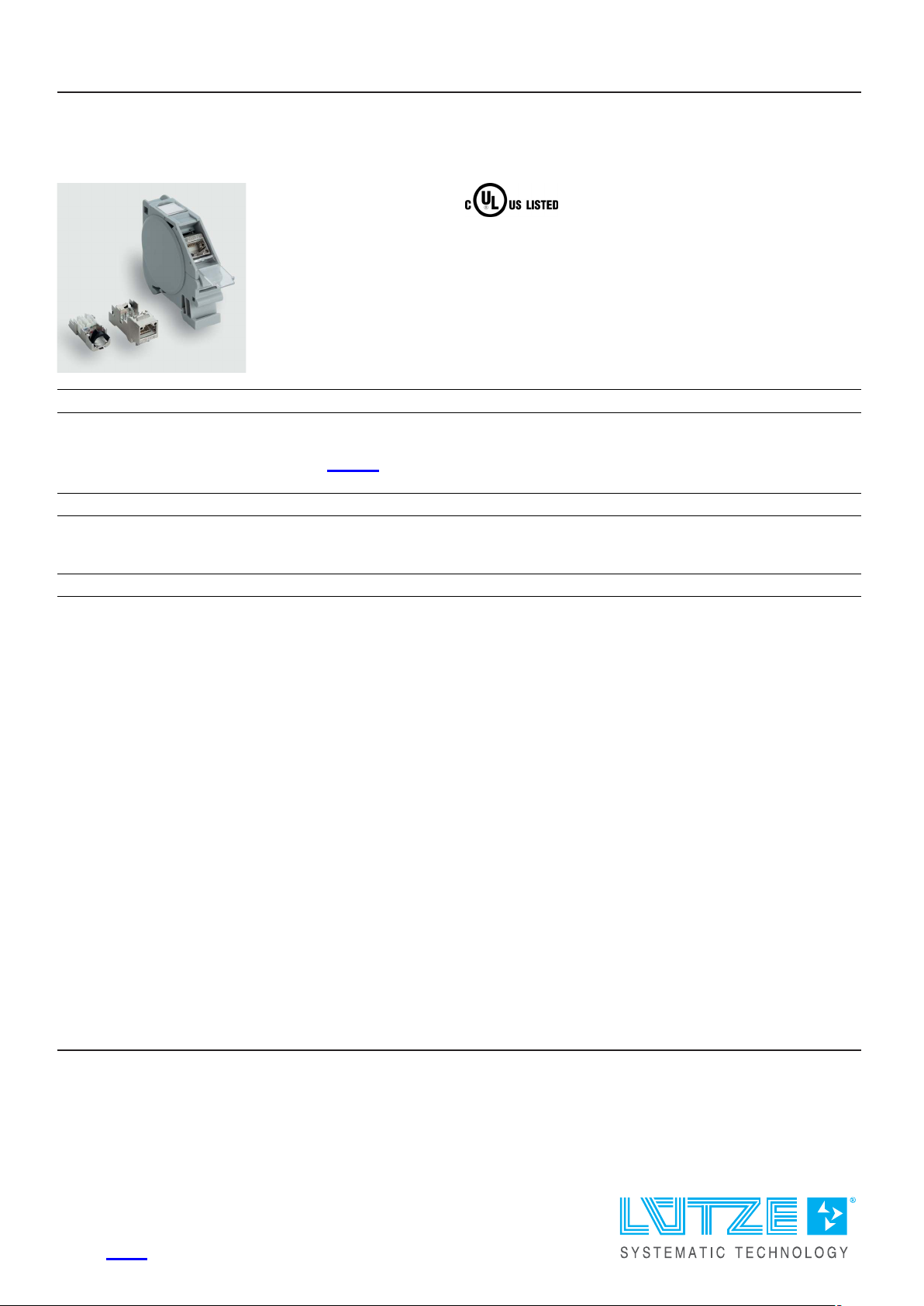

Page 1
Technical data sheet
Actuator sensor interface
Module holder, RJ45, female / IDC
For TS35 DIN rail
Cat.6A
Identification
Type MDT-RJ45 F 8pol. Cat.6A TIA 568B
Part No.
Product version
490209
Datasheet version 01
General
Design RJ45
female
Degree of pollution 1
Insulation resistance >500 MΩ
Contact resistance <20 mΩ
Flamability according to UL 94 V0
Degree of protection IP20 (EN 60529)
Housing material PC
Color of the housing grey
Contact material CuSn, gold-plated
Strand diameter 0.9 mm – 1.6 mm
Cable diameter max.9 mm
Operation temperature range -40 °C . . . +70 °C
Storage temperature range -40 °C . . . +70 °C
Dimensions (w × h × d) 18.0 mm × 70.5 mm × 65.7 mm
Mechanical service life >750 insertion cycles
Cross-section, metric 0.14–0.75 mm²
Cross-section AWG 27-22/7, 26-22/1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sales.gb @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • info@ l u e tze .d e
28.06.2023 • Subject to technical modification
Part No.
490209 • Datasheet version: 01 page 1 of 5
Page 2
Technical data sheet
Actuator sensor interface
Connection type Compliant terminal
Weight/unit 0.053 kg
PU (units) 1
Technical data
Rated voltage U
N
AC/DC 24 V
Max. Power PoE 90 W
The following standards for PoE are met:
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
Operating voltage max. 50 V
Rated current ≤1 A per contact
Pole number 8
Bandwidth 500 MHz
Transfer rate 10 Gbit/s
Category Cat.6
A
Contact type IDC
Shielding shielded
Certifications/Standards
Certifications cULus Listed (E326112)
Standards DIN EN 50173-1 Generic cabling systems
UL 1863 UL Standard: Communications-Circuit Accessories
IEC 60603-7-51
Cat.6A, Class EAacc. ISO/IEC 11801
IEEE 802.3.1:2013
IEEE 802.3:2018
IEEE 802.3bt:2018
Notes and Comments
Comments Suitable cables, see overview assignment Ethernet cables to connectors
28.06.2023 – Subject to technical modification
Part No.
490209 • Datasheet version: 01 page 2 of 5
Page 3
Technical data sheet
Actuator sensor interface

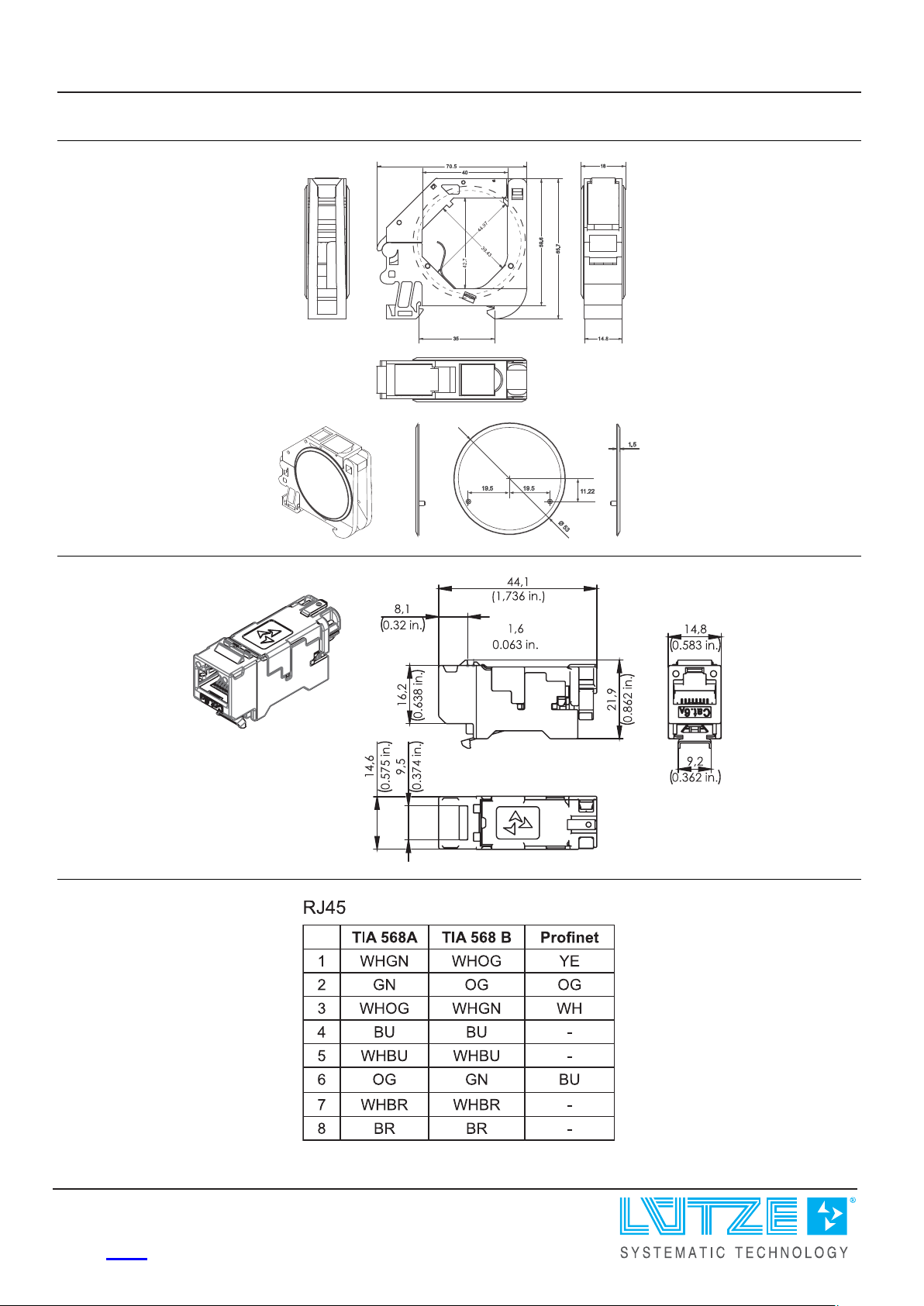

Dimensions
Dimensions
Connection assignment
28.06.2023 – Subject to technical modification
Part No.
490209 • Datasheet version: 01 page 3 of 5
Page 4
Technical data sheet
Actuator sensor interface

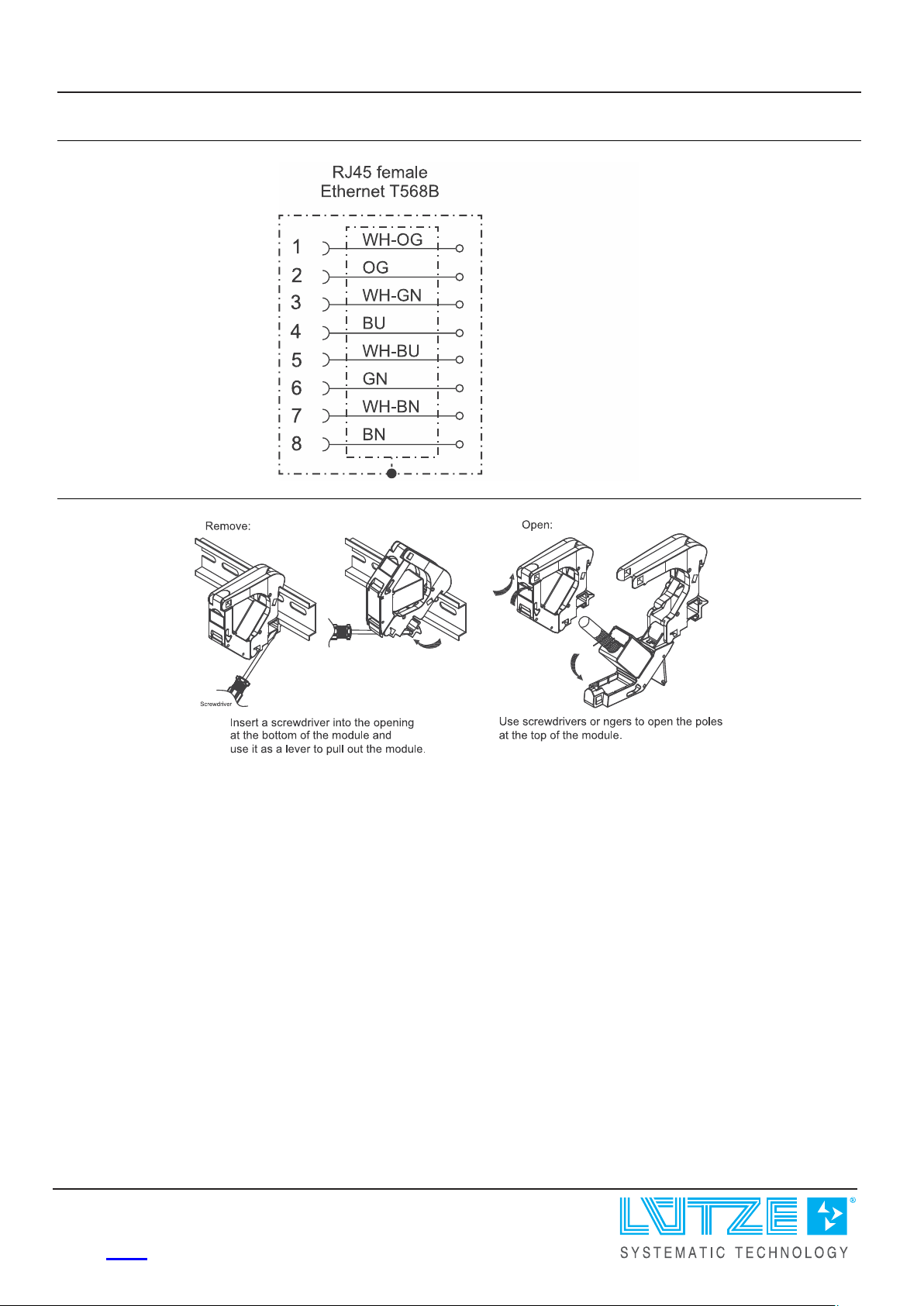

PIN assignment
Use
28.06.2023 – Subject to technical modification
Part No. 490209 • Datasheet version: 01 page 4 of 5
Page 5
Technical data sheet
Actuator sensor interface

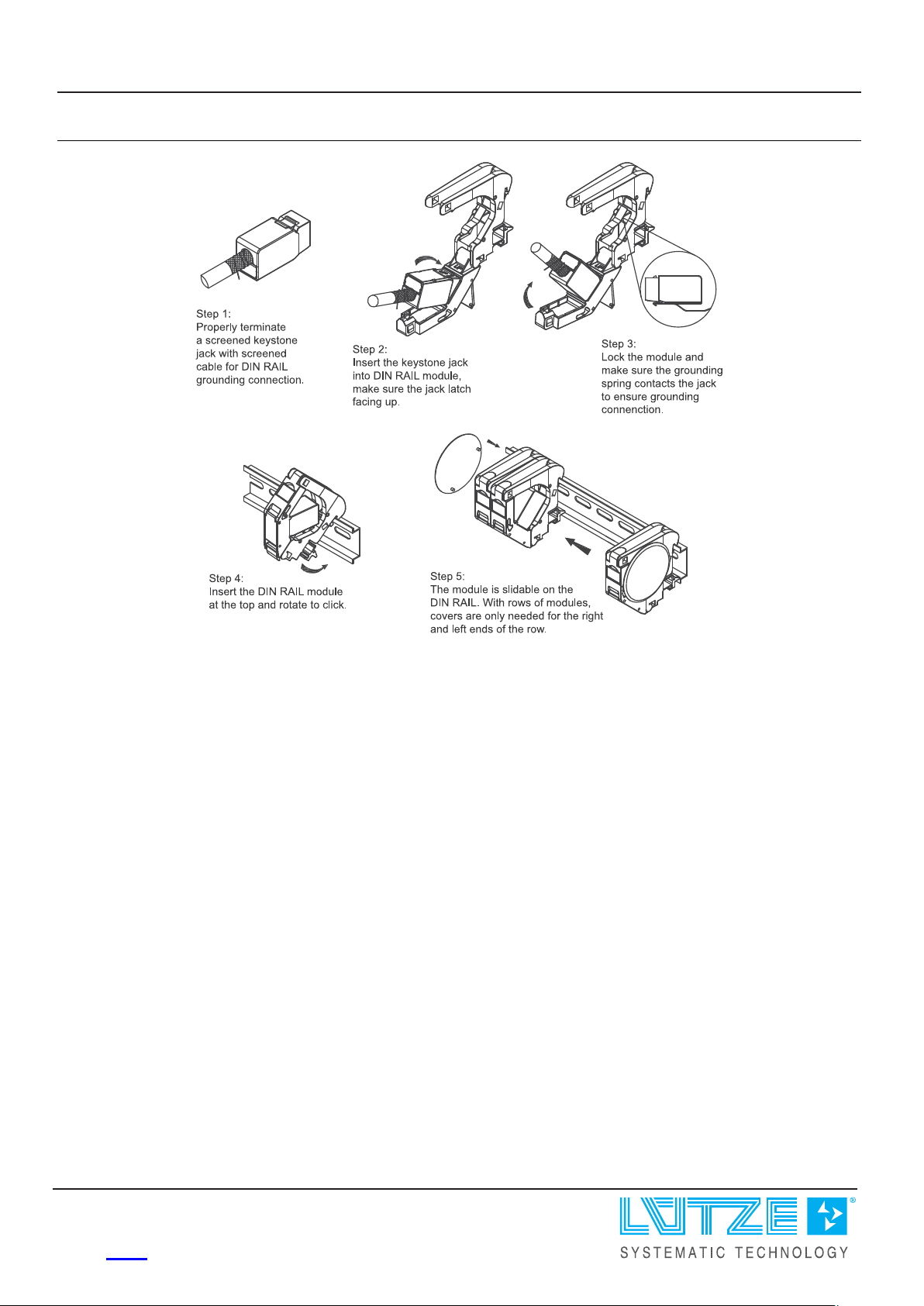

Mounting diagram
28.06.2023 – Subject to technical modification
Part No.
490209 • Datasheet version: 01 page 5 of 5
