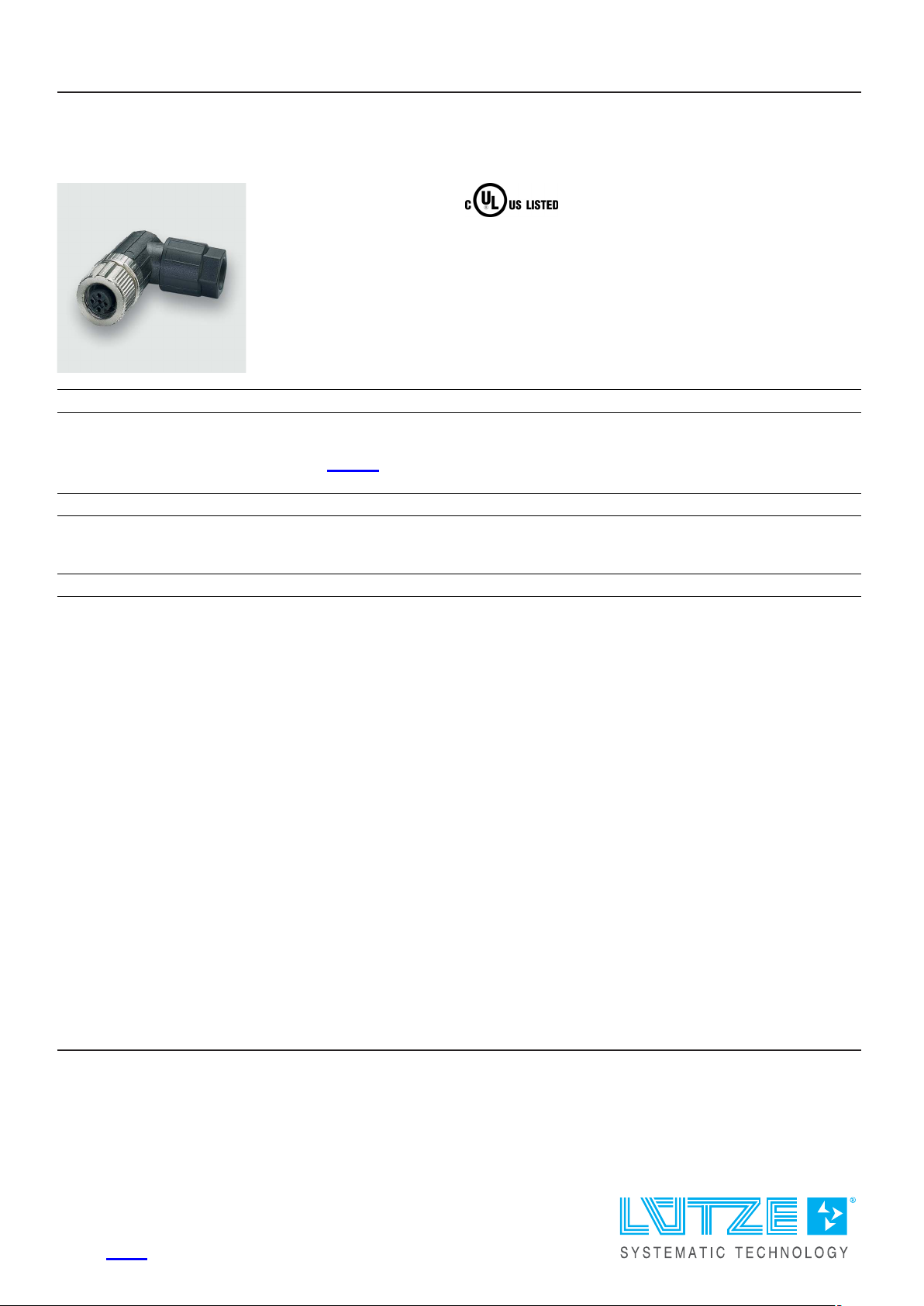

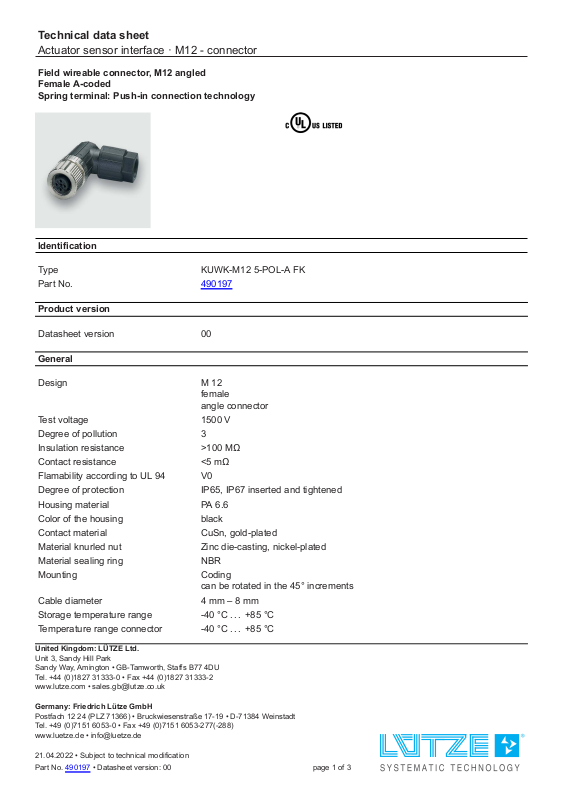

Technical data sheet
Actuator sensor interface · M12 - connector
Field wireable connector, M12 angled
Female A-coded
Spring terminal: Push-in connection technology
Identification
Type KUWK-M12 5-POL-A FK
Part No.
Product version
490197
Datasheet version 00
General
Design M 12
female
angle connector
Test voltage 1500 V
Degree of pollution 3
Insulation resistance >100 MΩ
Contact resistance <5 mΩ
Flamability according to UL 94 V0
Degree of protection IP65, IP67 inserted and tighte n e d
Housing material PA 6.6
Color of the housing black
Contact material CuSn, gold-plated
Material knurled nut Zinc die-casting, nickel-plated
Material sealing ring NBR
Mounting Coding
can be rotated in the 45° increments
Cable diameter 4 mm – 8 mm
Storage temperature range -40 °C . . . +85 °C
Temperature range connector -40 °C . . . +85 °C
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
21.04.2022 • Subject to technical modification
Part No.
490197 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · M12 - connector
Mechanical service life >100 insertion cycles
Cross-section, metric without ferrule: 0.14–0.75 mm²
with ferrule: 0.08–0.5 mm²
Cross-section AWG without ferrule: AWG26–AWG18
with ferrule: AWG28–AWG20
Connection type Spring terminal
Push-In
Tightening torque M12-knurled nut: 0.4 Nm
sleeve housing: 0.4 Nm
pressure nut: 1.5 Nm
Weight/unit 0.022 kg
PU (units) 1
Technical data
Rated voltage U
N
AC/DC 24 V
Operating voltage max. 60 V
Rated current 4 A
Pole number 5
Coding A
Certifications/Standards
Certifications cULus Listed (E224249)
Standards IEC 61076-2-101
EN 50155 (2001) vibration and shock

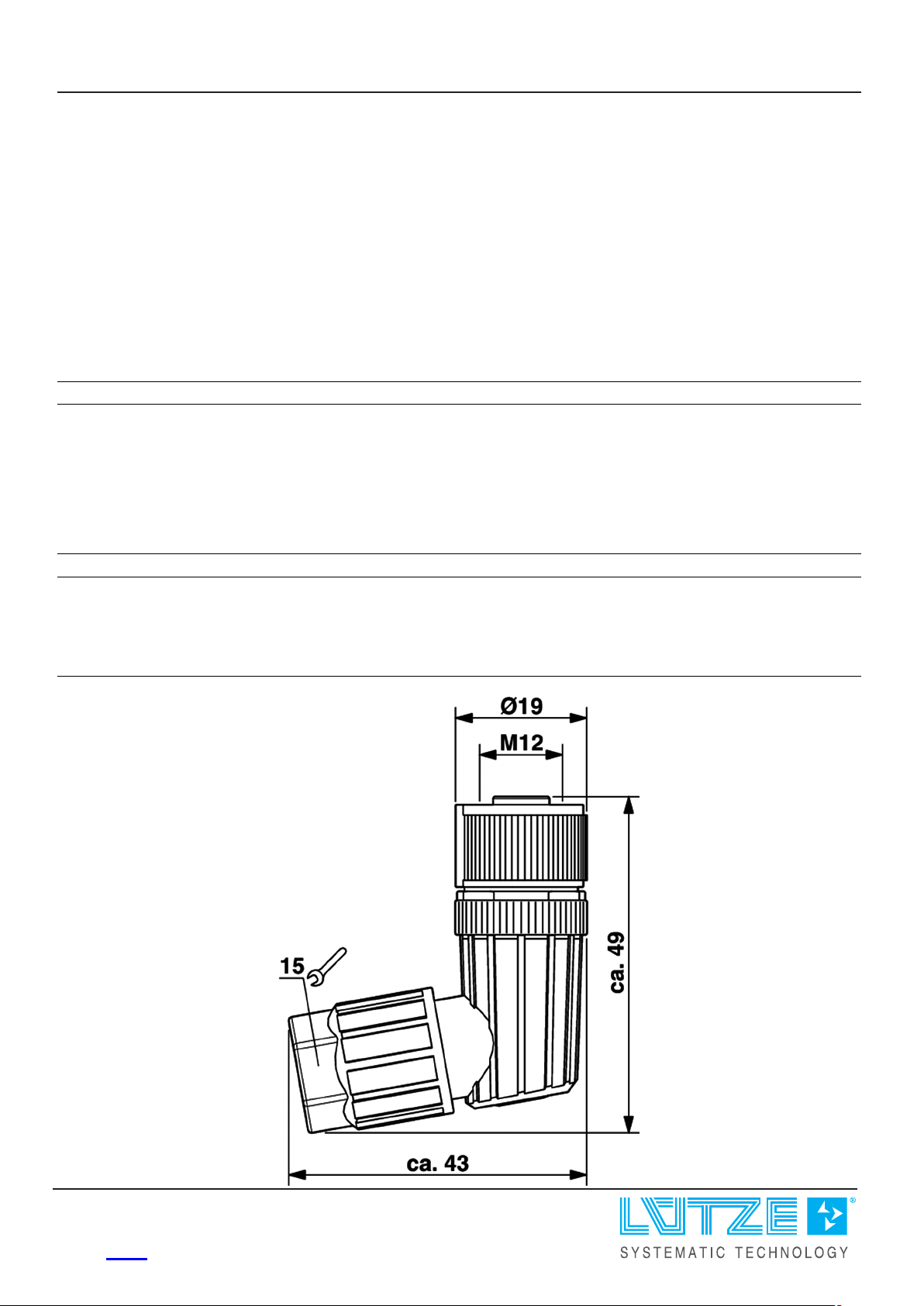

Dimensions
21.04.2022 – Subject to technical modification
Part No.
490197 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · M12 - connector

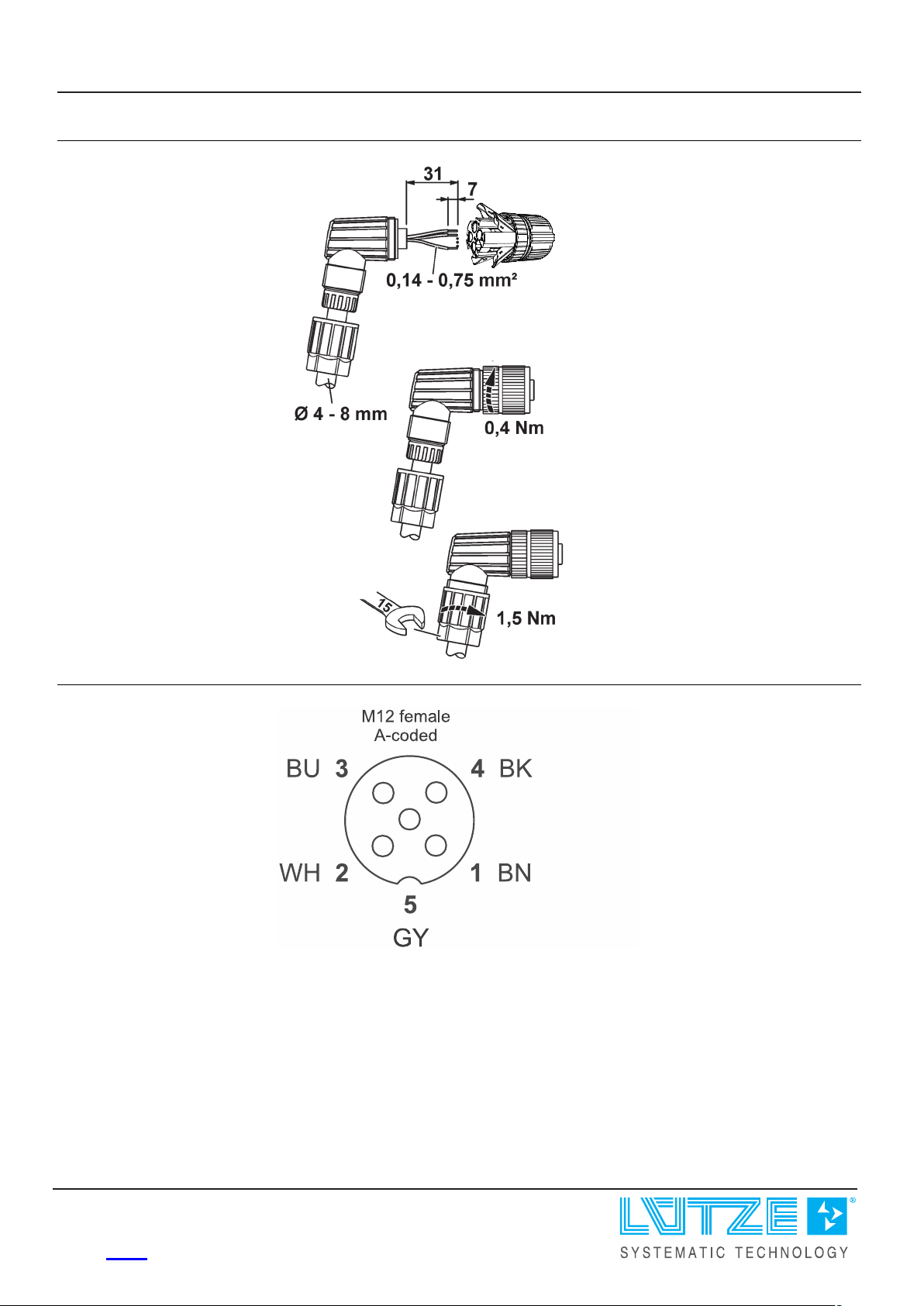

Mounting diagram
Pin layout
21.04.2022 – Subject to technical modification
Part No.
490197 • Datasheet version: 00 page 3 of 3
