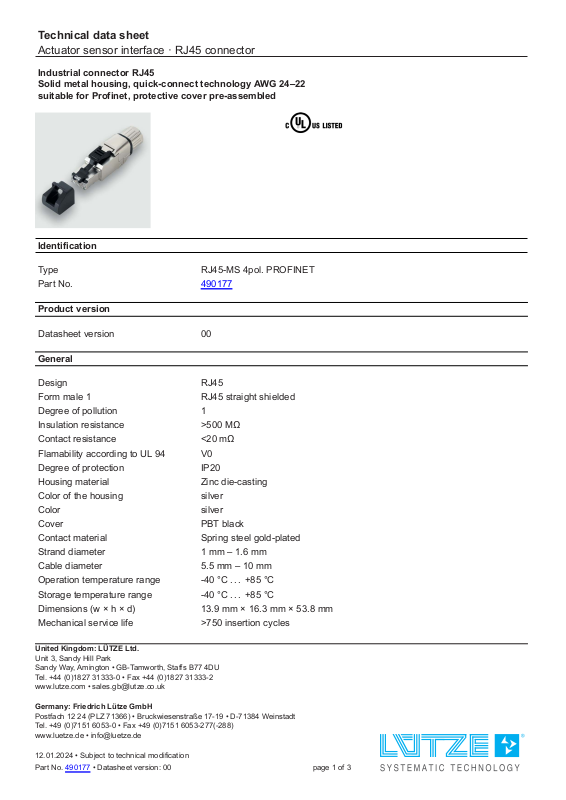

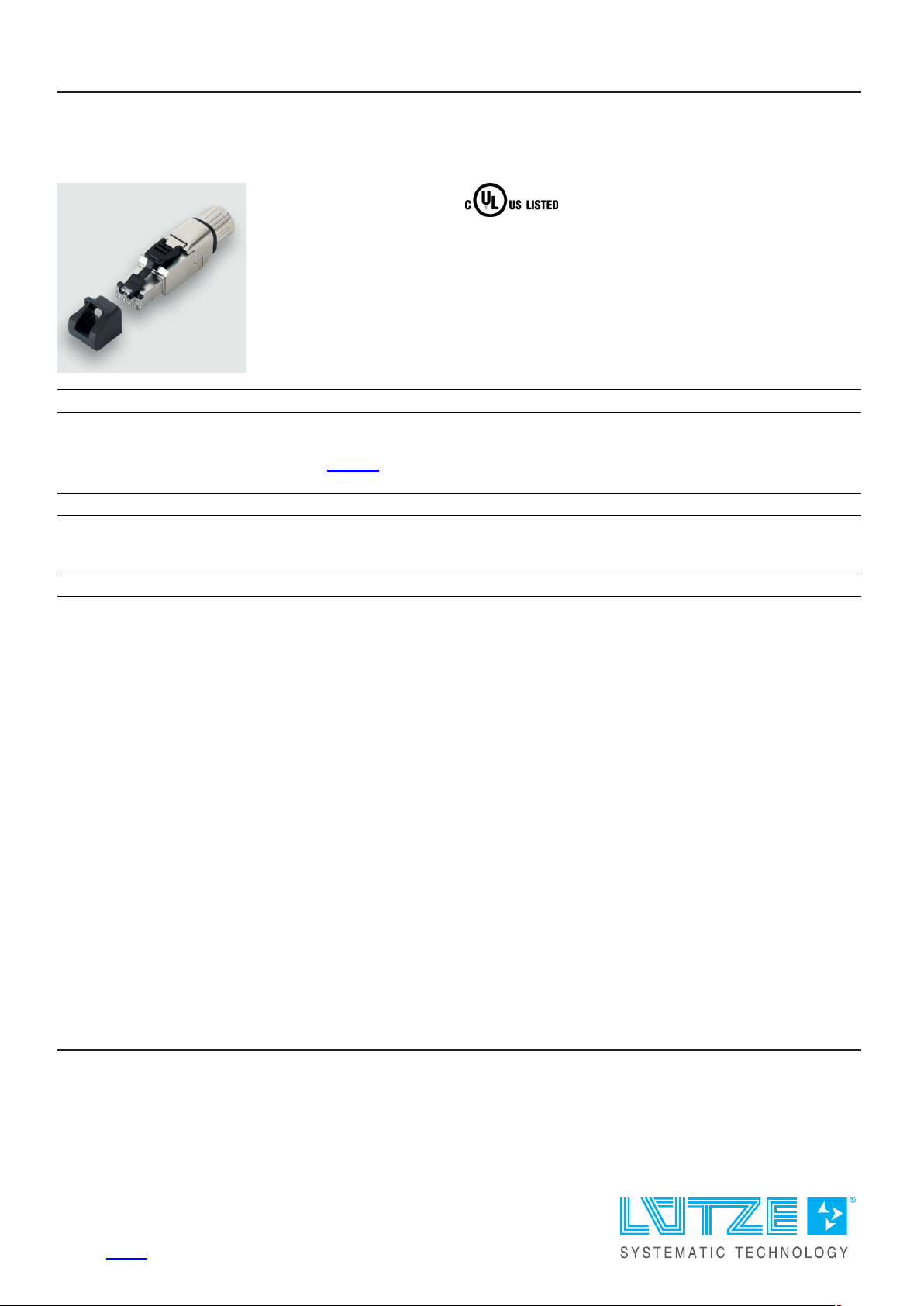

LUTZE 490177 Specification

Technical data sheet

Actuator sensor interface · RJ45 connector

Industrial connector RJ45
Solid metal housing, quick-connect technology AWG 24–22
suitable for Profinet, protective cover pre-assembled

Identification

Type RJ45-MS 4pol. PROFINET

Part No.

Product version

490177

Datasheet version 00

General

Design RJ45

Form male 1 RJ45 straight shielded

Degree of pollution 1

Insulation resistance >500 MΩ

Contact resistance <20 mΩ

Flamability according to UL 94 V0

Degree of protection IP20

Housing material Zinc die-casting

Color of the housing silver

Color silver

Cover PBT black

Contact material Spring steel gold-plated

Strand diameter 1 mm – 1.6 mm

Cable diameter 5.5 mm – 10 mm

Operation temperature range -40 °C . . . +85 °C

Storage temperature range -40 °C . . . +85 °C

Dimensions (w × h × d) 13.9 mm × 16.3 mm × 53.8 mm

Mechanical service life >750 insertion cycles

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Par k
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-1 9 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

12.01.2024 • Subject to technical modification

Part No.

490177 • Datasheet version: 00 page 1 of 3

Technical data sheet

Actuator sensor interface · RJ45 connector

Cross-section AWG 24-22/1, 24-22/7,19

Connection type 4-pin RJ45

Push-through contacts
IDC

Weight/unit 0.025 kg

PU (units) 1

Technical data

Rated voltage U

N

30 V

Rated current ≤1 A per contact

Pole number 4

Bandwidth 100 MHz

Transfer rate 1 Gbit/s

Category Cat.5e

Shielding shielded

Certifications/Standards

Certifications cULus Listed (E326112)

Standards IEC 61784-5-3

Notes and Comments

Comments

Suitable for Profinet, SERCOS3, Ethercat, Po w er over Ethernet+ (PoE+IEEE

802.3at)
Suitable cables, see overview assignment Ethernet cables to connectors

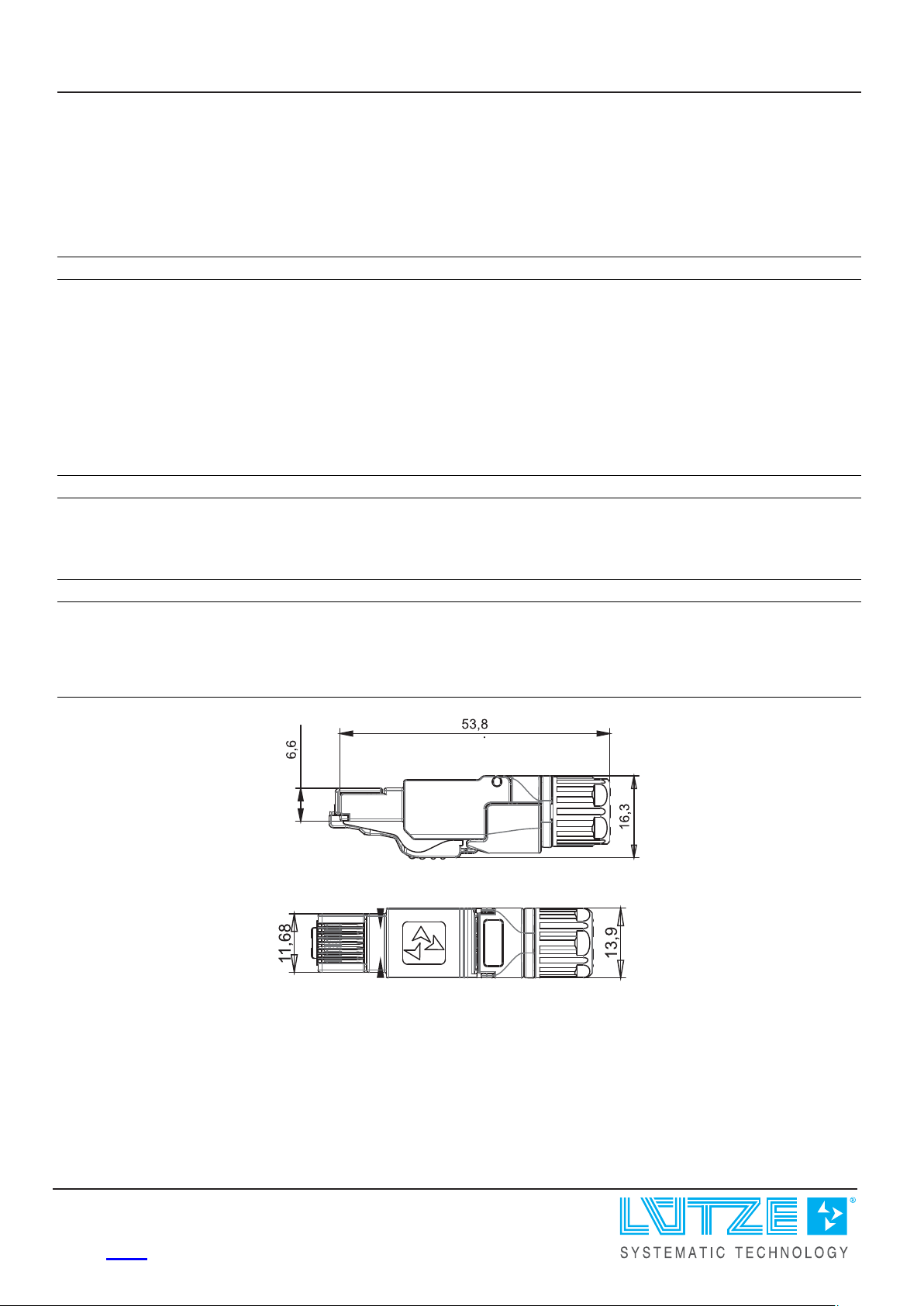

Dimensions

12.01.2024 – Subject to technical modification

Part No. 490177 • Datasheet version: 00 page 2 of 3

Technical data sheet

Actuator sensor interface · RJ45 connector

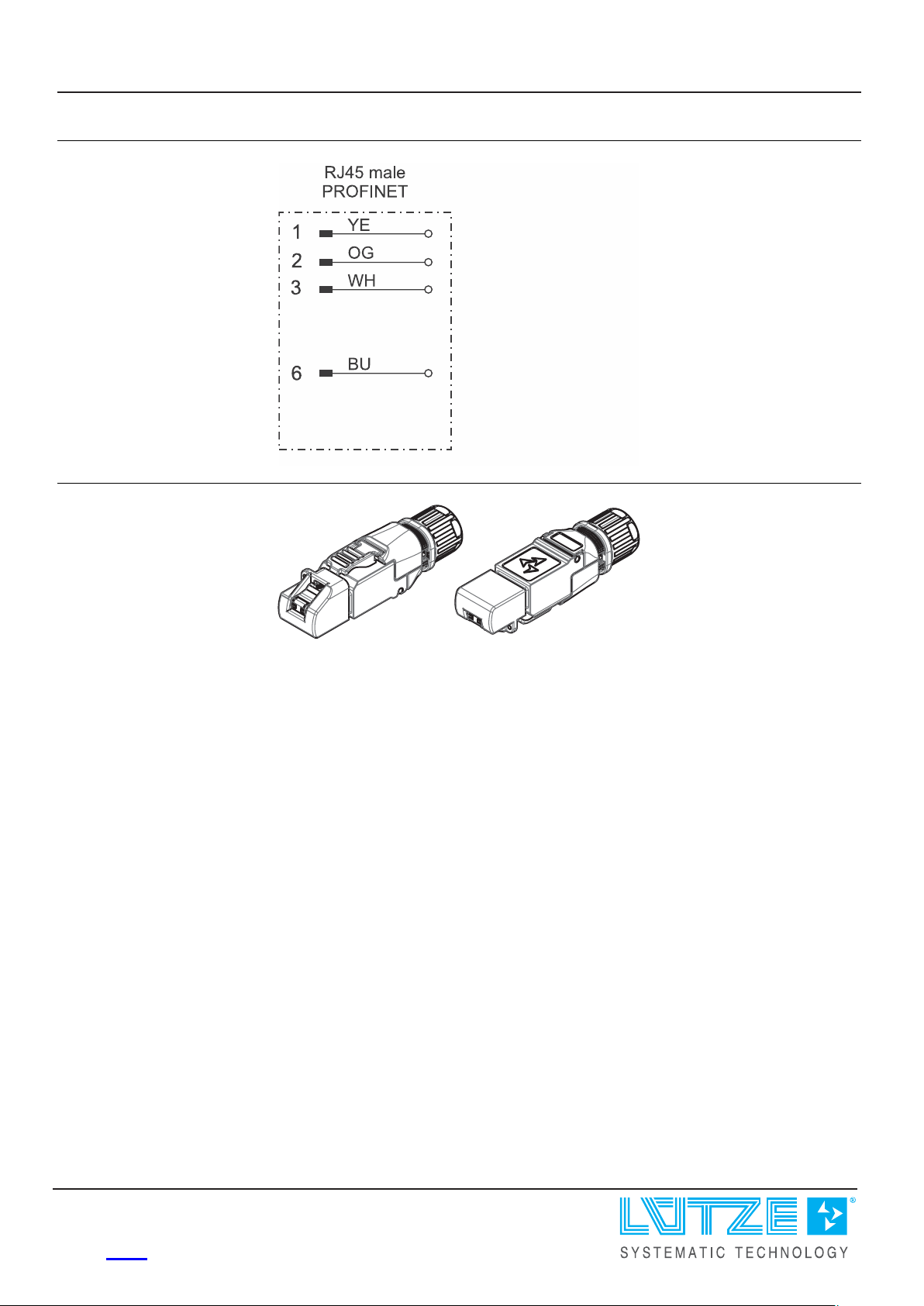

Connection assignment

Mounting diagram

12.01.2024 – Subject to technical modification

Part No.

490177 • Datasheet version: 00 page 3 of 3
