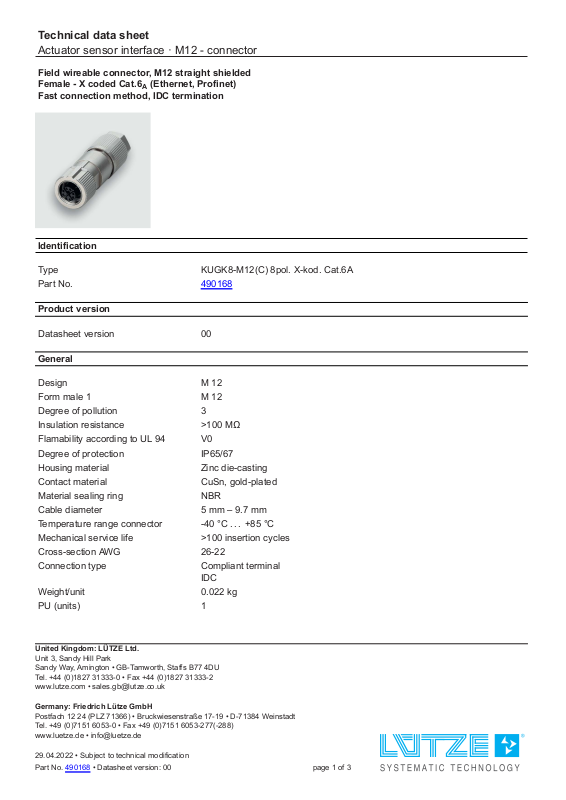

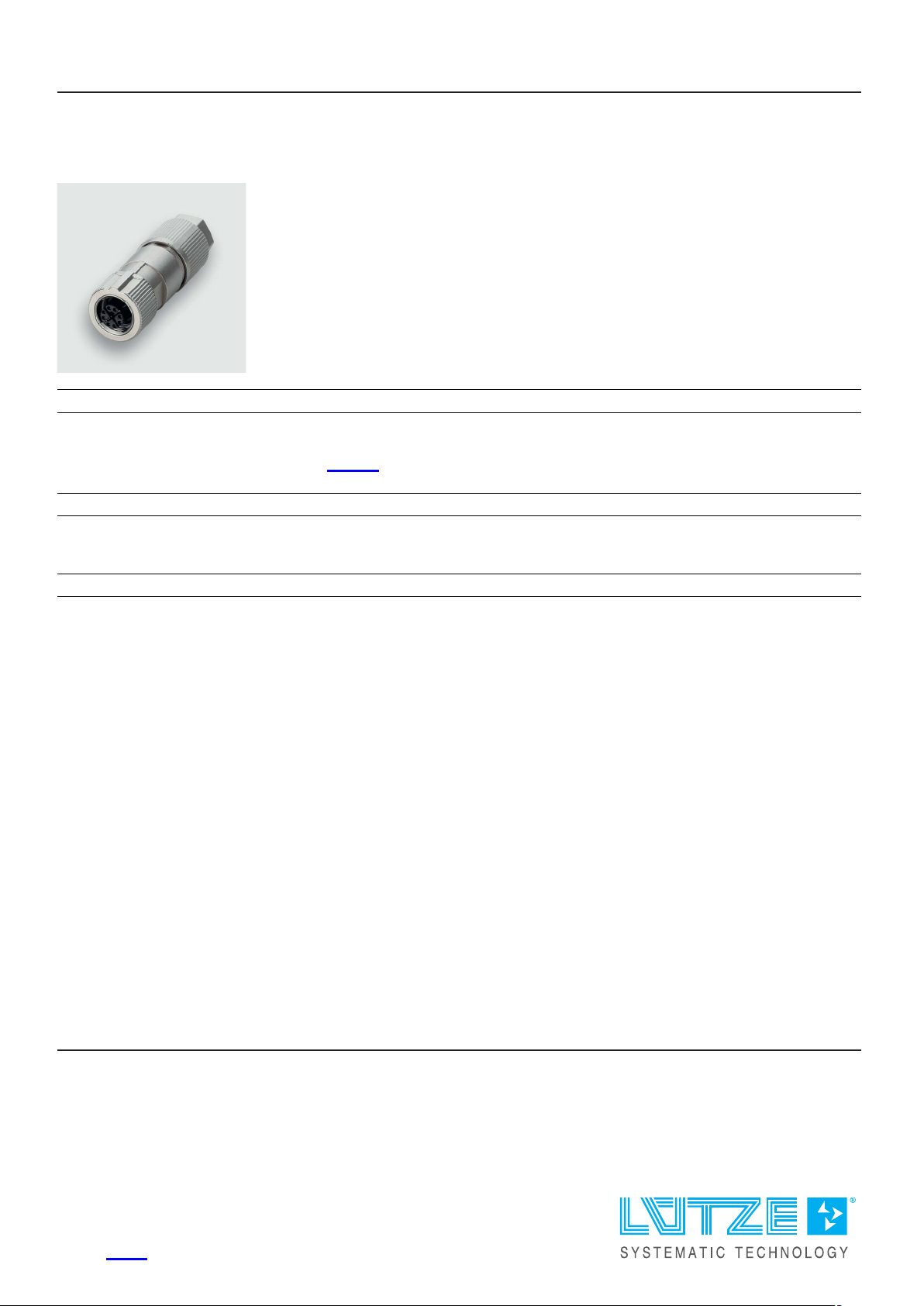

Technical data sheet
Actuator sensor interface · M12 - connector
Field wireable connector, M12 straight shielded
Female - X coded Cat.6A(Ethernet, Profinet)
Fast connection method, IDC termination
Identification
Type KUGK8-M12(C) 8pol. X-kod. Cat.6A
Part No.
Product version
490168
Datasheet version 00
General
Design M 12
Form male 1 M 12
Degree of pollution 3
Insulation resistance >100 MΩ
Flamability according to UL 94 V0
Degree of protection IP65/67
Housing material Zinc die-casting
Contact material CuSn, gold-plated
Material sealing ring NBR
Cable diameter 5 mm – 9.7 mm
Temperature range connector -40 °C . . . +85 °C
Mechanical service life >100 insertion cycles
Cross-section AWG 26-22
Connection type Compliant termina l
IDC
Weight/unit 0.022 kg
PU (units) 1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
29.04.2022 • Subject to technical modification
Part No.
490168 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · M12 - connector
Technical data
Rated voltage U
N
AC/DC 24 V
Operating voltage max. 60 V
Rated current 0.5 A
Pole number 8
Category Cat.6
A
Coding X
Shielding 360°
Equipment/Spare parts
Accessories matching cables:
104338 | EL BUS(C)PVC ET(4×(2×AWG26/7)St)C Cat.6A | Jacket material:
PVC
104331 | EL ET BUS(C)PVC PIMF (4×(2×AWG26/7)) GN | Jacke t material :
PVC
104347 | SU BUS(C)P ET(4×2×AWG26/19)C UL Cat.6 | Jacket material:
PUR
Notes and Comments
Comments Suitable cables, see overview assignment Ethernet cables to connectors

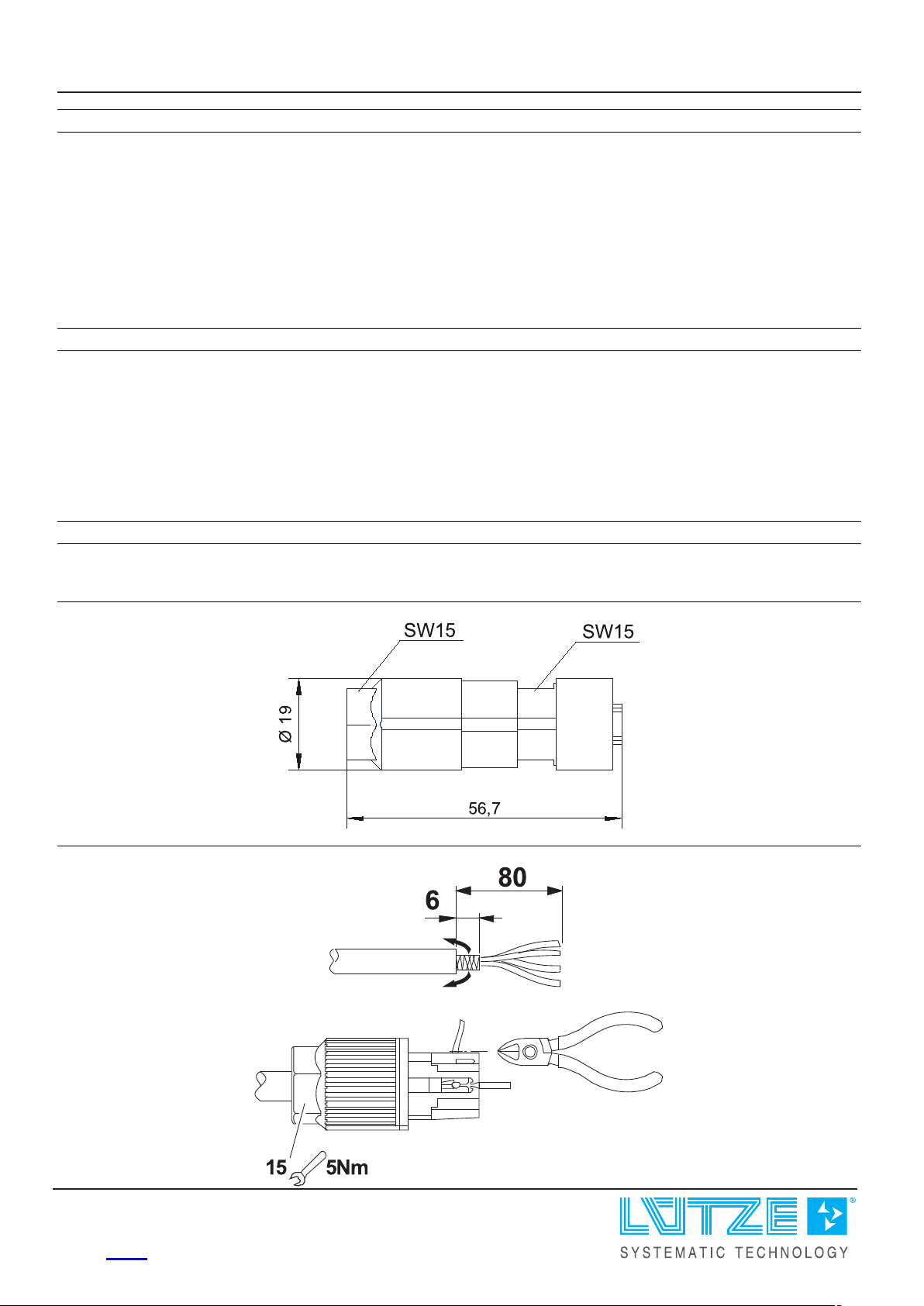

Dimensions
Mounting diagram
29.04.2022 – Subject to technical modification
Part No.
490168 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · M12 - connector

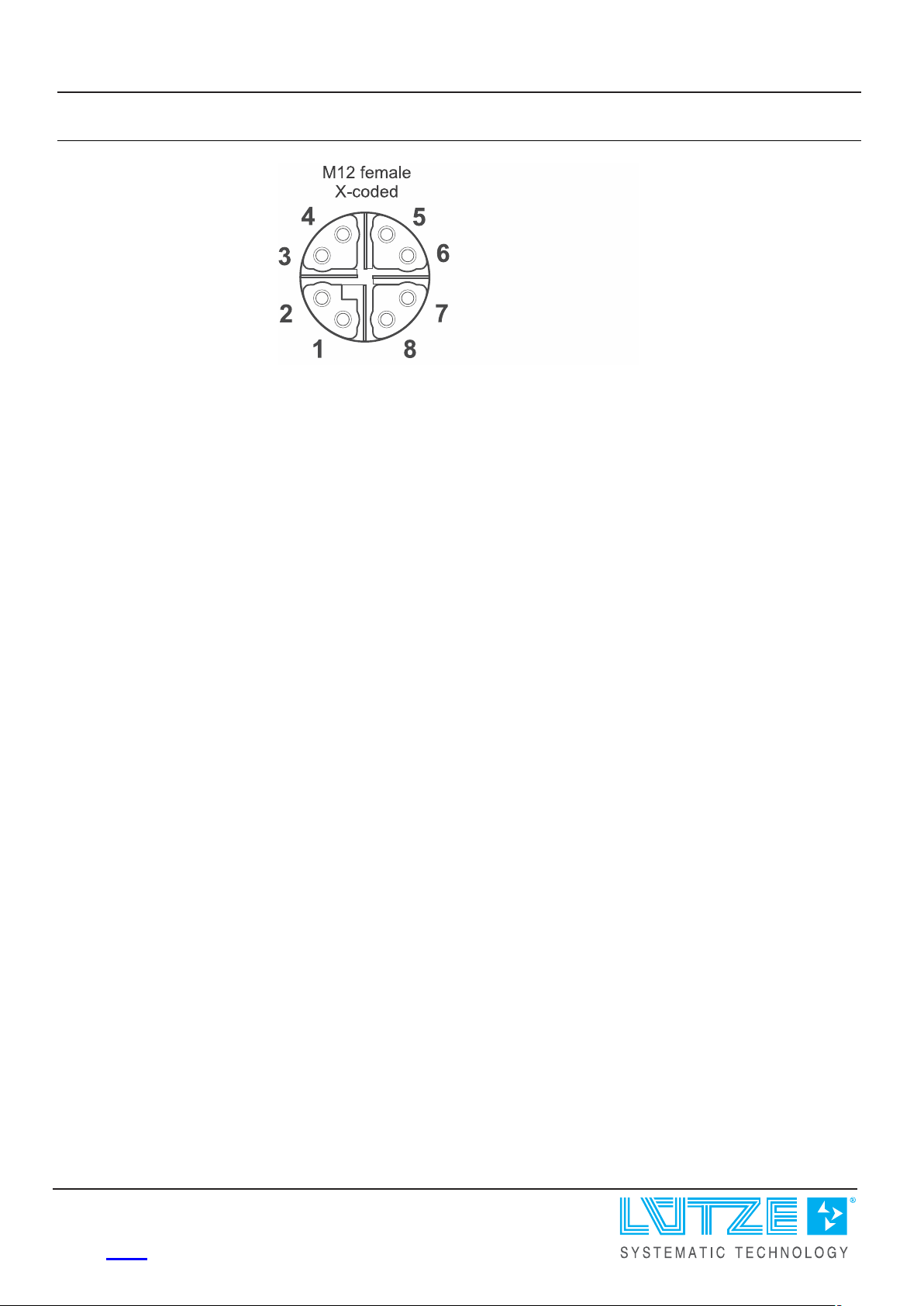

Pin layout
29.04.2022 – Subject to technical modification
Part No.
490168 • Datasheet version: 00 page 3 of 3
