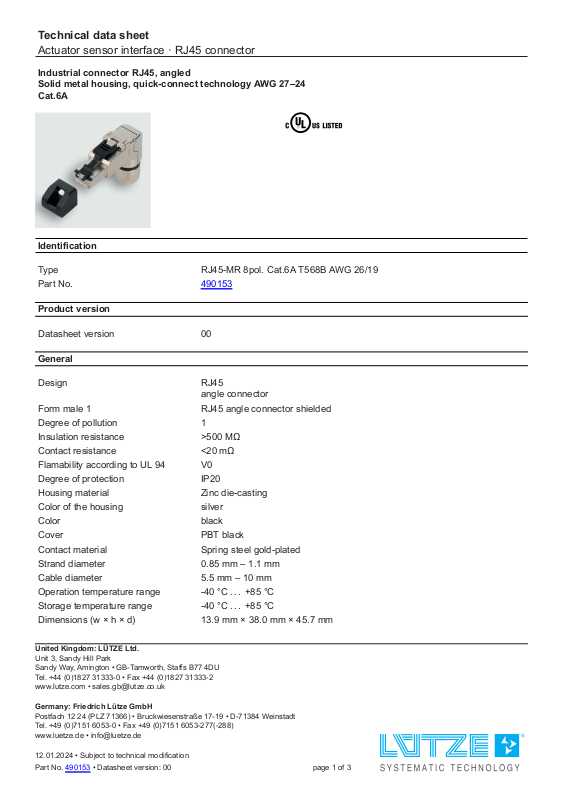

Technical data sheet
Actuator sensor interface · RJ45 connector

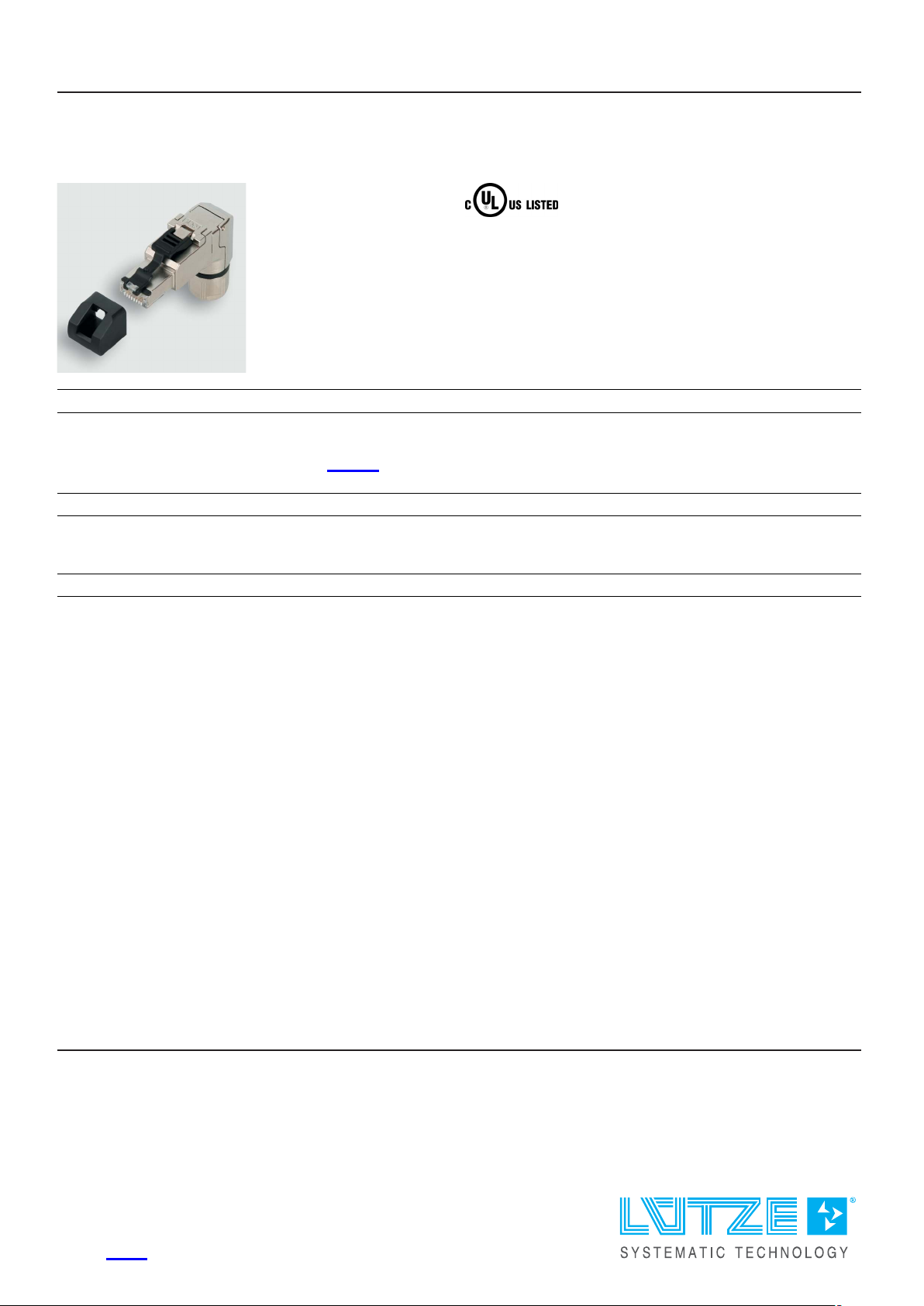

Industrial connector RJ45, angled
Solid metal housing, quick-connect technology AWG 27–24
Cat.6A
Identification
Type RJ45-MR 8pol. Cat.6A T568B AWG 26/19
Part No.
Product version
490153
Datasheet version 00
General
Design RJ45
angle connector
Form male 1 RJ45 angle connector shielded
Degree of pollution 1
Insulation resistance >500 MΩ
Contact resistance <20 mΩ
Flamability according to UL 94 V0
Degree of protection IP20
Housing material Zinc die-casting
Color of the housing silver
Color black
Cover PBT black
Contact material Spring steel gold-plated
Strand diameter 0.85 mm – 1.1 mm
Cable diameter 5.5 mm – 10 mm
Operation temperature range -40 °C . . . +85 °C
Storage temperature range -40 °C . . . +85 °C
Dimensions (w × h × d) 13.9 mm × 38.0 mm × 45.7 mm
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Par k
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-1 9 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
12.01.2024 • Subject to technical modification
Part No.
490153 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · RJ45 connector
Mechanical service life >750 insertion cycles
Cross-section AWG 26-24/1, 27-24/7, 26/19
Connection type 8-pin RJ45
Push-through contacts
IDC
Weight/unit 0.03 kg
PU (units) 1
Technical data
Rated voltage U
N
30 V
Rated current ≤1 A per contact
Pole number 8
Bandwidth 500 MHz
Transfer rate 10 Gbit/s
Category Cat.6
A
Shielding shielded
Certifications/Standards
Certifications cULus Listed (E326112)
Standards IEC 60603-7-51
Notes and Comments
Comments
Suitable for Pr o fi n e t, SERCOS3, Ethercat, Ethernet/IP, Powerlink, VARAN,
Power over Ethernet+ (PoE+IEEE 802.3at)
Suitable cables, see overview assignment Ethernet cables to connectors

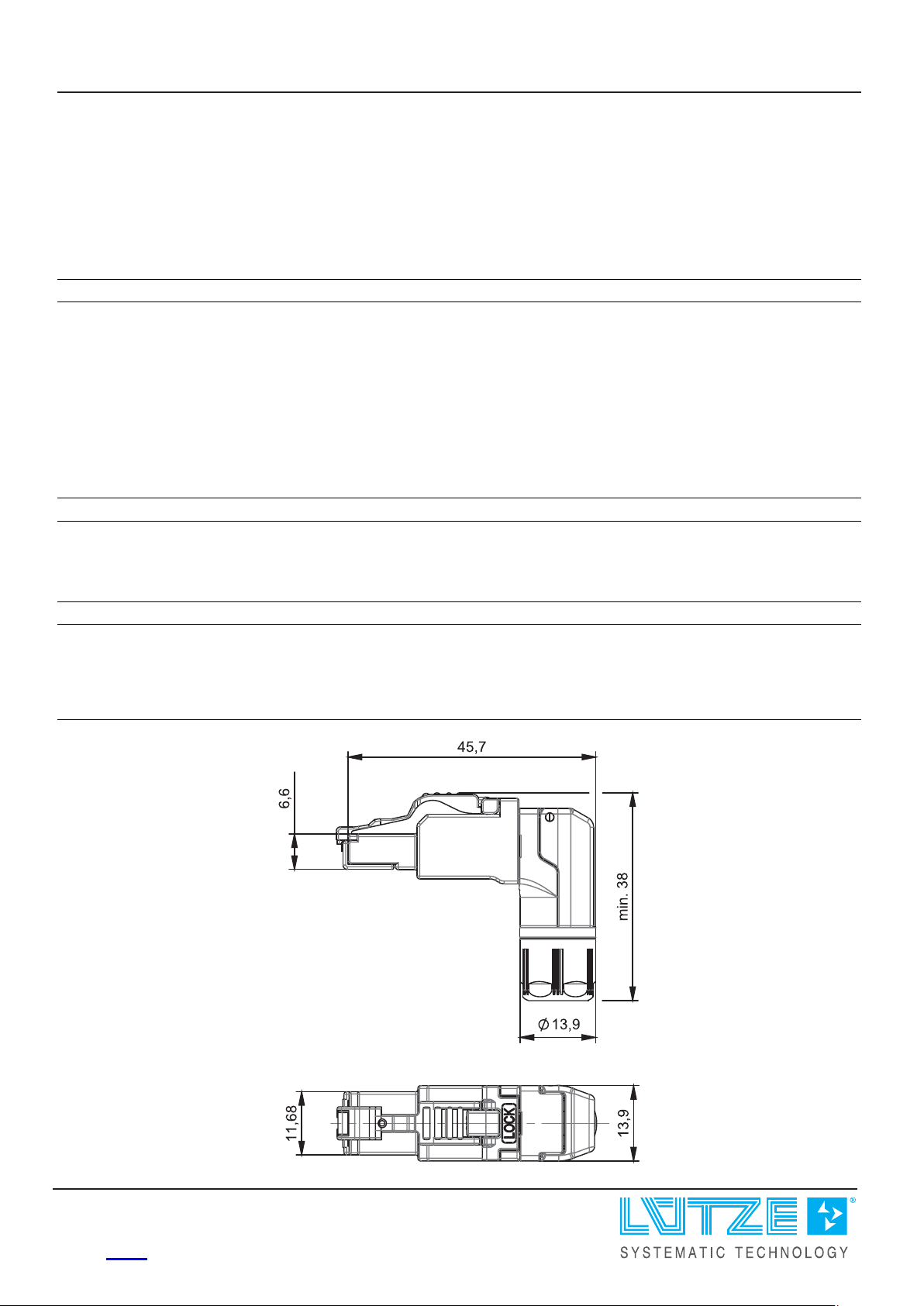

Dimensions
12.01.2024 – Subject to technical modification
Part No.
490153 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · RJ45 connector

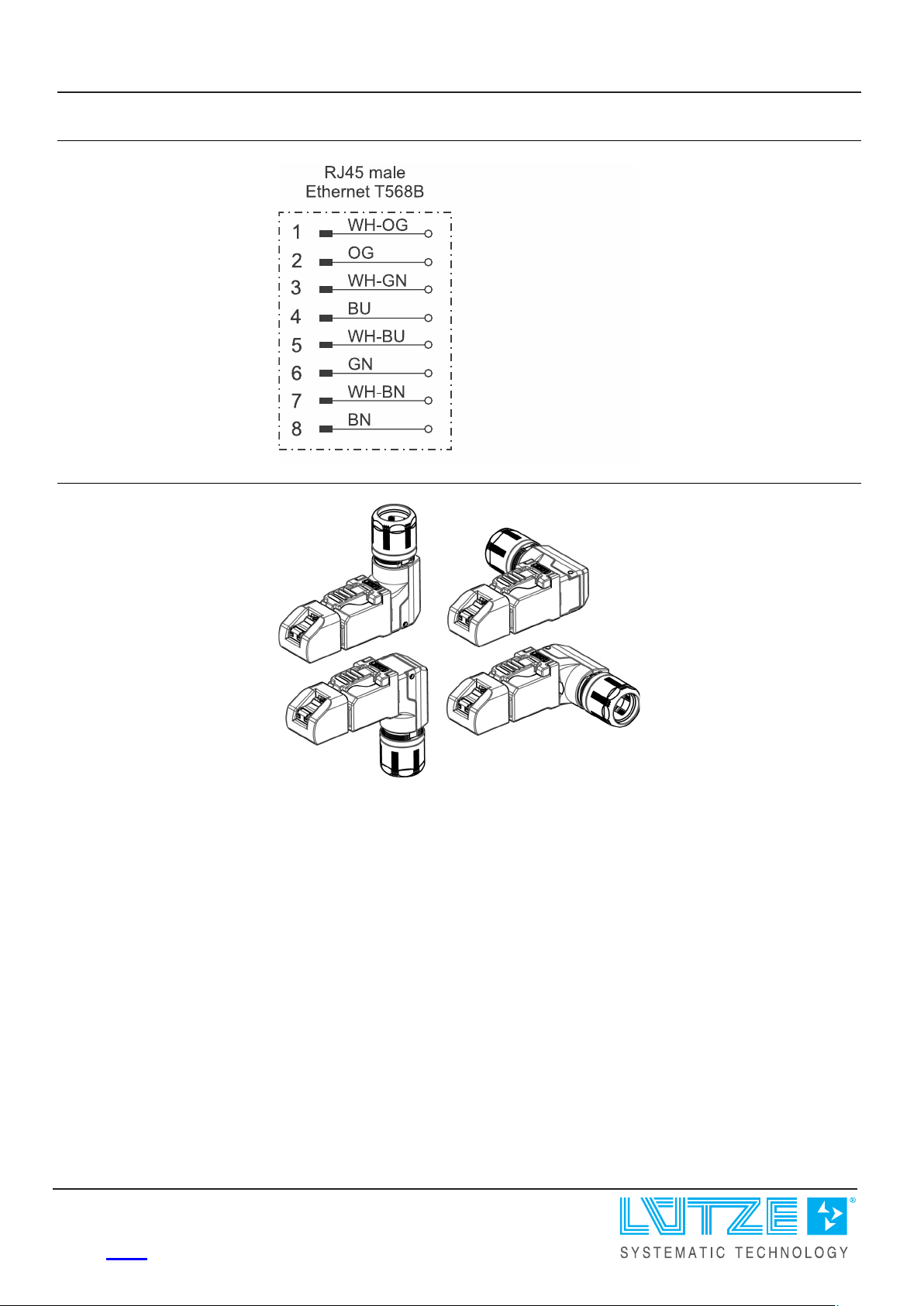

Connection assignment
Mounting diagram
12.01.2024 – Subject to technical modification
Part No.
490153 • Datasheet version: 00 page 3 of 3
