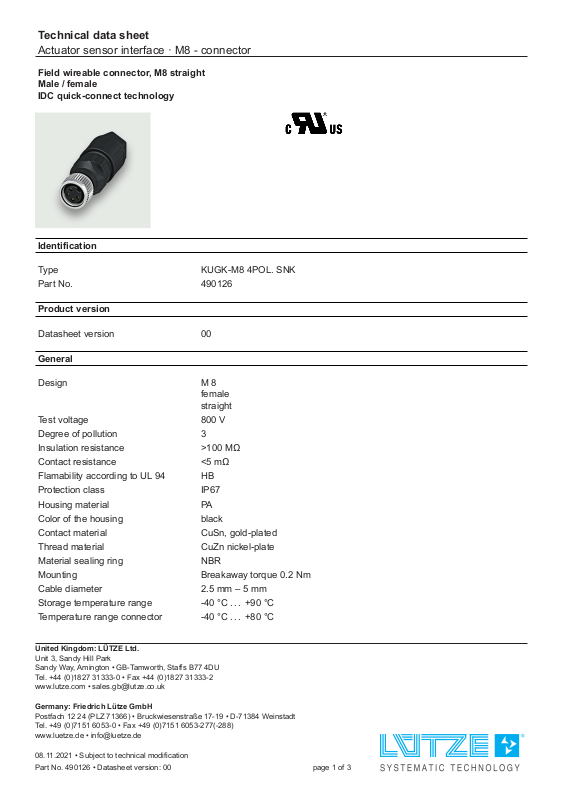

Page 1
Technical data sheet
Actuator sensor interface · M8 - connector
Field wireable connector, M8 straight
Male / female
IDC quick-connect technology
Identification
Type KUGK-M8 4POL. SNK
Part No. 490126
Product version
Datasheet version 00
General
Design M 8
female
straight
Test voltage 800 V
Degree of pollution 3
Insulation resistance >100 MΩ
Contact resistance <5 mΩ
Flamability according to UL 94 HB
Protection class IP67
Housing material PA
Color of the housing black
Contact material CuSn, gold-plated
Thread material CuZn nickel-plate
Material sealing ring NBR
Mounting Breakaway torque 0.2 Nm
Cable diameter 2.5 mm – 5 mm
Storage temperature range -40 °C . . . +90 °C
Temperature range connector -40 °C . . . +80 °C
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
08.11.2021 • Subject to technical modification
Part No. 490126 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · M8 - connector
Mechanical service life >100 insertion cycles
Connection type IDC
0.25 mm² – 0.5 mm²
Weight/unit 0.007 kg
PU (units) 1
Technical data
Rated voltage U
N
AC/DC 24 V
Operating voltage max. 60 V
Rated current 4 A
Pole number 4
Certifications/Standards
Certifications cURus (E256031)
Accessories
Accessories matching cables:
117240 | SU TR AS PUR 3×0,25 UL | Jacket material: PUR
117241 | SU TR AS PUR 4×0,25 UL | Jacket material: PUR
117243 | SU TR AS PUR 3×0,34 UL | Jacket material: PUR
117244 | SU TR AS PUR 4×0,34 UL | Jacket material: PUR

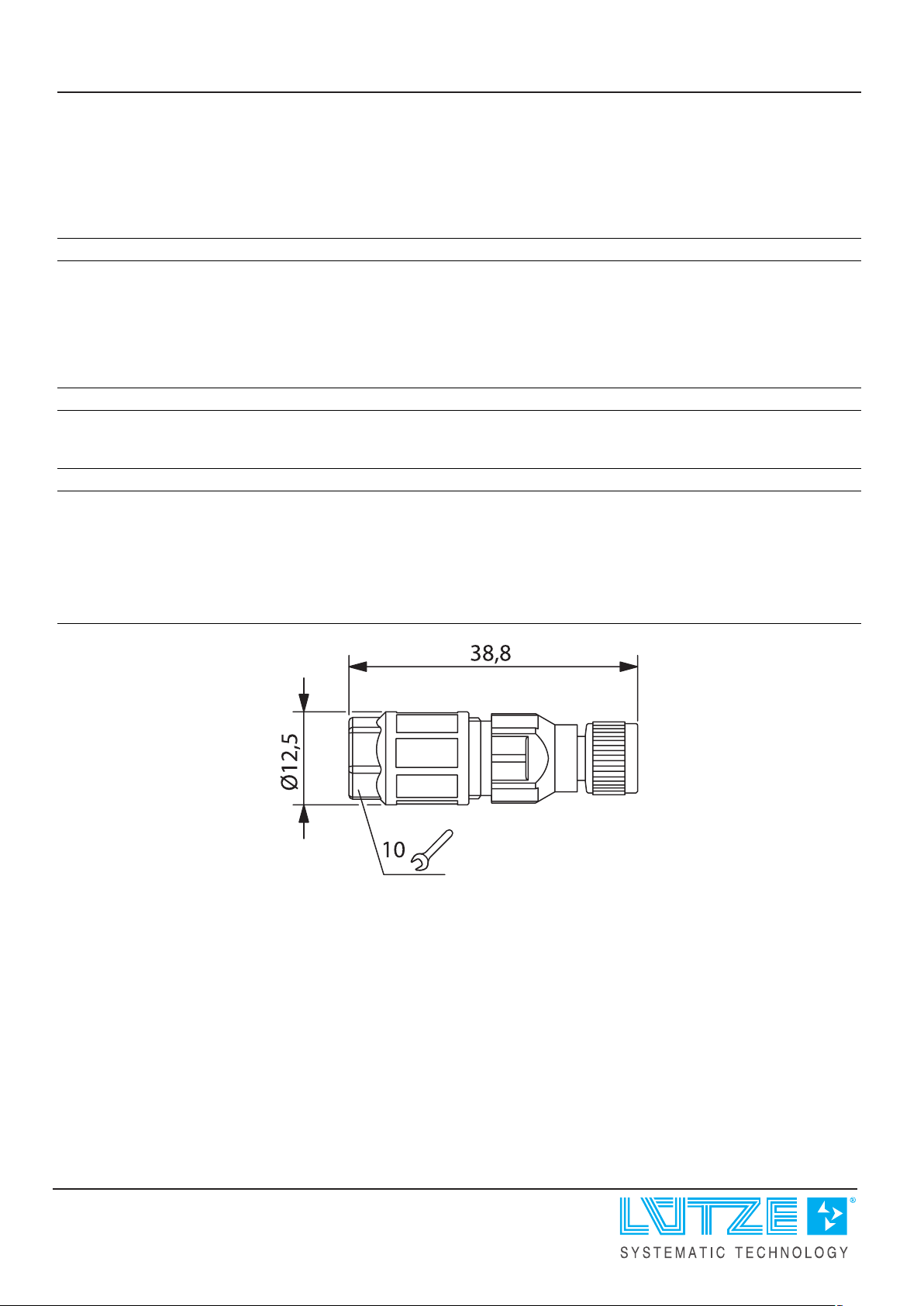

Dimensions
08.11.2021 – Subject to technical modification
Part No. 490126 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · M8 - connector

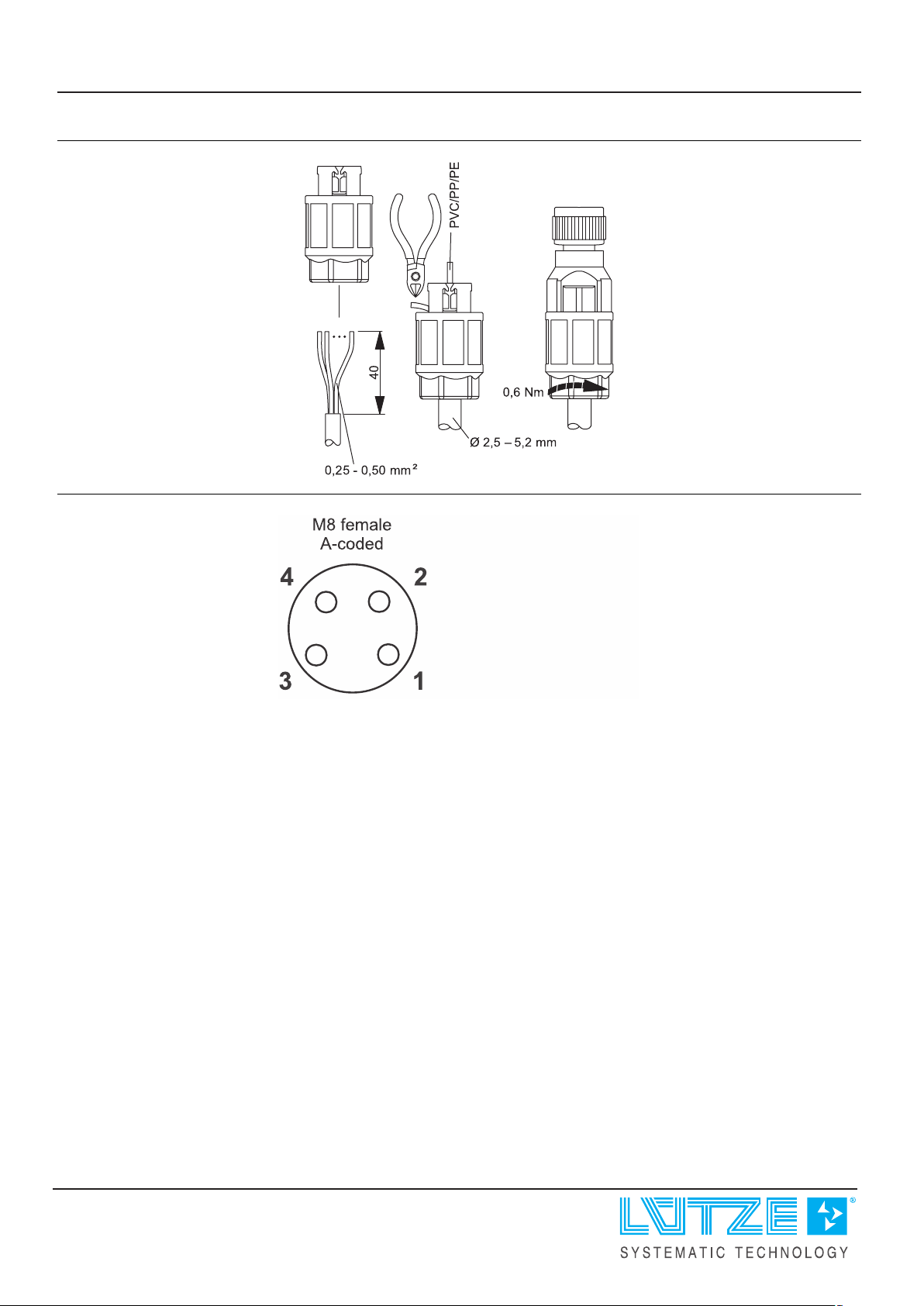

Mounting diagram
Pin layout
08.11.2021 – Subject to technical modification
Part No. 490126 • Datasheet version: 00 page 3 of 3
