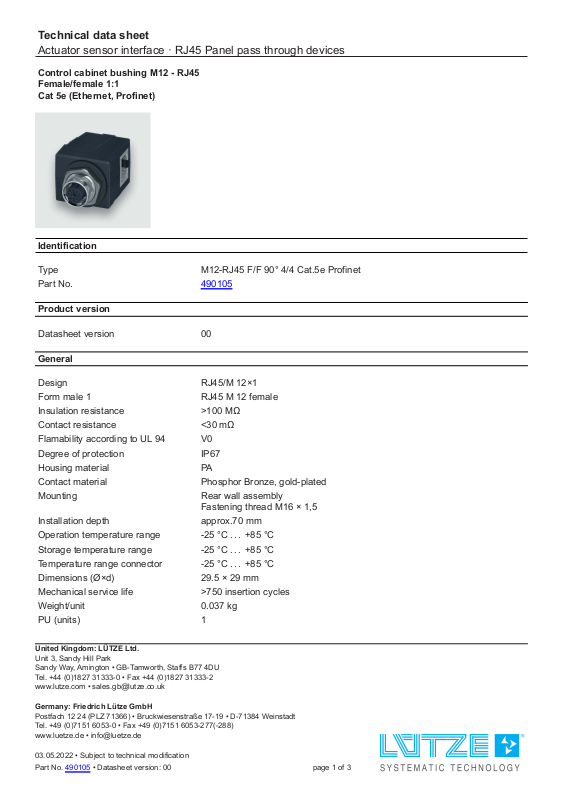

Technical data sheet
Actuator sensor interface · RJ45 Panel pa ss through devices

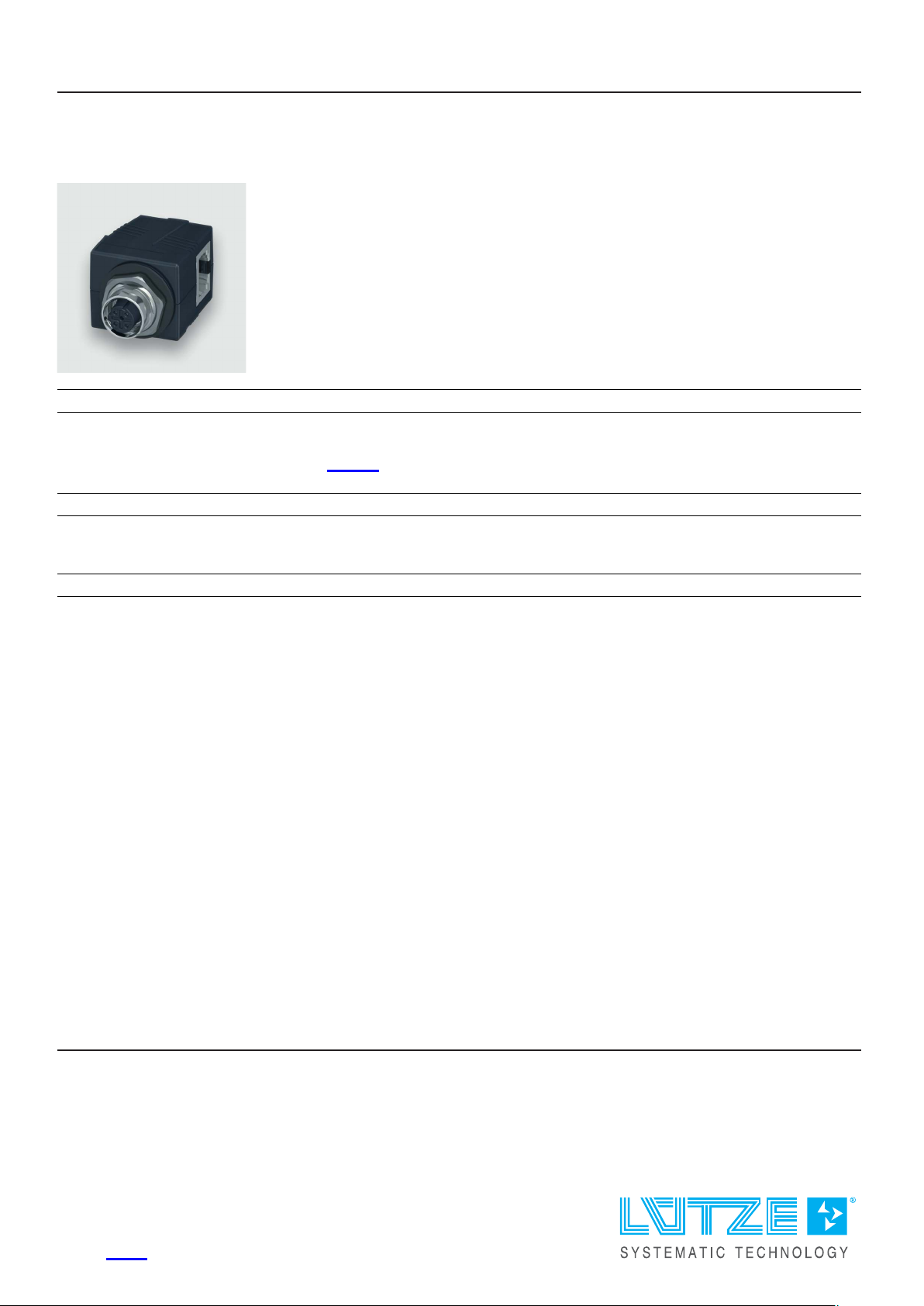

Control cabinet bushing M12 - RJ45
Female/female 1:1
Cat 5e (Ethernet, Profinet)
Identification
Type M12-RJ45 F/F 90° 4/4 Cat.5e Profinet
Part No.
Product version
490105
Datasheet version 00
General
Design RJ45/M 12×1
Form male 1 RJ45 M 12 female
Insulation resistance >100 MΩ
Contact resistance <30 mΩ
Flamability according to UL 94 V0
Degree of protection IP67
Housing material PA
Contact material Phosphor Bronze, gold-plated
Mounting Rear wall assembly
Fastening thread M16 × 1,5
Installation depth approx.70 mm
Operation temperature range -25 °C . . . +85 °C
Storage temperature range -25 °C . . . +85 °C
Temperature range connector -25 °C . . . +85 °C
Dimensions (Ø×d) 29.5 × 29 mm
Mechanical service life >750 insertion cycles
Weight/unit 0.037 kg
PU (units) 1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sales.g b @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • info @ l u e tze .d e
03.05.2022 • Subject to technical modification
Part No.
490105 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · RJ45 Panel pa ss through devices
Technical data
Rated voltage U
N
24 V
Operating voltage max. 50 V
Rated current 1 A per contact
Pole number 4
Bandwidth 100 MHz
Transfer rate 1 Gbit/s
Category Cat.5e
Contact type 1 : 1
Coding D
Shielding 360°

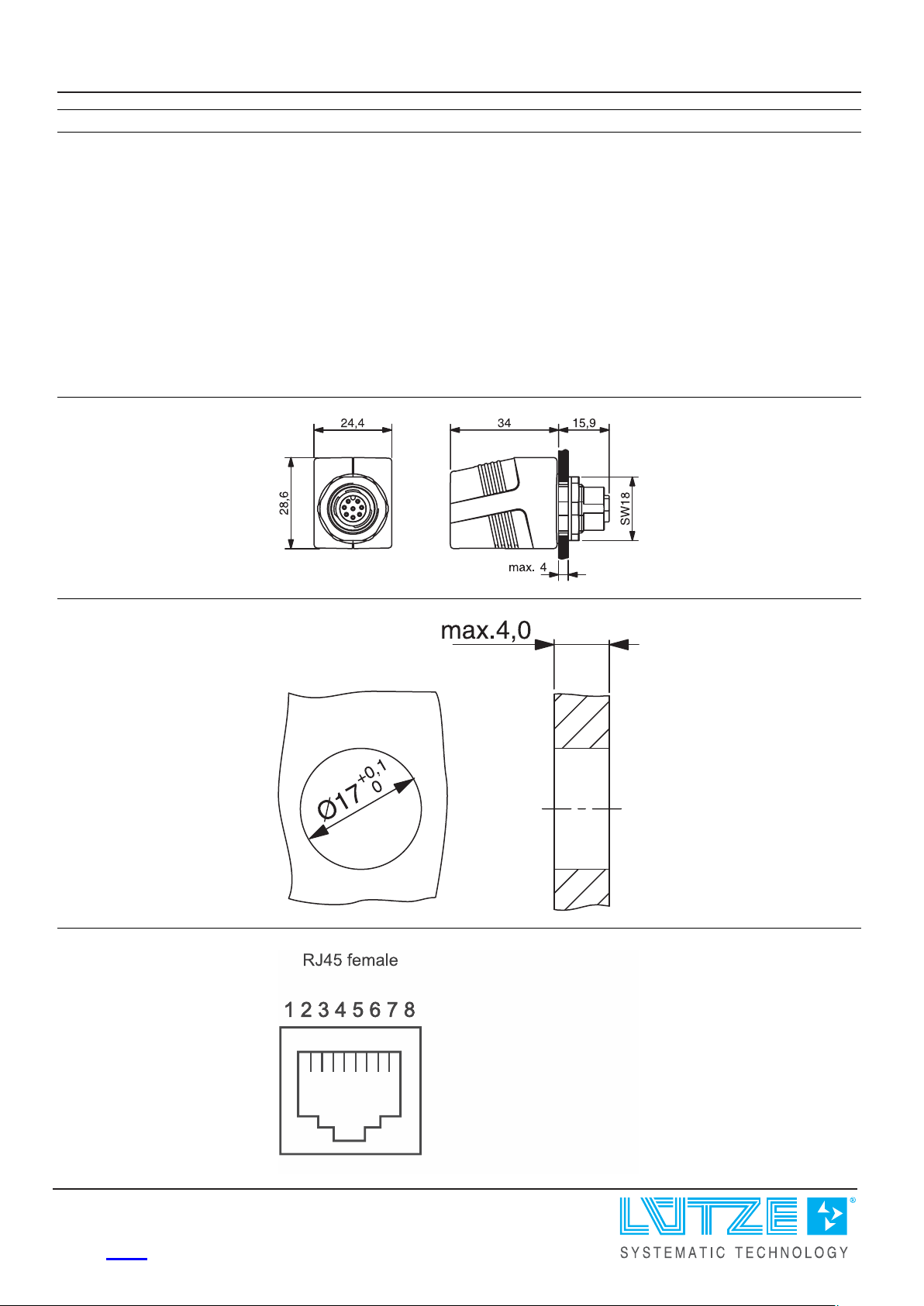

Dimensions
Mounting diagram
Pin layout
03.05.2022 – Subject to technical modification
Part No.
490105 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · RJ45 Panel pa ss through devices

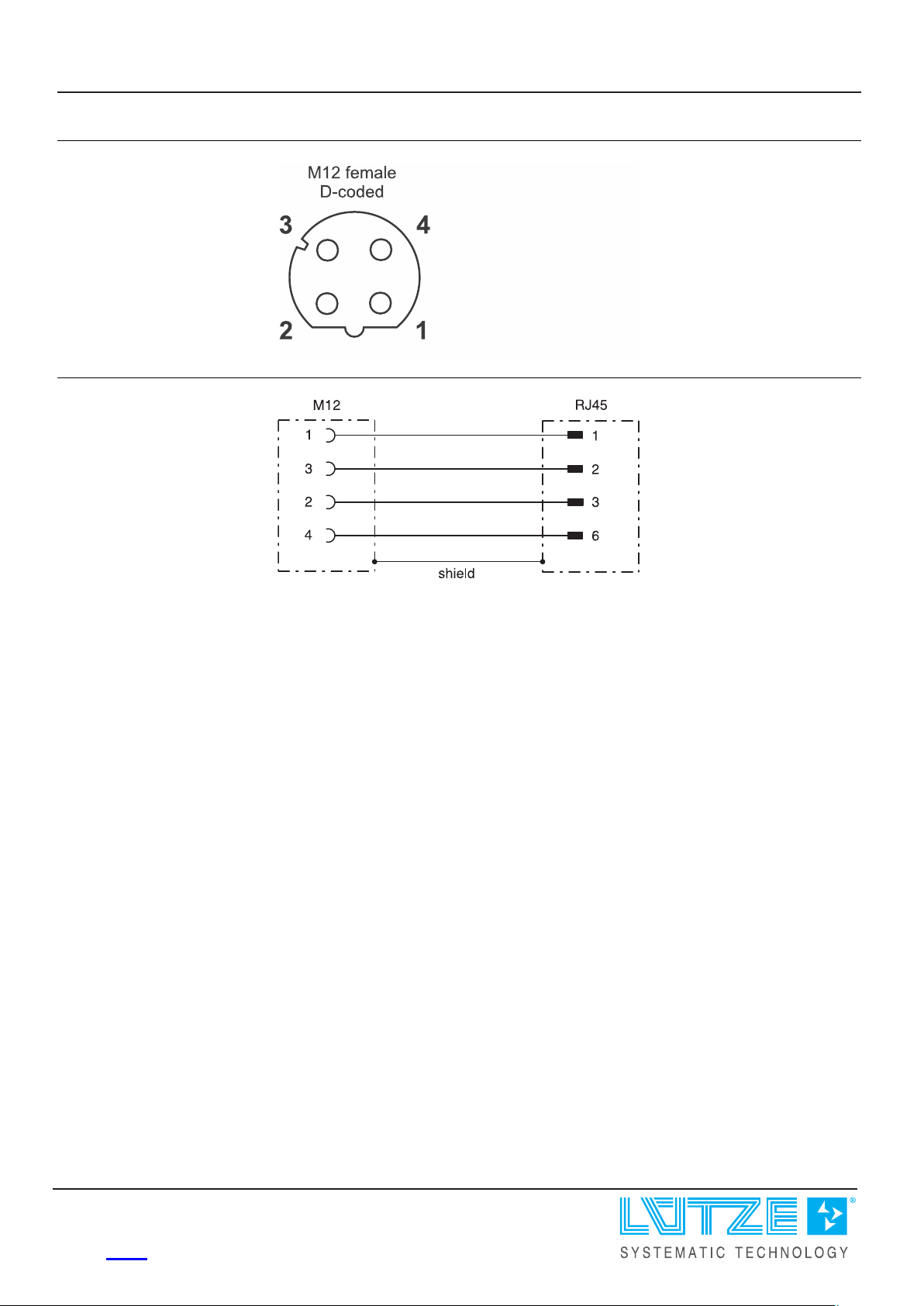

Pin layout
Circuit diagram
03.05.2022 – Subject to technical modification
Part No.
490105 • Datasheet version: 00 page 3 of 3
