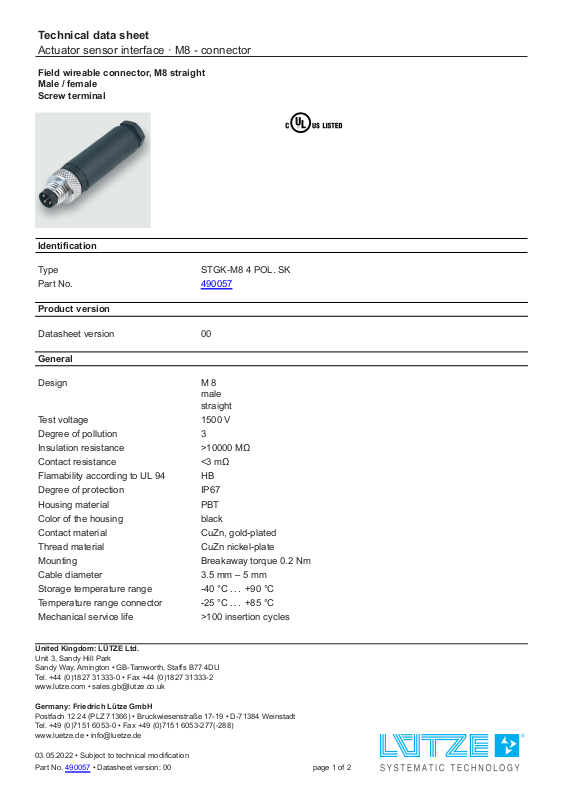

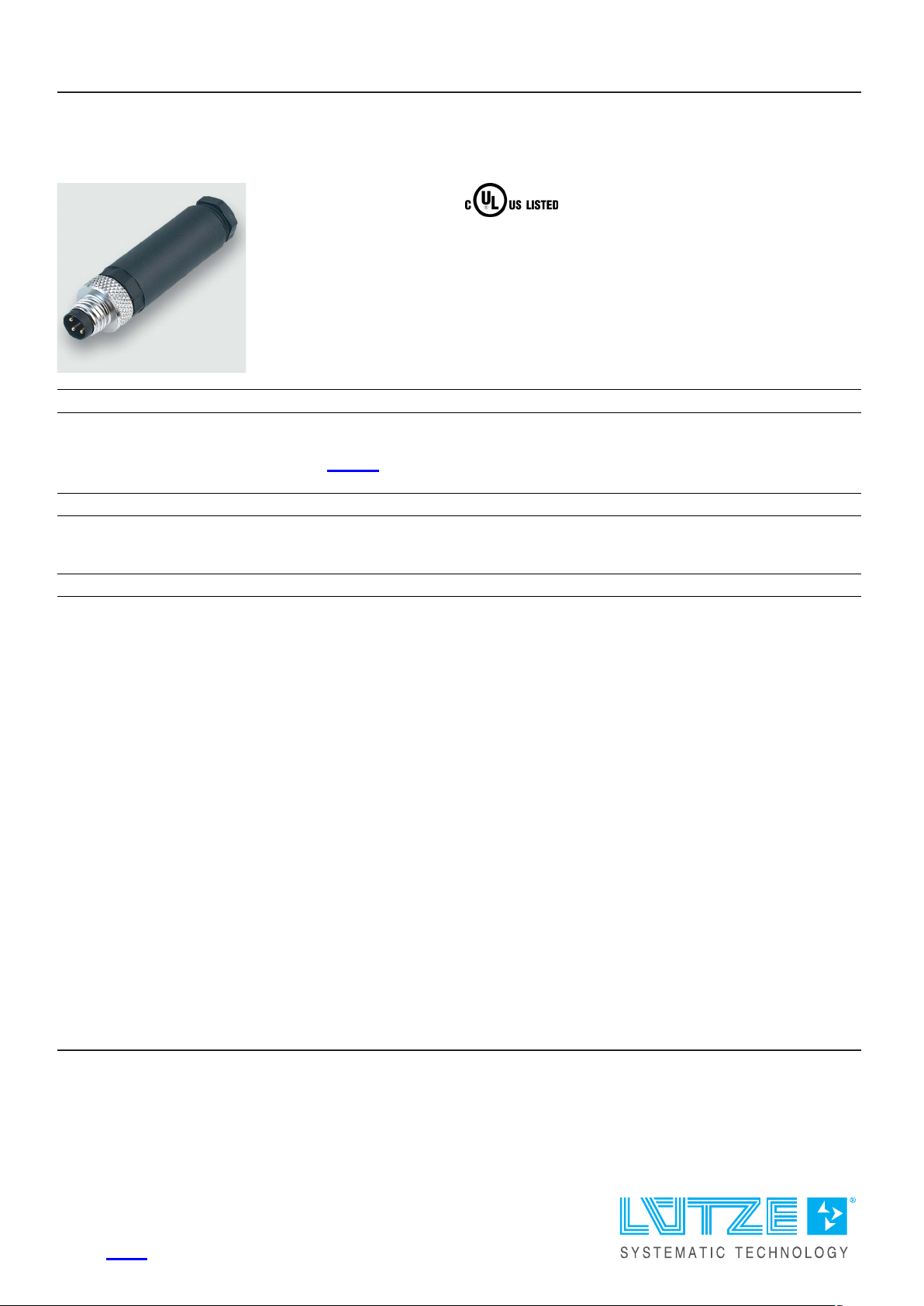

Page 1
Technical data sheet
Actuator sensor interface · M8 - connector
Field wireable connector, M8 straight
Male / female
Screw terminal
Identification
Type STGK-M8 4 POL. SK
Part No.
Product version
490057
Datasheet version 00
General
Design M 8
male
straight
Test voltage 1500 V
Degree of pollution 3
Insulation resistance >10000 MΩ
Contact resistance <3 mΩ
Flamability according to UL 94 HB
Degree of protection IP67
Housing material PBT
Color of the housing black
Contact material CuZn, gold-plated
Thread material CuZn nickel-plate
Mounting Breakaway torque 0.2 Nm
Cable diameter 3.5 mm – 5 mm
Storage temperature range -40 °C . . . +90 °C
Temperature range connector -25 °C . . . +85 °C
Mechanical service life >100 insertion cycles
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
03.05.2022 • Subject to technical modification
Part No.
490057 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Actuator sensor interface · M8 - connector
Connection type Screw terminal
0.14 mm² – 0.5 mm²
Weight/unit 0.04 kg
PU (units) 1
Technical data
Rated voltage U
N
AC/DC 24 V
Operating voltage max. 60 V
Rated current 4 A
Pole number 4
Certifications/Standards
Certifications cULus Listed (E224249)
Equipment/Spare parts
Accessories matching cables:
117240 | SU TR AS PUR 3×0,25 UL | Jacket material: PUR
117241 | SU TR AS PUR 4×0,25 UL | Jacket material: PUR
117243 | SU TR AS PUR 3×0,34 UL | Jacket material: PUR
117244 | SU TR AS PUR 4×0,34 UL | Jacket material: PUR

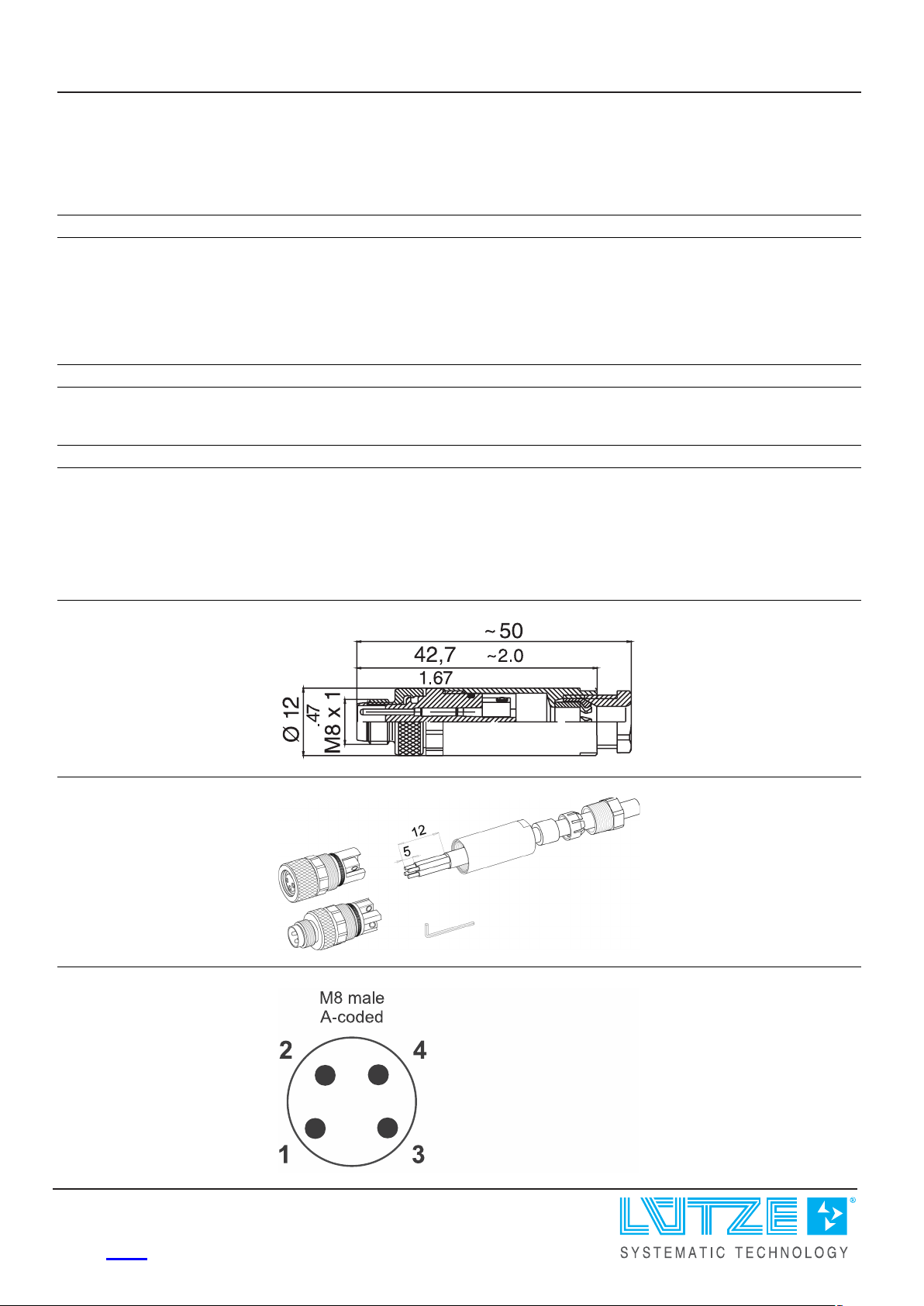

Dimensions
Mounting diagram
Pin layout
03.05.2022 – Subject to technical modification
Part No.
490057 • Datasheet version: 00 page 2 of 2
