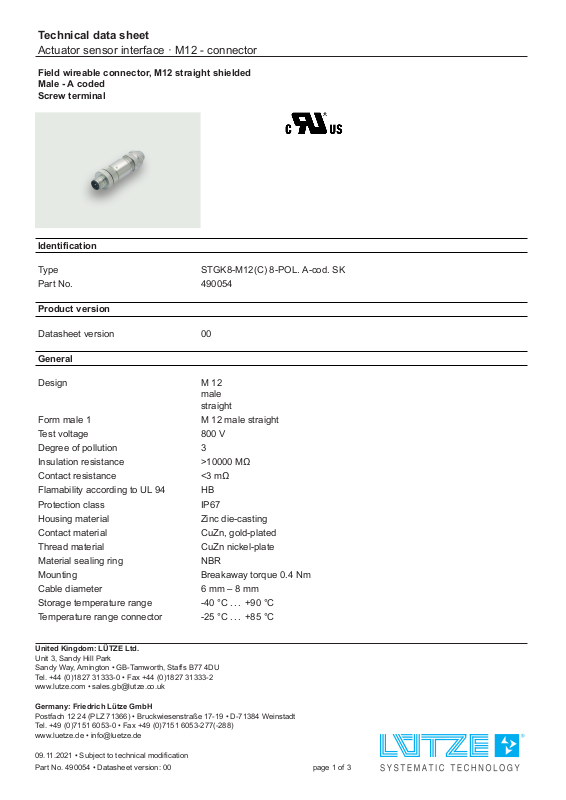

Page 1
Technical data sheet
Actuator sensor interface · M12 - connector
Field wireable connector, M12 straight shielded
Male - A coded
Screw terminal
Identification
Type STGK8-M12(C) 8-POL. A-cod. SK
Part No. 490054
Product version
Datasheet version 00
General
Design M 12
male
straight
Form male 1 M 12 male straight
Test voltage 800 V
Degree of pollution 3
Insulation resistance >10000 MΩ
Contact resistance <3 mΩ
Flamability according to UL 94 HB
Protection class IP67
Housing material Zinc die-casting
Contact material CuZn, gold-plated
Thread material CuZn nickel-plate
Material sealing ring NBR
Mounting Breakaway torque 0.4 Nm
Cable diameter 6 mm – 8 mm
Storage temperature range -40 °C . . . +90 °C
Temperature range connector -25 °C . . . +85 °C
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
09.11.2021 • Subject to technical modification
Part No. 490054 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · M12 - connector
Mechanical service life >100 insertion cycles
Cross-section, metric 0.5 mm²
Connection type Screw terminal
max. 0.75 mm²
Weight/unit 0.045 kg
PU (units) 1
Technical data
Rated voltage U
N
AC/DC 24 V
Operating voltage max. 30 V
Rated current 2 A
Pole number 8
Coding A
Shielding 360°
Certifications/Standards
Certifications cURus (E224249)
Accessories
Accessories matching cables:
117253 | SU TR AS(C)PUR (3×0,34) UL | Jacket material: PUR
117254 | SU TR AS(C)PUR (4×0,34) UL | Jacket material: PUR
117255 | SU TR AS(C)PUR (5×0,34) UL | Jacket material: PUR
117252 | SU TR AS(C)PUR (8×0,25) UL | Jacket material: PUR

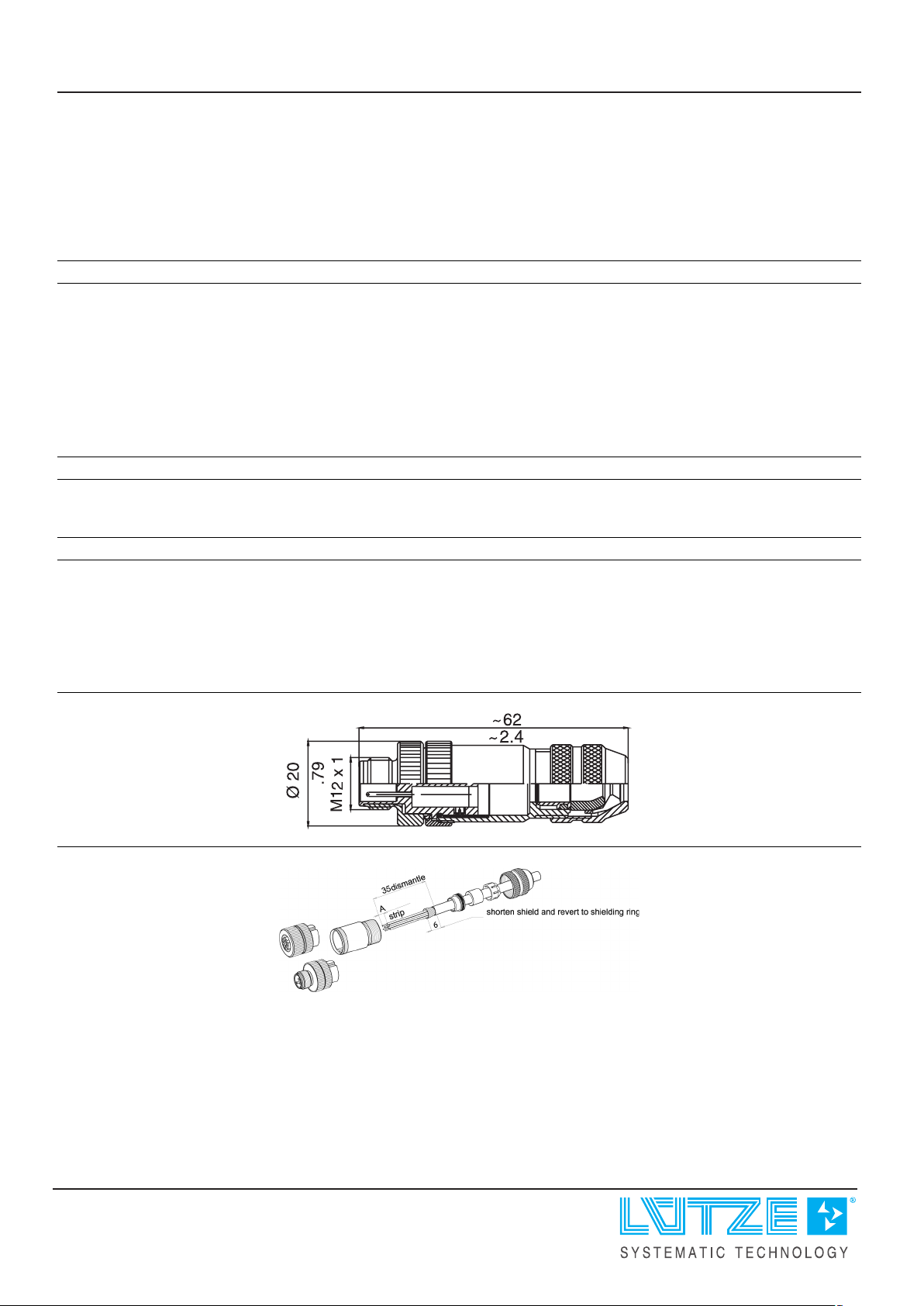

Dimensions
Mounting diagram
09.11.2021 – Subject to technical modification
Part No. 490054 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · M12 - connector

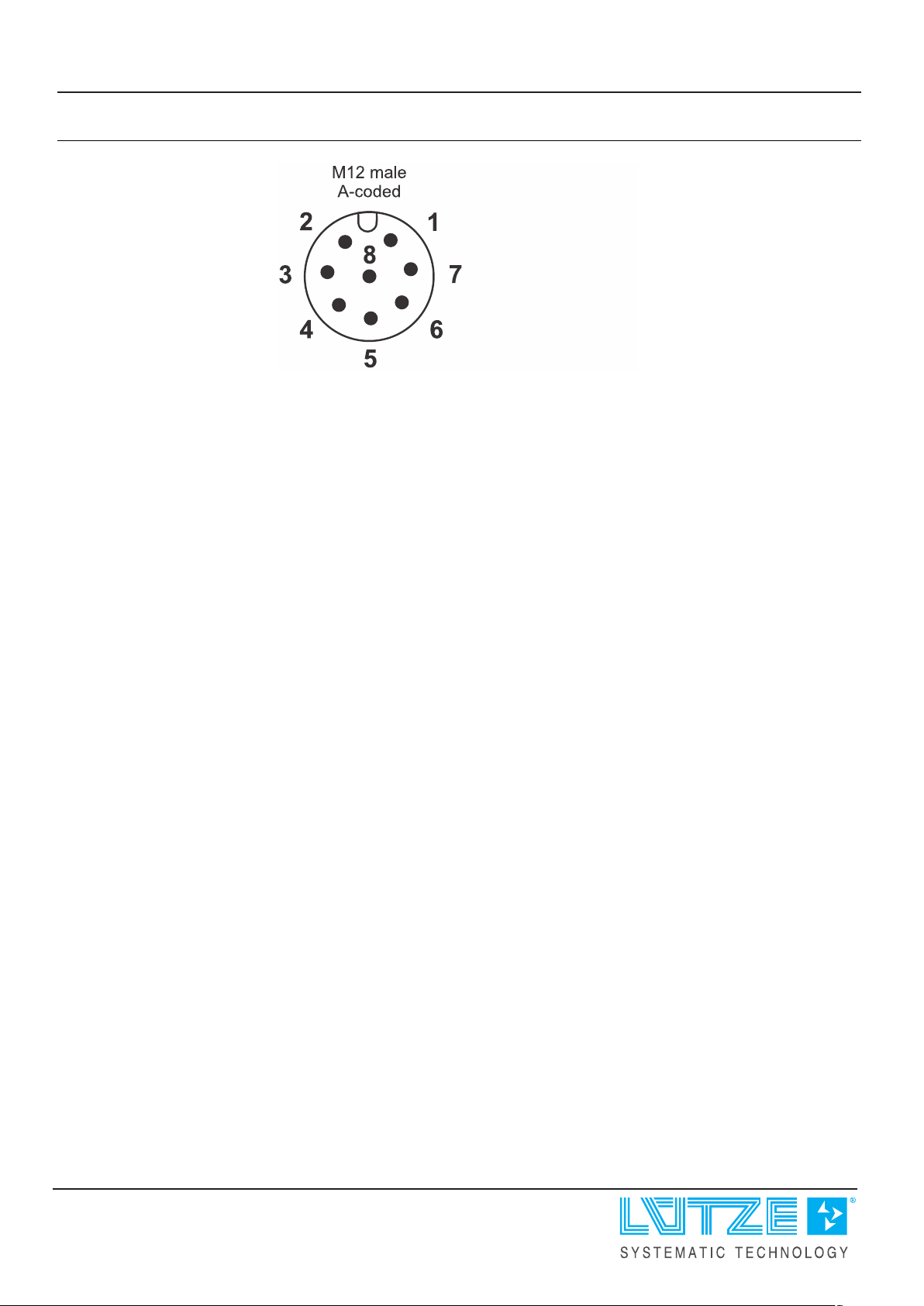

Pin layout
09.11.2021 – Subject to technical modification
Part No. 490054 • Datasheet version: 00 page 3 of 3
