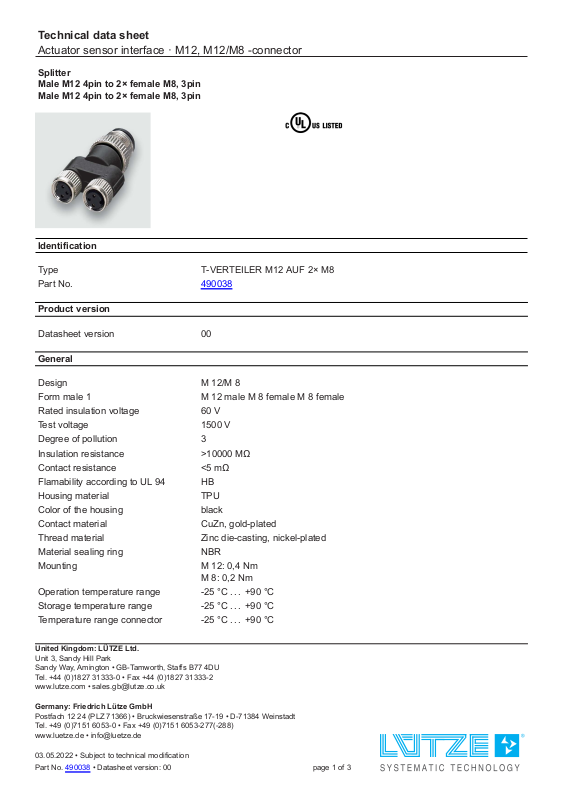

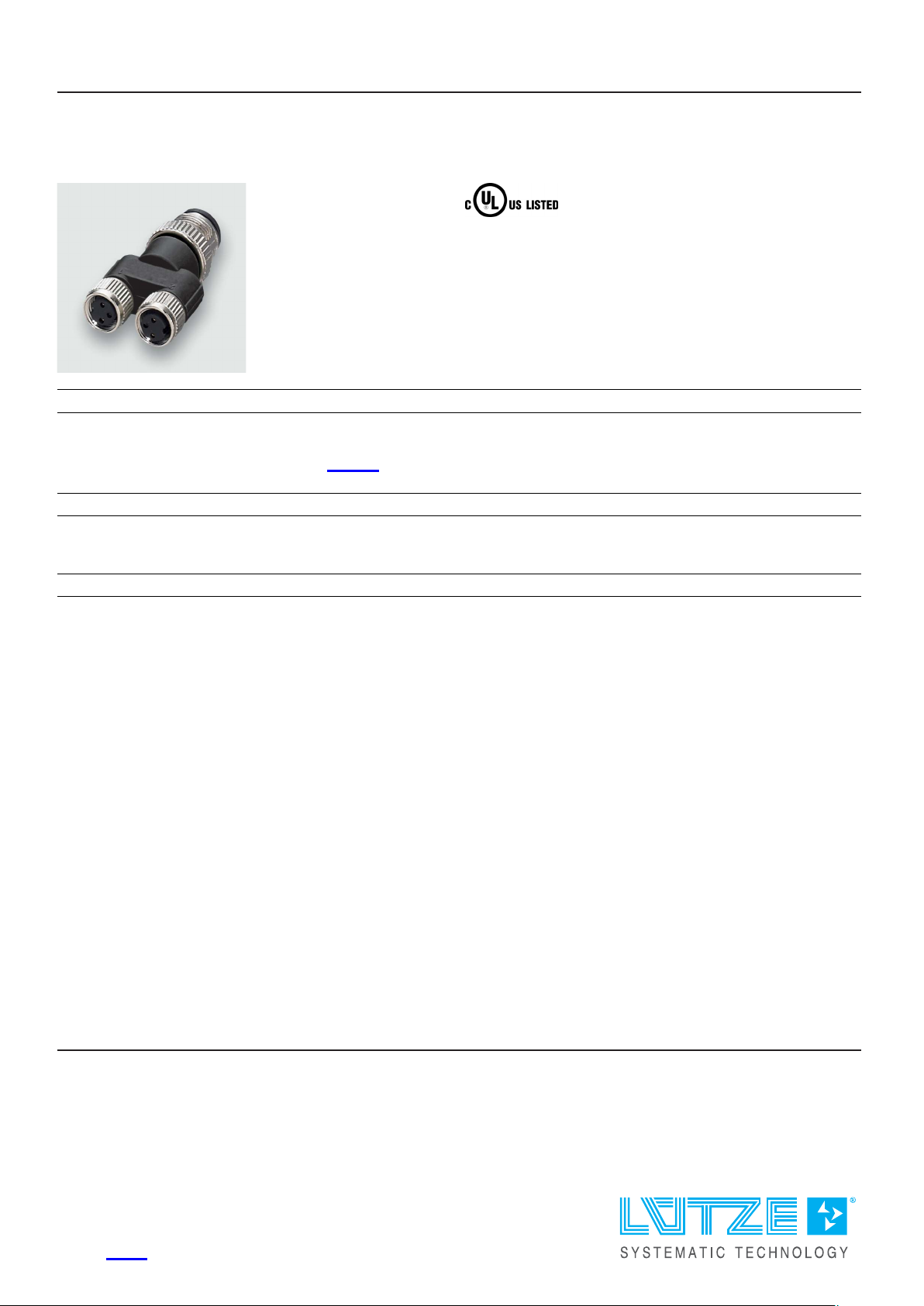

LUTZE 490038 Specification

Technical data sheet

Actuator sensor interface · M12, M12/M8 - co n n e cto r

Splitter
Male M12 4pin to 2× female M8, 3pin
Male M12 4pin to 2× female M8, 3pin

Identification

Type T-VERTEILER M12 AUF 2× M8

Part No.

Product version

490038

Datasheet version 00

General

Design M 12/M 8

Form male 1 M 12 male M 8 female M 8 female

Rated insulation voltage 60 V

Test voltage 1500 V

Degree of pollution 3

Insulation resistance >10000 MΩ

Contact resistance <5 mΩ

Flamability according to UL 94 HB

Housing material TPU

Color of the housing black

Contact material CuZn, gold-plated

Thread material Zinc die-casting, nickel-plated

Material sealing ring NBR

Mounting M 12: 0,4 Nm

M 8: 0,2 Nm

Operation temperature range -25 °C . . . +90 °C

Storage temperature range -25 °C . . . +90 °C

Temperature range connector -25 °C . . . +90 °C

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • sa l e s.g b @ l u tze .co .u k

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17 - 1 9 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

03.05.2022 • Subject to technical modification

Part No.

490038 • Datasheet version: 00 page 1 of 3

Technical data sheet

Actuator sensor interface · M12, M12/M8 - co n n e cto r

Mechanical service life >100 insertion cycles

Weight/unit 0.014 kg

PU (units) 1

Technical data

Rated voltage U

N

AC/DC 24 V

Operating voltage max. 30 V

Rated current 3 A

Pole number 3

Coding A

Certifications/Standards

Certifications cULus Listed (E224249)

Equipment/Spare parts

Accessories Torque setting tool M 8: Part-No. 490090 | DM-SET M8 | PU: 1 unit

Torque setting tool M 12: Part-No. 490091 | DM-SET M12 | PU: 1 unit

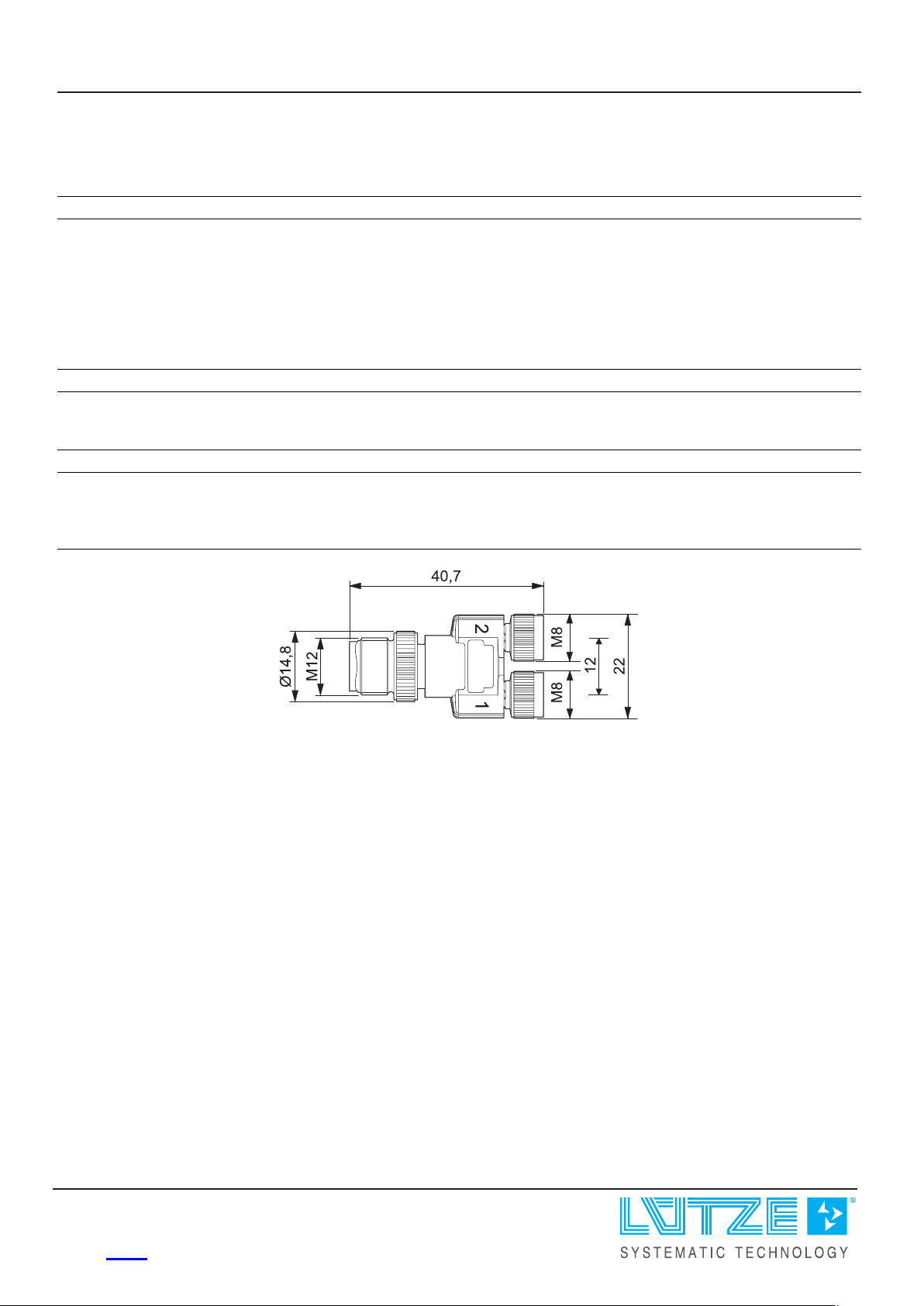

Dimensions

03.05.2022 – Subject to technical modification

Part No. 490038 • Datasheet version: 00 page 2 of 3

Technical data sheet

Actuator sensor interface · M12, M12/M8 - co n n e cto r

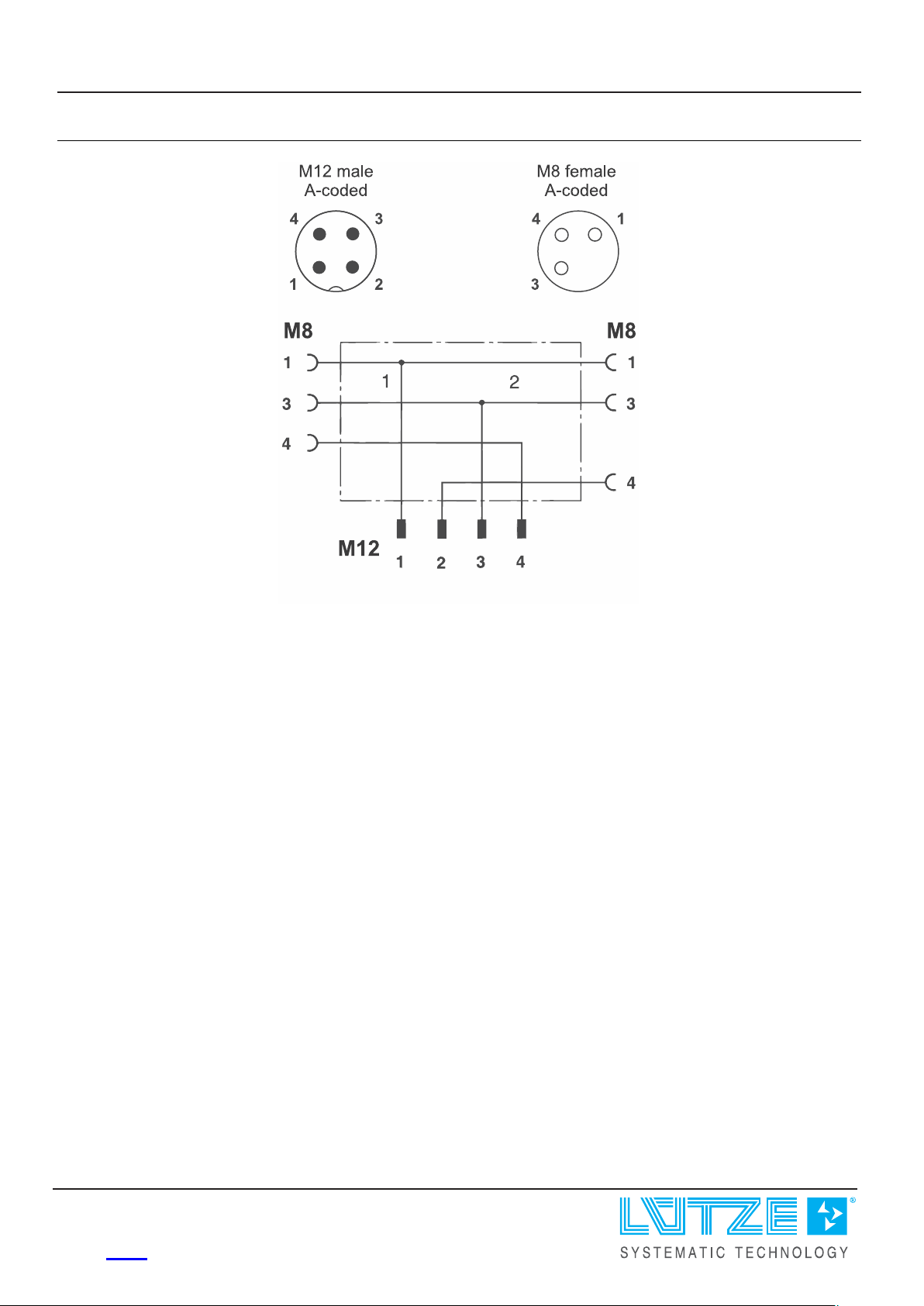

PIN assignment

03.05.2022 – Subject to technical modification

Part No.

490038 • Datasheet version: 00 page 3 of 3
