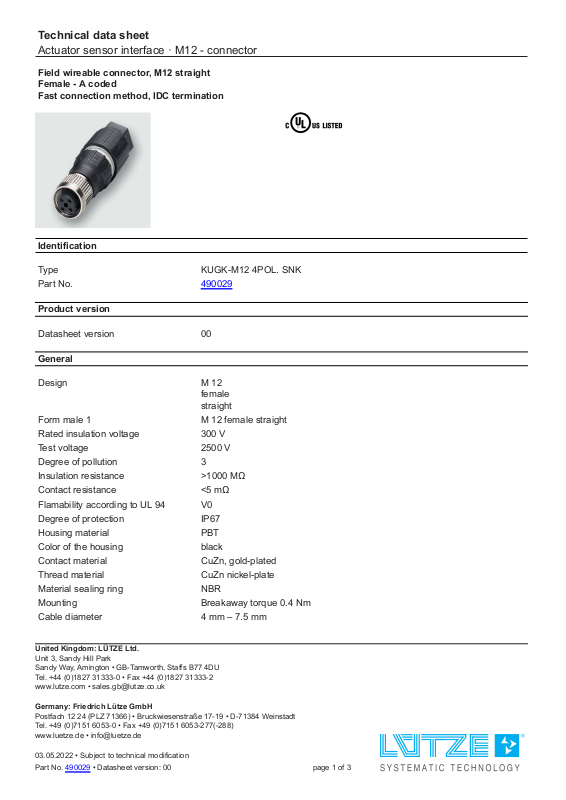

LUTZE 490029 Specification

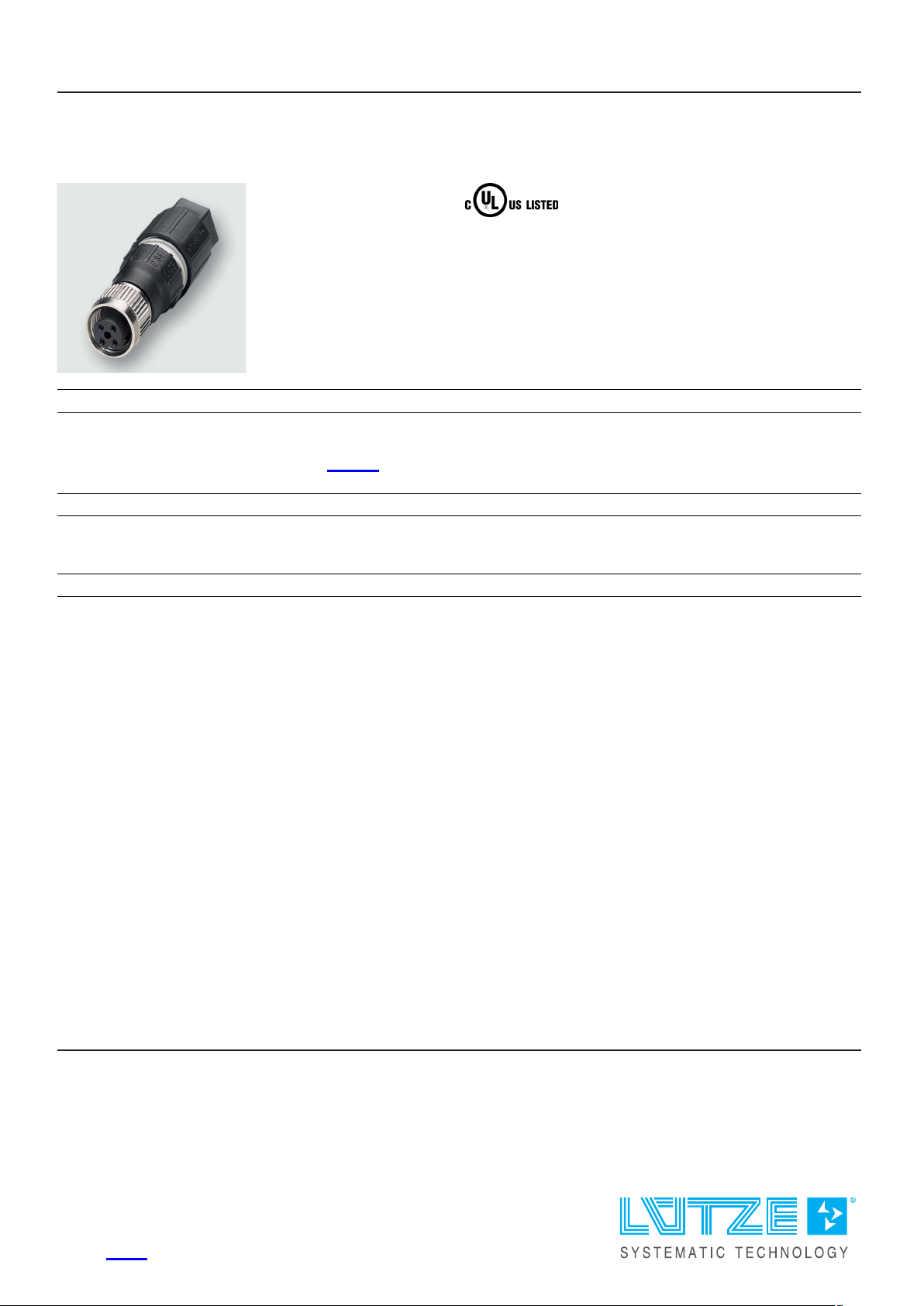

Technical data sheet

Actuator sensor interface · M12 - connector

Field wireable connector, M12 straight
Female - A coded
Fast connection method, IDC termination

Identification

Type KUGK-M12 4POL. SNK

Part No.

Product version

490029

Datasheet version 00

General

Design M 12

female
straight

Form male 1 M 12 female straight

Rated insulation voltage 300 V

Test voltage 2500 V

Degree of pollution 3

Insulation resistance >1000 MΩ

Contact resistance <5 mΩ

Flamability according to UL 94 V0

Degree of protection IP67

Housing material PBT

Color of the housing black

Contact material CuZn, gold-plated

Thread material CuZn nickel-plate

Material sealing ring NBR

Mounting Breakaway torque 0.4 Nm

Cable diameter 4 mm – 7.5 mm

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

03.05.2022 • Subject to technical modification

Part No.

490029 • Datasheet version: 00 page 1 of 3

Technical data sheet

Actuator sensor interface · M12 - connector

Storage temperature range -40 °C . .. +90 °C

Temperature range connector -25 °C . .. +80 °C

Mechanical service life >100 insertion cycles

Cross-section, metric 0.75 mm²

Connection type Compliant termina l

IDC

Weight/unit 0.03 kg

PU (units) 1

Technical data

Rated voltage U

N

AC/DC 24 V

Operating voltage max. 250 V

Rated current 4 A

Pole number 4

Coding A

Certifications/Standards

Certifications cULus Listed (E224249)

Equipment/Spare parts

Accessories matching cables:

117243 | SU TR AS PUR 3×0,34 UL | Jacket material: PUR
117244 | SU TR AS PUR 4×0,34 UL | Jacket material: PUR

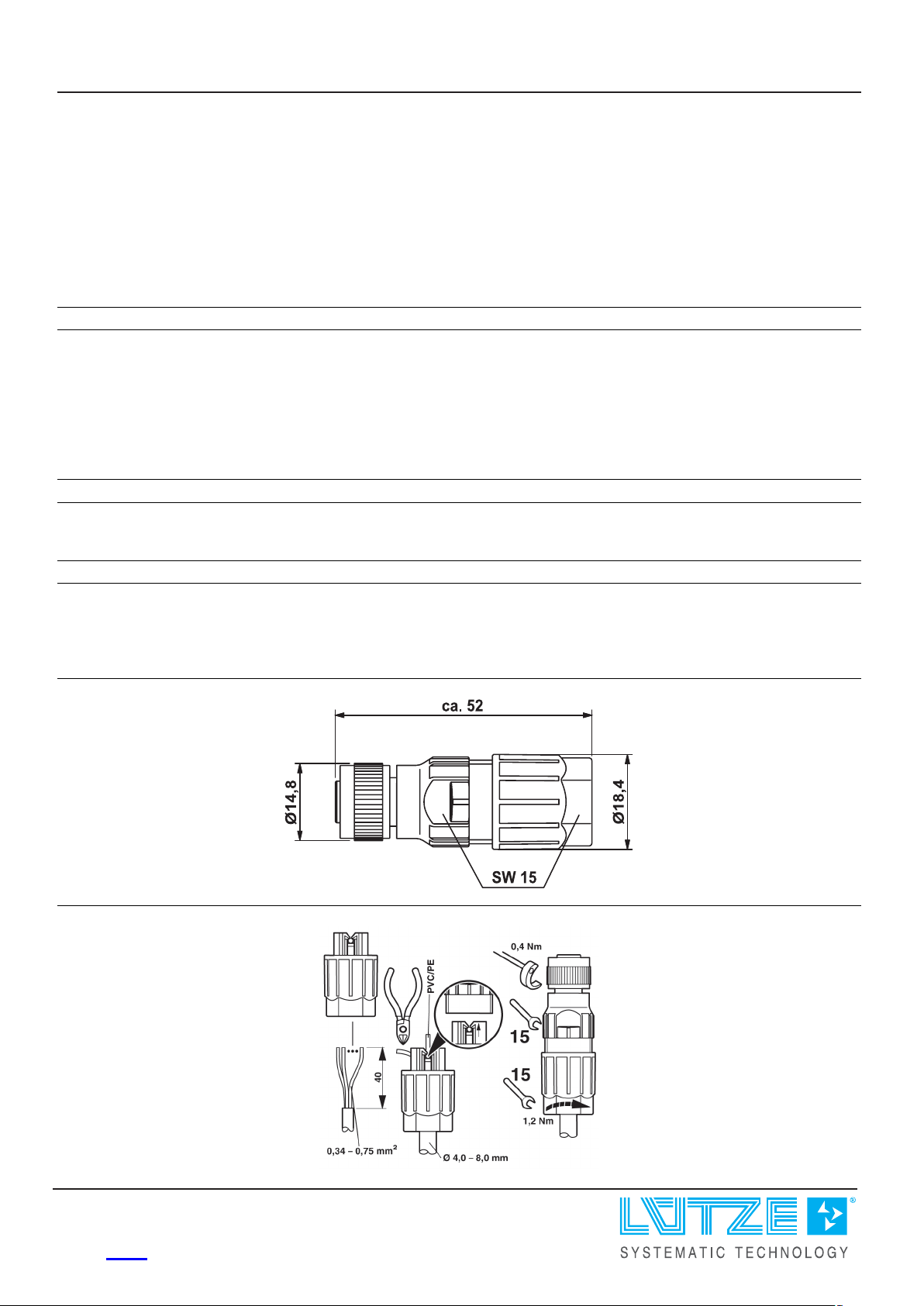

Dimensions

Mounting diagram

03.05.2022 – Subject to technical modification

Part No. 490029 • Datasheet version: 00 page 2 of 3

Technical data sheet

Actuator sensor interface · M12 - connector

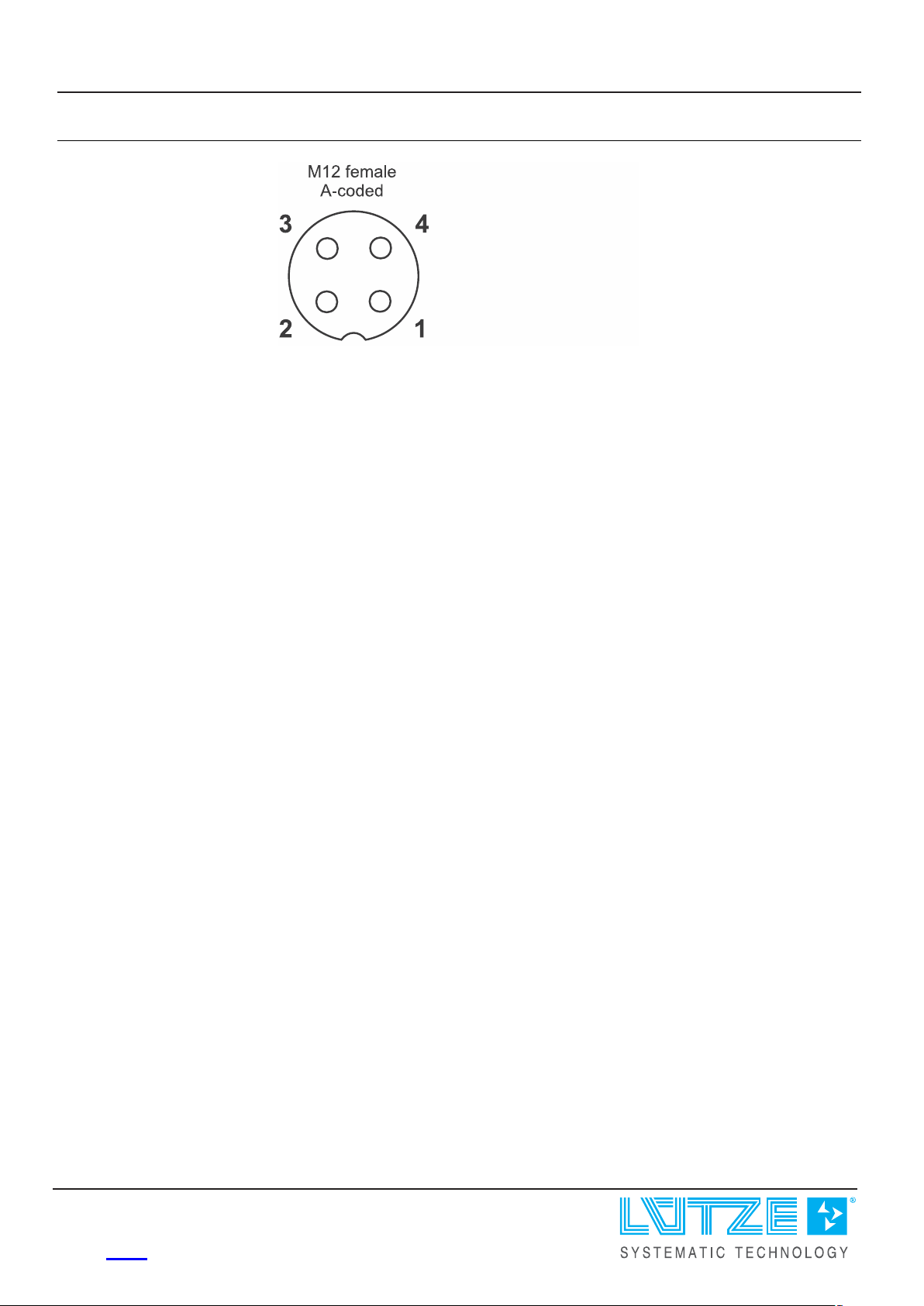

Pin layout

03.05.2022 – Subject to technical modification

Part No.

490029 • Datasheet version: 00 page 3 of 3
