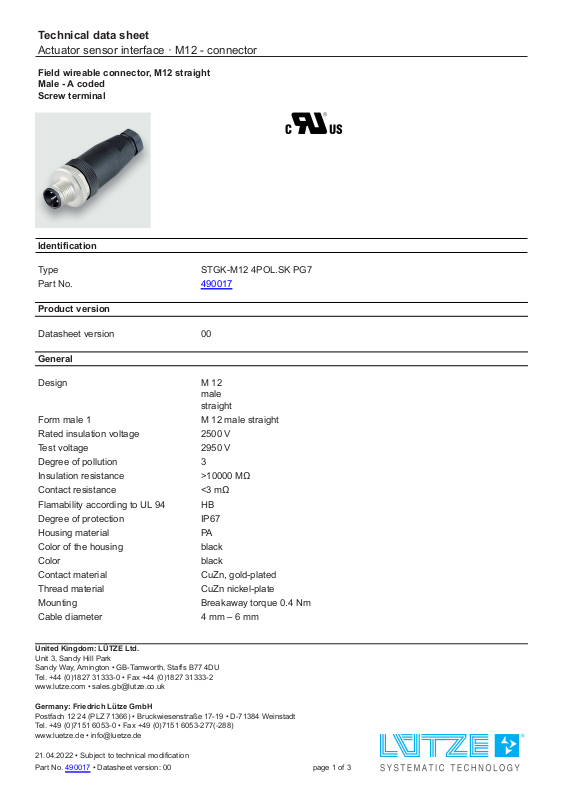

Page 1
Technical data sheet
Actuator sensor interface · M12 - connector

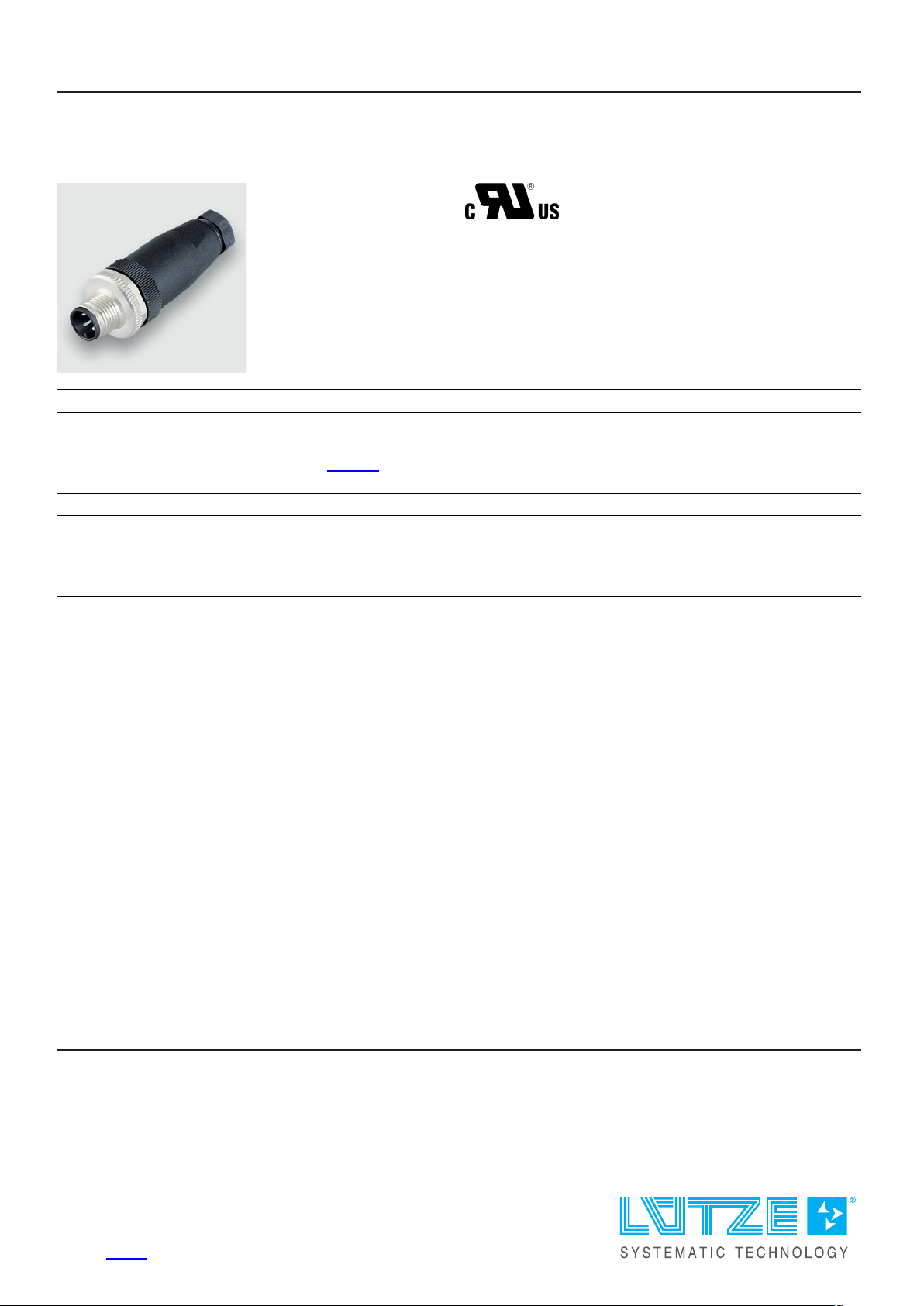

Field wireable connector, M12 straight
Male - A coded
Screw terminal
Identification
Type STGK-M12 4POL.SK PG7
Part No.
Product version
490017
Datasheet version 00
General
Design M 12
male
straight
Form male 1 M 12 male straight
Rated insulation voltage 2500 V
Test voltage 2950 V
Degree of pollution 3
Insulation resistance >10000 MΩ
Contact resistance <3 mΩ
Flamability according to UL 94 HB
Degree of protection IP67
Housing material PA
Color of the housing black
Color black
Contact material CuZn, gold-plated
Thread material CuZn nickel-plate
Mounting Breakaway torque 0.4 Nm
Cable diameter 4 mm – 6 mm
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
21.04.2022 • Subject to technical modification
Part No.
490017 • Datasheet version: 00 page 1 of 3
Page 2
Technical data sheet
Actuator sensor interface · M12 - connector
Storage temperature range -40 °C . .. +90 °C
Temperature range connector -25 °C . .. +85 °C
Mechanical service life >100 insertion cycles
Cross-section, metric 0.75 mm²
Connection type Screw terminal
max. 0.75 mm²
Weight/unit 0.04 kg
PU (units) 1
Technical data
Rated voltage U
N
AC/DC 24 V
Operating voltage max. 250 V
Rated current 4 A
Pole number 4
Coding A
Certifications/Standards
Certifications cURus (E224249)
Accessories
Accessories matching cables:
117243 | SU TR AS PUR 3×0,34 UL | Jacket material: PUR
117244 | SU TR AS PUR 4×0,34 UL | Jacket material: PUR
117245 | SU TR AS PUR 5×0,34 UL | Jacket material: PUR
117246 | SU TR AS PUR 6×0,34 UL | Jacket material: PUR
117242 | SU TR AS PUR 8×0,25 UL | Jacket material: PUR

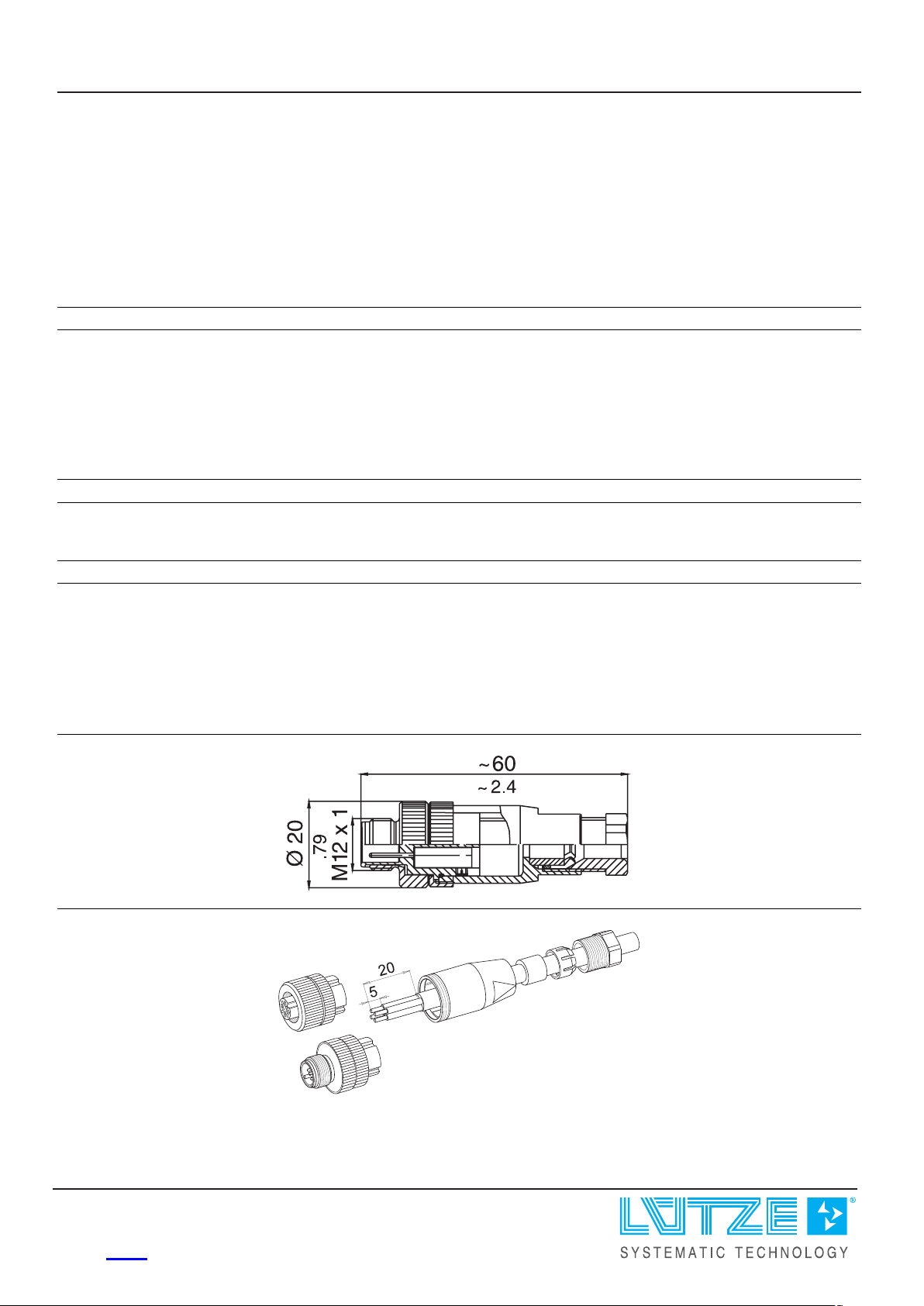

Dimensions
Mounting diagram
21.04.2022 – Subject to technical modification
Part No.
490017 • Datasheet version: 00 page 2 of 3
Page 3
Technical data sheet
Actuator sensor interface · M12 - connector

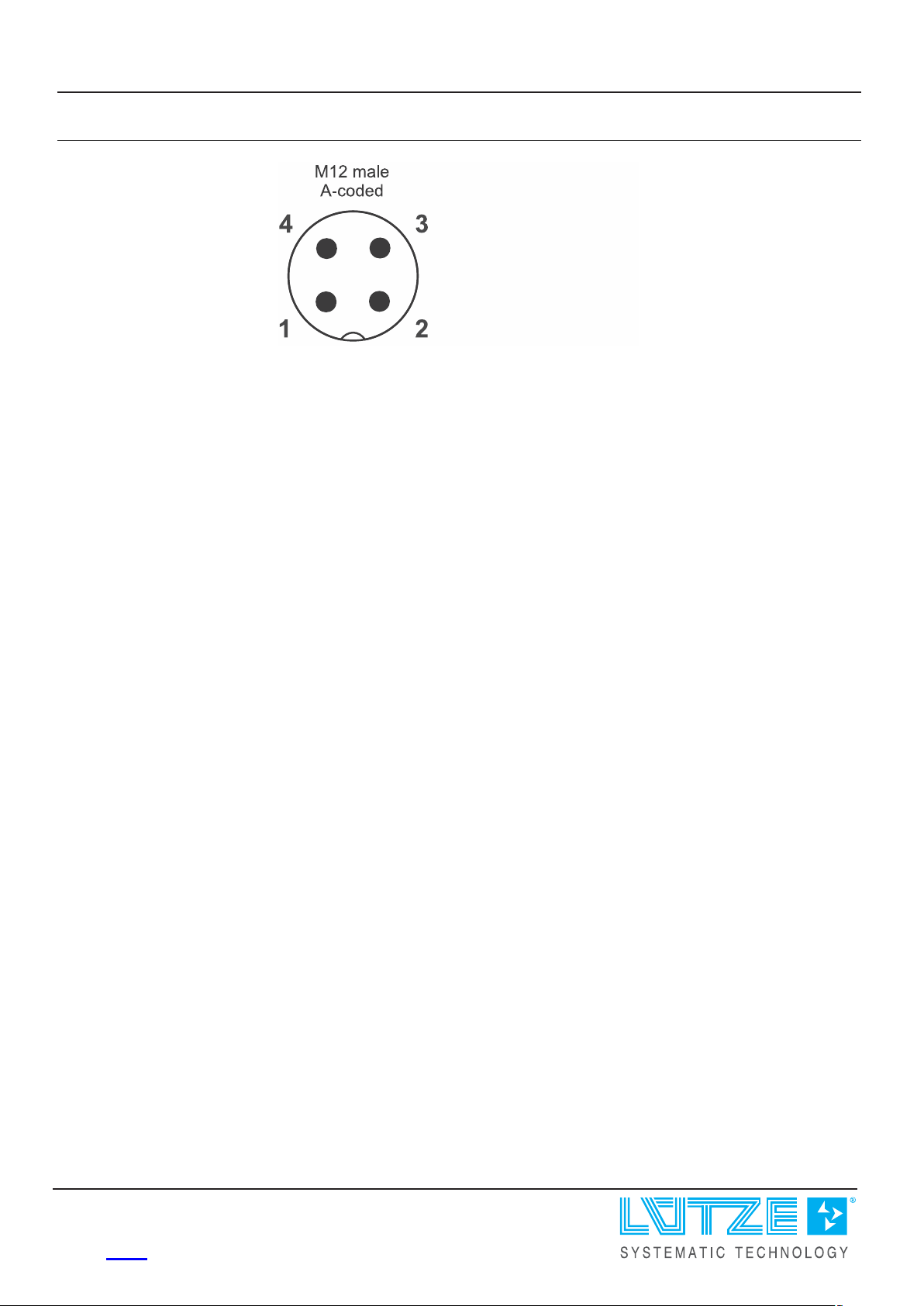

Pin layout
21.04.2022 – Subject to technical modification
Part No.
490017 • Datasheet version: 00 page 3 of 3
