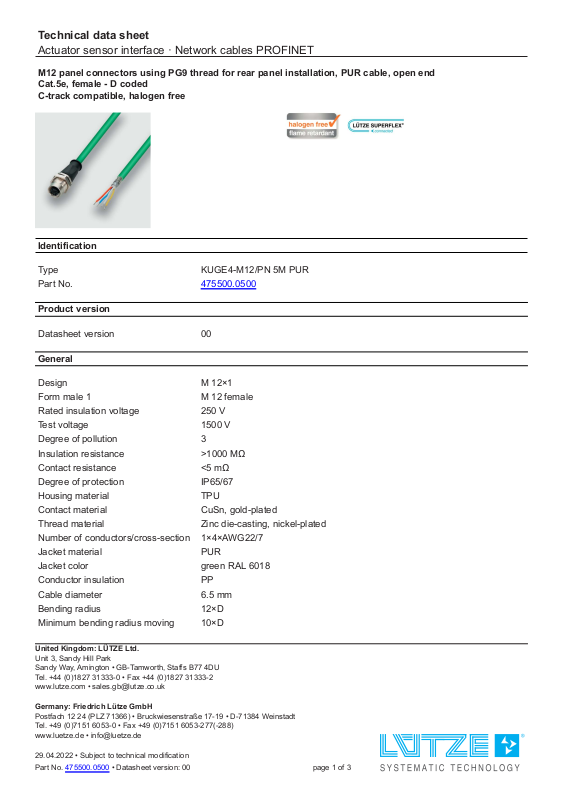

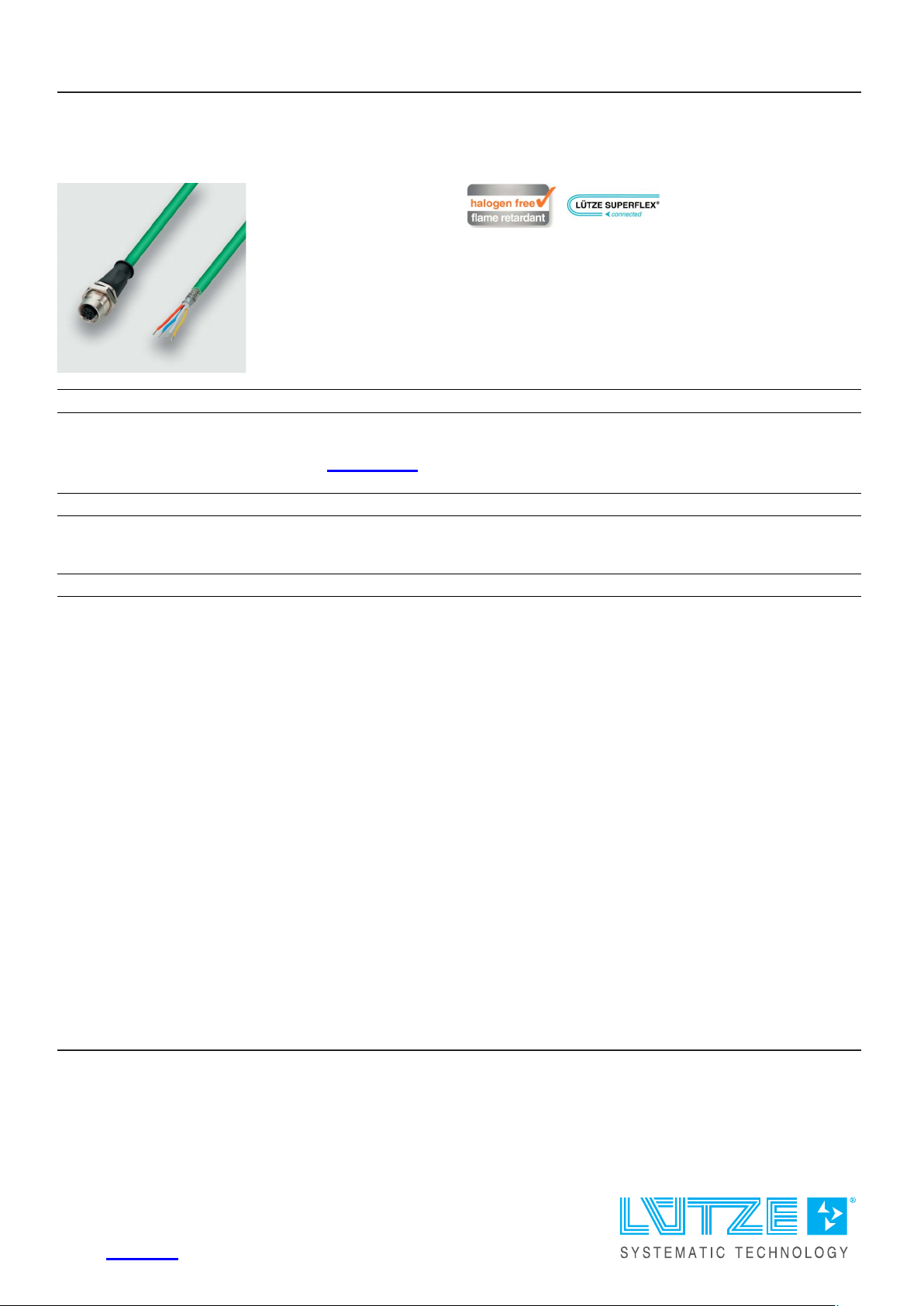

LUTZE 475500.0500 Specification

Technical data sheet

Actuator sensor interface · Network cables PROFINET

M12 panel connectors using PG9 thread for rear panel installation, PUR cable, open end
Cat.5e, female - D coded
C-track compatible, halogen free

Identification

Type KUGE4-M12/PN 5M PUR

Part No.

Product version

475500.0500

Datasheet version 00

General

Design M 12×1

Form male 1 M 12 female

Rated insulation voltage 250 V

Test voltage 1500 V

Degree of pollution 3

Insulation resistance >1000 MΩ

Contact resistance <5 mΩ

Degree of protection IP65/67

Housing material TPU

Contact material CuSn, gold-plated

Thread material Zinc die-casting, nickel-plated

Number of conductors/cross-section 1×4×AWG22/7

Jacket material PUR

Jacket color green RAL 6018

Conductor insulation PP

Cable diameter 6.5 mm

Bending radius 12×D

Minimum bending radius moving 10×D

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

29.04.2022 • Subject to technical modification

Part No.

475500.0500 • Datasheet version: 00 page 1 of 3

Technical data sheet

Actuator sensor interface · Network cables PROFINET

Storage temperature range -40 °C . .. +90 °C

Temperature range connector -25 °C . .. +90 °C

Temperature range fixed -40 °C . .. +80 °C

Temperature range moving -30 °C . . . +70 °C

C-track chain properties Type B

Weight/unit 0.33 kg

PU (units) 1

Technical data

Rated voltage U

N

AC/DC 24 V

Rated voltage max. 30 V

Operating voltage max. 48 V

Rated current 4 A

Pole number 4

Cable length 5 m

Coding D

Shielding 360°

Equipment/Spare parts

Accessories Torque setting tool M 12: Part-No. 490091 | DM-SET M12 | PU: 1 unit

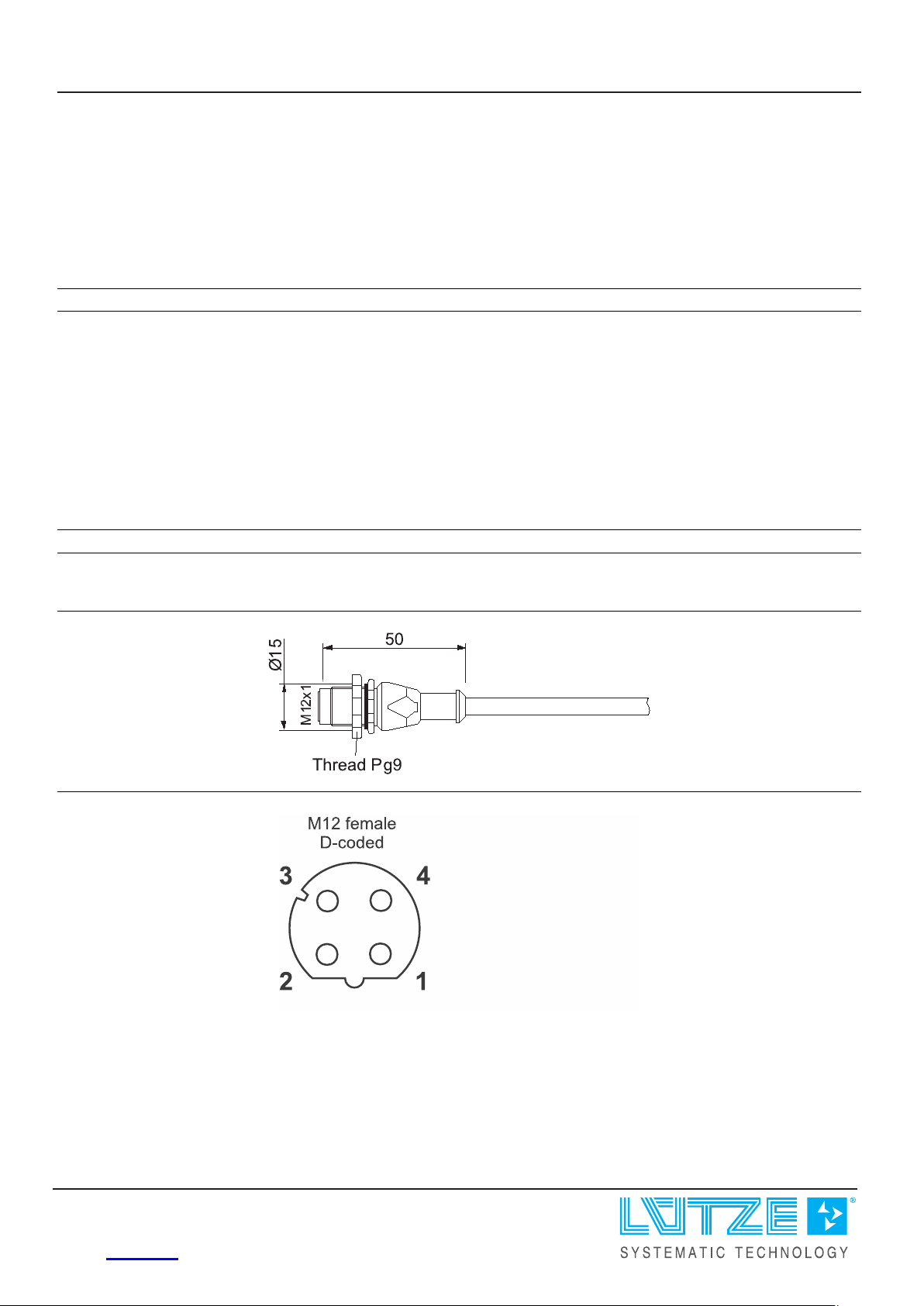

Dimensions

Pin layout

29.04.2022 – Subject to technical modification

Part No. 475500.0500 • Datasheet version: 00 page 2 of 3

Technical data sheet

Actuator sensor interface · Network cables PROFINET

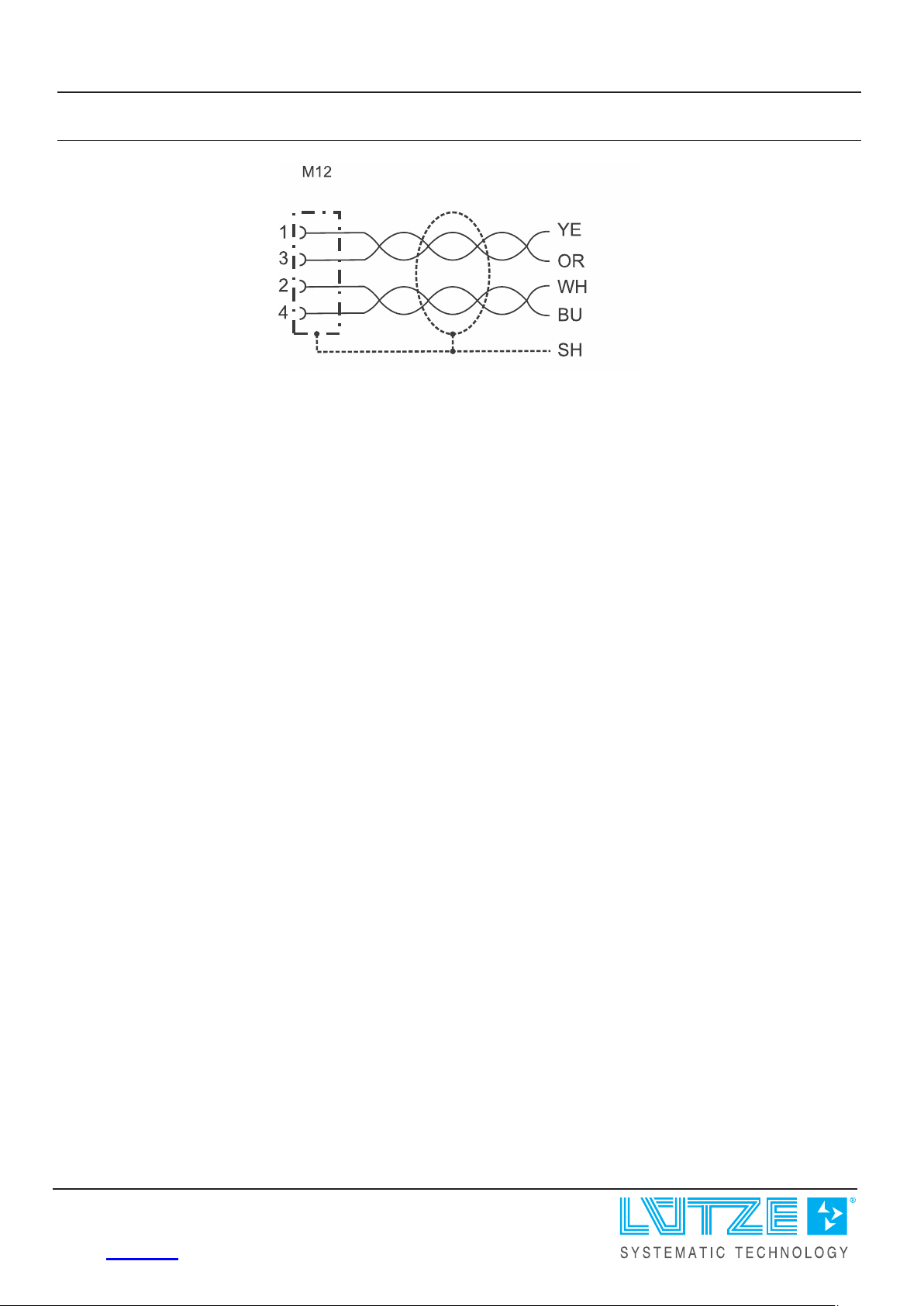

Circuit diagram

29.04.2022 – Subject to technical modification

Part No.

475500.0500 • Datasheet version: 00 page 3 of 3
