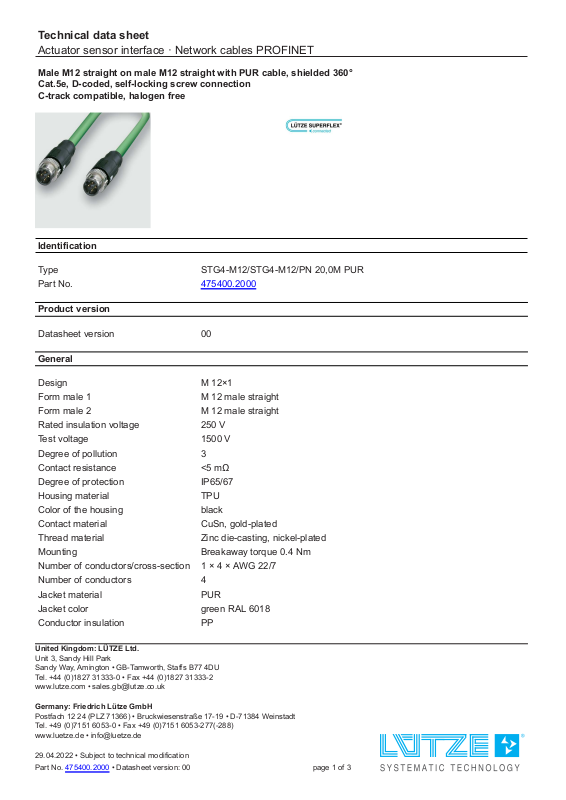

LUTZE 475400.2000 Specification

Technical data sheet

Actuator sensor interface · Network cables PROFINET

Male M12 straight on male M12 straight with PUR cable, shielded 360°
Cat.5e, D-coded, self-locking screw connection
C-track compatible, halogen free

Identification

Type STG4-M12/STG4-M12/PN 20,0M PUR
Part No.

Product version

475400.2000

Datasheet version 00

General

Design M 12×1
Form male 1 M 12 male straight
Form male 2 M 12 male straight
Rated insulation voltage 250 V
Test voltage 1500 V
Degree of pollution 3
Contact resistance <5 mΩ
Degree of protection IP65/67
Housing material TPU
Color of the housing black
Contact material CuSn, gold-plated
Thread material Zinc die-casting, nickel-plated
Mounting Breakaway torque 0.4 Nm
Number of conductors/cross-section 1 × 4 × AWG 22/7
Number of conductors 4
Jacket material PUR
Jacket color green RAL 6018
Conductor insulation PP

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

29.04.2022 • Subject to technical modification

Part No.

475400.2000 • Datasheet version: 00 page 1 of 3

Technical data sheet

Actuator sensor interface · Network cables PROFINET

Outer Ø 6.5 mm
Cable diameter 6.5 mm
Minimum bending radius moving 12×D
Storage temperature range -30 °C . .. +90 °C
Temperature range connector -25 °C . .. +90 °C
Temperature range fixed -40 °C . .. +70 °C
Temperature range moving -40 °C . . . +70 °C
C-track chain properties Type B
Weight/unit 1.224 kg
PU (units) 1

Technical data

Rated voltage U

N

AC/DC 24 V
Rated voltage max. 30 V
Operating voltage max. 48 V
Rated current 4 A
Pole number 4
Cable length 20 m
Coding D
Shielding 360°

Equipment/Spare parts

Accessories

Labelling sign 4×23 mm: Part.-No. 499988 | LEITUNGSBEZ. M8/M12 + |

PU: 200 units

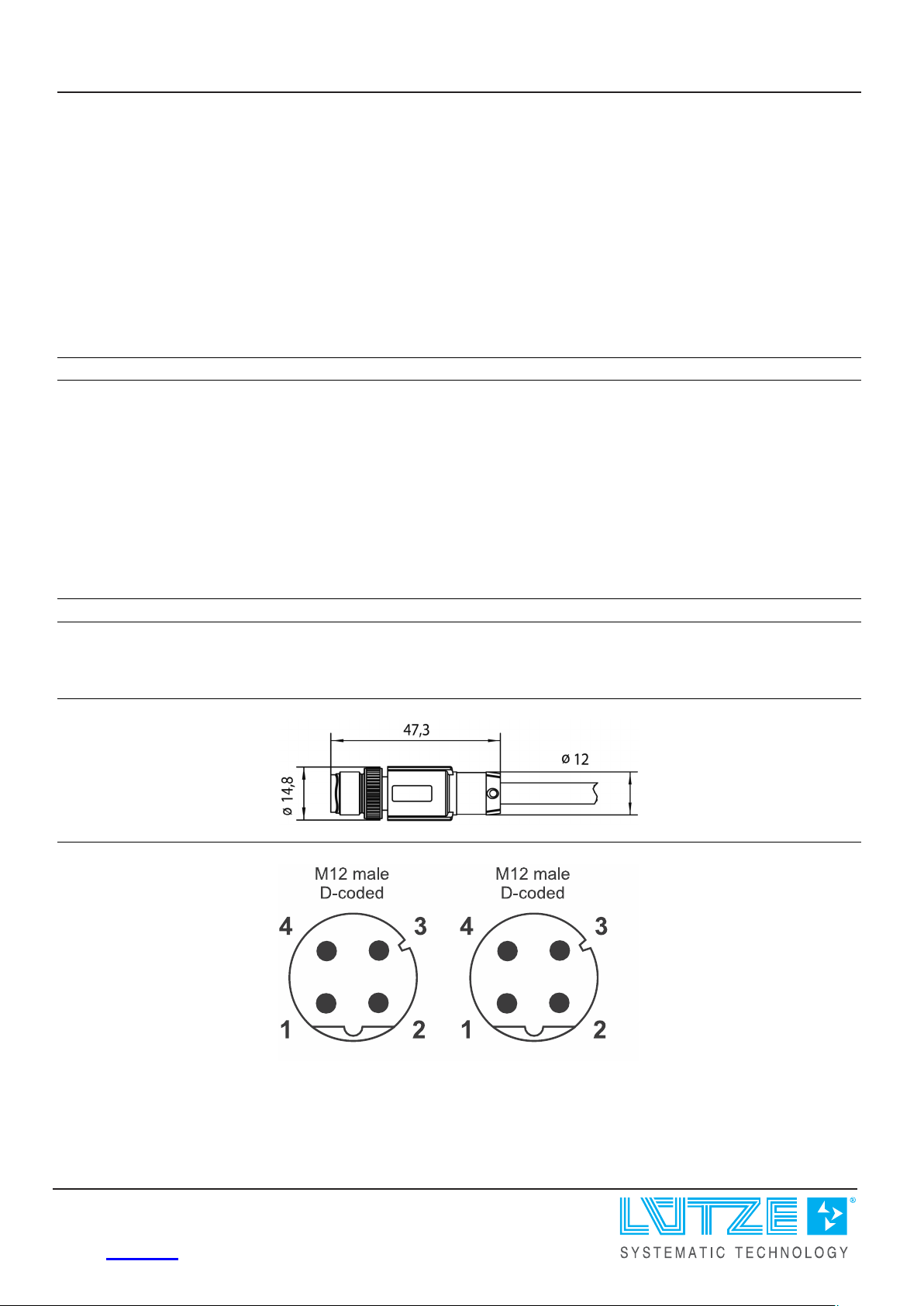

Dimensions

Pin layout

29.04.2022 – Subject to technical modification

Part No.

475400.2000 • Datasheet version: 00 page 2 of 3

Technical data sheet

Actuator sensor interface · Network cables PROFINET

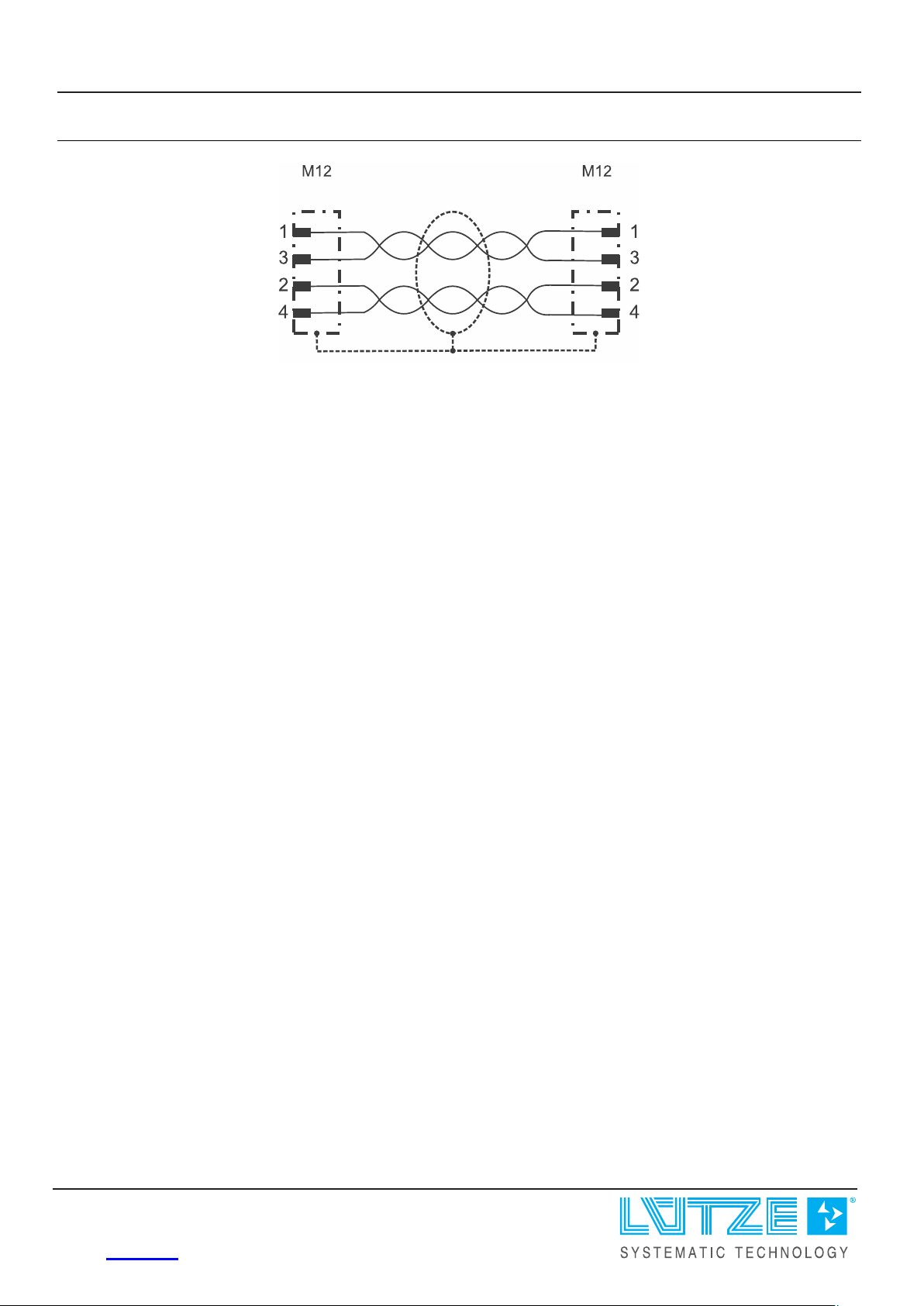

Circuit diagram

29.04.2022 – Subject to technical modification

Part No.

475400.2000 • Datasheet version: 00 page 3 of 3
