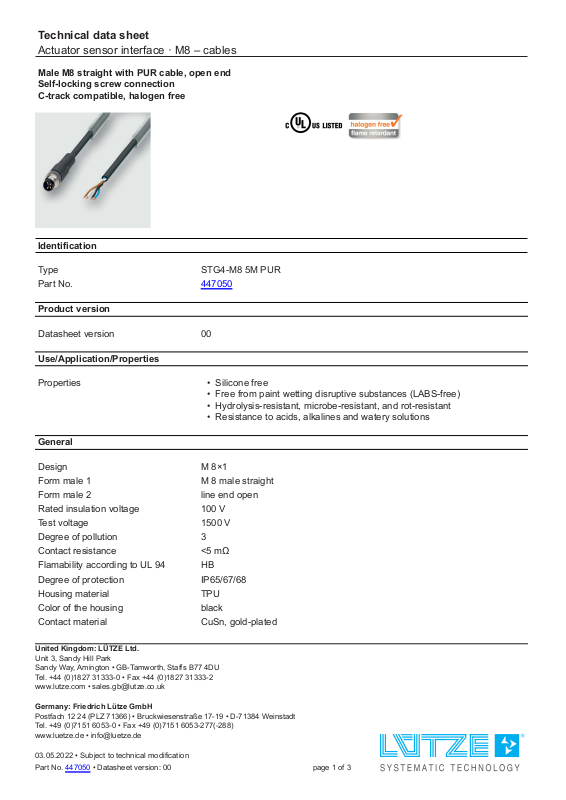

LUTZE 447050 Specification

Technical data sheet

Actuator sensor interface · M8 – cables

Male M8 straight with PUR cable, open end
Self-locking screw connection
C-track compatible, halogen free

Identification

Type STG4-M8 5M PUR

Part No.

Product version

447050

Datasheet version 00

Use/Application/Properties

Properties • Silicone free

• Free from paint wetting disruptive substances (LABS-free)

• Hydrolysis-resistant, microbe-resistant, and rot-resistant

• Resistance to acids, alkalines and watery solutions

General

Design M 8×1

Form male 1 M 8 male straight

Form male 2 line end open

Rated insulation voltage 100 V

Test voltage 1500 V

Degree of pollution 3

Contact resistance <5 mΩ

Flamability according to UL 94 HB

Degree of protection IP65/67/68

Housing material TPU

Color of the housing black

Contact material CuSn, gold-plated

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

03.05.2022 • Subject to technical modification

Part No.

447050 • Datasheet version: 00 page 1 of 3

Technical data sheet

Actuator sensor interface · M8 – cables

Thread material Zinc die-casting, nickel-plated

Mounting Breakaway torque 0.2 Nm

Number of conductors/cross-section 4 × 0.25 mm² (32 × 0.1)

Number of conductors 4

Conductor color black, blue, brown

Jacket material PUR

Jacket color black

Conductor insulation PP

Cable diameter 3.9 mm

Minimum bending radius moving 10×D

Storage temperature range -30 °C . .. +90 °C

Temperature range connector -25 °C . .. +90 °C

Temperature range fixed -40 °C . .. +80 °C

Temperature range moving -25 °C . . . +80 °C

C-track chain properties Type B

Conduction properties (TYPE A+B+C) PUR halogen free for extreme demands

Very good chemical stability
Very resistant to oils and lubricants
Very high abrasion resistance
Halogen free
Silicone free, free of paint wetting impairment substances
Resistant to microbes and hydrolysis
Good UV stability

Weight/unit 0.16 kg

PU (units) 1

Technical data

Rated voltage U

N

AC/DC 24 V

Operating voltage max. 48 V

Rated current 4 A

Pole number 4

Cable length 5 m

Coding A

Certifications/Standards

UV-resistant according to DIN EN ISO 4892-2-A

Certifications cULus Listed (E224249)

Equipment/Spare parts

Accessories Torque setting tool M 8: Part-No. 490090 | DM-SET M8 | PU: 1 unit

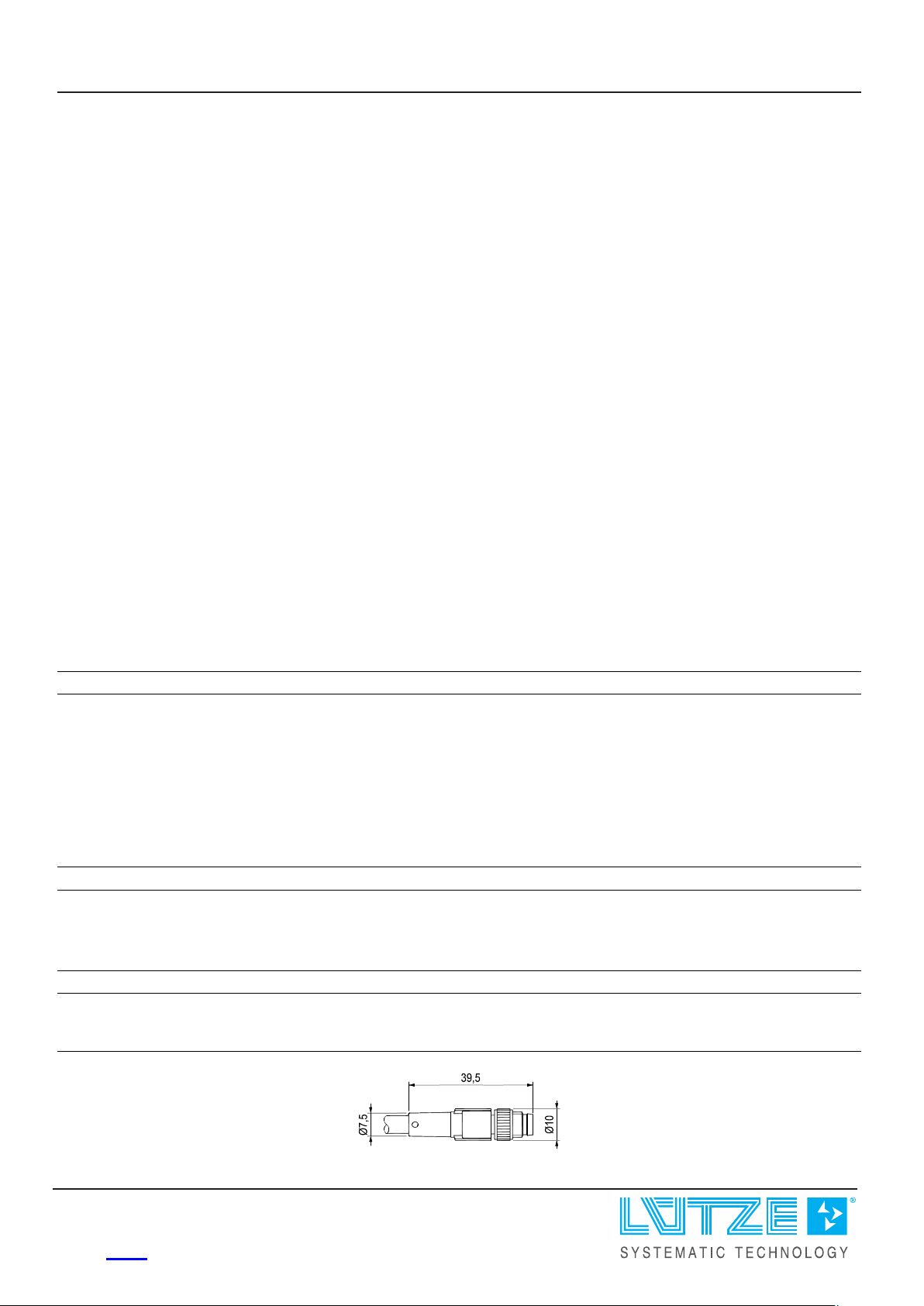

Dimensions

03.05.2022 – Subject to technical modification

Part No.

447050 • Datasheet version: 00 page 2 of 3

Technical data sheet

Actuator sensor interface · M8 – cables

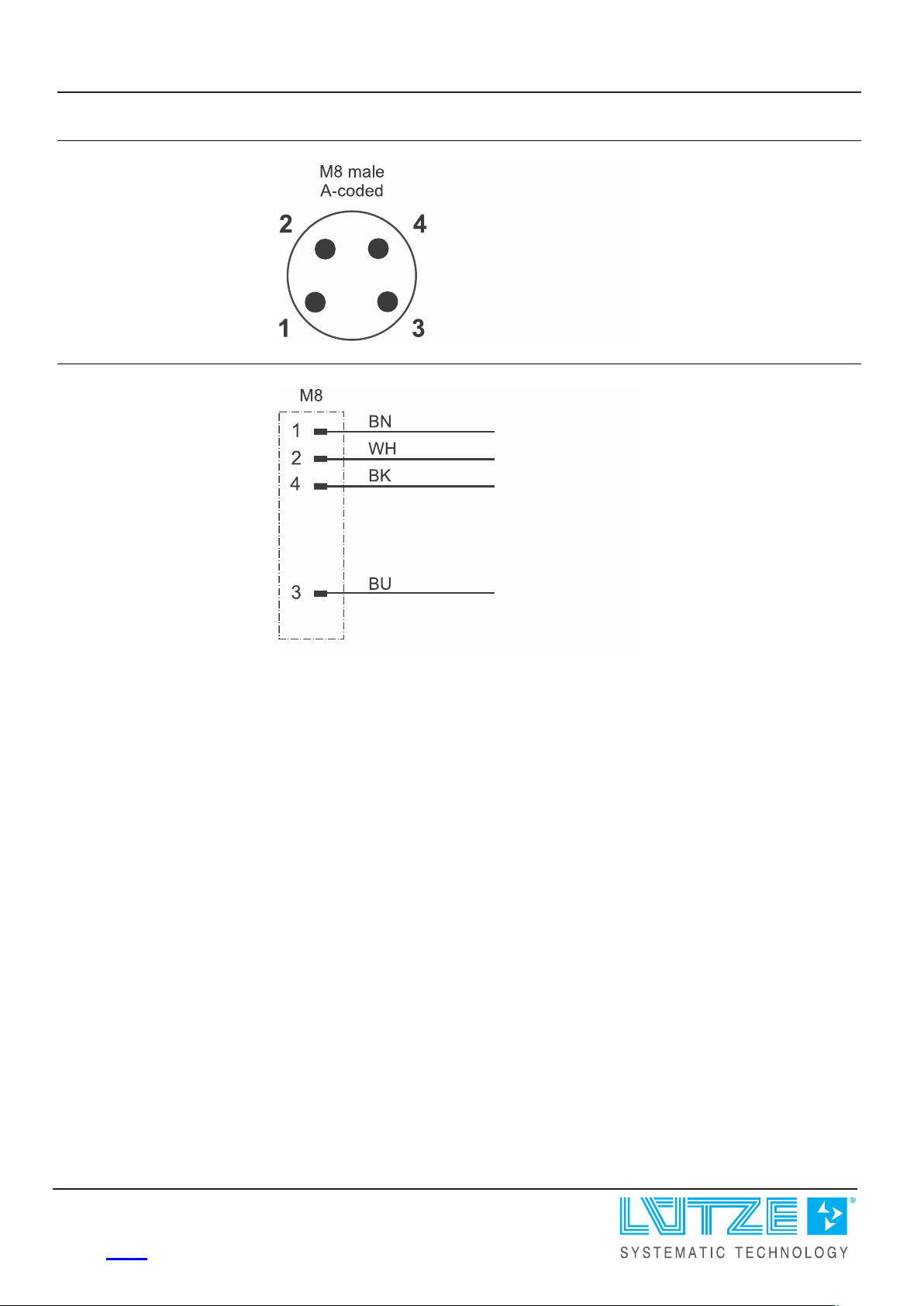

Pin layout

Circuit diagram

03.05.2022 – Subject to technical modification

Part No.

447050 • Datasheet version: 00 page 3 of 3
