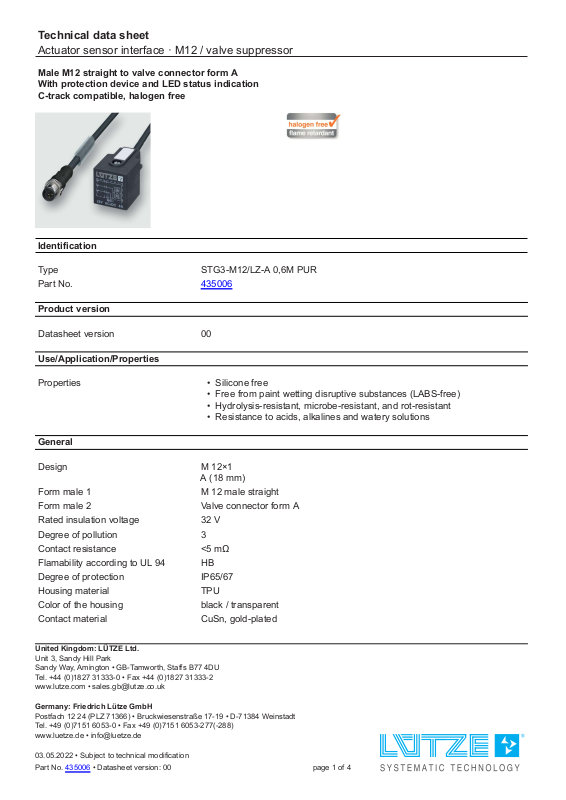

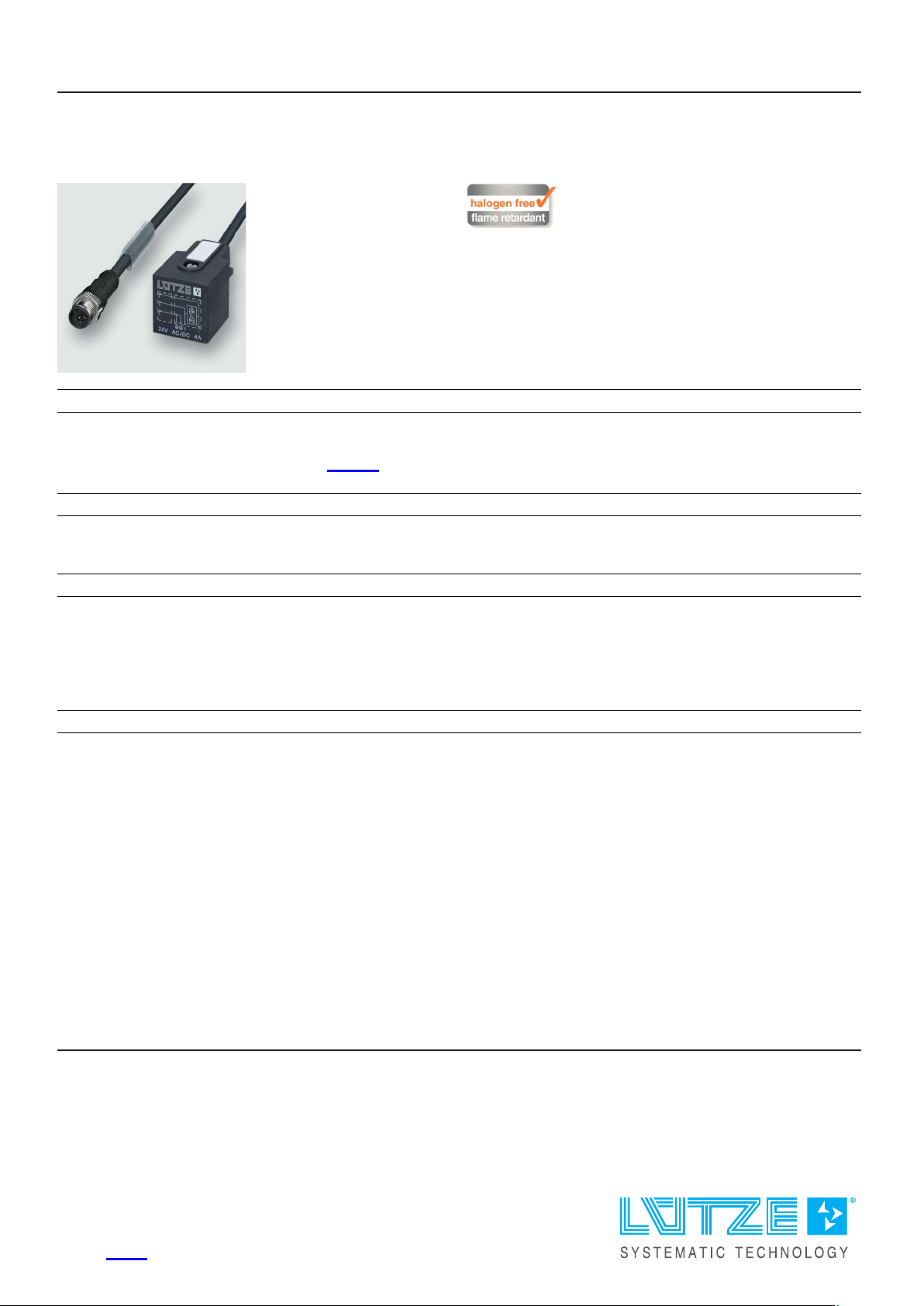

LUTZE 435006 Specification

Technical data sheet

Actuator sensor interface · M12 / valve suppressor

Male M12 straight to valve connector form A
With protection device and LED status indication
C-track compatible, halogen free

Identification

Type STG3-M12/LZ-A 0,6M PUR

Part No.

Product version

435006

Datasheet version 00

Use/Application/Properties

Properties • Silicone free

• Free from paint wetting disruptive substances (LABS-free)

• Hydrolysis-resistant, microbe-resistant, and rot-resistant

• Resistance to acids, alkalines and watery solutions

General

Design M 12×1

A (18 mm)

Form male 1 M 12 male straight

Form male 2 Valve connector form A

Rated insulation voltage 32 V

Degree of pollution 3

Contact resistance <5 mΩ

Flamability according to UL 94 HB

Degree of protection IP65/67

Housing material TPU

Color of the housing black / transparent

Contact material CuSn, gold-plated

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

03.05.2022 • Subject to technical modification

Part No.

435006 • Datasheet version: 00 page 1 of 4

Technical data sheet

Actuator sensor interface · M12 / valve suppressor

Thread material Zinc die-casting, nickel-plated

Mounting Breakaway torque 0.4 Nm

Number of conductors/cross-section 3 × 0.5 mm²

Number of conductors 3

Jacket material PUR

Jacket color black

Conductor insulation PP

Cable diameter 4.5 mm

Minimum bending radius moving 10×D

Storage temperature range -30 °C . .. +90 °C

Temperature range connector -20 °C . .. +85 °C

Temperature range fixed -40 °C . .. +80 °C

Temperature range moving -20 °C . . . +80 °C

C-track chain properties Type B

Conduction properties (TYPE A+B+C) PUR halogen free for extreme demands

Very good chemical stability
Very resistant to oils and lubricants
Very high abrasion resistance
Halogen free
Silicone free, free of paint wetting impairment substances
Resistant to microbes and hydrolysis
Good UV stability

Weight/unit 0.053 kg

PU (units) 1

Technical data

Rated voltage U

N

AC/DC 24 V

Rated voltage min. 10 V

Operating voltage max. 28 V

Rated current 4 A

Rated frequency f

N

50 Hz / 60 Hz

Protection device Z-diode + LED

Pole number 3

Cable length 0.6 m

Status indication LED yellow

Current Consumption 10 mA

Cut-off peak ≤52 V

Holding Capacity 100 VA

Coding A

Certifications/Standards

UV-resistant according to DIN EN ISO 4892-2-A

Certifications cULus Listed (E224249)

Standards EN 175301-803

03.05.2022 – Subject to technical modification

Part No.

435006 • Datasheet version: 00 page 2 of 4

Technical data sheet

Actuator sensor interface · M12 / valve suppressor

Equipment/Spare parts

Accessories Torque setting tool M 12: Part-No. 490091 | DM-SET M12 | PU: 1 unit

Notes and Comments

Comments

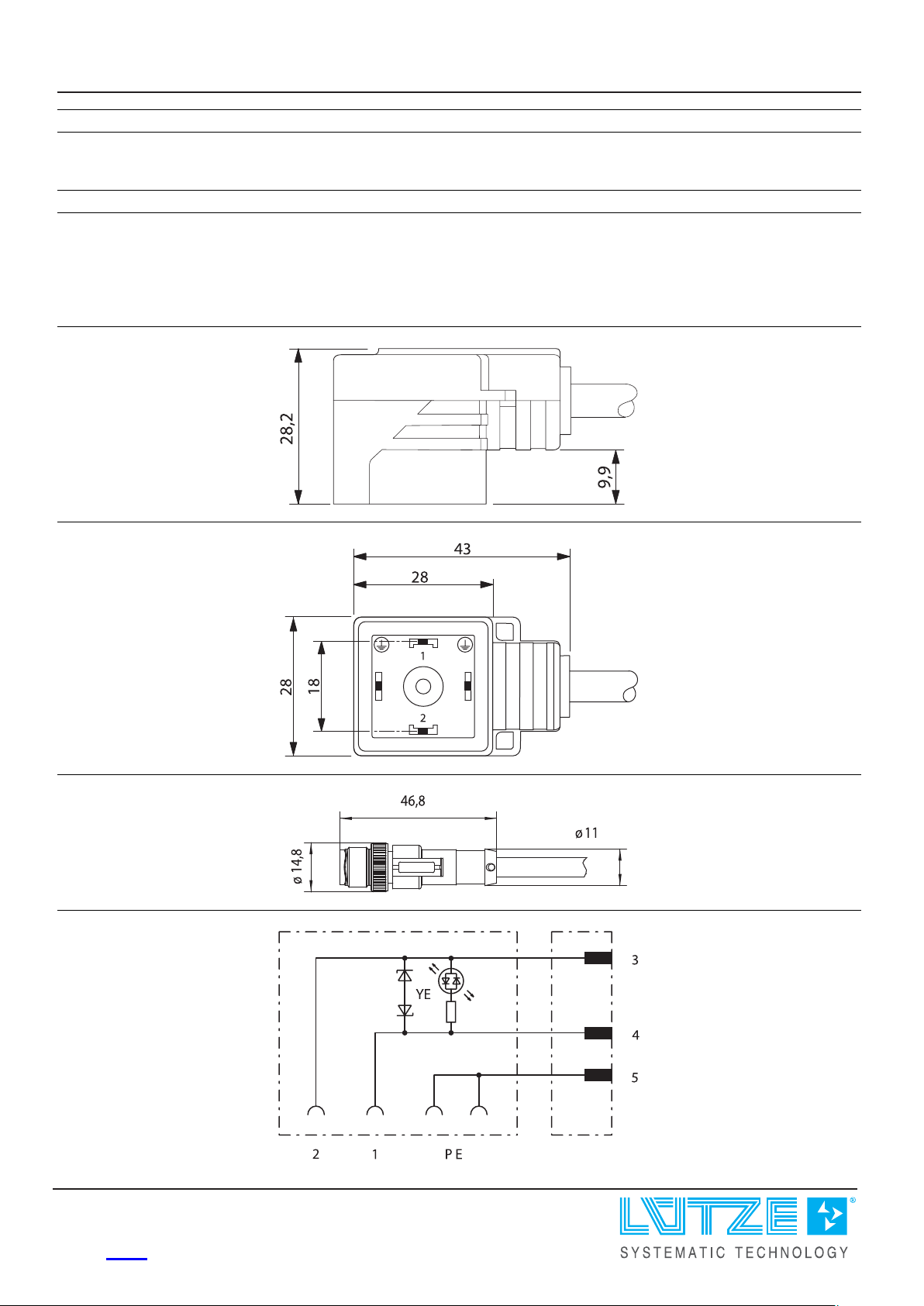

Dimensions

Dimensions

Silicone free, Free from paint wetting impairment substances, resistant
to microbes and hydrolysis Very good resistance to acids, alkalines and
solvents. The material resistance is based on the application for u se with
aggressive media.

Dimensions

PIN assignment

03.05.2022 – Subject to technical modification

Part No. 435006 • Datasheet version: 00 page 3 of 4

Technical data sheet

Actuator sensor interface · M12 / valve suppressor

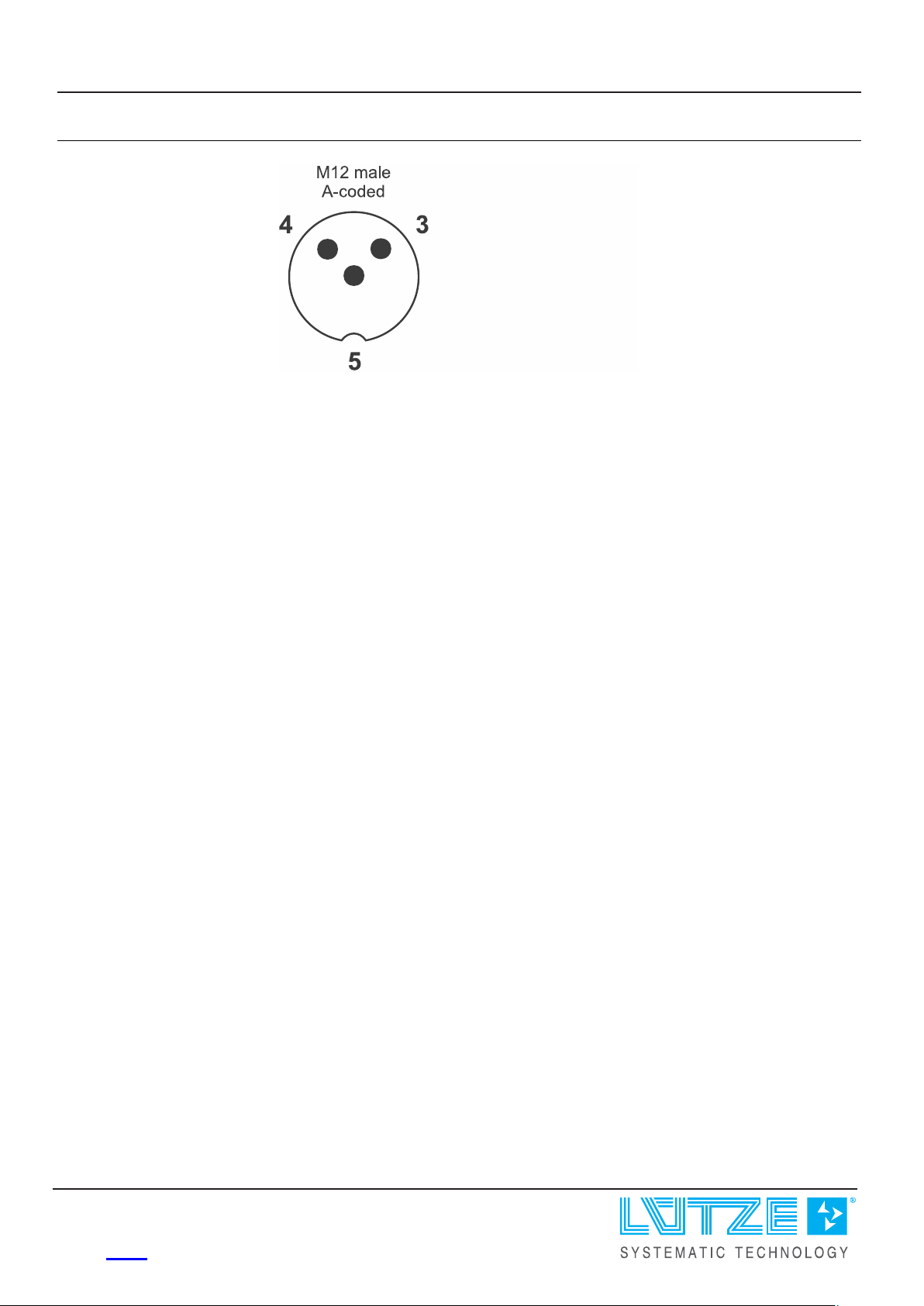

Pin layout
