Page 1
Technical data sheet
Wiring Accessories · Comb cover
Comb cover
Identification
Type KD060
Part-No. 380820.2000
Product version
Datasheet version 00
Description
Comb cover
Description Comb cover for closing the spaces between the comb profiles.
Technical data
for frame width 2000 mm
Length 2000 mm
General
Material PC+ABS (halogen-free)
Surface smooth
Halogen free according to VDE 0472-815
Color grey RAL 7035
Flammability rating UL 94 HB
PU 10 m
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 380820.2000 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Wiring Accessories · Comb cover

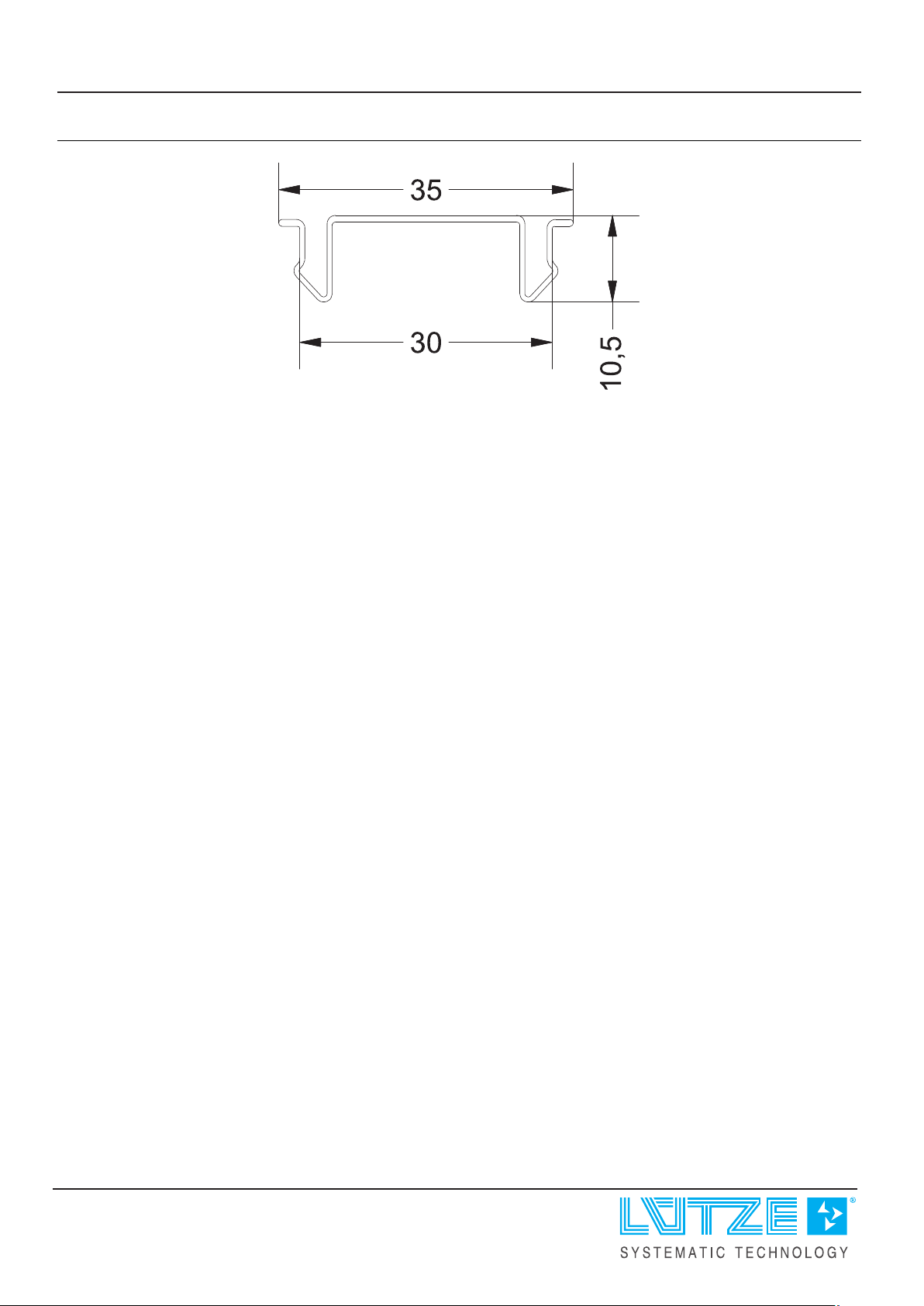

Dimensions
13.04.2021 – Subject to technical modification
Part-No. 380820.2000 • Datasheet version: 00 page 2 of 2
