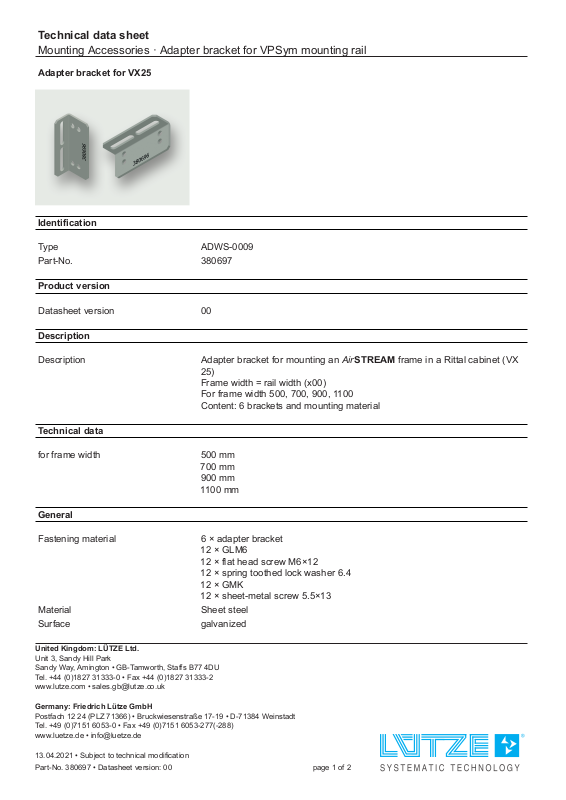

Technical data sheet
Mounting Accessories · Adapter bracket for VPSym mounting rail

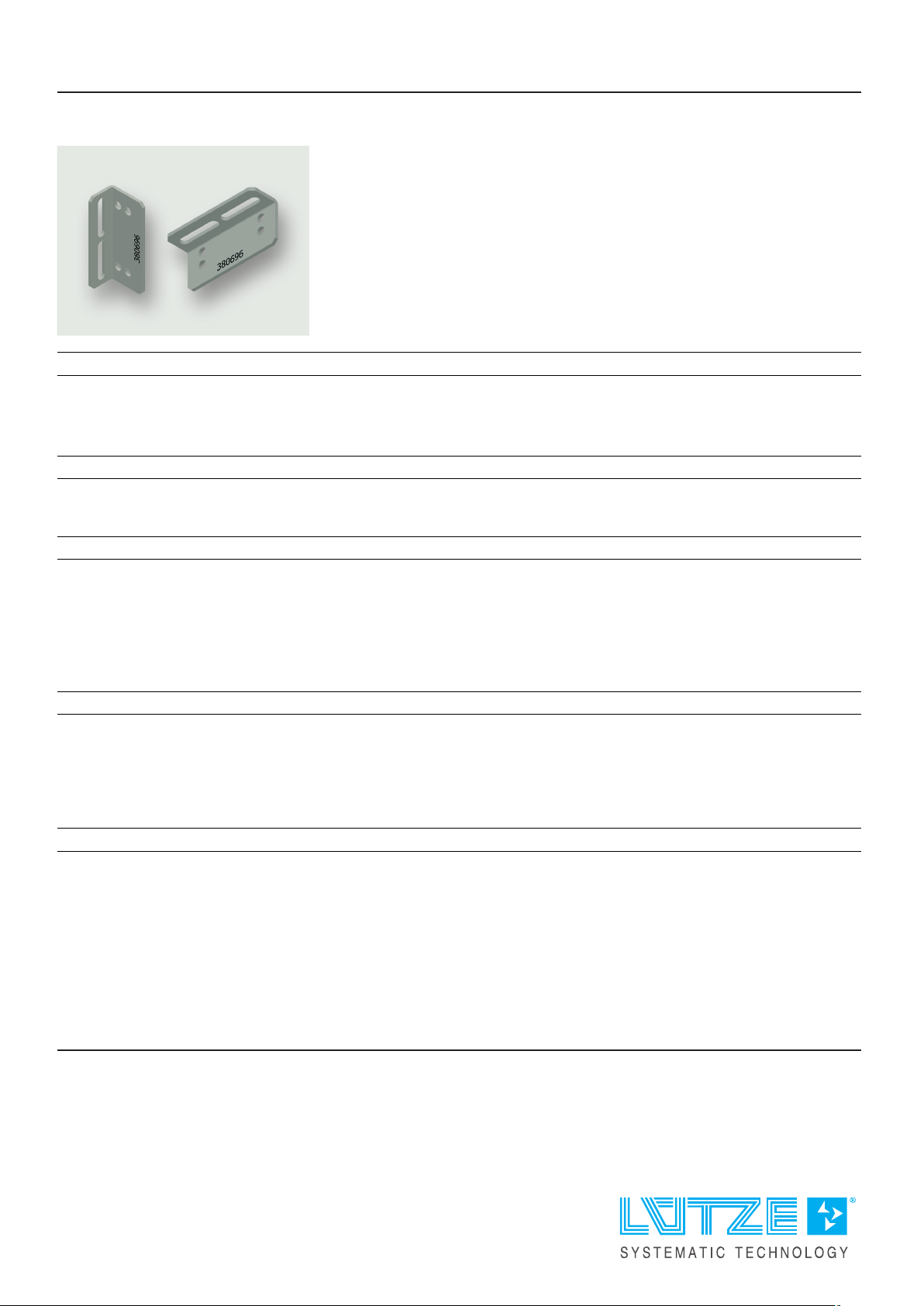

Adapter bracket for VX25
Identification
Type ADWS-0009
Part-No. 380697
Product version
Datasheet version 00
Description
Description
Adapter bracket for mounting an AirSTREAM frame in a Rittal cabinet (VX
25)
Frame width = rail width (x00)
For frame width 500, 700, 900, 1100
Content: 6 brackets and mounting material
Technical data
for frame width 500 mm
700 mm
900 mm
1100 mm
General
Fastening material 6 × adapter bracket
12 × GLM6
12 × flat head screw M6×12
12 × spring toothed lock washer 6.4
12 × GMK
12 × sheet-metal screw 5.5×13
Material Sheet steel
Surface galvanized
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 380697 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Mounting Accessories · Adapter bracket for VPSym mounting rail
Weight/unit 0.522 kg
PU (units) 1
13.04.2021 – Subject to technical modification
Part-No. 380697 • Datasheet version: 00 page 2 of 2
