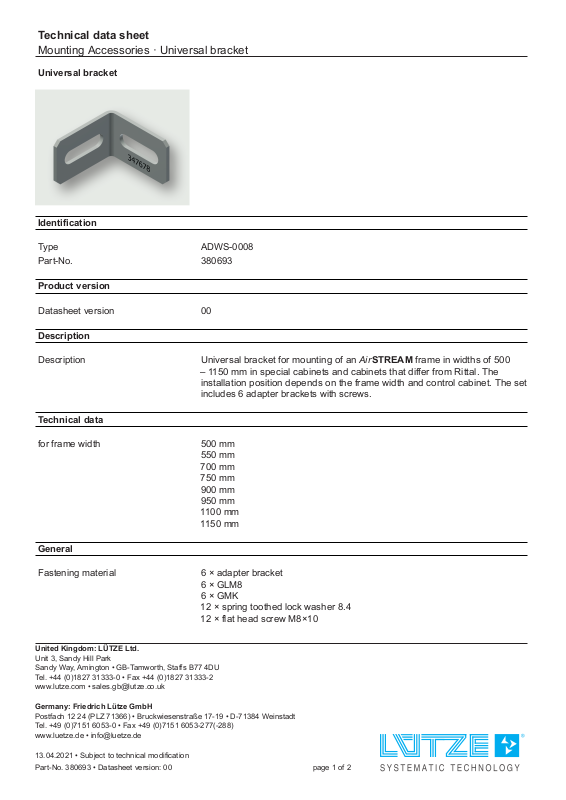

Technical data sheet
Mounting Accessories · Universal bracket
Universal bracket
Identification
Type ADWS-0008
Part-No. 380693
Product version
Datasheet version 00
Description
Description
Universal bracket for mounting of an AirSTREAM frame in widths of 500
– 1150 mm in special cabinets and cabinets that differ from Rittal. The
installation position depends on the frame width and control cabinet. The set
includes 6 adapter brackets with screws.
Technical data
for frame width 500 mm
550 mm
700 mm
750 mm
900 mm
950 mm
1100 mm
1150 mm
General
Fastening material 6 × adapter bracket
6 × GLM8
6 × GMK
12 × spring toothed lock washer 8.4
12 × flat head screw M8×10
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 380693 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Mounting Accessories · Universal bracket
Material Sheet steel
Surface galvanized
PU (units) 1
13.04.2021 – Subject to technical modification
Part-No. 380693 • Datasheet version: 00 page 2 of 2
