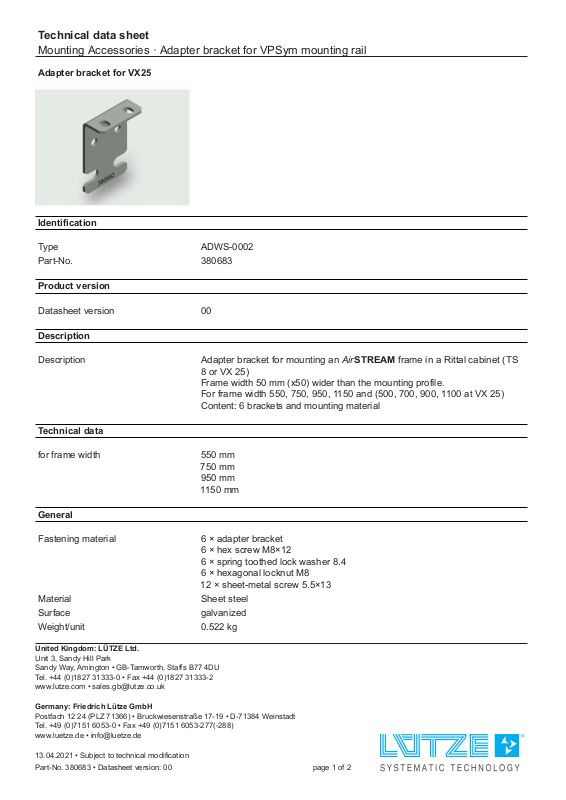

Technical data sheet
Mounting Accessories · Adapter bracket for VPSym mounting rail

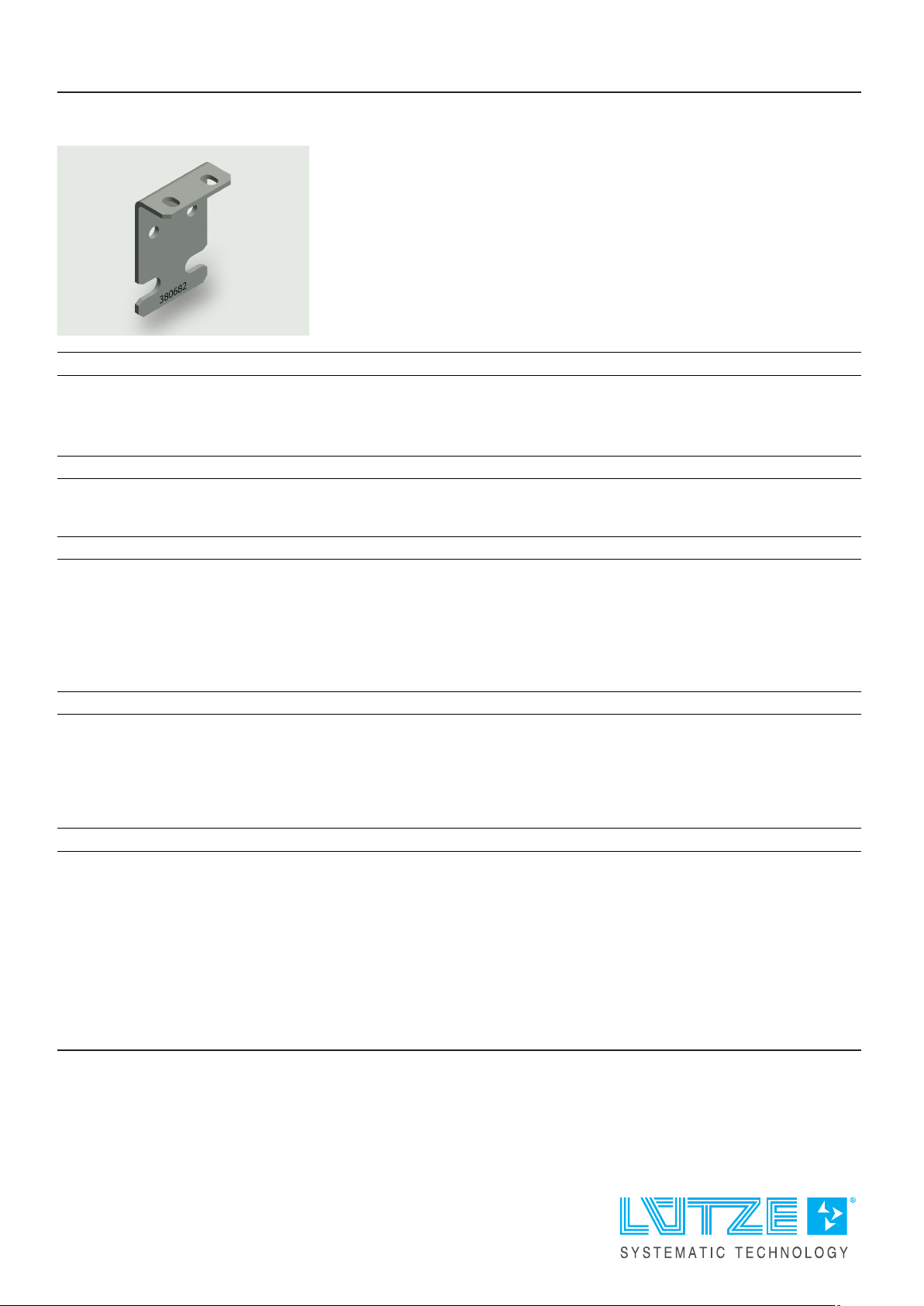

Adapter bracket for VX25
Identification
Type ADWS-0002
Part-No. 380683
Product version
Datasheet version 00
Description
Description
Adapter bracket for mounting an AirSTREAM frame in a Rittal cabinet (TS
8 or VX 25)
Frame width 50 mm (x50) wider than the mounting profile.
For frame width 550, 750, 950, 1150 and (500, 700, 900, 1100 at VX 25)
Content: 6 brackets and mounting material
Technical data
for frame width 550 mm
750 mm
950 mm
1150 mm
General
Fastening material 6 × adapter bracket
6 × hex screw M8×12
6 × spring toothed lock washer 8.4
6 × hexagonal locknut M8
12 × sheet-metal screw 5.5×13
Material Sheet steel
Surface galvanized
Weight/unit 0.522 kg
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
13.04.2021 • Subject to technical modification
Part-No. 380683 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Mounting Accessories · Adapter bracket for VPSym mounting rail
PU (units) 1

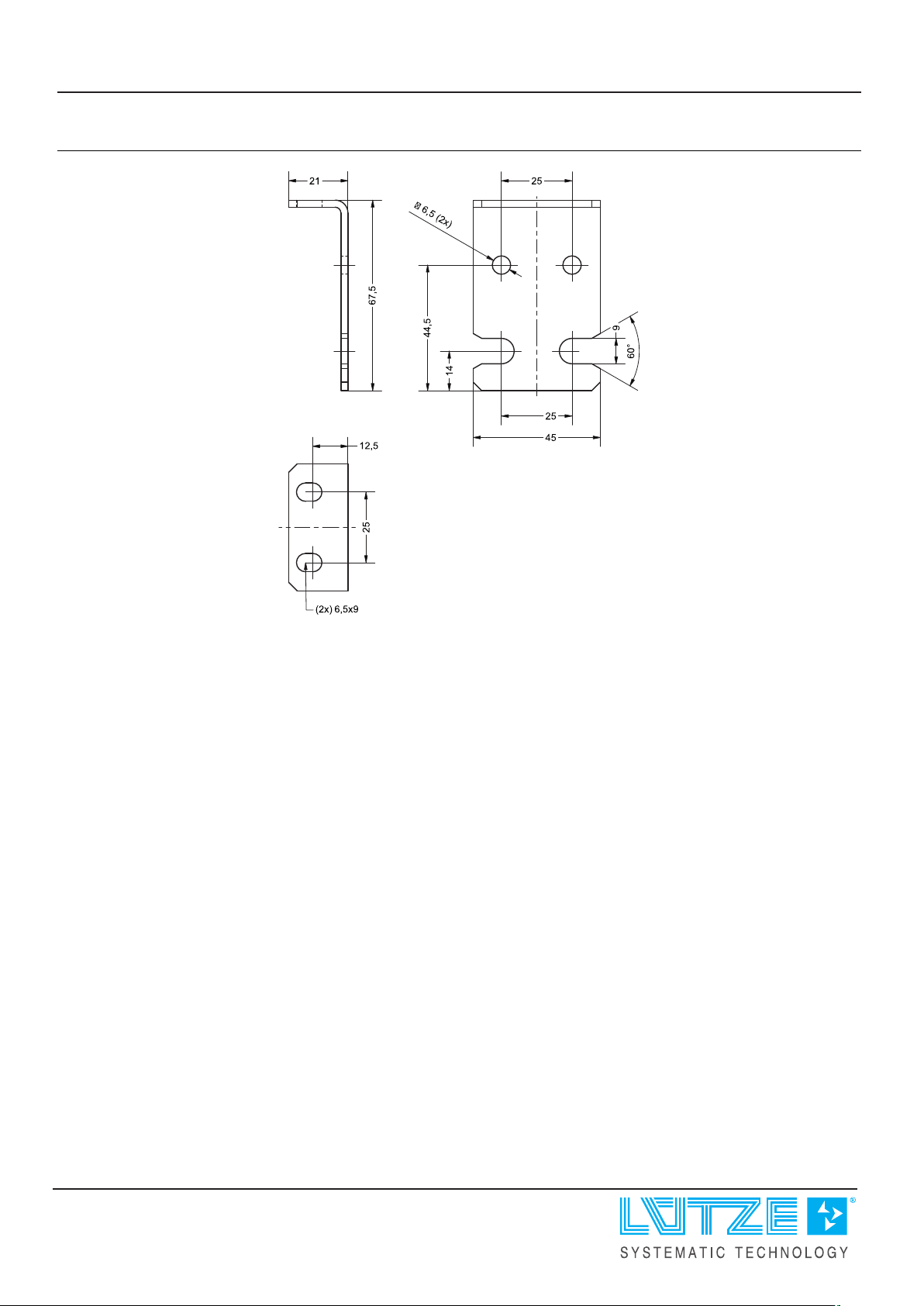

Dimensions
13.04.2021 – Subject to technical modification
Part-No. 380683 • Datasheet version: 00 page 2 of 2
