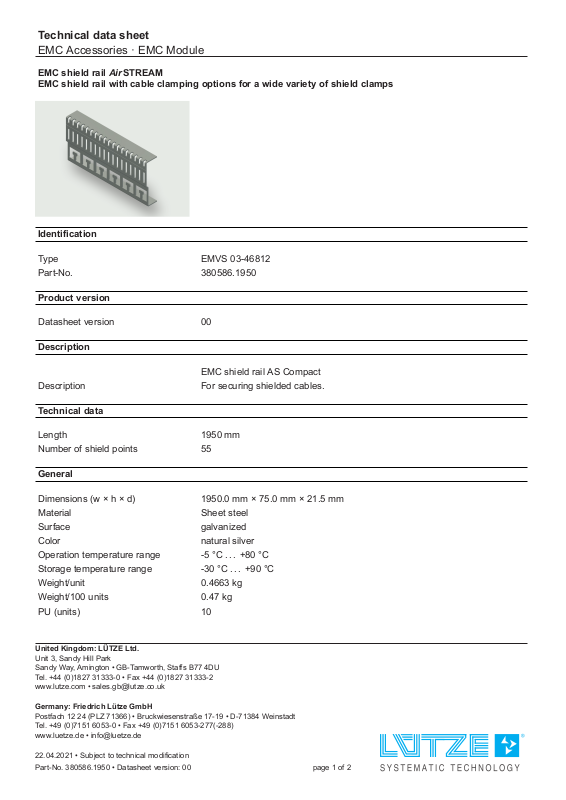

Page 1
Technical data sheet
EMC Accessories · EMC Module
EMC shield rail AirSTREAM
EMC shield rail with cable clamping options for a wide variety of shield clamps
Identification
Type EMVS 03-46812
Part-No. 380586.1950
Product version
Datasheet version 00
Description
EMC shield rail AS Compact
Description For securing shielded cables.
Technical data
Length 1950 mm
Number of shield points 55
General
Dimensions (w × h × d) 1950.0 mm × 75.0 mm × 21.5 mm
Material Sheet steel
Surface galvanized
Color natural silver
Operation temperature range -5 °C . . . +80 °C
Storage temperature range -30 °C . . . +90 °C
Weight/unit 0.4663 kg
Weight/100 units 0.47 kg
PU (units) 10
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
22.04.2021 • Subject to technical modification
Part-No. 380586.1950 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
EMC Accessories · EMC Module
Accessories
Accessories Bracket: Part-No. 346814.0010 | Haltewinkel f. EMVS 04 | PU: 10 units
Dimensions
22.04.2021 – Subject to technical modification
Part-No. 380586.1950 • Datasheet version: 00 page 2 of 2
