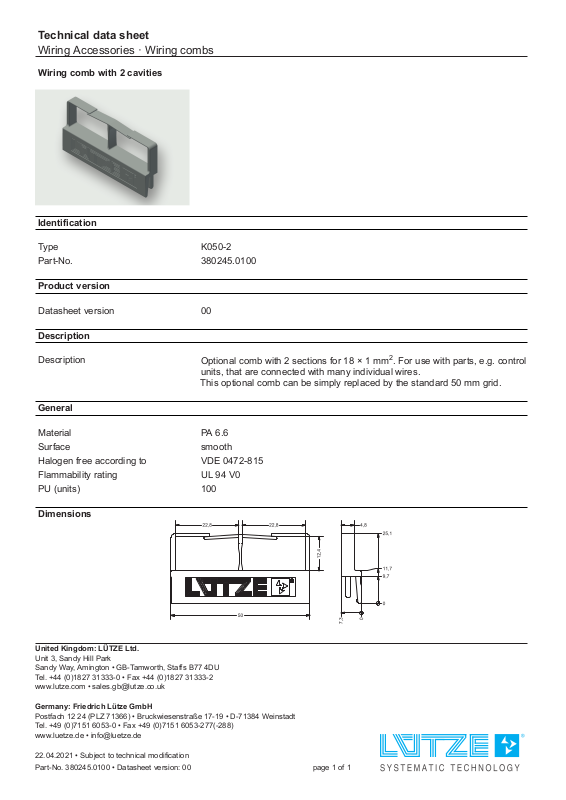

Technical data sheet
Wiring Accessories · Wiring combs
Wiring comb with 2 cavities
Identification
Type K050-2
Part-No. 380245.0100
Product version
Datasheet version 00
Description
Description
Optional comb with 2 sections for 18 × 1 mm2. For use with parts, e.g. control
units, that are connected with many individual wires.
This optional comb can be simply replaced by the standard 50 mm grid.
General
Material PA 6.6
Surface smooth
Halogen free according to VDE 0472-815
Flammability rating UL 94 V0
PU (units) 100
Dimensions
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
22.04.2021 • Subject to technical modification
Part-No. 380245.0100 • Datasheet version: 00 page 1 of 1
