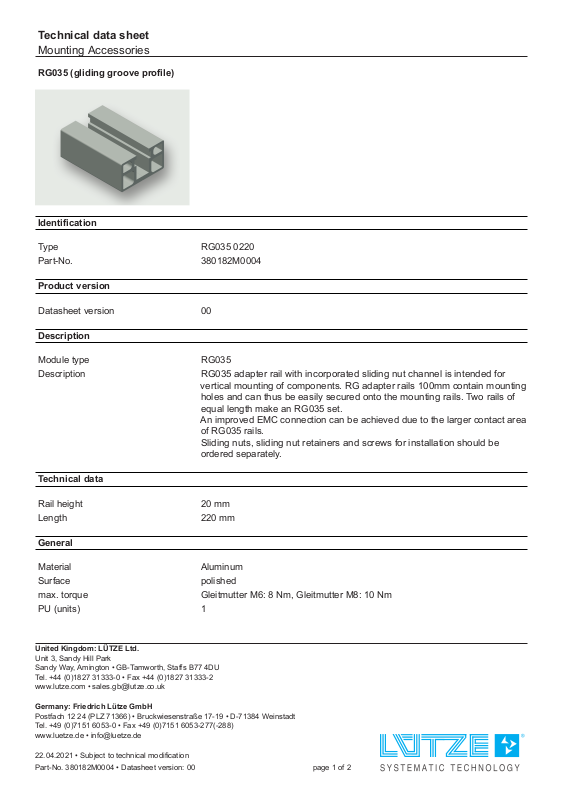

Page 1
Technical data sheet
Mounting Accessories
RG035 (gliding groove profile)
Identification
Type RG035 0220
Part-No. 380182M0004
Product version
Datasheet version 00
Description
Module type RG035
Description
RG035 adapter rail with incorporated sliding nut channel is intended for
vertical mounting of components. RG adapter rails 100mm contain mounting
holes and can thus be easily secured onto the mounting rails. Two rails of
equal length make an RG035 set.
An improved EMC connection can be achieved due to the larger contact area
of RG035 rails.
Sliding nuts, sliding nut retainers and screws for installation should be
ordered separately.
Technical data
Rail height 20 mm
Length 220 mm
General
Material Aluminum
Surface polished
max. torque Gleitmutter M6: 8 Nm, Gleitmutter M8: 10 Nm
PU (units) 1
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
22.04.2021 • Subject to technical modification
Part-No. 380182M0004 • Datasheet version: 00 page 1 of 2
Page 2
Technical data sheet
Mounting Accessories

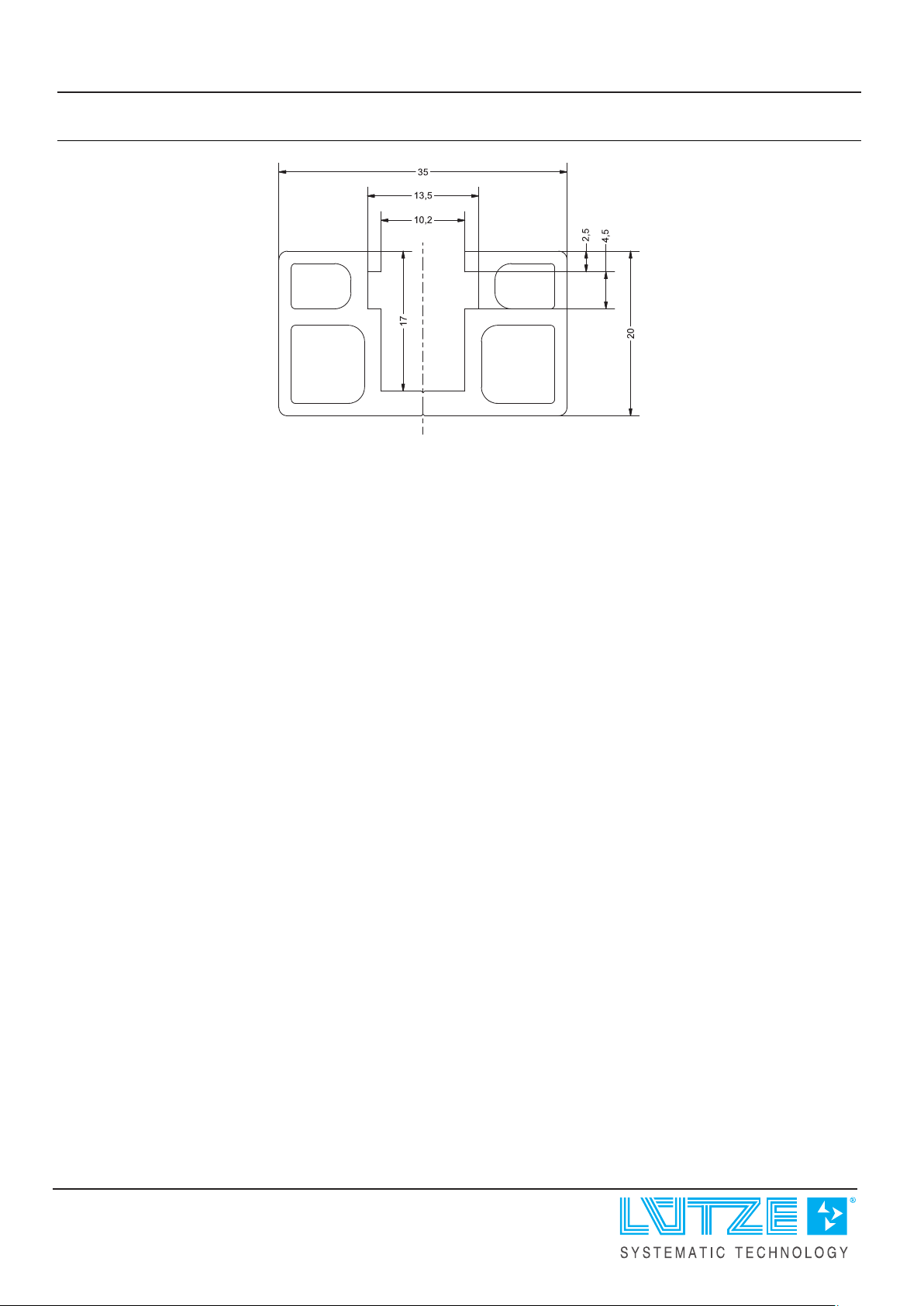

Dimensions
22.04.2021 – Subject to technical modification
Part-No. 380182M0004 • Datasheet version: 00 page 2 of 2
