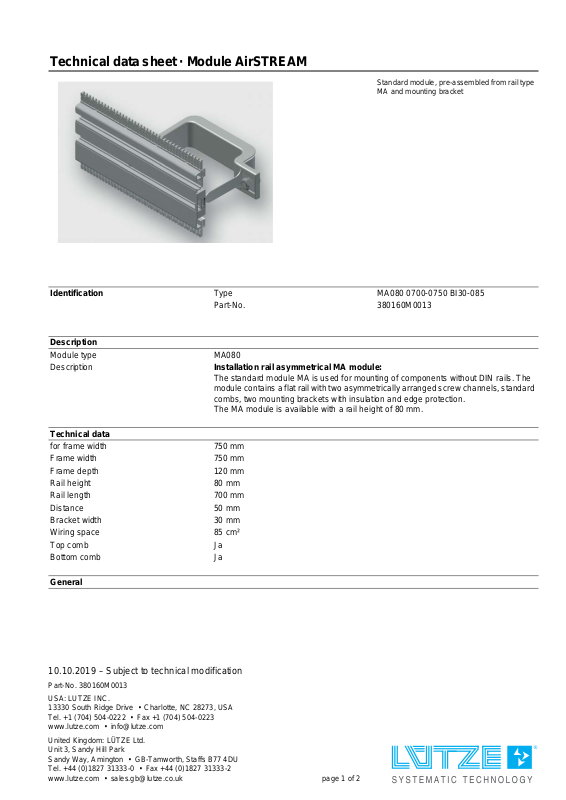

Technical data sheet · Module AirSTREAM

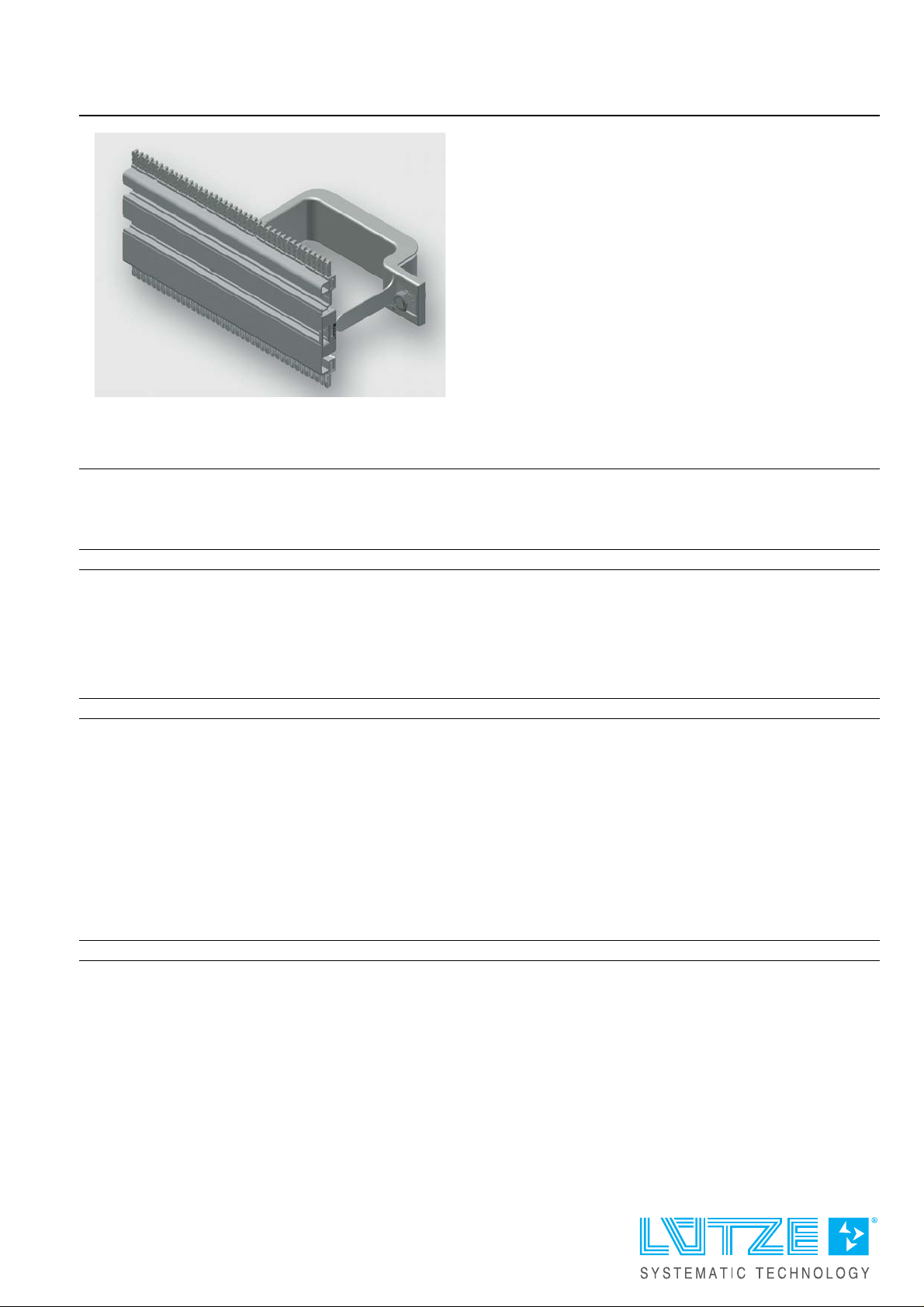

Standard module, pre-assembled from rail type
MA and mounting bracket
Subject to technical modification 380160M0013
Identification Type MA080 0700-0750 BI30-085
Part-No. 380160M0013
Description
Module type MA080
Description Installation rail asymmetrical MA module:
The standard module MA is used for mounting of components without DIN rails. The
module contains a flat rail with two asymmetrically arranged screw channels, standard
combs, two mounting brackets with insulation and edge protection.
The MA module is available with a rail height of 80 mm.
Technical data
for frame width 750 mm
Frame width 750 mm
Frame depth 120 mm
Rail height 80 mm
Rail length 700 mm
Distance 50 mm
Bracket width 30 mm
Wiring space 85 cm²
Top comb Ja
Bottom comb Ja
General
10.10.2019 – Subject to technical modification
Part-No. 380160M0013
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 2
Page 2
Technical data sheet · Module AirSTREAM
Material Aluminum
Surface bright

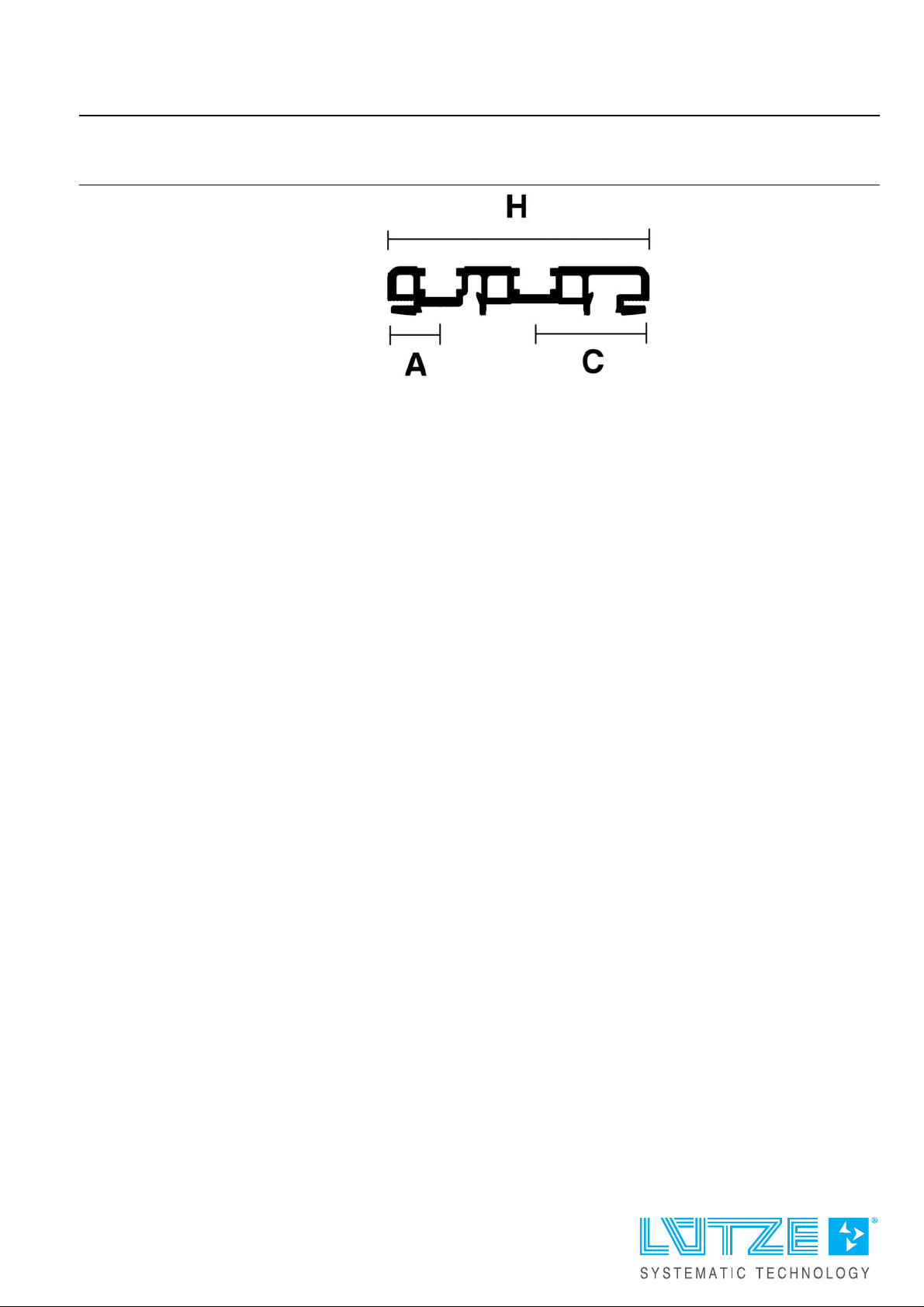

Dimensions
